RODE - RODE AI- Studio-Quality USB Audio Interface

Merk: RODE
  • 1 tot 3 werkdagen
€129,00 (€106,61 Excl. btw)
Ai-1 Single channel Audio interface with combo XLR/instrument input, High quality headphone amp and Balanced 1/4 inch outputs...Meer informatie
+31 (0) 316 294 700
Scherpe offertes
Passend advies
Maatwerk en Service
Product informatie

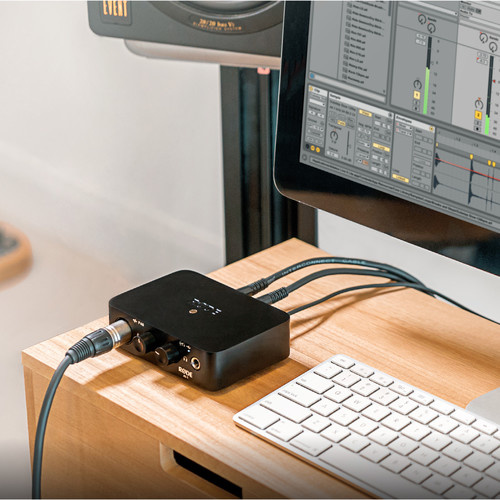

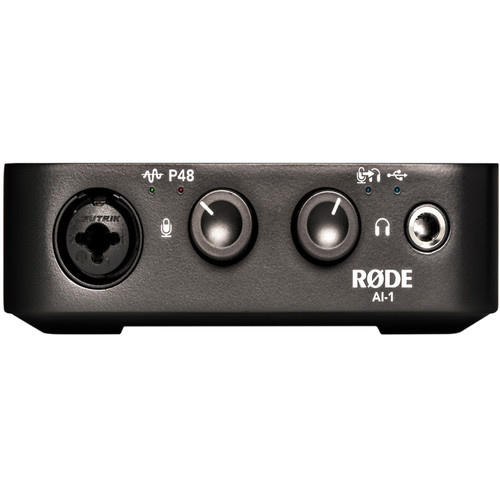

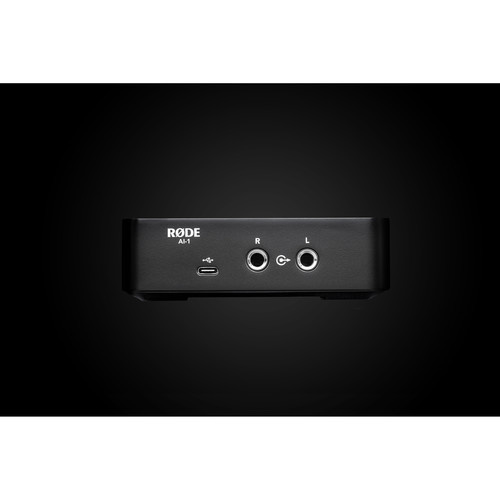

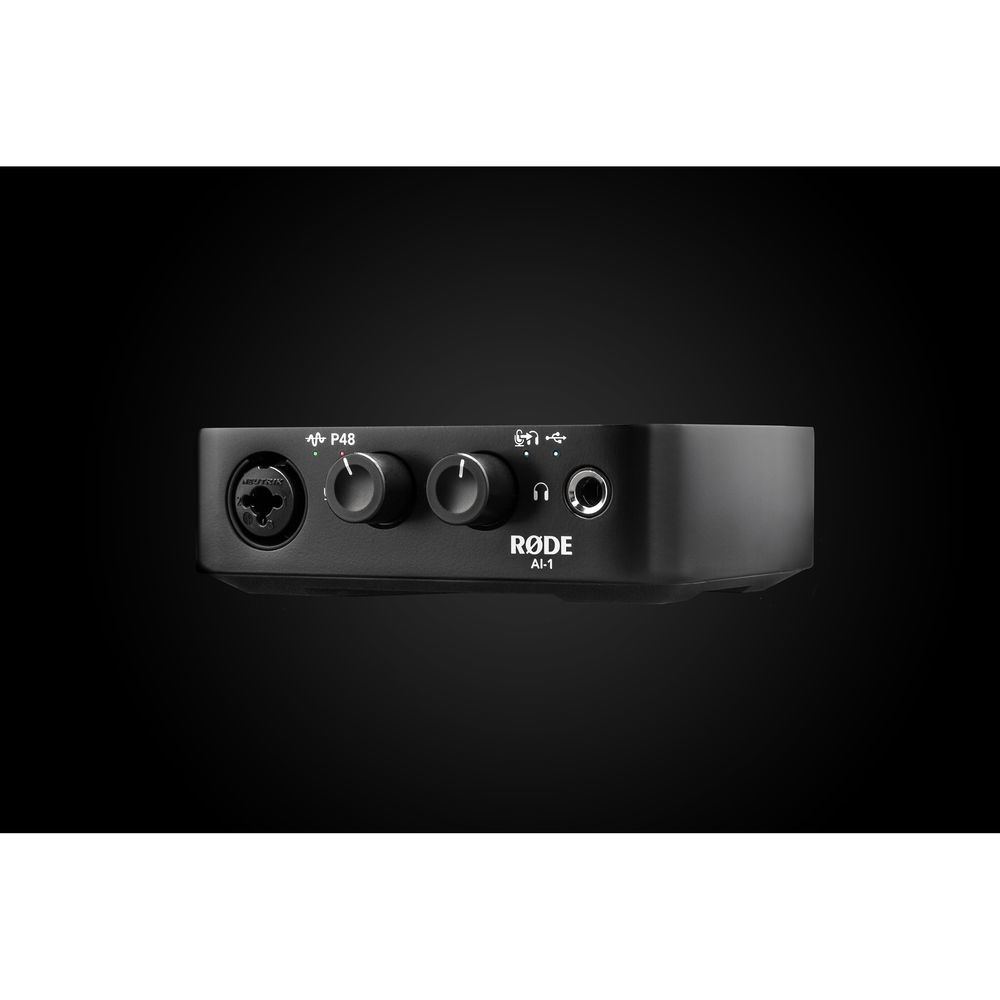

The Rode AI-1 is a studio-quality audio interface well suited for recording vocals, instruments, and voice-overs into your Mac or Windows computer. The interface features a single, combo XLR-1/4" input with phantom power, two balanced 1/4" monitor outputs, and a single, discrete, studio-quality headphone output and level control. The device can operate in zero-latency monitoring mode, which connects the preamp directly to the headphone output for delay-free performance while recording. With the headphone input engaged, the two monitor outputs are bypassed. To engage the monitor outputs, simply remove the headphone plug from the jack.



The rugged aluminum body is finished with a satin black finish and features large rubber feet, which prevents the desktop interface from sliding about when engaged. The class compliant AI-1 requires no drivers and features a USB-C connector, which not only connect to your computer, but also provides powers as well. The Rode AI-1 ships with a USB cable and a license for Ableton Live Lite.



  • Desktop USB audio interface with low-noise Class-A discrete preamplifier
  • Sampling rate of up to 96kHz/24-bit
  • One combo XLR-1/4" combo input
  • Two balanced 1/4" monitor outputs
  • One discrete, studio-quality headphone output
  • Phantom power for condenser microphones
  • Zero-latency monitor mode
  • USB bus powered
  • USB Type-C connector for future proof operation
  • Rugged body with Satin Black Finish
  • Class compliant—no drivers required
  • Includes Ableton Live Lite
  • Includes USB cable



Technische specificaties



    Rode Ai1 Specs



    Interface

    Max Sample Rate/Resolution

    96 kHz / 24-Bit

    Connectivity

    Host Connection

    USB Type-C

    Analog I/O

    1 x Combo XLR / 1/4" Input
    2 x 1/4" (6.3 mm) Balanced Output
    1 x 1/4" (6.3 mm) TRS Headphone Output

    Phantom Power

    +48 V

    Digital I/O

    None

    MIDI I/O

    None

    Performance

    Frequency Response

    20 Hz to 20 kHz ±1 dB

    Gain Range

    Inputs:
    0 to 45 dB

    Max Output Level

    Monitor Outputs:
    -6 dBu

    Headphone Output Power

    24 mW into 32 Ohms
    245 mW into 300 Ohms

    Dynamic Range

    104 dBu

    Impedance

    Hi-Z Inputs:
    0.9 MOhm
    Mic Inputs:
    1.3 kOhms

    EIN

    -128 dBA

    Digital Audio

    Sample Rates

    44.1, 48, 88.2, and 96 kHz

    Bit Depth

    24-Bit

    Latency

    Zero-Latency Direct Monitoring

    Compatibility

    OS Compatibility

    macOS 10.10 or Later
    Windows 7 or Later

    Physical

    Dimensions

    3.9 x 4.9 x 1.5" / 100 x 124 x 38 mm

    Weight

    19.8 oz / 561.3 g

    Packaging Info

    Package Weight

    1.155 lb

    Box Dimensions (LxWxH)

    7 x 5.1 x 2.55"
