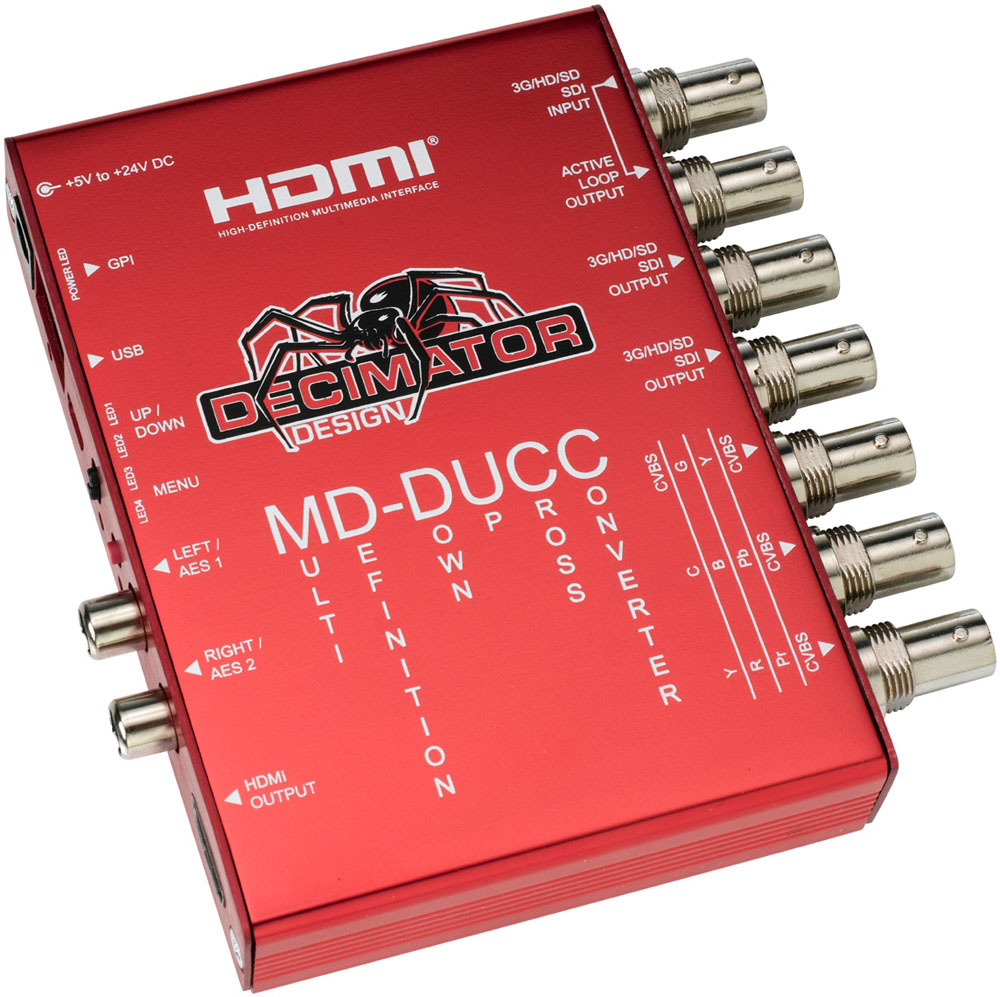

Decimator Design MD-DUCC - Multi-Definition UpDownCross Converter

  • Direct leverbaar
€535,00 (€442,15 Excl. btw)
Converter to convert ANY video format/frame rate to ANY other video format/frame rate...Meer informatie
+31 (0)316 294700
Scherpe offertes
Passend advies
Maatwerk en Service
Product informatie

A low cost converter to convert ANY video format/frame rate to ANY other video format/frame rate.


  • Auto detects 3G, HD or SD (26 Formats in total)


  • Full 10-bit data path and multipoint interpolation


  • Professional motion-adaptive de-interlacing


  • True Down Up Cross conversion, allowing the conversion between any of the supported formats. Simply select the output format you require, no matter what the input format is


  • Complete 16:9, 14:9 and 4:3 Aspect ratio conversion support, with individual selection for HD to HD, HD to SD, SD to HD and SD to SD conversions


  • Full 16-Channel Audio metering with:
    Any of the 4 audio groups individually selectable
    Vertical or Horizontal Bars
    AES, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
    Bar & Float, Bar only or Float only
    Transparency adjustment
    Separate Bar and Float Ballistics control
    Adjustable Reference level
    Red, Yellow and Green Range adjustment
    Bar thickness adjustment
    Margin adjustment


  • Adjustable Graticules Generator with:
    Separate enables for Safe Action, Safe Title and Centre Cross
    Adjustable position for either Safe Action or Safe Title
    Adjustable colours for Safe Action, Safe Title and Centre Cross


  • Text Overlays with:
    Adjustable Foreground and Background colours
    Adjustable 16 character text
    Current input format status

Technische specificaties

    • HDMI output


    • Selectable analog video from: 3 x CVBS / YPbPr / RGB / CVBS & YC


    • 2 x (3G/HD/SD)-SDI 10-bit outputs with audio from input automatically delayed and passed


    • GPI on RJ-45 for Tallies


    • 3G/HD/SD-SDI Active Loop-Through Output


    • De-Embedded audio can be output on 2 x RCA connectors as either AES or Analogue with

    adjustable analogue audio level


    • LEDs for status and buttons for basic configuration


    • USB port for control and firmware updates


    • Locking DC Power Socket


In de doos

  • Power Supply
  • HDMI Cable
  • USB Cable
  • Mounting Bracket
