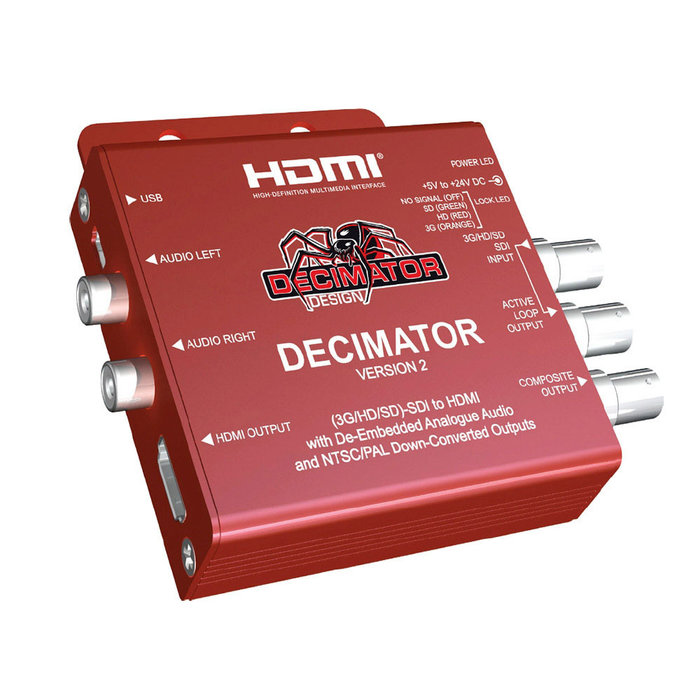

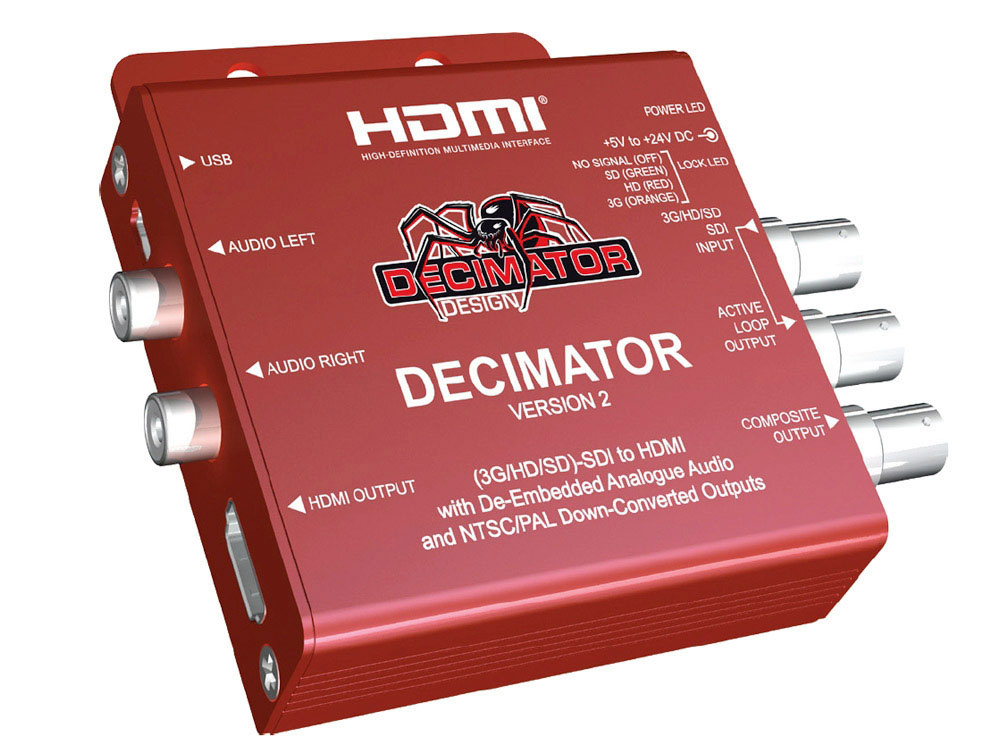

Decimator Design DECIMATOR 2 - SDI to HDMI Converter

  • Vanuit voorraad leverancier, ca. 1 - 3 werkdagen
€390,00 (€322,31 Excl. btw)
3G/HD/SD-SDI to NTSC/PAL Composite Down Converter with HDMI Output...Meer informatie
+31 (0) 316 294 700
Scherpe offertes
Passend advies
Maatwerk en Service
Product informatie
  • Auto detects 3G, HD or SD (26 Formats in total) and can handle switching of synchronous sources



  • Simultaneous scaling on both the HDMI and Composite outputs with a maximum delay of 1 input frame



  • HDMI output with optional full scaling and aspect ratio conversion.

Technische specificaties

    • Down-converted Composite output with:
    • NTSC or PAL is selectable for 3G/HD inputs
    • SD will be passed unchanged
    • Low latency 3G/HD to SD Down-conversion with ARC (Aspect Ratio Conversion) of either:
    • 16:9 to 16:9 Anamorphic
    • 16:9 to 4:3 Letterbox
    • 16:9 to 4:3 Centre Cut (Crop to 4:3)
    • Full 10-bit data path and multipoint interpolation
    • 16 times over-sampling for Composite Output



    • Passes EIA-708/608 Closed Captions to the Composite Output



    • Full 16-Channel Audio metering displayed on the HDMI output with:
    • Any of the 4 audio groups individually selectable
    • Vertical or Horizontal Bars
    • AES/EBU, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
    • Bar & Float, Bar only or Float only
    • Transparency adjustment
    • Separate Bar and Float Ballistics control
    • Adjustable Reference level
    • Red, Yellow and Green Range adjustment
    • Bar thickness adjustment
    • Margin adjustment



    • Adjustable Graticules Generator displayed on the HDMI output with:
    • Separate enables for Safe Action, Safe Title and Centre Cross
    • Adjustable position for either Safe Action or Safe Title
    • Adjustable colours for Safe Action, Safe Title and Centre Cross



    • Text Overlays displayed on the HDMI output with:
    • Adjustable Foreground and Background colours
    • Adjustable 16 character text
    • Current input format status



    • De-Embedded Analogue Audio is output on 2 x RCA connectors at -10dBu = -20dBFS



    • 3G/HD/SD-SDI Active Loop-Through Output External Dip-Switch Configuration



    • USB port for control and firmware updates



    • Locking DC Power Socket

In de doos

  • Power Supply
  • HDMI Cable
  • USB Cable
  • Mounting Bracket
