Swit KA-M20S Hot Swap Battery Plate

Merk: Swit
  • Vanuit voorraad leverancier, ca. 1 - 3 werkdagen
€179,00 (€147,93 Excl. btw)
Fits 2x PB-M Pocket V-mount Batteries / Hot swap mode / High load mode...Meer informatie
+31 (0) 316 294 700
Scherpe offertes
Passend advies
Maatwerk en Service
Product informatie
  • EAN: 6948193507491

Pocket V-mount Batteries Extender



Hot swap application

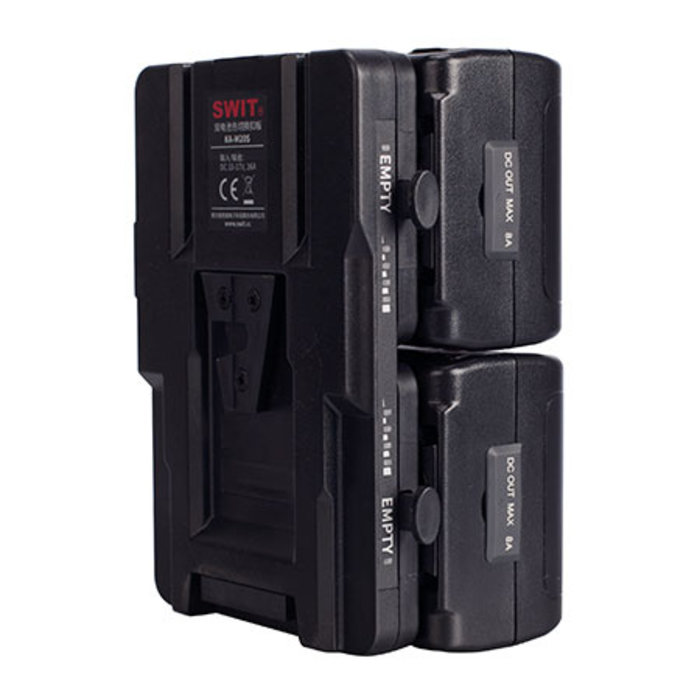

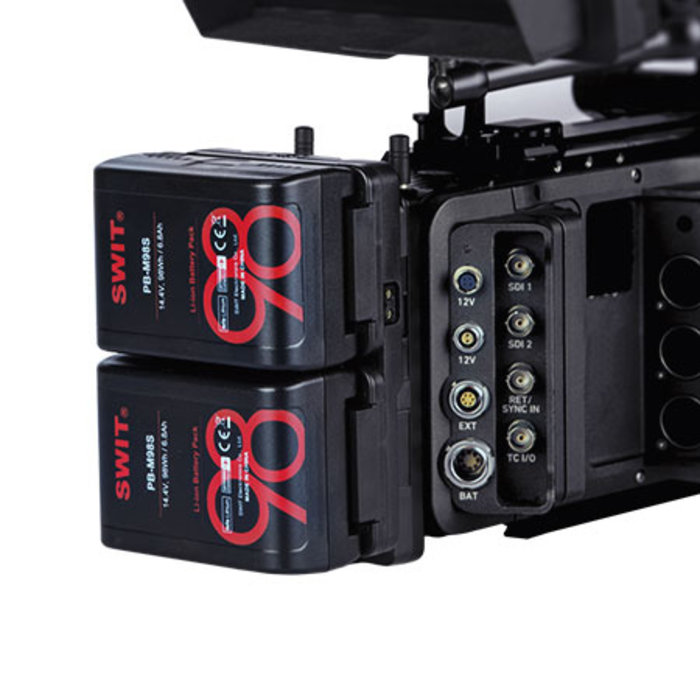

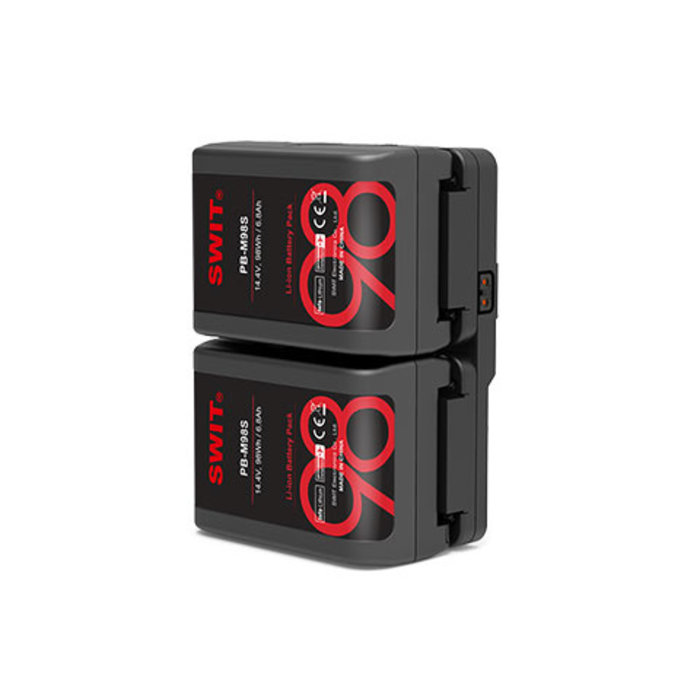

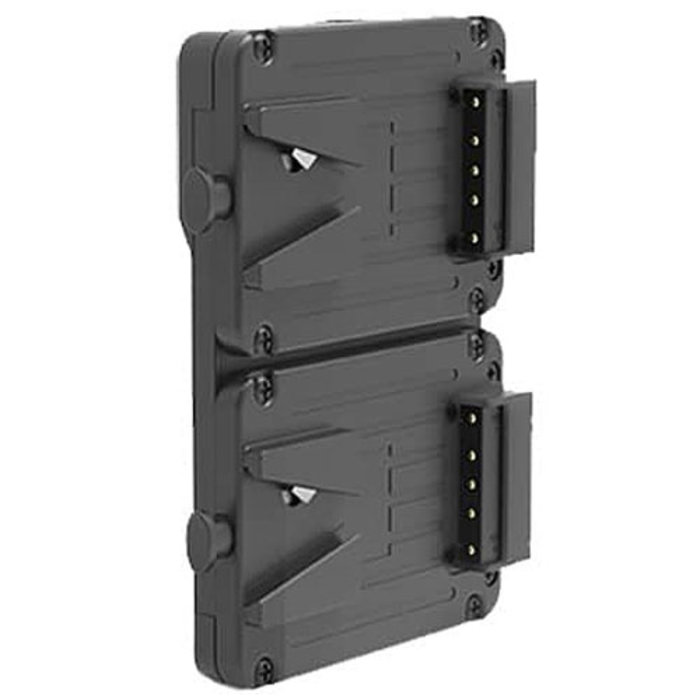

KA-M20S is an extender plate for SWIT Pocket V-mount Batteries. Installed with 2x PB-M series batteries, the size is equivalent to a standard large capacity V-mount battery, and the KA-M20S plate can draw the 2 batteries one-by-one as hot swap mode, or use together as high load mode.



Two Power Modes


Hot Swap mode and High Load mode


When the device power consumption is less than single PB-M battery Max load (PB-M98S 100W load), the KA-M20S would be “Hot Swap mode” – 2 batteries one-by-one using, and the free battery can be changed any time.
When the device power consumption is more than single PB-M battery Max load (PB-M98S 100W load), the KA-M20S would be “High Load mode” – 2 batteries using together, and none of the batteries can be removed.
The Hot Swap mode and High Load mode can be automatically switched according to current power consumption of the device.



Power/Hot Swap Indicators



There’re independent power indicators for both batteries. The flashing of top power LED indicates this battery is discharging. And the flashing of EMPTY LED means this battery is empty and need to change in time.



2 D-tap Power Output

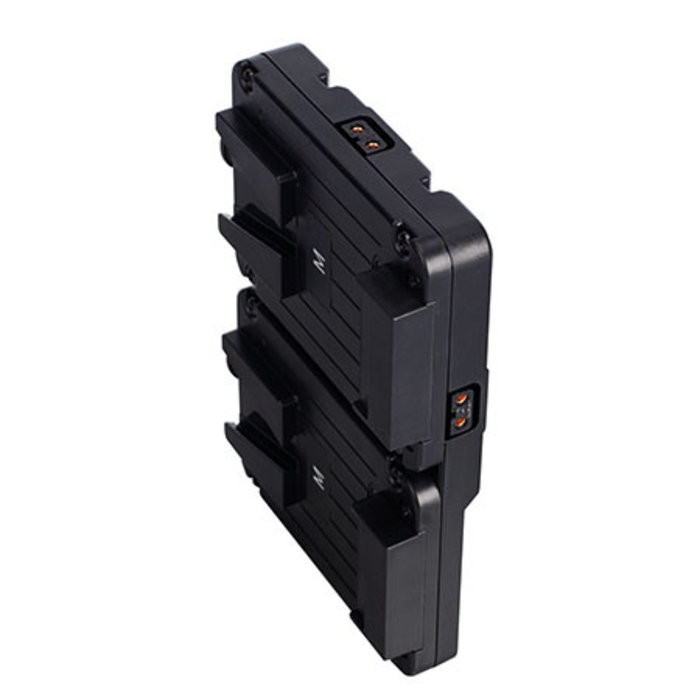

There’re 2 D-tap sockets on the top side and right side of the KA-M20S plate, for flexible connection to various cameras.

Technische specificaties

    Input

    SWIT PB-M series Pocket V-mount Batteries x2

    Output

    V-mount 11-16.8V

    D-tap x2, 11-16.8V

    Max Load

    Hot swap mode

    V-mount: Max load of the single smaller battery

    D-tap: Max load of the single smaller battery and limited 150W/10A

    High load mode

    V-mount: Max load of the single smaller battery x2

    D-tap: Max load of the single smaller battery x2 and limited 150W/10A

    Working temperature

    -20°C ~ 50°C

    Dimension

    148×108×28mm

    Net weight

    238g



In de doos

1x Swit KA-M20S
