Swit FLOW10K Wireless System

Merk: Swit
  • Leverbaar op bestelling, belt u ons voor de actuele levertijd
€6.946,00 (€5.740,50 Excl. btw)
FLOW10K SDI&HDMI 10000ft/3km Wireless System...Meer informatie
+31 (0)85 1305 392
Scherpe offertes
Passend advies
Maatwerk en Service
Product informatie

KUWI Wireless Technology

SDI&HDMI 10000ft / 3km long distance

FLOW10K wireless system is based on SWIT latest professional KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, sup- ports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 10000ft / 3km Line-of-Sight distance. The KUWI professional wireless chip features stable connection at any complex environment and stronger in wall-cross capability.
The long distance wireless can be widely used in film production, event broadcasting etc.

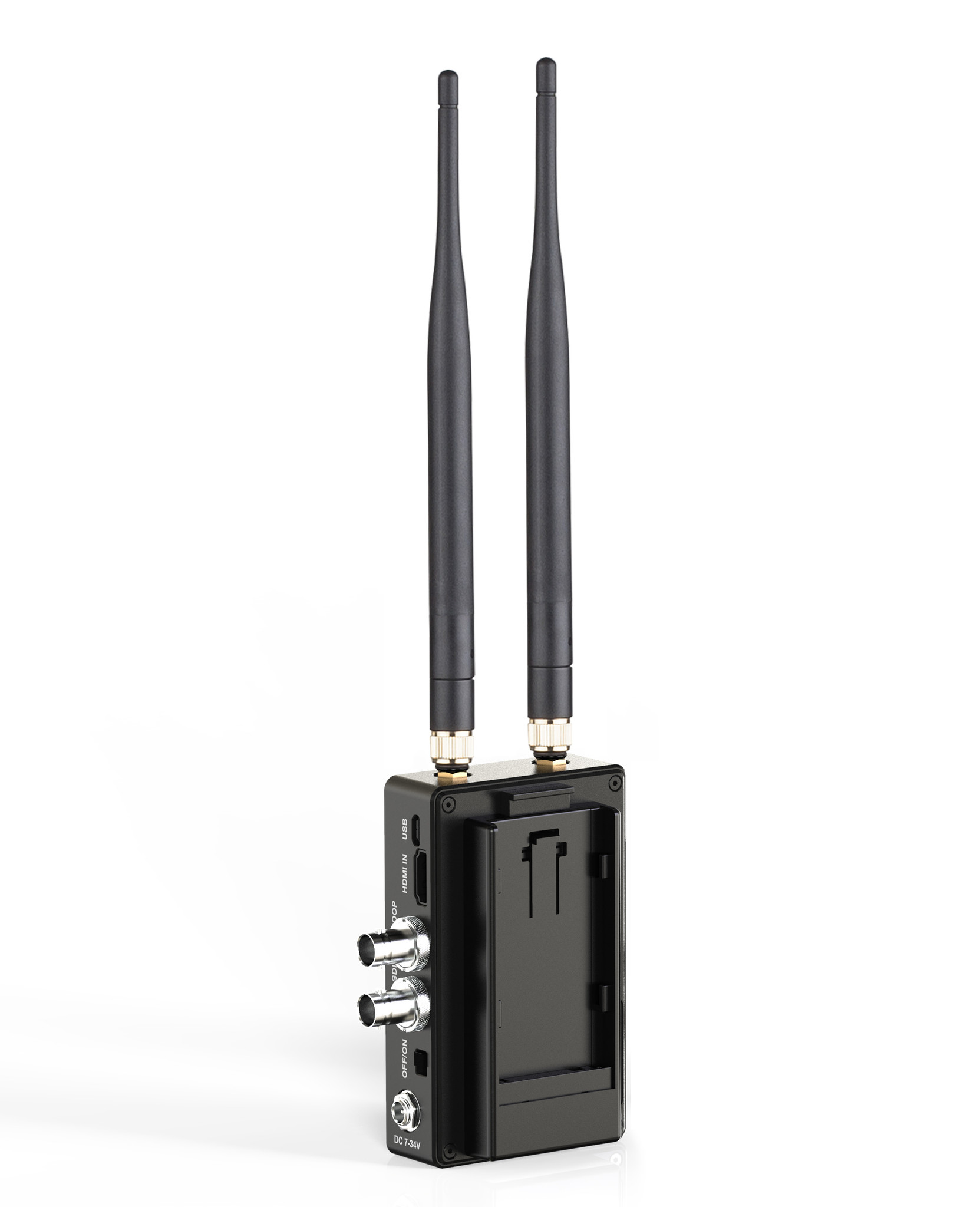

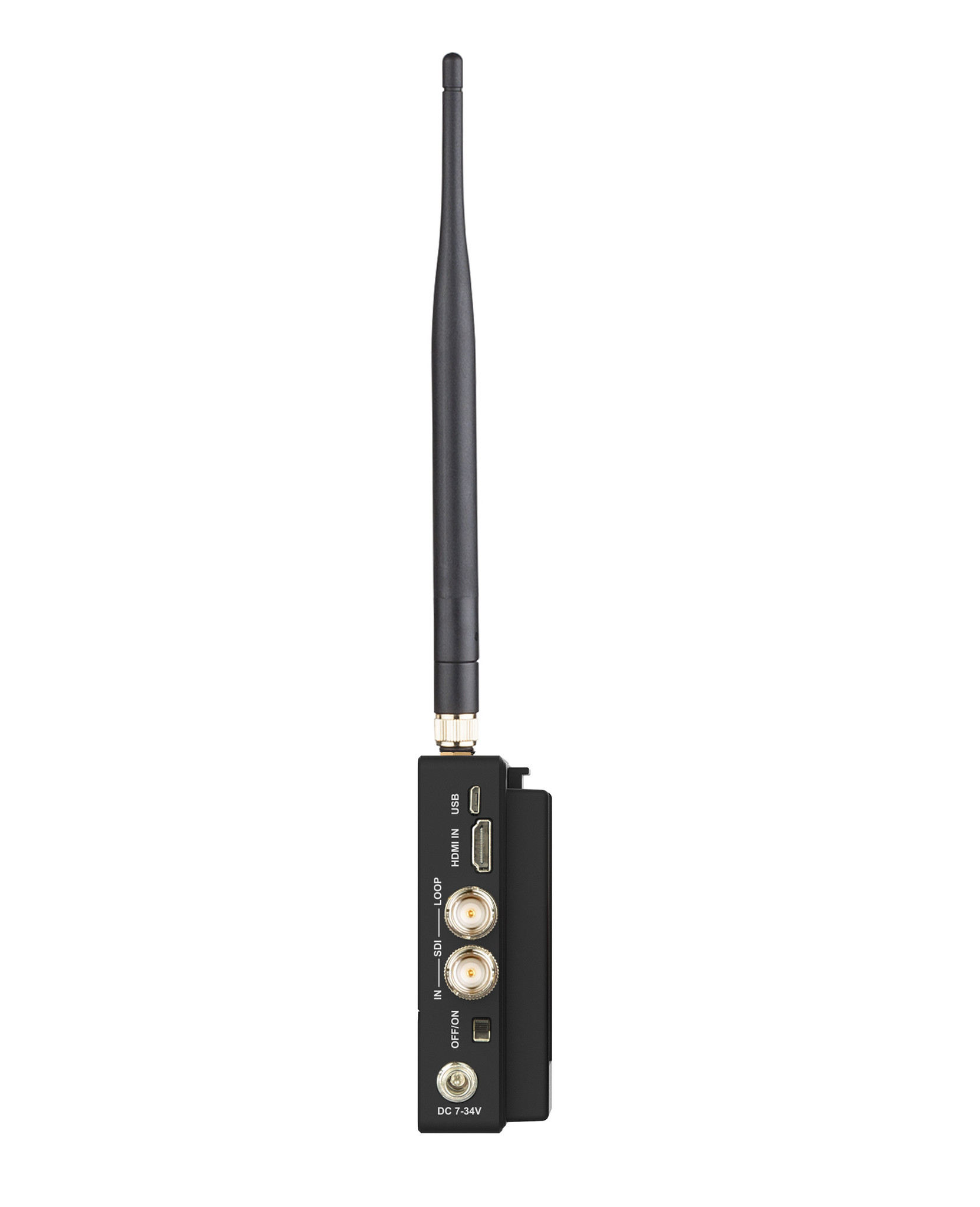

The Transmitter

The Transmitter has 2 omni antennas, supports
1x 3G/HD-SDI input
1x 3G/HD-SDI loop output
1x HDMI 1.3 input
SDI & HDMI formats:
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50
Supports embedded audio (CH1&2) transmission.

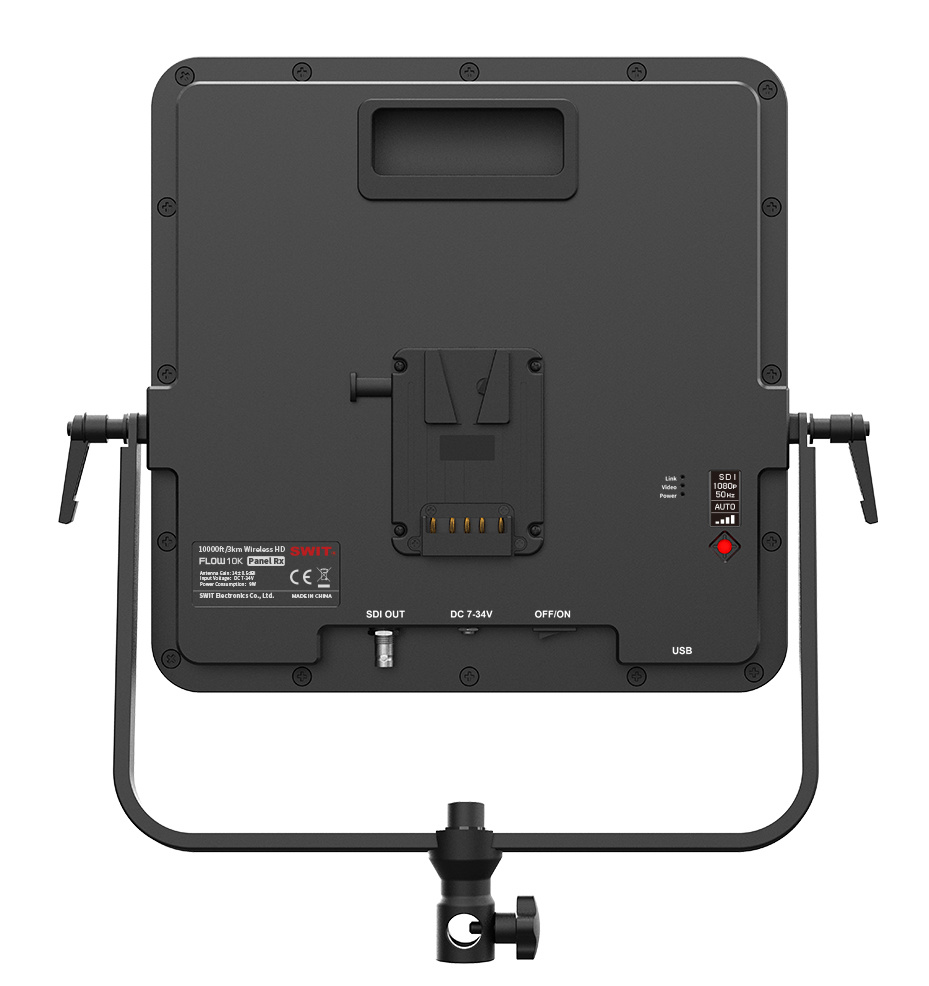

The Panel Receiver

The Receiver has built into high gain directional Panel Antenna, compact size, without complex antanna wires connectionsolid and reliableand provides 1x 3G/HD-SDI output.

10000ft/3km Long Distance

Strong Wall-cross Performance

With the high gain panel receiver, FLOW10K supports 10000ft/3km (Line-of-sightreliable wireless transmission, and featured stronger wall-cross performance due to both RF optimize and image quality optimizeso that will keep video transmission without date lost or crash comparing to regular 5GHz wireless transmitters.

Power Supply

The power consumtion of Tx and Rx are less than 9W. The Transmitter provides NP-F DV battery plateand 7-34V DC-IN socket;
The Panel Receiver provide V-mount battery plateand 7-34V DC-IN socket.

OLED Display & Channel Switch

5GHz Frequency, DFS Comply

The FLOW wireless works under 5.1-5.9GHz, with built-in wireless scanner, and detect wireless condition of all frequenciesautomatically jump to the best wireless channel to keep reliable connection and transmission, and DFS comply.
You can also switch the wireless channels manually from 7 Non-DFS restricted channels.
Both Transmitter and Panel Receiver are equipped with OLED to display signal format, wireless channel number and signal strength.

Multicast and Double Encryption

Support 1 transmitter to unlimited quantity receivers reliable multicast mode. The transmitter and receivers are paired and double encrypted by private transmission protocol and by AES128, in order to protect the footages.

Stable Connection at Worst Wireless Environment

The FLOW series adopt professional KUWI 5GHz wireless technologycan keep connected at any complex wireless environment, such as sports stadium, concert, public plaza where full of peopleelectronic devices or wifi routers.

FLOW series Cross-Receiving

The FLOW10K can work together with other FLOW series wireless at different receiving distance.
Use FLOW10K Txyou can receive in 500ft with FLOW500 Rxand in 2000ft with FLOW2000 Rxand in 6500ft with FLOW6500 Rxand in 10000ft with FLOW10K Rx.

Reclock & Color Reproduction

To ensure the quality of black level, signal noise and color reproduction of the wireless received signalthe FLOW series wireless receiving sup- ports signal re-clock and accurate color reproduction.


KUWI 5.1-5.9GHz Wireless Technology

DFS Comply

3GSDI & HDMI, with 3GSDI loop out

High gain panel antenna with built-in receiver

10000ft/3km (Line-of-Sightdistance

Strong Wall-Cross Performance

2-ch SDI/HDMI audio transmission

OLED info and channel switching

Support multiple pairs working in one location

Multicast - 1 transmitter to unlimited receivers

Wireless protocol & content double encryption

Reclock and accurate color reproduction
