Sennheiser

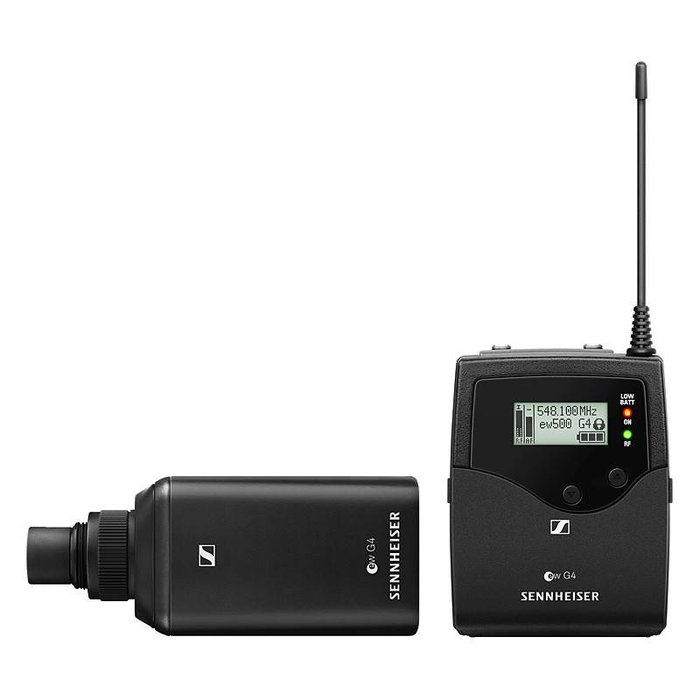

Sennheiser ew 500 BOOM G4

- For Shotgun or Handheld Microphones
- SKP 500 G4 Plug-On Transmitter with 48V
- EK 500 G4 Portable Receiver
€1.027,00 Incl. BTW
€848,76 Excl. BTW
508228
Indien bij leverancier op voorraad 1 tot 3 werkdagen. Belt u ons voor de actuele levertijd
+31 (0)316 294 700
Scherpe offertes
Passend advies
Maatwerk en Service

Product omschrijving

The ew 500 G4 Wireless Plug-On System from Sennheiser is the latest addition to their evolution series of wireless systems. It operates in the UHF frequency range and can be used with a condenser shotgun or a handheld microphone (sold separately), as part of a wireless RF transmission system for ENG (Electronic News Gathering), presentation, and live stage applications.



The camera-mount receiver—with adaptive diversity technology—features 2000 selectable frequencies (50 MHz) and is tunable in 25 kHz steps. There are 20 fixed-frequency banks with up to 32 compatible frequency presets and 6 user banks with up to 32 user-programmable frequencies.



Furthermore, the plug-on transmitter features 48V phantom power to power condenser microphones and is synchronized with the camera-mount receiver via an integrated infrared interface. Both units are powered by two 1.5V AA sized batteries.

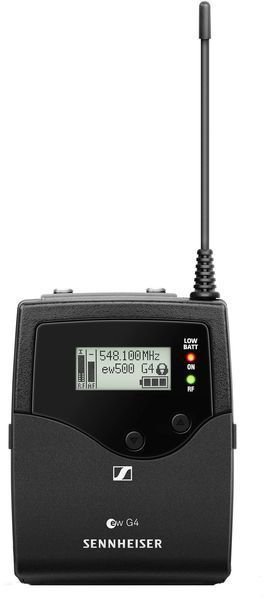

EK 500 G4 Pro Wireless Camera-Mount Receiver



The black EK 500 G4 Pro Wireless Camera-Mount Receiver from Sennheiser is the latest addition to their evolution series of wireless receivers. It operates in the UHF frequency range and can be used with a companion transmitter and microphone (sold separately), as part of a wireless RF transmission system for live stage, theater, film, video, and presentation applications.



The camera-mount receiver—with adaptive diversity technology—features 2000 frequencies and is tunable in 25 kHz steps. There are 20 fixed frequency banks with up to 32 compatible frequency presets and 6 user banks with up to 32 user-programmable frequencies. This receiver is built with a menu-driven backlit LCD display showing current frequency, frequency bank and channel number, metering of RF level, volume level, line output level, lock status, battery status, muting function, and more.



Also, the receiver is configured and synchronized with the transmitter via an integrated infrared interface, or it can be programmed in the receiver menu. Power is supplied to the receiver by two included 1.5V AA size batteries. Finally, the EK 500 G4 receiver is built with a rugged metal housing. A 1/8 to 1/8" cable, XLR to 1/8" cable, and a CA 2 camera adapter are also included.



Professional sound and durable construction

Easy to use and fast setup time

Flexible wireless synchronization between transmitter and receiver via infrared

Up to 50 MHz bandwidth, up to 32 channels

Range: Up to 330'

Increased RF output power (10/30/50 mW)

Up to 8 hours of operation time



SKP 500 G4 Pro Wireless Plug-On Transmitter



The SKP 500 G4 Pro Wireless Plug-On Transmitter from Sennheiser is the latest addition to their evolution series of wireless transmitters. It operates in the UHF frequency range and can be used with a companion receiver and dynamic or condenser handheld microphone (sold separately), as part of a wireless RF transmission system for live stage, theater, film, and presentation applications.



The plug-on transmitter features switchable 48V phantom power, 2000 frequencies that are tunable in 25 kHz steps, 20 fixed frequency banks, 32 compatible frequency presets, and 6 user banks with up to 32 user programmable frequencies. The transmitter's menu-driven backlit display shows the current frequency, frequency bank and channel number, metering of AF level, lock status, transmission status, muting function, battery status, and more.



In addition, the plug-on transmitter incorporates a Sennheiser HDX compander system, a defeatable pilot tone squelch, and is equipped with a frequency range from 80 Hz to 18 kHz. Finally, power is supplied to the transmitter by the two included 1.5V AA sized batteries, or by one optional Sennheiser BA 2015 rechargeable accupack. A pouch with a belt clip is included.



Professional sound and durable construction

Easy to use and fast setup time

Flexible wireless synchronization between transmitter and receiver via infrared

Up to 50 MHz bandwidth, up to 32 channels

Range: Up to 330'

Increased RF output power (10/30/50 mW)

Up to 8 hours of operation time

Technische specificaties

EK 500 G4 Pro Wireless Camera-Mount Receiver



Modulation

Wideband FM

Frequency Band

BW (626 - 698 MHz)

Receiving Frequency

Maximum 2000 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
6 frequency bank with up to 32 programmable channels

Switching Bandwidth

Up to 50 MHz

Nominal/Peak Deviation

±24 kHz / ±48 kHz

Principle of Operation

Adaptive diversity

Sensitivity

< 1.6 μV for 52 dBA eff s/n (with HDX, peak deviation)

Adjacent Channel Selectivity

Typically ≥ 65 dB

Intermodulation Attenuation

Typically ≥ 65 dB

Blocking

≥ 70 dB

Squelch

Low: 5 dB µV
Middle: 15 dB µV
High: 25 dB μV

Pilot Tone Squelch

Can be switched off

Compander

Sennheiser HDX

Signal to Noise Ratio

(1 mV, peak deviation)
Line: ≥ 110 dBA
Phones: Approximately 90 dB

Total Harmonic Distortion (THD)

≤ 0.9%

Maximum AF Output Voltage

1/8" (3.5 mm) Jack Socket: +17 dB (mono, unbalanced) (at peak deviation, 1 kHz AF)

Output Level Range

42 dB, adjustable in steps of 6 dB

Temperature Range

14 to 131°F (-10 to 55°C)

Power Supply

2 x AA batteries, 1.5 V or BA2015 accupack

Nominal Voltage

3 V battery / 2.4 V rechargeable battery

Current Consumption

At Nominal Voltage: Typical 140 mA
With Receiver Switched Off: ≤ 25 μA

Operating Time

Typically 8 hours

Dimensions (L x W x H)

3.2 x 2.5 x 0.9" (82 x 64 x 24 mm)

Weight

4.6 oz (130 g) including batteries



SKP 500 G4 Pro Wireless Plug-On Transmitter



Modulation

Wideband FM

Frequency Band

BW (626 - 698 MHz)

Transmission Frequency

Maximum 2000 frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
6 frequency banks with up to 32 programmable channels

Switching Bandwidth

up to 50 MHz

Nominal/Peak Deviation

±24 kHz / ±48 kHz

Frequency Stability

≤ ±15 ppm

RF Output Power

At 50 Ohms Switchable:
Low: Typical 10 mW
Standard: Typical 30 mW
High: Typical 50 mW

Pilot Tone Squelch

Can be switched off

Compander

Sennheiser HDX

AF Frequency Response

80 Hz to 18 kHz

Signal to Noise Ratio

Approximately ≥ 120 dBA (1 mV, peak deviation)

Total Harmonic Distortion (THD)

≤ 0.9%

Maximum Input Voltage

6 V eff

Input Impedance

6 kOhms, balanced

Input Capacitance

Switchable

Input Sensitivity Range

48 dB, adjustable in 6 dB steps

Temperature Range

14 to 131°F (-10 to 55°C)

Power Supply

2 x AA 1.5 V batteries, or BA 2015 accupack

Nominal Voltage

3 V battery / 2.4 V rechargeable battery

Current Consumption

At Nominal Voltage: Typical 210 mA
With Transmitter Switched Off: ≤ 25 μA

Operating Time

Typically 8 hours

Dimensions (L x W x H)

4.1 x 1.7 x 1.7" (105 x 43 x 43 mm)

Weight

6.9 oz (195 g) including batteries

Extra

EK 500 G4 Pro Wireless Camera-Mount Receiver

2 x AA Batteries

CA2 Shoemount Adapter

CL1 Mini to Mini Cable for EK100

CL-500 Balanced Cable 1/8"-M to XLR-M

SKP 500 G4 Pro Wireless Plug-On Transmitter

2 x AA Batteries

POP1 Case
