Lilliput HT5S 5.5" Ultrahigh 2000 cd/m² Brightness Touchscreen On-Camera Monitor

Monitor up to UHD 4K video using the HT5S 5.5" Ultrahigh 2000 cd/m² Brightness Touchscreen On-Camera Monitor from Lilliput. The HT5S features an ultrabright 2000 cd/m² display and a 1000:1 contrast ratio that make it easier to view your frame, even outdoors. This 1920 x 1080 LCD monitor provides both 3G-SDI and HDMI inputs and outputs, 3D LUT loading via the USB port, and support for HDR imaging input with the ability to display a wide dynamic range such as HLG or ST2084-300/1000/10000. It supports up to UHD 4K60 video via HDMI and up to 1080p60 via 3G-SD8. Power the monitor using a single L-series battery or a 12 VAC adapter (available separately).

The HT5S 5.5" monitor also features a speaker, a headphone jack, and multiple image control functions. Mount the monitor on your camera rig by attaching the included shoe mount adapter to the 1/4"-20 bottom thread. An HDMI to micro-HDMI cable, a Sony LANC cable, and a USB-A disk drive are also included in the box.

Features

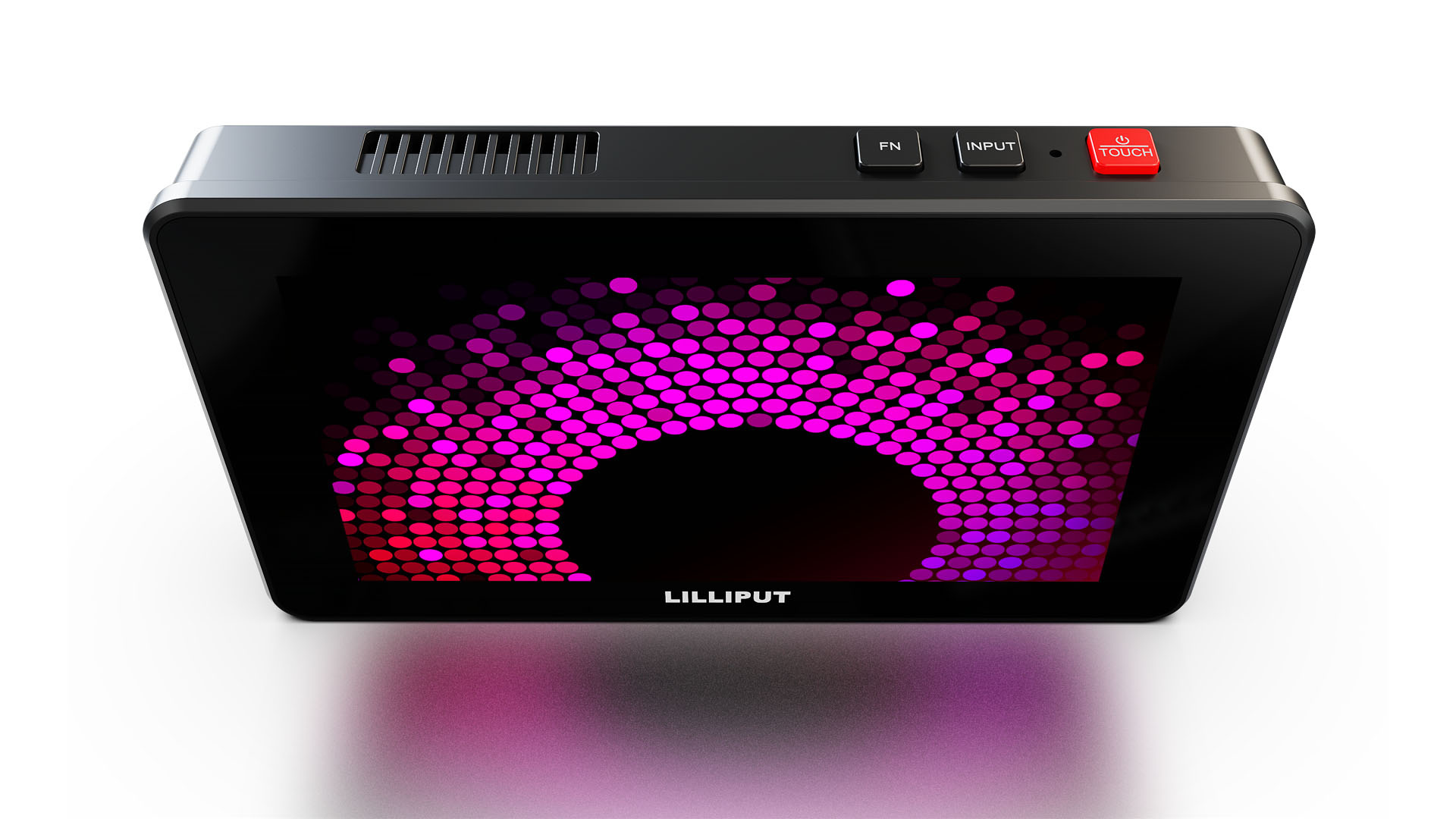

Ultrabright for Outdoor Viewing

This ultrabright 5.5" monitor features a 2000 cd/m² display with a 1000:1 contrast ratio.

Bright enough for outdoor viewing and provides an auto-dimming function.

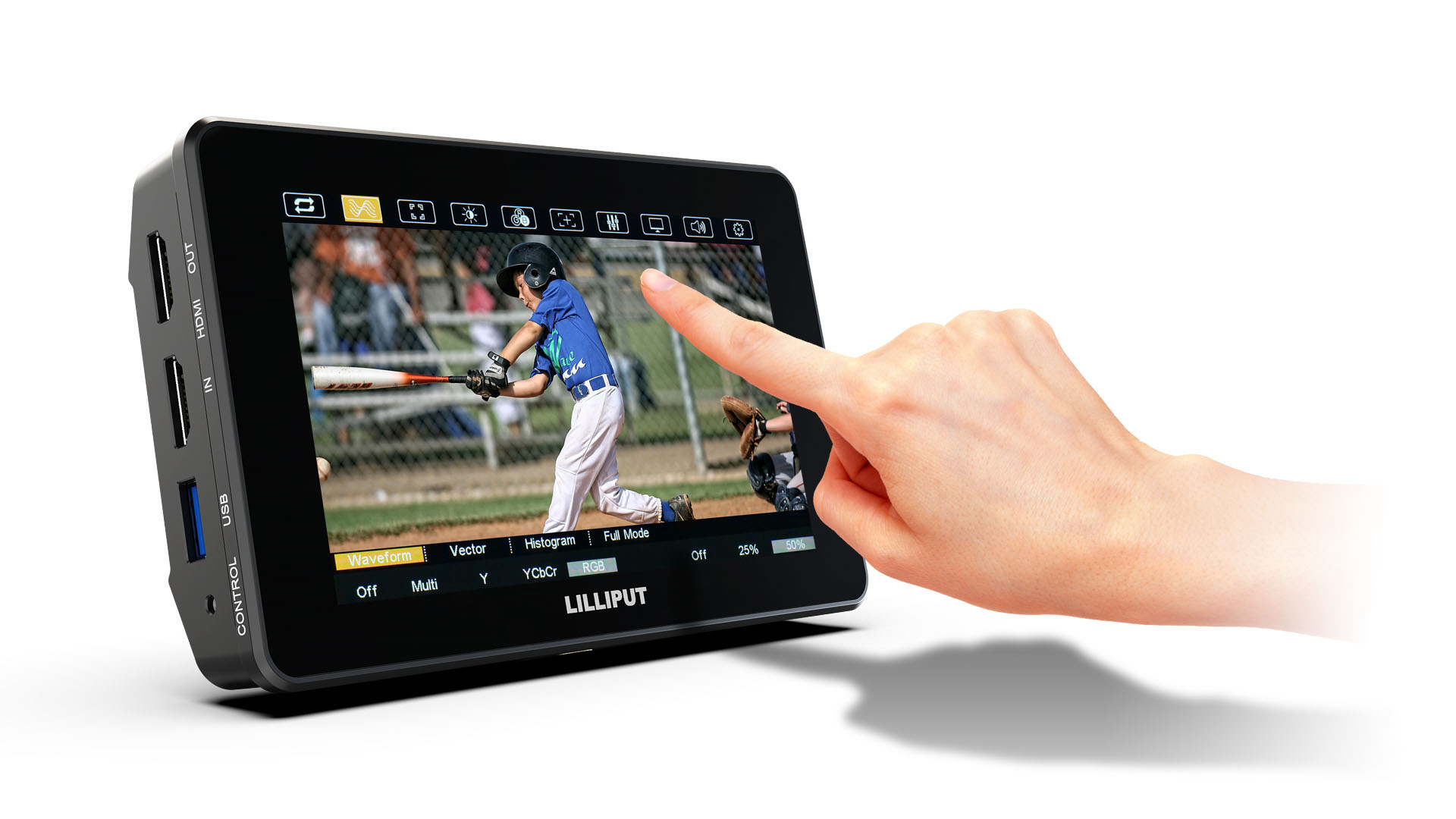

Touchscreen Control

The touchscreen panel responds quickly to commands, letting you easily adjust camera, display, and setting functions.

Sony LANC Control

Use the included LANC cable to control FIZ (focus, iris, zoom) features on select Sony cameras.

HDR and 3D LUT Support

HDR support creates highly detailed light and dark shades for highly nuanced imaging.

Integrated 3D LUT support includes 17 default logs and six user-created logs.

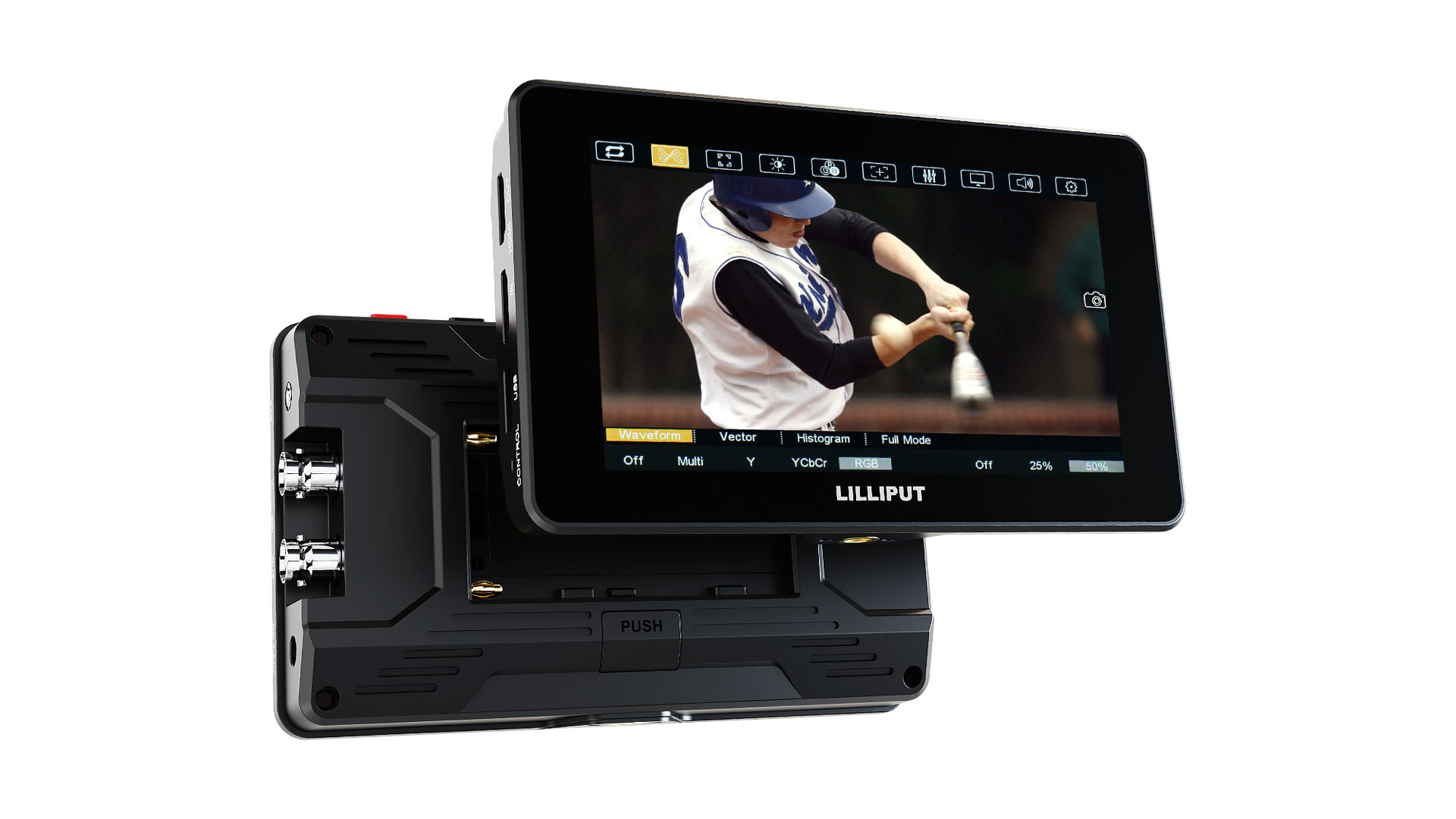

Image Display Functions

Offers advanced functions that enable you to clearly see the image details you prefer.

Includes waveform, histogram, pixel zoom, level meter, peaking, false color, and H/V delay.

Includes exposure, check field, image flip, pixel-to-pixel, markers, aspect ratio, and freeze.

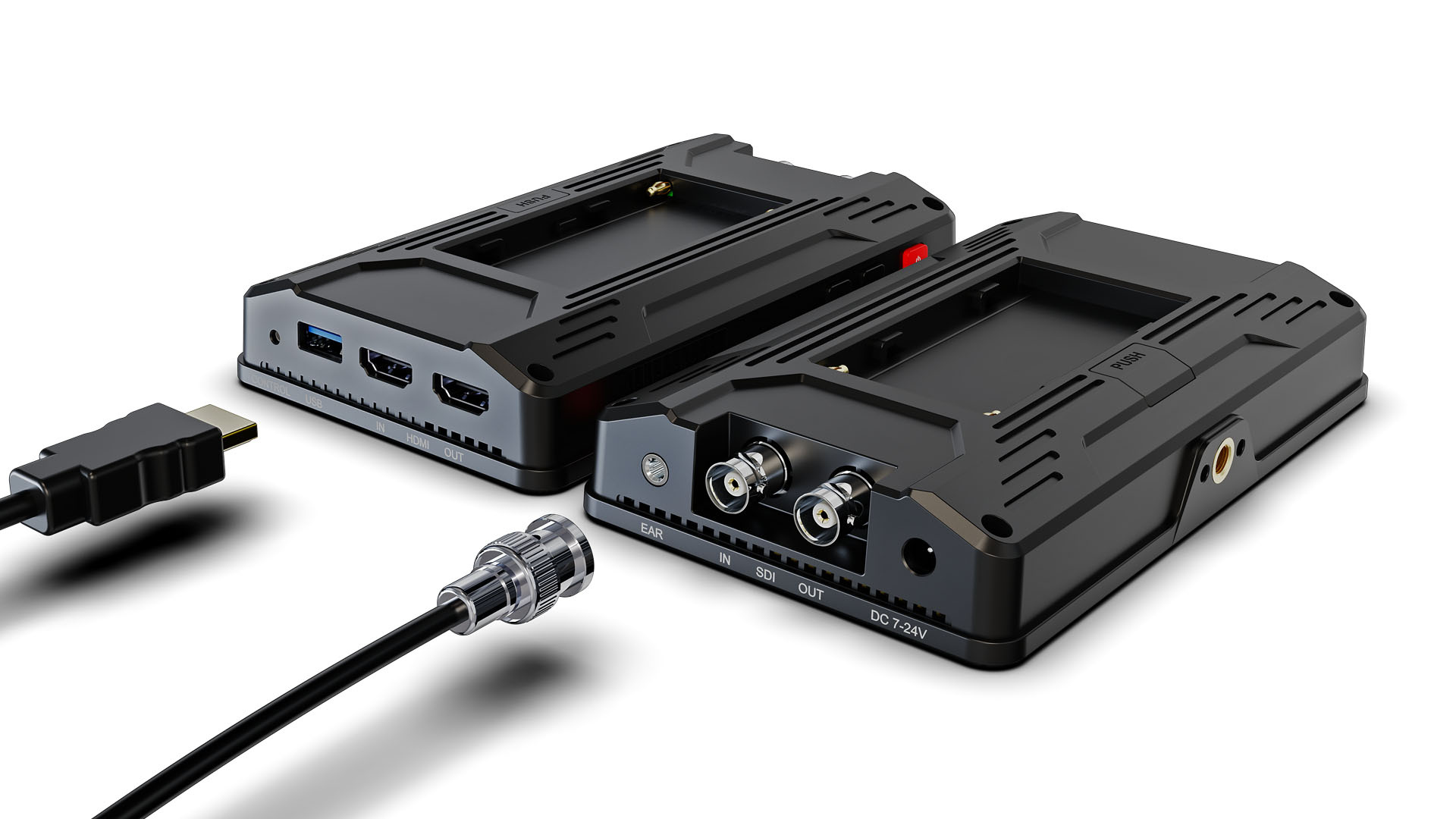

HDMI and 3G-SDI Input/Output

The HDMI ports support up to UHD 4K60, and the 3G-SDI port supports up to 1080p60 input and output.

L-Series Battery

Can be powered using one Sony L-series/F-970 battery or via a 12V power supply, both available separately.
