LILIPUT - Lilliput 28 Inch 12G-SDI 4K Monitor with 4 x HDMI VGA to 3840x2160 50Hz BM280-12G

Merk: Liliput
€2.229,00 (€1.842,15 Excl. btw)
Robust 12G SDI 4K 28 inch monitor in transport case with sun visor. With Quad View representation of 4 x Full HD...Meer informatie
+31 (0) 6 4436 1093
Scherpe offertes
Passend advies
Maatwerk en Service
Product informatie

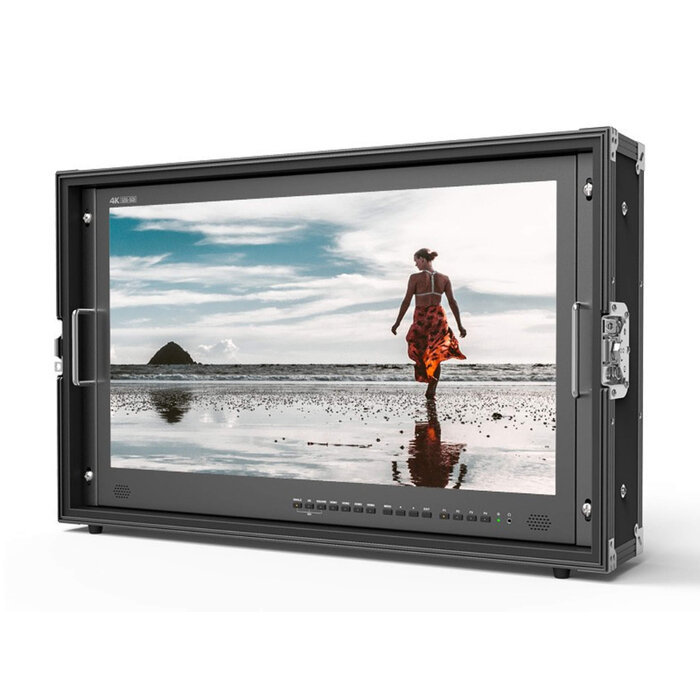

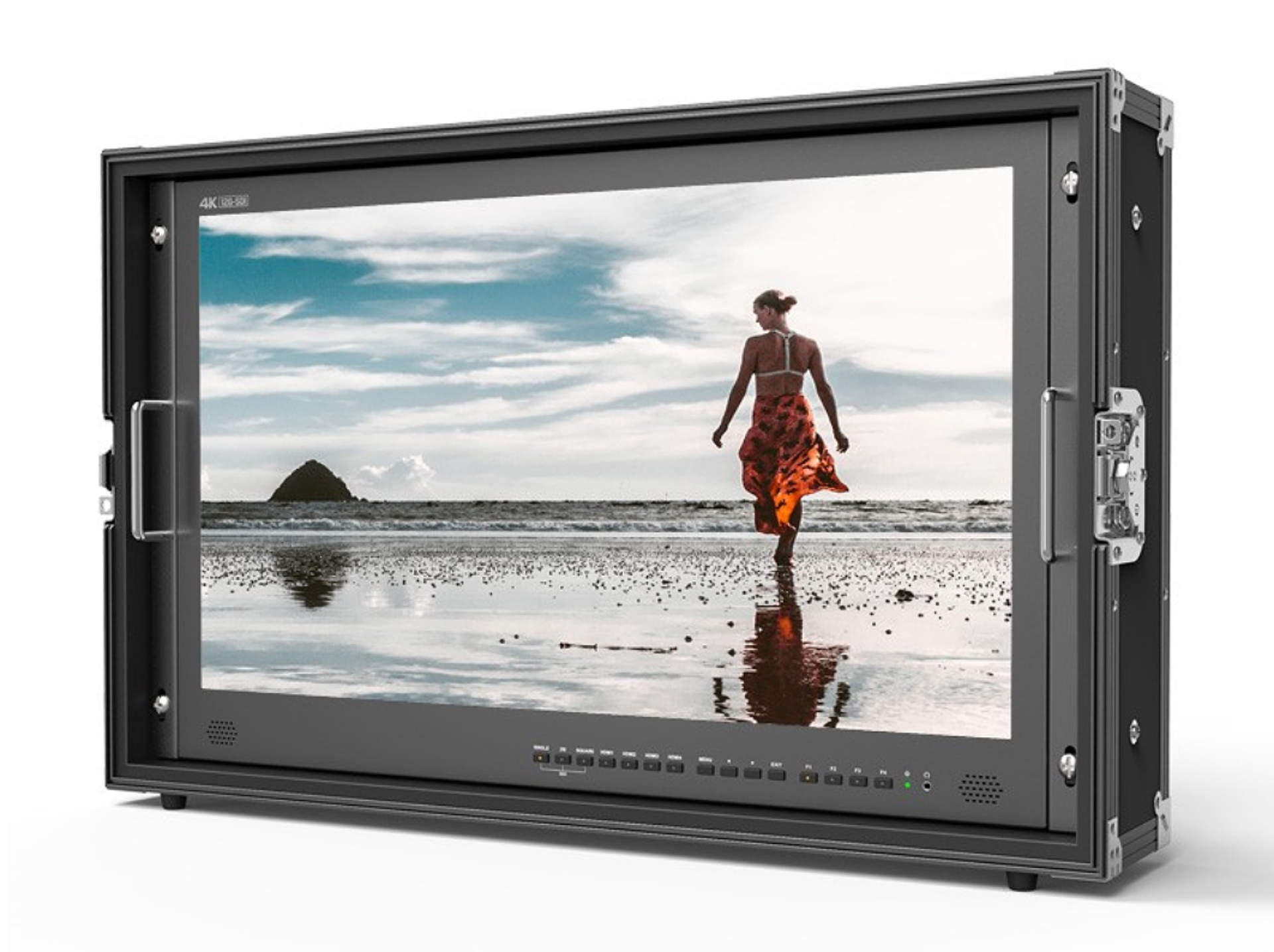

The Lilliput BM280-12G is a 28-inch field monitor with true 4K resolution (3840 x 2160 pixels) professional 10-bit IPS panel for best image quality at 300 cd brightness.


With over 71cm picture diagonal, 12G-SDI, 6G-SDI, 3G-SDI and HD-SDI, DVI and 4 x HDMI IN.


Operation with V-Mount batteries or by the supplied power supply.


Including FlightCase.


Great field monitor with professional connectionsExactly the right device for those who have 7-10 inch monitors just too little screen size. The Lilliput BM280-12G offers a large 71 "(28") display with a very sharp native resolution of 3840x2160 pixels. Thanks to the IPS technologythe display not only displays the colors well but is also stable in viewing angles.



Features



  • Professional video monitorfordirecting, editing, studio or field use
    • Bright and sharp display with 71cm screen size
    • True resolution of 3840 x 2160 pixels allows native preview of 4K
    • IPS technology ensures Good contrasts and colors that are displayed correctly regardless of the viewing angle
    • Precise calibration via RGB control
    • Video inputs for 4 x HDMI (1 x
    4K or 4 x HD), VGA, DVI and HD-SDI / SDI In / Out • • HDMI input 1 with HDMI 2.0 are 4K in 25/30/50/60 HZ possible
    • HDMI input 2-4 with HDMI 1.4 are 4K with 25/30 Hz possible
    • SDI input with 12G-SDI 4K and Full HD (4K and HD up to 50 / 60Hz)
    • Continuous 10-bit color processing (manufacturer
    information ) • • SDI can be looped through (passthrough)
    • Aspect of the image can be adjusted in the device (eg for equalization in anamorphic Cinemascope productions)
    • Connection for headphones over 3.5mm jack
    • VESA 100x100 holes for wall bracket on the back

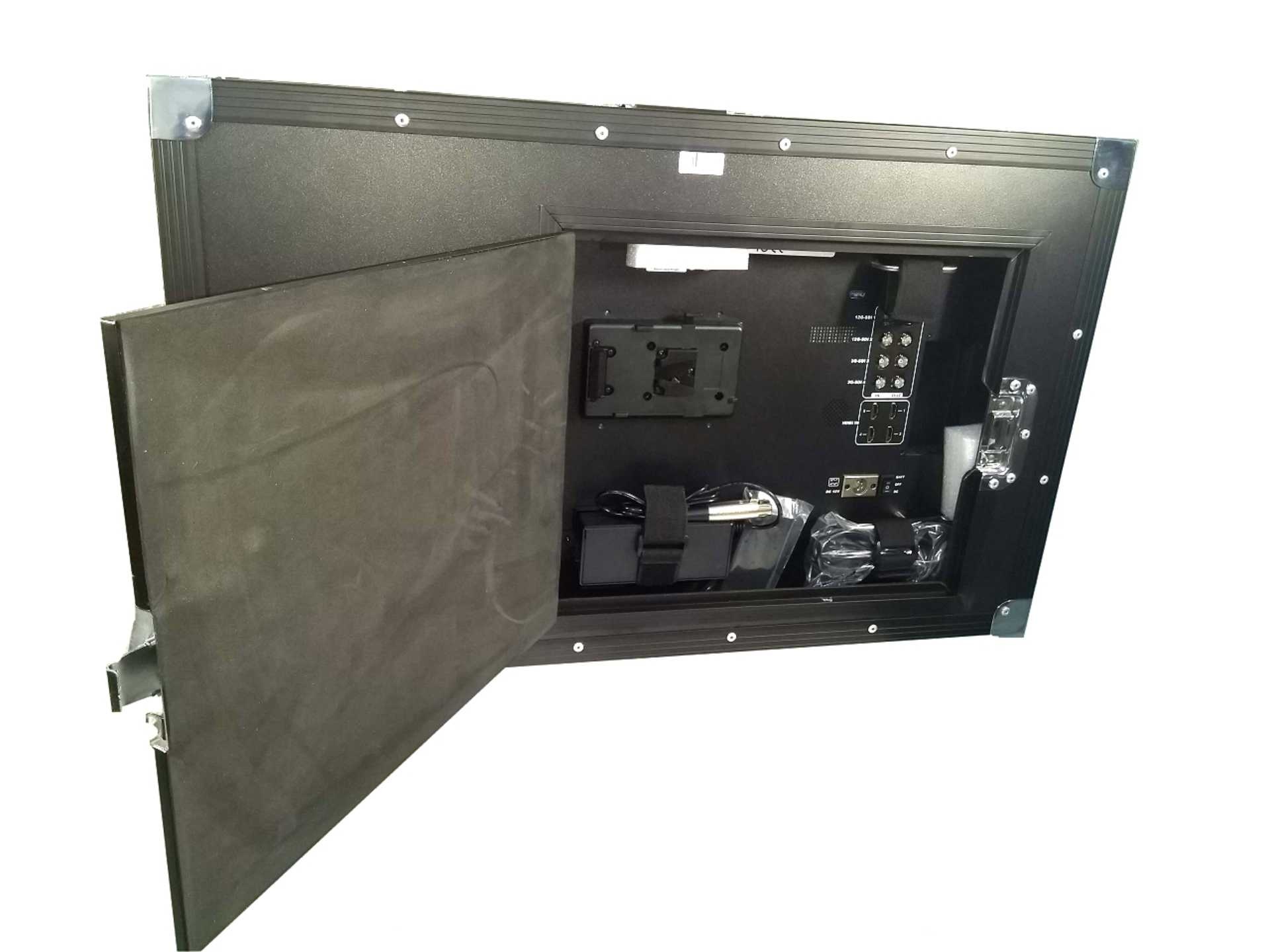

    • Flight case - sturdy transport case included
    • Giant glare protection for outdoor operation and heavily-lit studios
    • Operation from the power outlet or via batteries (Sony V-Mount)
    • Tally connection via 9-pin SUB-D



Technische specificaties




    SPECIFICATIONS



    Screen Size: 71,12cm (28 ")
    Resolution: 3840 x 2160 Pixel
    Screen Type: Partial Mirror
    Color Depth : 10-Bit

    Brightness: 300 cd / m²
    Contrast: 1000: 1
    Viewing Angle: 170 ° Horizontal 160 ° Vertical

    Operating Voltage : 12 to 24V
    Power consumption: maximum 48 watts Watts

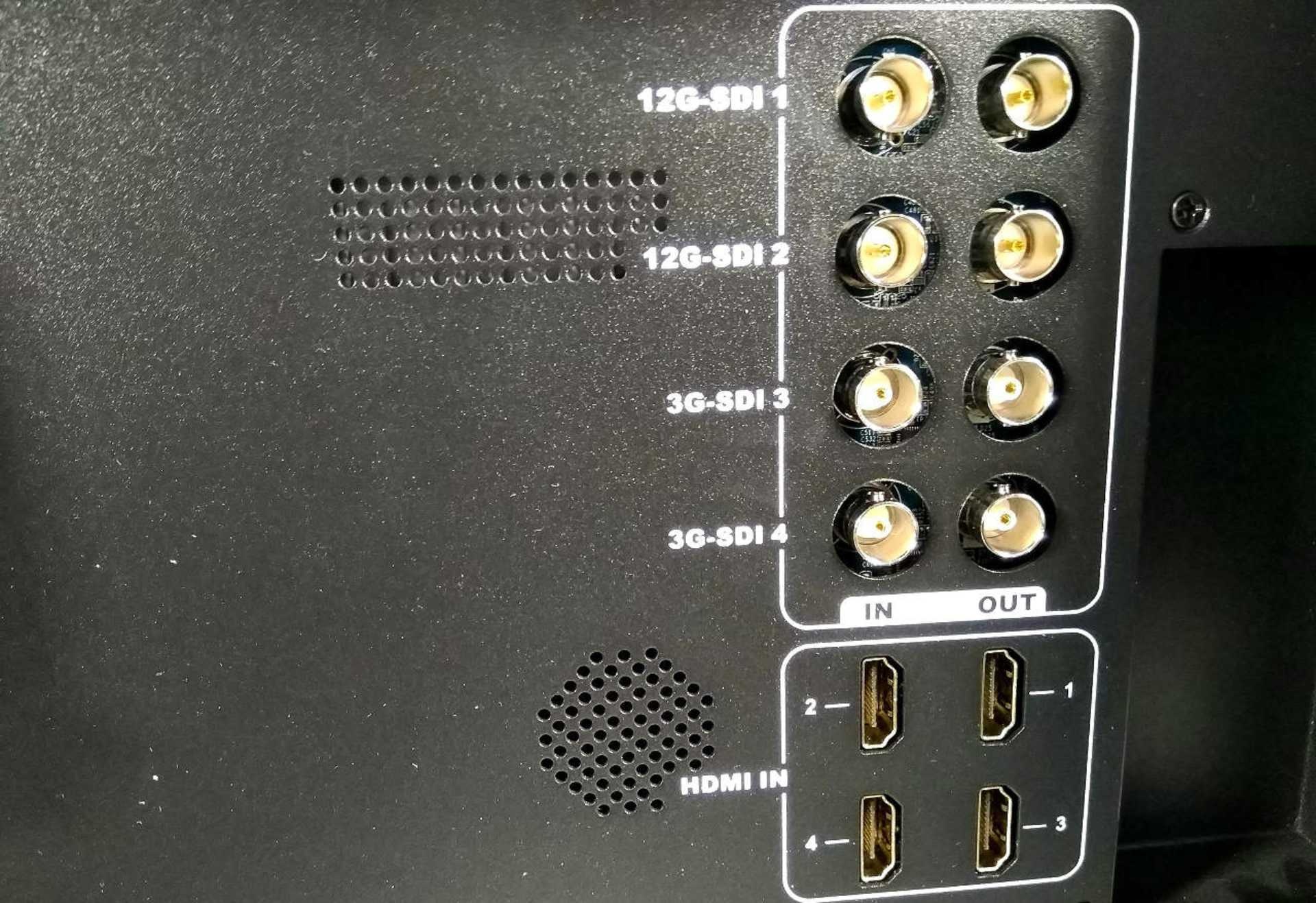

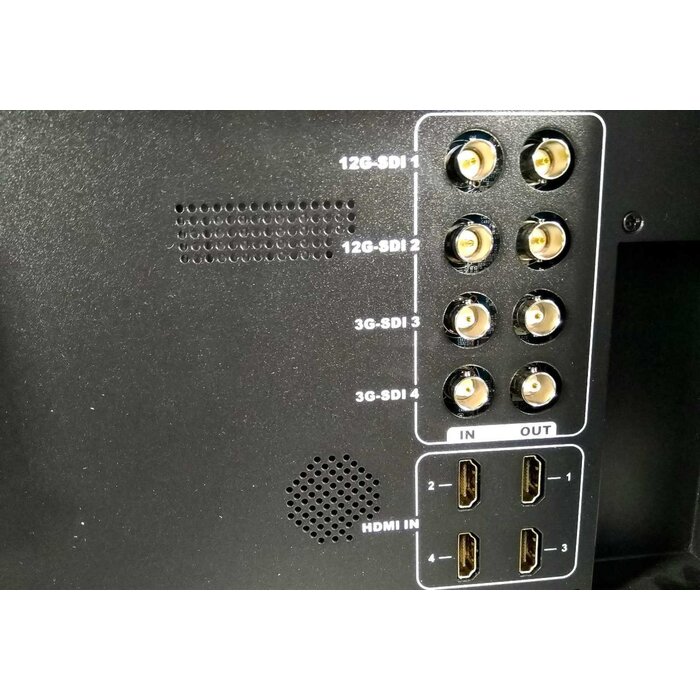

    inputs: 1x 12G-SDI, 4x HDMI, 1x SDI + audio, 1x VGA, 2 x audio RCA
    outputs: 1x 12G-SDI

    HDMI input 1 HDMI 2.0 4K in 25/30/50/60 HZ possible
    HDMI input 2-4 HDMI 1.4 4K with 25/30 Hz possible

    4K and Full HD 1920x1080, HD1 1280x720 on all HDMI and SDI connections

    Dimensions (LxWxD): approx. 670 x 425 x 45mm / 761 x 474 x 173mm (with FlightCase)
    Weight: approx. 9.4Kg / 21Kg (with FlightCase) (24.9 Kg shipping weight)
