KRAMER - WP-211T 4K60 4:2:0 HDCP 2.2 HDMI Wall–Plate Auto Switcher and PoE Acceptor over HDBaseT

  • Vanuit voorraad leverancier, ca. 1 - 3 werkdagen
€744,00 (€614,88 Excl. btw)
Max. Data Rate — 8.91Gbps /
[email protected] (4:2:0) Resolution Support /
HDCP 2.2 compliant /
PoE Acceptor...Meer informatie
+31 (0) 316 294 700
Scherpe offertes
Passend advies
Maatwerk en Service
Product informatie

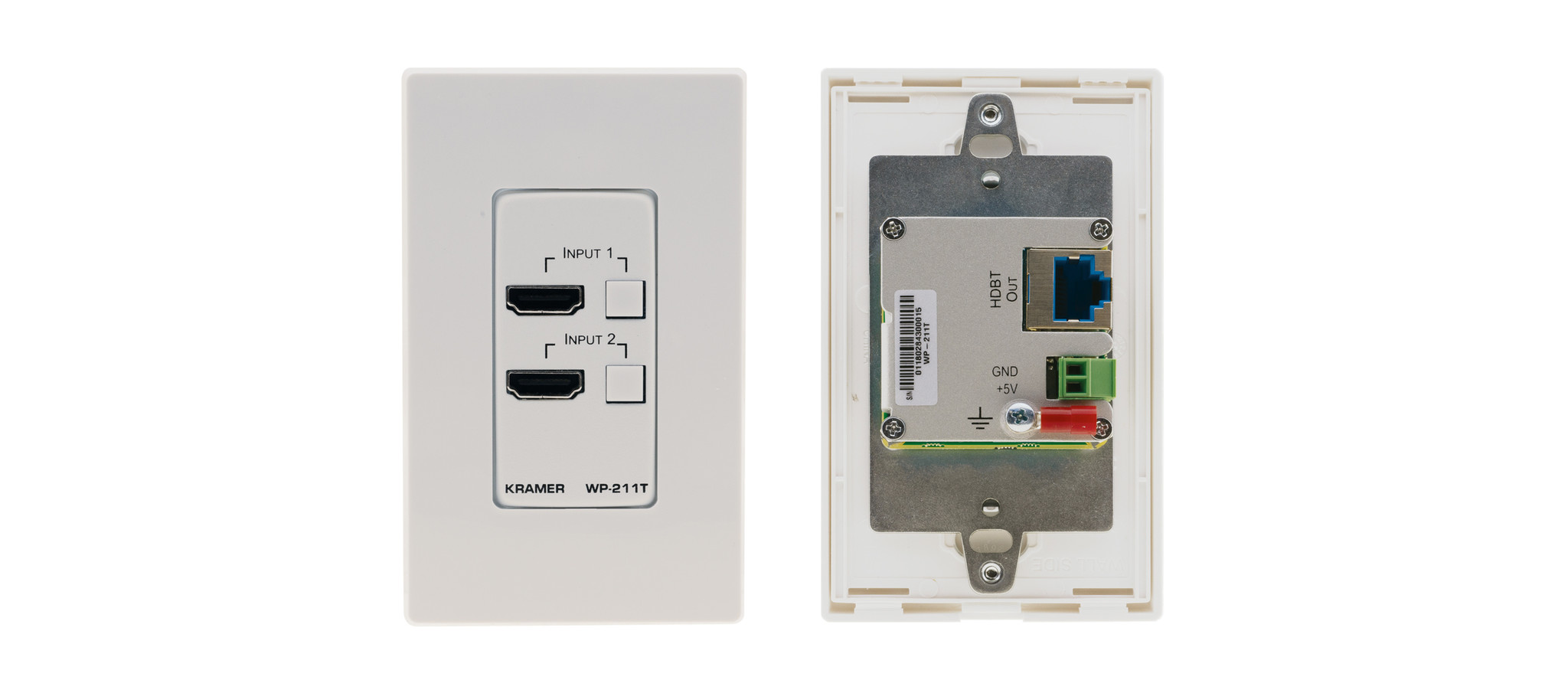

WP−211T is a high−performance wall−plate automatic switcher for 4K, HDBaseT, HDMI 1.4, HDCP 2.2 video signals. Offering priority and last−connected switching options, it automatically switches according to the selected switching scheme based on active video signal detection. WP−211T can be powered through PoE over the HDBaseT connection.



  •  Max. Data Rate — 8.91Gbps (2.97Gbps per data channel).
  •  Max. Resolution — [email protected] (4:2:0).
  •  HDMI 1.4 & HDCP 2.2 Compliant.
  •  Supports up to 40m reach at [email protected] (4:2:0).
  •  PoE Acceptor.
  •  Kramer Equalization and re–Klocking Technology.
  •  HDTV Compatible.
  •  3D Pass–Though.



APPLICATIONS

  •  Classrooms
  •  Huddle rooms
  •  Training rooms



Technische specificaties



    SPECIFICATIONS



    INPUTS

    • 2 HDMI: On female HDMI connectors

    OUTPUTS

    • 1 HDBaseT: On an RJ–45 connector

    VIDEO

    • Max. Data Rate: 8.91Gbps (2.97Gbps per graphic channel)
    • Max. Resolution: [email protected] (4:2:0)
    • Standards Compliance: HDCP 2.2 (does not support conversion to HDCP 1.4), HDMI 1.4

    USER INTERFACE

    • Controls: Last connected/priority DIP–switches and toggles to select the input manually

    ENCLOSURE

    • Size: 1 Gang wall plate
    • Cooling: Passive heat sink (metal sheet)

    REGULATORY COMPLIANCE

    • EMC EN 55032
    • IEC 60950–1(ed.2)
    • IEC 60950–1(ed.2)am1
    • IEC 60950–1(ed.2)am2

    ENVIRONMENTAL CONDITIONS

    • Operating Temperature: 0° to +40°C (32° to 104°F)
    • Storage Temperature: –40° to +70°C (–40° to 158°F)
    • Humidity: 10% to 90%, RHL non–condensing

    POWER

    • Source: 5V DC
    • Consumption: 780mA

    ACCESSORIES

    • Included with all versions: 1 Power adapter, 1 power cord

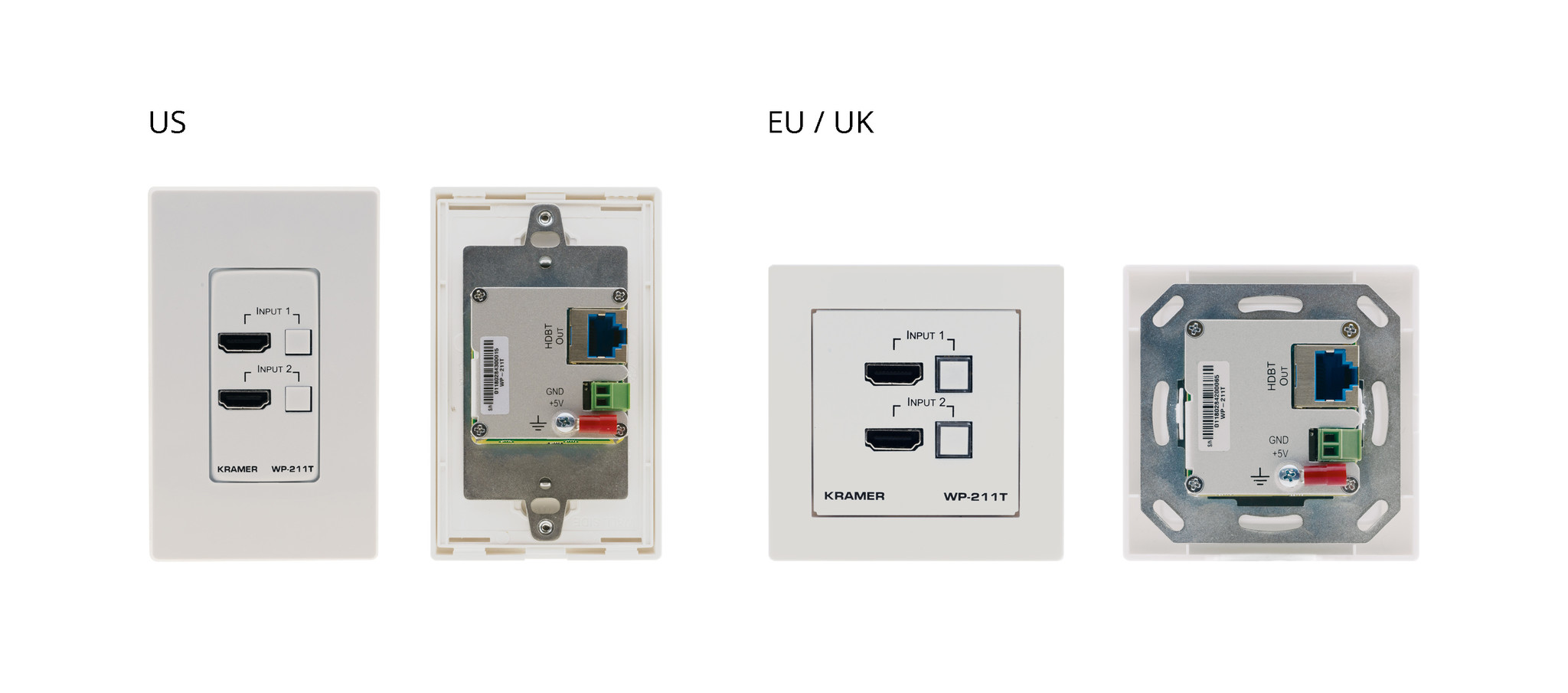

    • Included with US−D version: 2 US Frame sets and faceplates (1 in black and 1 in white)
    • Included with European version: 1 EU white frame, 1 UK white frame, 1 EU/UK white faceplate

    PRODUCT DIMENSION

    • US: 6.98cm x 3.70cm x 11.43cm (2.75" x 1.46" x 4.50" ) W, D, H
    • EU, UK: 8.00cm x 3.80cm x 8.00cm (3.15" x 1.50" x 3.15" ) W, D, H

    PRODUCT WEIGHT

    • US: 0.2kg (0.4lbs) approx.
    • EU, UK: 0.2kg (0.4lbs) approx.

    SHIPPING DIMENSION

    • US: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H
    • EU, UK: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H

    SHIPPING WEIGHT

    • US: 0.6kg (1.2lbs) approx.
    • EU, UK: 0.6kg (1.2lbs) approx.
