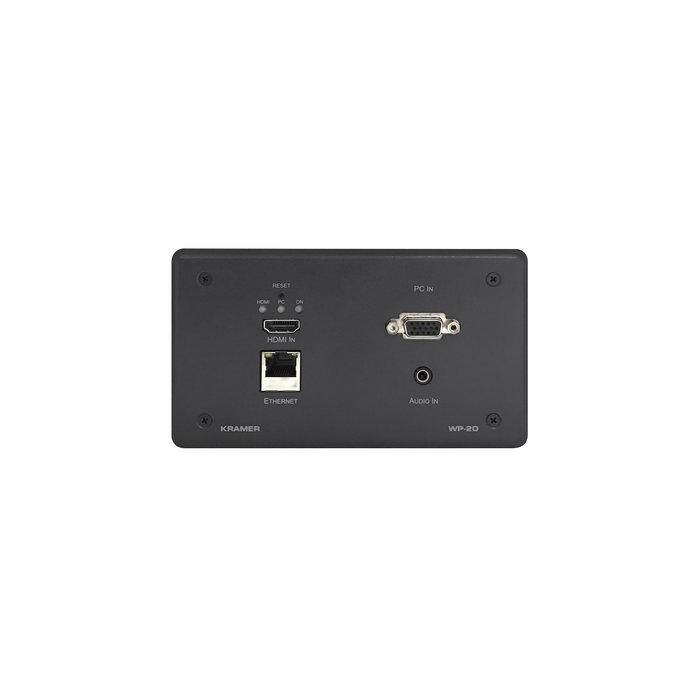

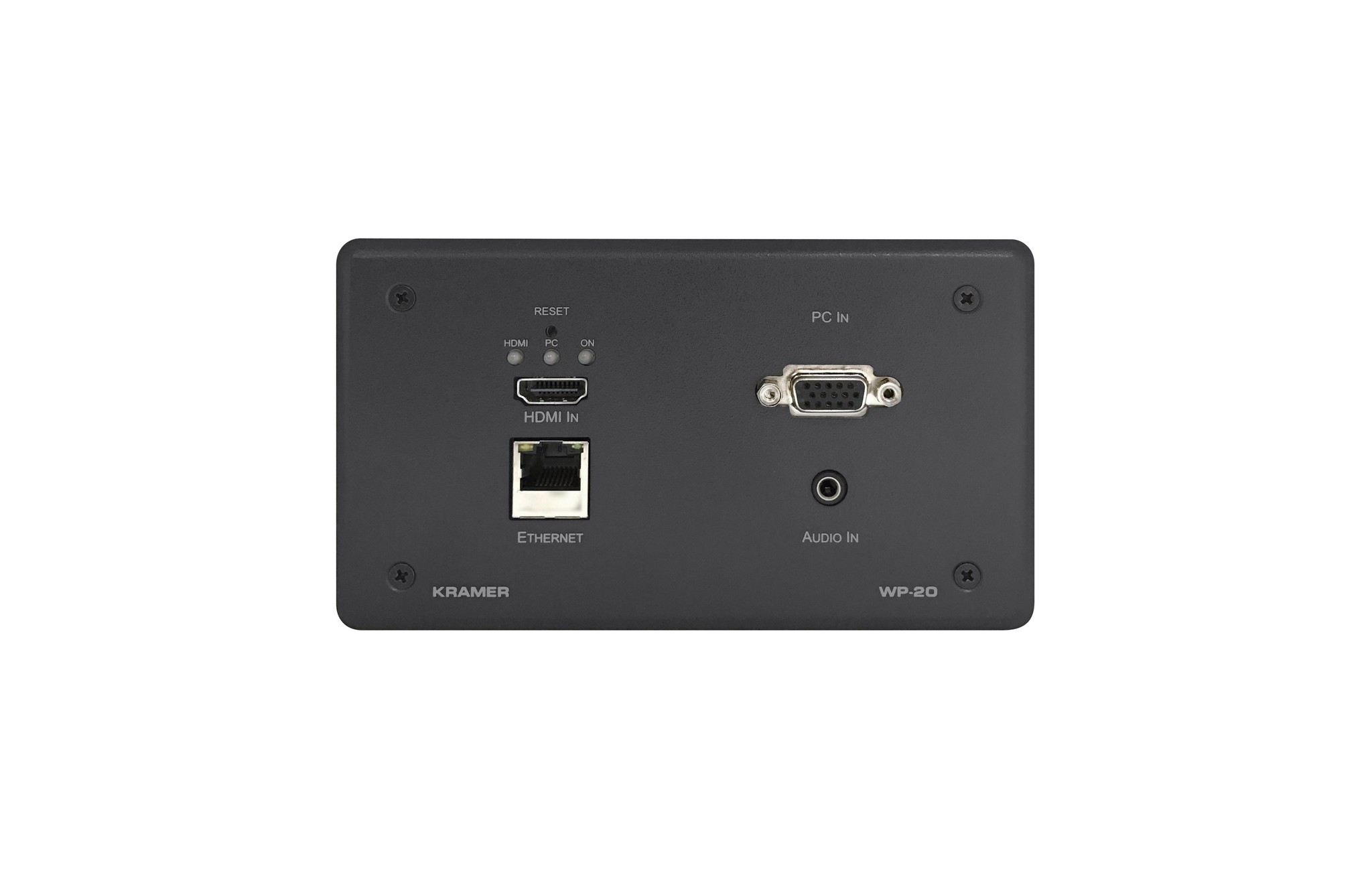

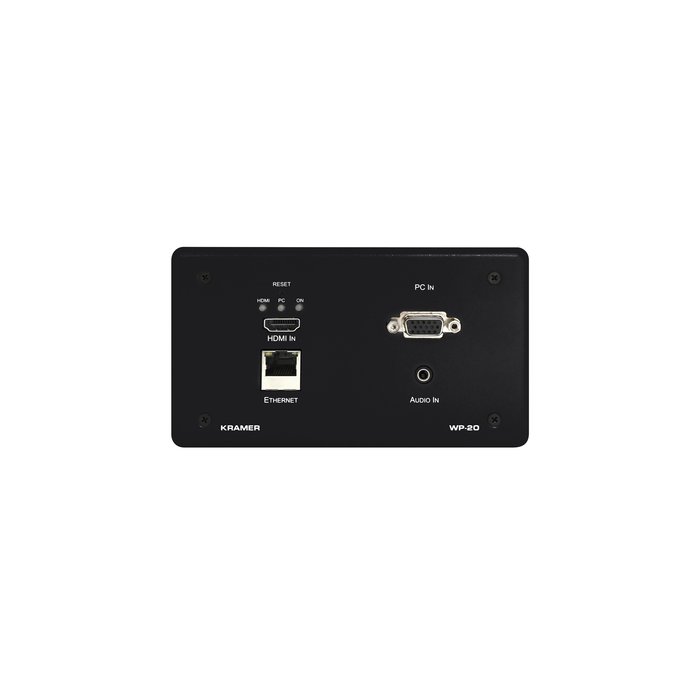

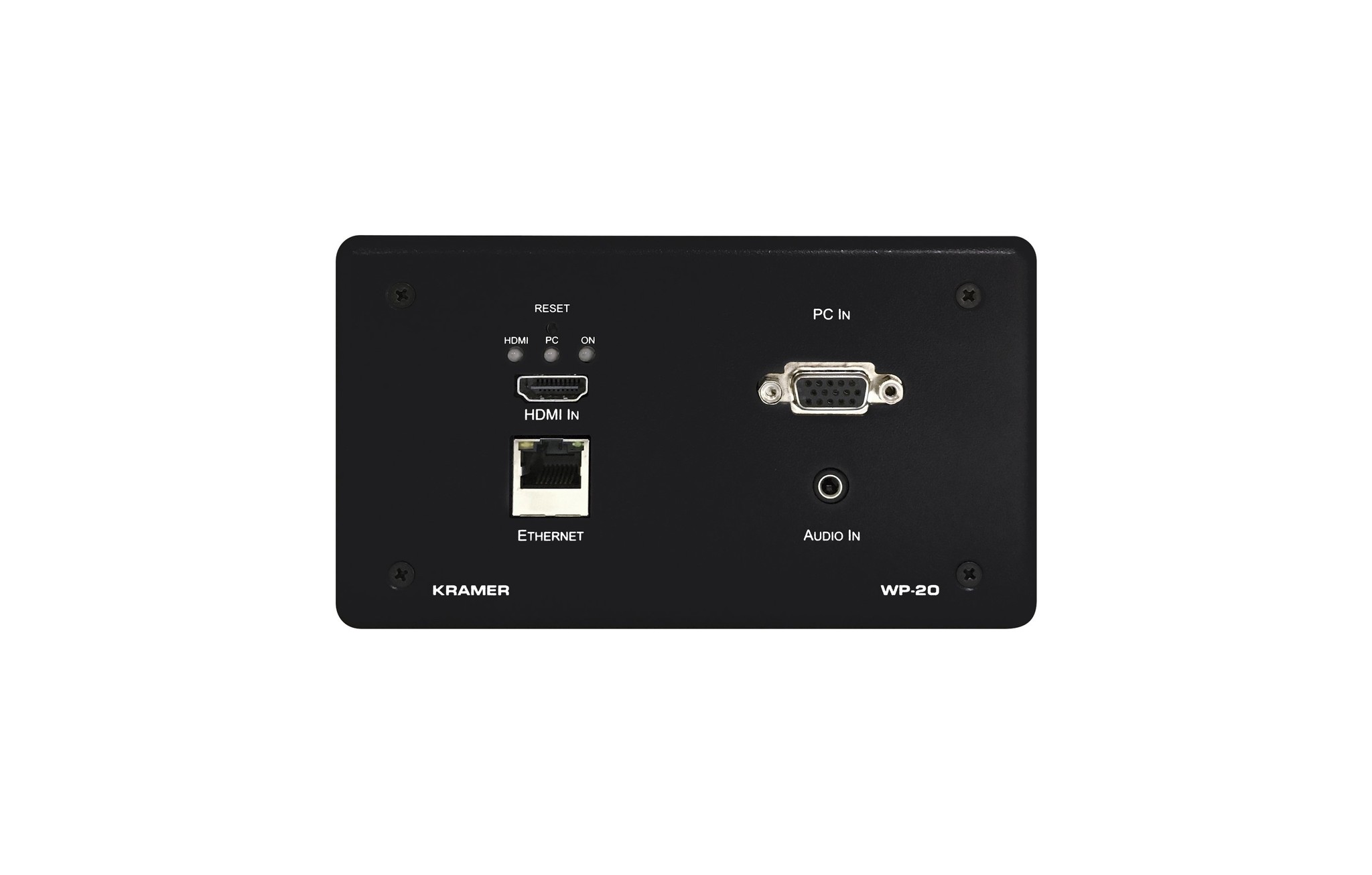

KRAMER - WP-20 4K60 4:2:0 HDMI & VGA Wall–Plate Auto Switcher and PoE Acceptor over HDBaseT with Maestro Room Automation

  • Vanuit voorraad leverancier, ca. 1 - 3 werkdagen
€839,00 (€693,39 Excl. btw)
WP−20 is a 4K UHD, HDBaseT active wall plate with step−in auto switcher for HDMI, VGA and analog audio signals that supports resolutions up to [email protected] (4:2:0)....Meer informatie
+31 (0) 316 294 700
Scherpe offertes
Passend advies
Maatwerk en Service
Product informatie

WP−20 is a 4K UHD, HDBaseT active wall plate with step−in auto switcher for HDMI, VGA and analog audio signals that supports resolutions up to [email protected] (4:2:0). The device has EDID management, easy control options and audio embedding. The unit is a fully−featured step−in auto−switcher with the convenience and simplicity of a wall plate. Designed for deployment in any size room, the WP−20 is easy to install with browser−based configuration and single PoE cable for Ethernet connectivity and powering.



  •  Simple and Powerful Maestro Room Automation — Intuitive user interface enables you to fully automate your meeting room elements. Configure lights, shades, devices and more to be activated by an extensive range of triggers, including input/output connectivity, routing, and button pressing. By minimizing user intervention, Maestro room automation saves meeting prep time and minimizes human error before presentations.
  •  Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).
  •  Max. Resolution — [email protected] (4:2:0) and WUXGA.
  •  HDTV Compatible.
  •  HDCP Compliant — Works with sources that support HDCP repeater mode.
  •  HDMI Support — Deep Color, x.v.Color™ and 3D.
  •  Automatic Live Input Detection — Based on video clock presence.
  •  Automatic Input Selection — Based on manual selection or last connected input.
  •  Automatic Analog Audio Detection & Embedding.
  •  EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
  •  Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
  •  Range — Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC–UNIKAT cables.
  •  Lockable EDID.
  •  Flexible Control Options — Via Kramer Protocol 3000, Ethernet and embedded Web pages over RS–232.
  •  Digital Audio Format Support.
  •  Mounting Option — For wall mounting, use Kramer's OWB–2G.



APPLICATIONS

  •  Display systems requiring simple input selection
  •  Remote monitoring of computer activity in schools and businesses
  •  Rental/staging applications
  •  Multimedia and presentation source selection



Technische specificaties



    SPECIFICATIONS



    INPUTS

    • 1 HDMI on an HDMI connector, 1 VGA on a 15–pin HD (F) connector, 1 unbalanced stereo audio on a 3.5mm mini jack

    OUTPUTS

    • 1 HDBaseT on an RJ–45 connector, 1 unbalanced stereo audio on a 3.5mm mini jack

    PORTS

    • 1 RS–232 3–pin terminal block, 1 Ethernet on an RJ–45 connector

    CONTROLS

    • Remote switches for input switching and volume control, reset switch

    STANDARDS

    • HDMI with Deep Color, x.v.Color™ and 3D
    • HDCP—works with sources that support HDCP repeater mode
    • HDBT certified

    MAXIMUM ANALOG AUDIO LEVEL

    • 3.1Vpp

    THD

    • 0.013%

    SNR

    • –70dB

    ROOM AUTOMATION

    • Kramer Maestro V1.0

    SUPPORTED WEB BROWSERS

    • Windows 7 and higher: Internet Explorer (32/64 bit) version 11, Firefox version 30, Chrome version 35
    • MAC: Chrome version 35, Firefox version 27, Safari version 7

    MAXIMUM TRANSMISSION DISTANCE

    • 180m (590ft) up to 1080p @60Hz @24bpp in extended mode, 130m (430ft) up to 1080p @60Hz @36bpp in normal mode

    POWER CONSUMPTION

    • 12V DC, 850mA

    OPERATING TEMPERATURE

    • 0° to +40°C (32° to 104°F)

    STORAGE TEMPERATURE

    • –40° to +70°C (–40° to 158°F)

    HUMIDITY

    • 10% to 90%, RHL non–condensing

    COOLING

    • Convection

    ENCLOSURE TYPE

    • Aluminum

    ENVIRONMENTAL REGULATORY COMPLIANCE

    • RoHs and WEEE

    VIBRATION

    • ISTA 1A in carton (International Safe Transit Association)

    COMPLIANCE STANDARDS

    • CE

    INCLUDED ACCESSORIES

    • Power adapter

    OPTIONS

    • Faceplates: WP–20–BLNK(W) P/N 68–80371099, WP–20–BLNK(B) P/N 68–80371199

    WARRANTY

    • 7 years parts and labor

    PRODUCT DIMENSION

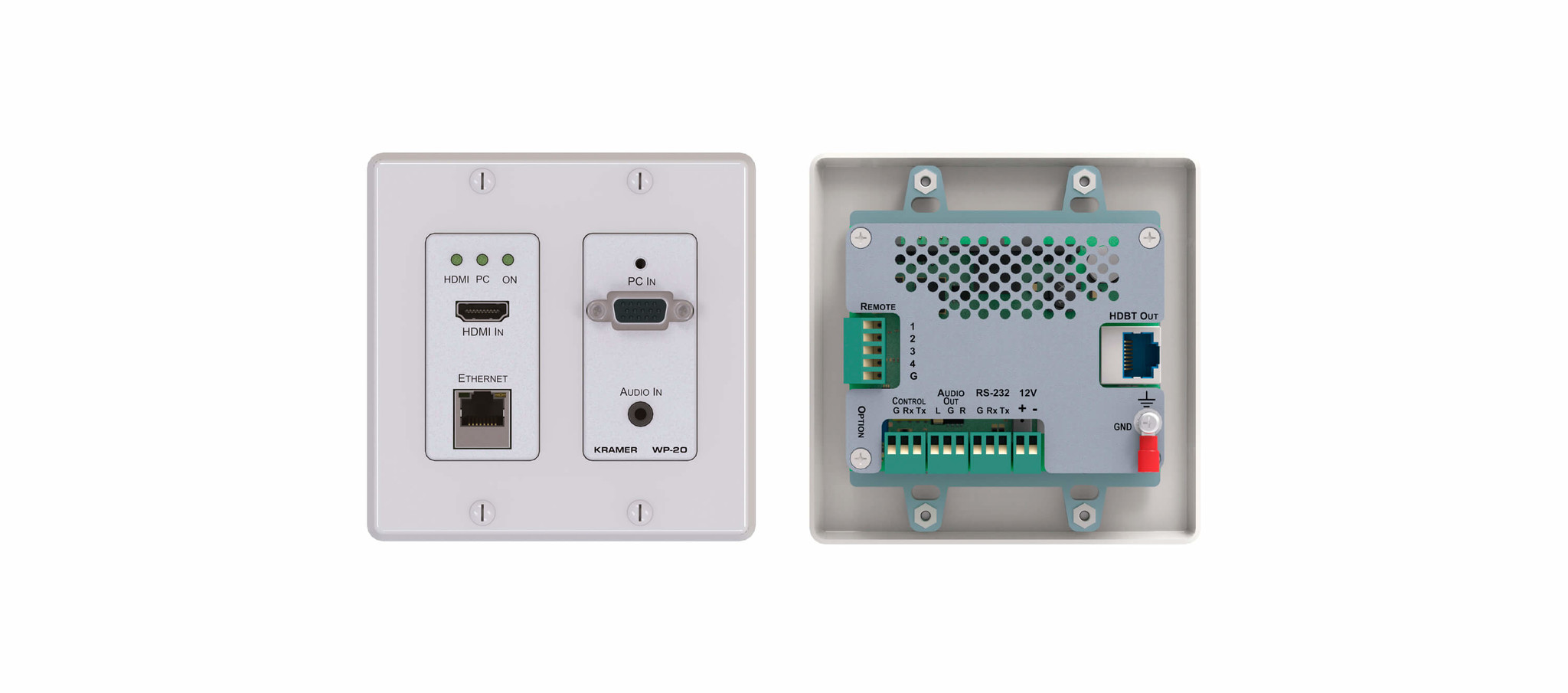

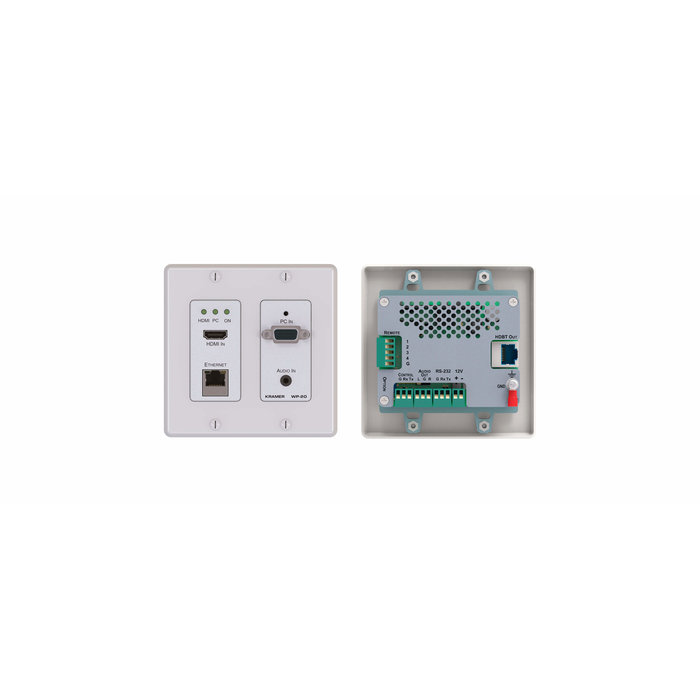

    • US: 11.59cm x 5.10cm x 11.43cm (4.56" x 2.01" x 4.50" ) W, D, H

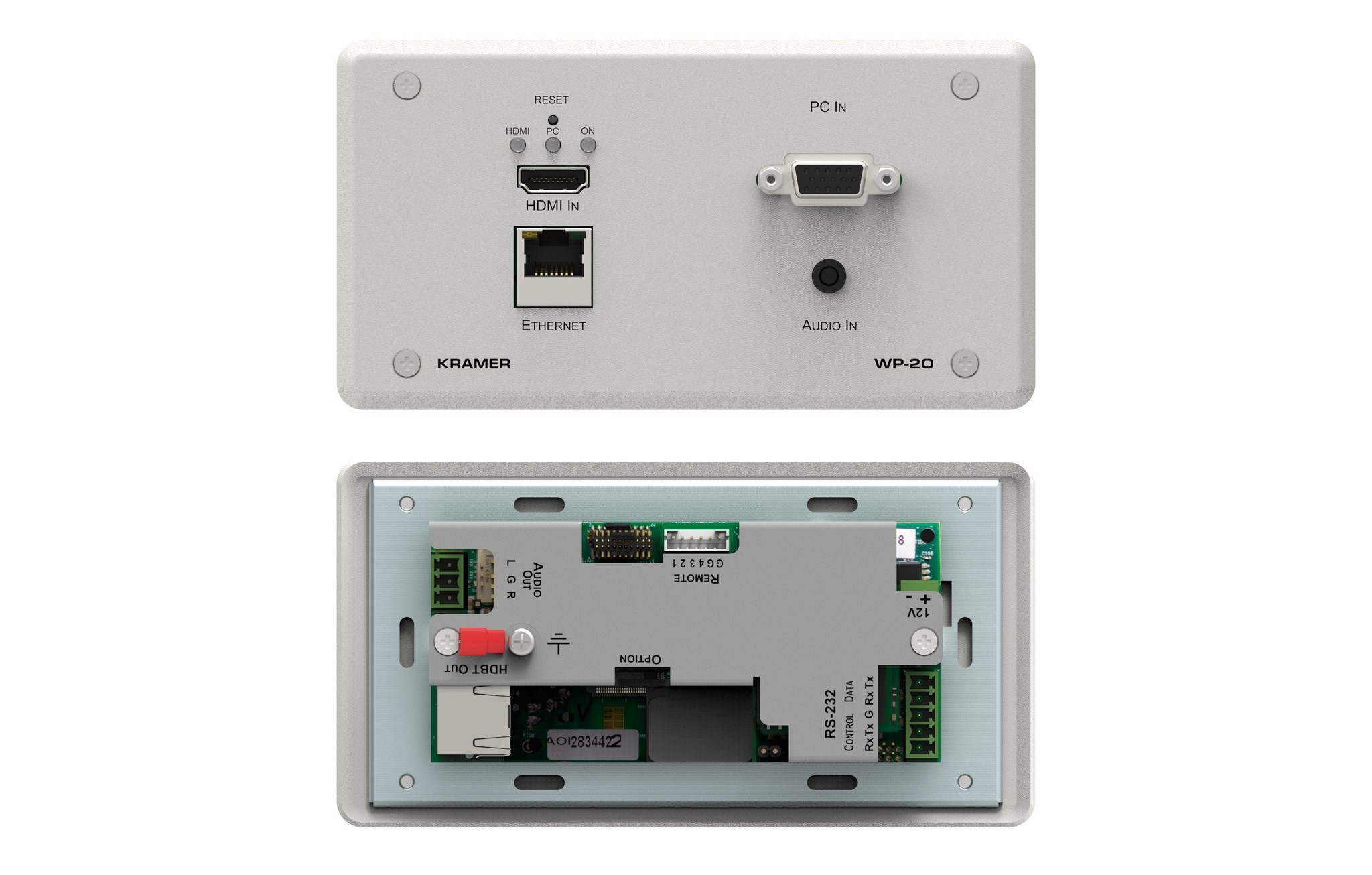

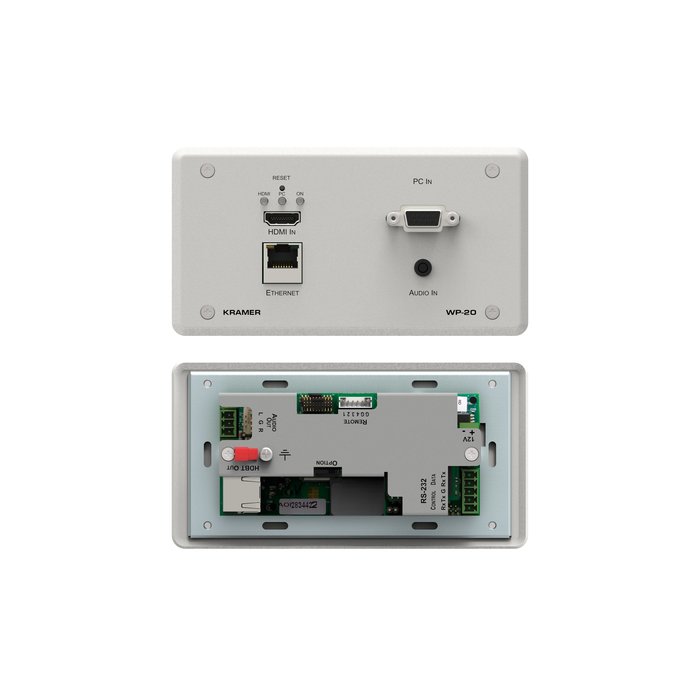

    • UK: 15.10cm x 4.00cm x 8.60cm (5.94" x 1.57" x 3.39" ) W, D, H
    • EU: 15.10cm x 4.00cm x 8.00cm (5.94" x 1.57" x 3.15" ) W, D, H

    PRODUCT WEIGHT

    • US: 0.2kg (0.5lbs) approx.
    • UK: 0.3kg (0.6lbs) approx.
    • EU: 0.3kg (0.6lbs) approx.

    SHIPPING DIMENSION

    • US: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H
    • UK: 25.60cm x 11.80cm x 11.40cm (10.08" x 4.65" x 4.49" ) W, D, H
    • EU: 25.60cm x 11.80cm x 11.40cm (10.08" x 4.65" x 4.49" ) W, D, H

    SHIPPING WEIGHT

    • US: 0.5kg (1.1lbs) approx.
    • UK: 0.9kg (1.9lbs) approx.
    • EU: 0.9kg (1.9lbs) approx.
