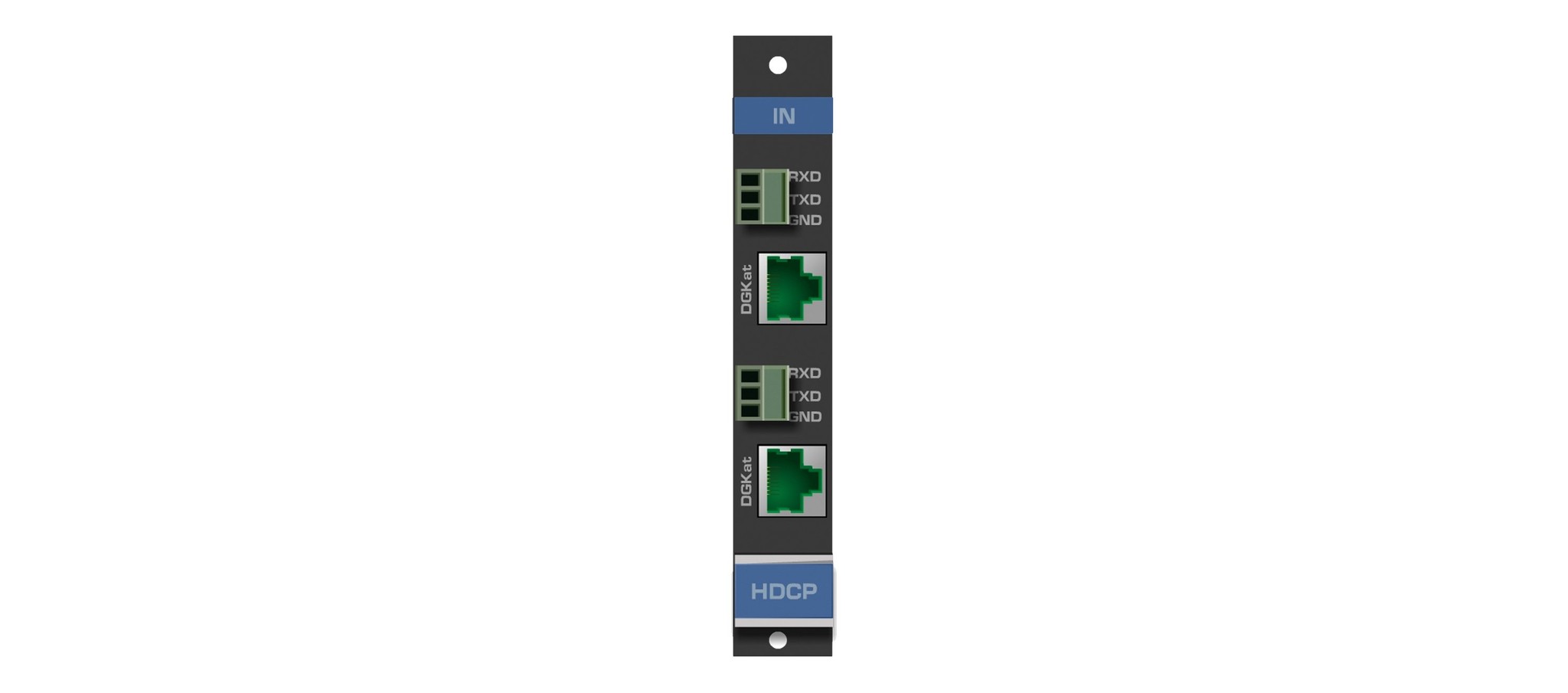

KRAMER - DGKat-IN2-F16 2–Channel HDMI & RS–232 over DGKat Input Card

  • 2 - 3 werkdagen - op voorraad bij leverancier
€1.024,00 (€846,28 Excl. btw)
DGKat−IN2−F16 is a two−channel HDMI and RS−232 over DGKat twisted pair input card for the VS−1616 Series Modular Multi−Format Digital Matrix Switchers....Meer informatie
+31 (0)316 294700
Scherpe offertes
Passend advies
Maatwerk en Service
Product informatie

DGKat−IN2−F16 is a two−channel HDMI and RS−232 over DGKat twisted pair input card for the VS−1616 Series Modular Multi−Format Digital Matrix Switchers. The DGKat−IN2−F16 inputs two HDMI and RS−232 over DGKat signals to the chassis.



  •  Max. Data Rate — 4.95Gbps.
  •  System Range — Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables. Note: Transmission range depends on the signal resolution, graphics card and display used. If using third–party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly.
  •  HDMI and HDCP Compliant.
  •  DGKat™ Signal Integration.
  •  3D Pass–Through.
  •  Bidirectional Local RS–232 Port.
  •  Kramer Equalization & re–Klocking Technology.
  •  Power Connect System — For supplying power to compatible TP transmitters.



APPLICATIONS

  •  Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios



Technische specificaties




    SPECIFICATIONS



    PORTS

    • 2 TP ports on RJ–45 connectors, 2 serial ports on 3–pin terminal blocks

    BANDWIDTH PER CHANNEL

    • Video: 1.65Gbps
    • serial data: 19200

    TOTAL BANDWIDTH

    • Video: 4.95Gbps
    • serial data: 19200

    MAXIMUM RANGE

    • 90m (300ft) — 1080p @60Hz

    3D PASS THROUGH

    • Supported

    POWER CONSUMPTION

    • 12W

    OPERATING TEMPERATURE

    • 0° to +40°C (32° to 104°F)

    STORAGE TEMPERATURE

    • –40° to +70°C (–40° to 158°F)

    HUMIDITY

    • 10% to 90%, RHL non–condensing

    STANDARD COMPLIANCE

    • HDCP 1.4, HDMI 1.3a

    SAFETY REGULATORY COMPLIANCE

    • CE, FCC

    ENVIRONMENTAL REGULATORY COMPLIANCE

    • Complies with appropriate requirements of RoHs and WEEE

    PRODUCT DIMENSION

    • 19.00cm x 13.00cm x 2.00cm (7.48" x 5.12" x 0.79" ) W, D, H

    PRODUCT WEIGHT

    • 0.2kg (0.4lbs) approx.

    SHIPPING DIMENSION

    • 34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H

    SHIPPING WEIGHT

    • 0.3kg (0.6lbs) approx.
