INOGENI

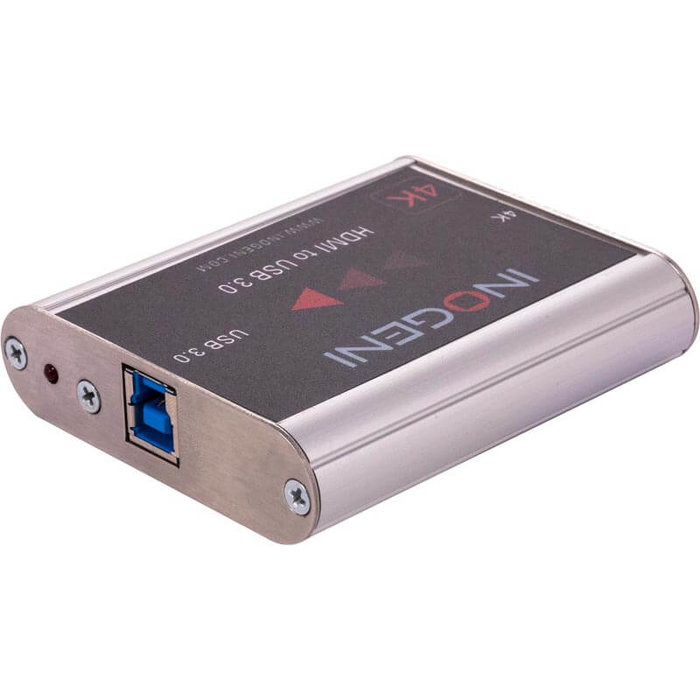

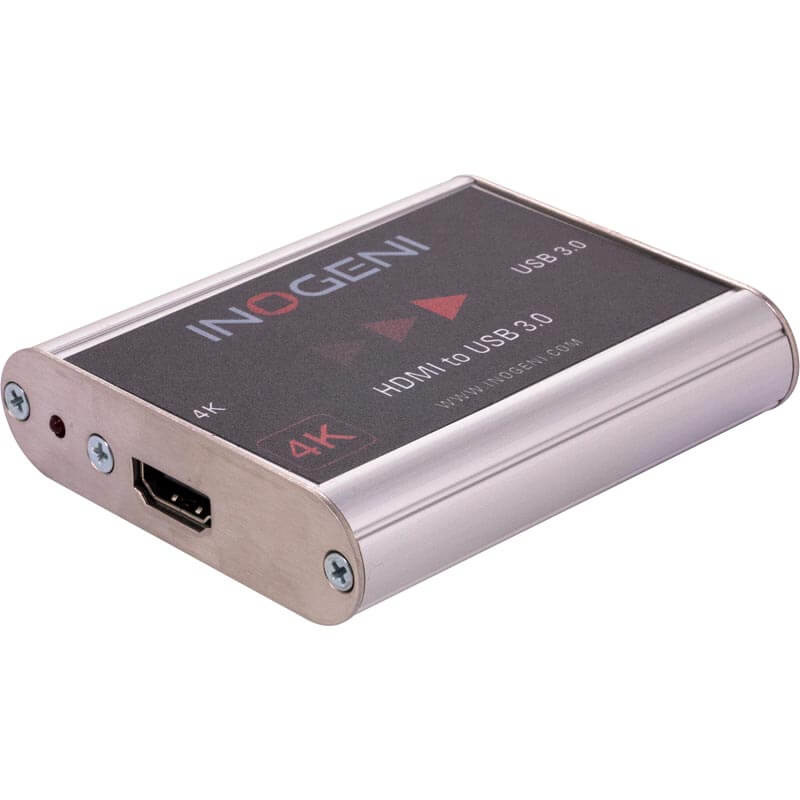

INOGENI 4K HDMI >> USB 3.0

NO driver installation necessary / Supports 4K, 1080p, 1080i, 720p, 480p, and 576p video formats
€449,00 Incl. BTW
€371,07 Excl. BTW
INO-4K2USB3
Voorraad leverancier, ca. 1 - 3 werkdagen
+31 (0)316 294 700
Scherpe offertes
Passend advies
Maatwerk en Service

Productomschrijving

The INOGENI 4K HDMI to USB 3.0 Converter requires no drivers and works on all motherboards and USB 3.0 chipsets. It is the most reliable and convenient PC input to capture uncompressed video with audio from your camera's HDMI output for recording, editing, videoconferencing and streaming applications. It is compatible with Windows, Mac OSX, Linux, and Android operating systems.



It features a single HDMI input and USB 3.0 output, and supports SD and HDTV video formats, up to Ultra HD 4K (4096x2160), and most computer graphic formats. Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OSX, Linux, and Android operating systems, and is UVC-compliant, so it will work with all DirectShow compatible software.



HDMI capture to USB 3.0

Direct Show Compatible

Supports Ultra HD 4K, 1440p, 1080p, 1080i, 720p, 480p, and 576p video formats.

Supports 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480 graphic formats.

Up to Ultra HD 4K (3840/4096x2160) at 30 fps and 1080p at 60 fps.

HDMI audio support - embedded audio in the HDMI signals are extracted and output as two-channel LPCM.

Digital Fluid technology - Internal frame buffers maximize frame rate with any PC.

Hardware-based color space and sampling conversion.

Automatic scaling and frame rate conversion (UHD up-scaling not supported).

Customizable video processing functions.

Image controls: Brightness, contrast, saturation and hue settings. These controls work on all formats below 4K but not 4K.

Supports multiple devices on the same PC.

Powered from USB 3.0 port.

Compatible with Windows, OSX, Linux and Android.

A USB 3.0 cable is included.



Input



Connector



1 x HDMI 1.4a

Video Resolution



4K UHD (3840/4096x2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1920x1200, 1280x1024, 1280x960,1280x800, 1024x768, 800x600, 640x480

Frame Rates



60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions, except 4K = 30Hz max.



Color Space

RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB)



Sampling Rate

297 MHz



Embedded Audio

Ch 1&2 48kHz LPCM



HDCP Copy Protection

INOGENI will not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.



Output



Connector

1 x USB 3.0



Codec

YUY2 4:2:2 8-bit
NV12 4:2:0 12-bit
YV12 4:2:0 12-bit
I420 4:2:0 12-bit
4K formats can only be transferred into the 4:2:0 pixel formats



Video Scaler

Automatic hardware based



Color Space Conversion

Automatic hardware based



Sampling Conversion

Automatic hardware based



Frame Rate Conversion

Automatic hardware based



Audio

2-channel LPCM audio from HDMI



Compatibility

Operating System

NO driver installation necessary.
Windows 7 and above (32/64-bit)
OSX 10.10 and above
Linux (kernel v2.6.38) and above



Host Requirements

USB 3.0



Motherboard

Compatible with all motherboards. Intel, Renesas, ASMedia, and Fresco Logic



Cameras Supported

Cameras and camcorders with an HDMI output



Software Compatibility

UVC-compliant. Runs with all software compatible to DirectShow/MediaFoundation, V4L2, QuickTime and AVFoundation.



Note to VAR/INTEGRATORS – this data is organized by product and may be duplicated for inclusion in a design or bid specs. It does vary from converter to converter. If you would like the same data in a .doc or .txt format please let us know.



Dimensions & Weight

3.2” x 2.9” x 0.75” 120g



Operating Temperature

0° to 45° C (32° to 113° F)



Storage Temperature

-40° to 105° C (-40° to 221° F)



Relative Humidity

0% to 90% non-condensing



USB Power

5V, 580 mA
