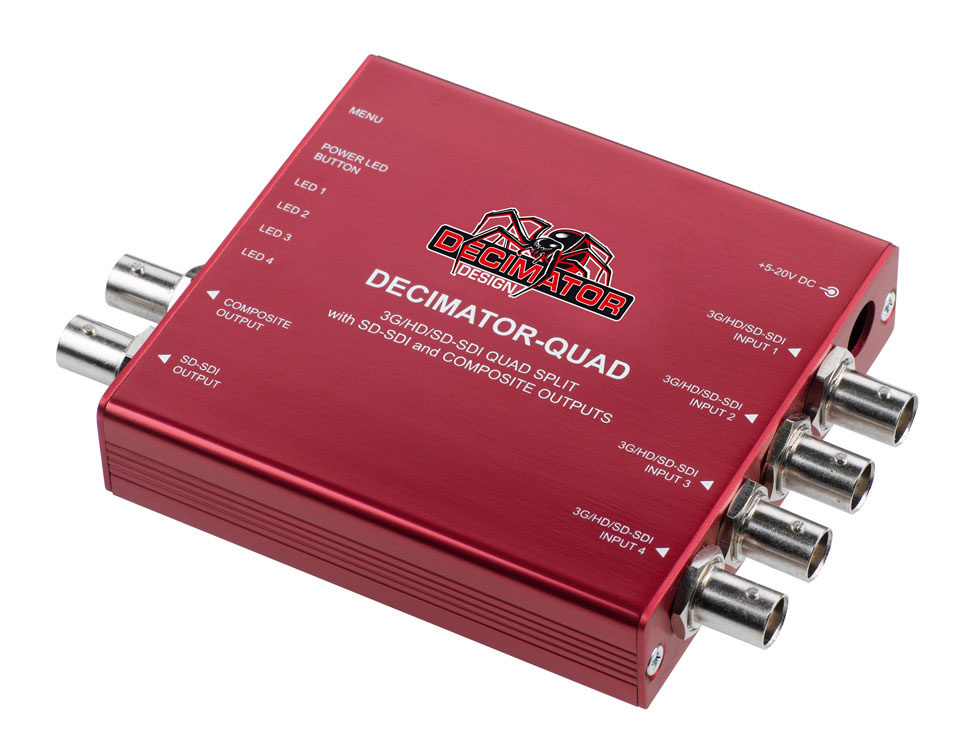

Decimator Design DECIMATOR-QUAD - SDI/Composite Quad Split MultiViewer

  • Vanuit voorraad leverancier, ca. 1 - 3 werkdagen
€895,00 (€739,67 Excl. btw)
3G/HD/SD-SDI Quad Split, SD-SDI & Composite Outputs...Meer informatie
+31 (0) 316 294 700
Scherpe offertes
Passend advies
Maatwerk en Service
Product informatie

The DECIMATOR-QUAD from Decimator Design is a low cost, miniature 3G/HD/SD-SDI 4 to 1 Quad Split or Down Converter with 4 to 1 input multiplexer.



  • Low cost miniature 3G/HD/SD-SDI 4 to 1 Quad Split or Down-converter with 4 to 1 input multiplexer



  • Your choice of either a NTSC or PAL output



  • Linked SD-SDI and Composite Outputs



  • 4 x 3G/HD/SD-SDI inputs with auto-detection (26 formats supported in total)



  • Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously



  • Variable aspect ratios per quadrant



  • All 4 inputs can be displayed simultaneously on a single output



  • Full-screen mode allowing any of the 4 inputs to be selected for output



  • In Full-screen mode the selected 3G/HD-SDI input is down-converted to either NTSC or PAL and a SD-SDI input is passed through untouched



  • An extensive selection of user controllable functions via an easy to use rotary encoder for menu selection. LEDs and a push button can then be used for status and control



  • Locking DC power socket



  • Mounting bracket included



  • Low latency buffering for each input allowing non-synchronous inputs



  • Size is 3.7"x3.7"x0.9" or (94mmx94mmx23mm)



In the box



Power Supply, HDMI Cable and USB Cable
