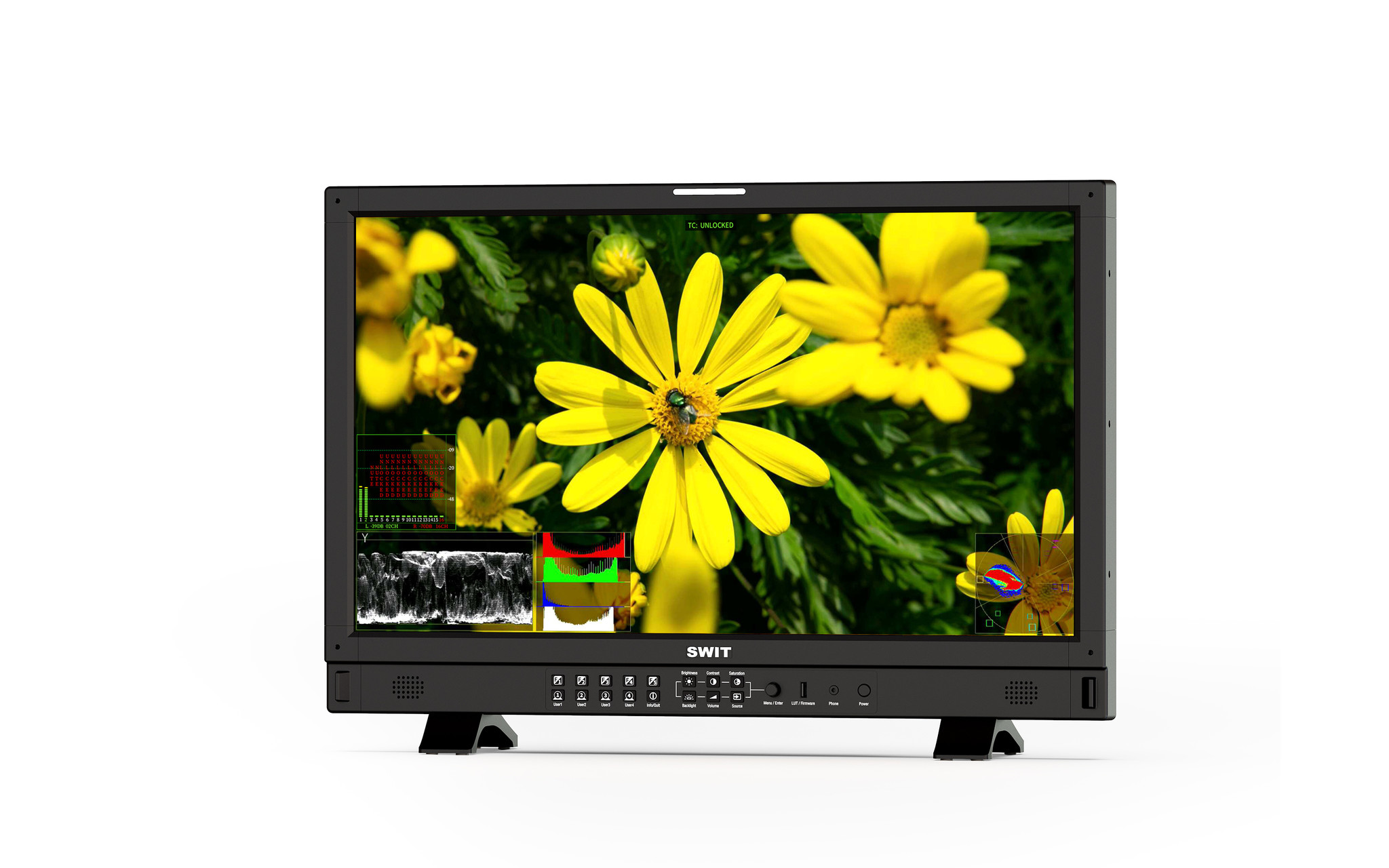

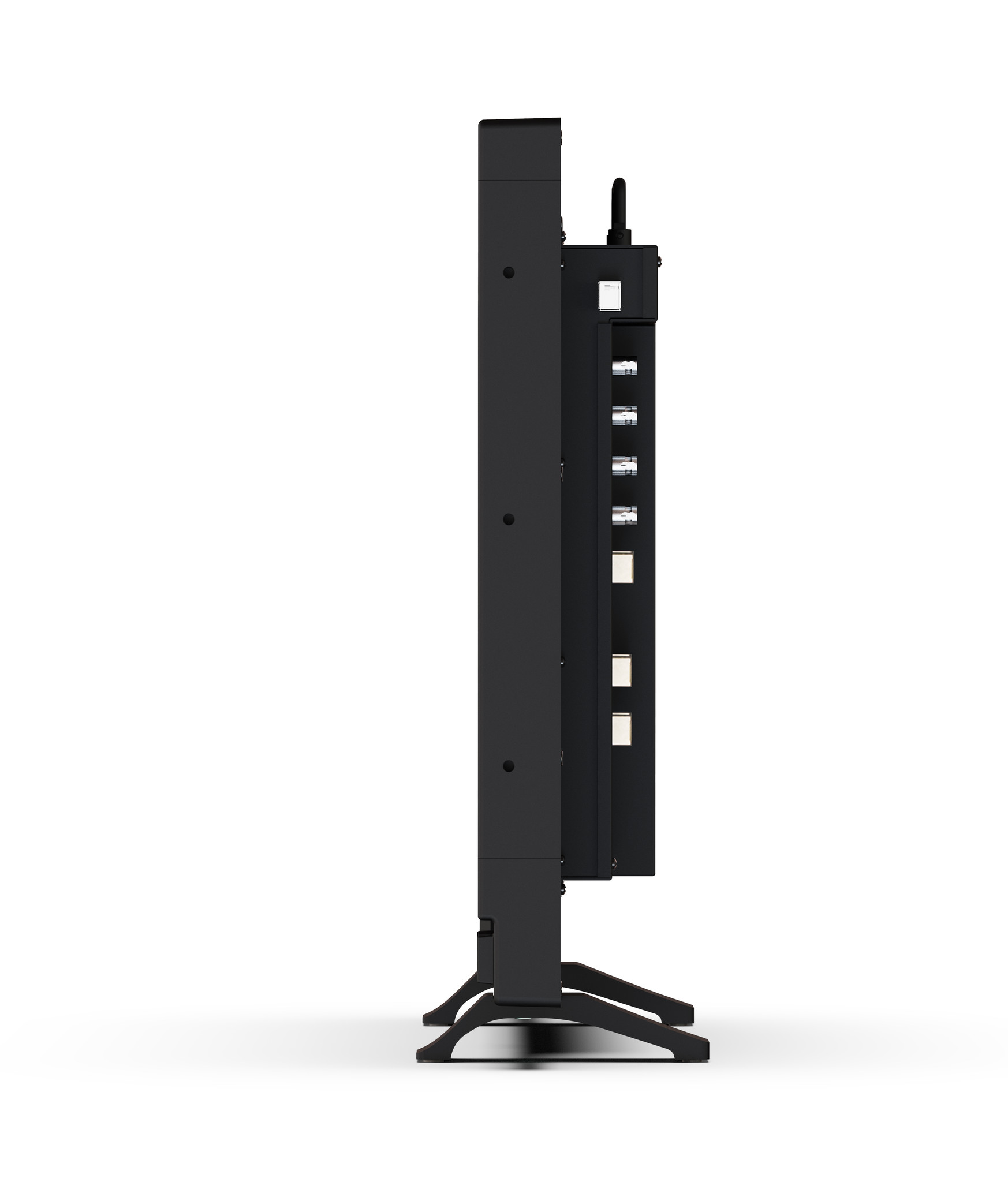

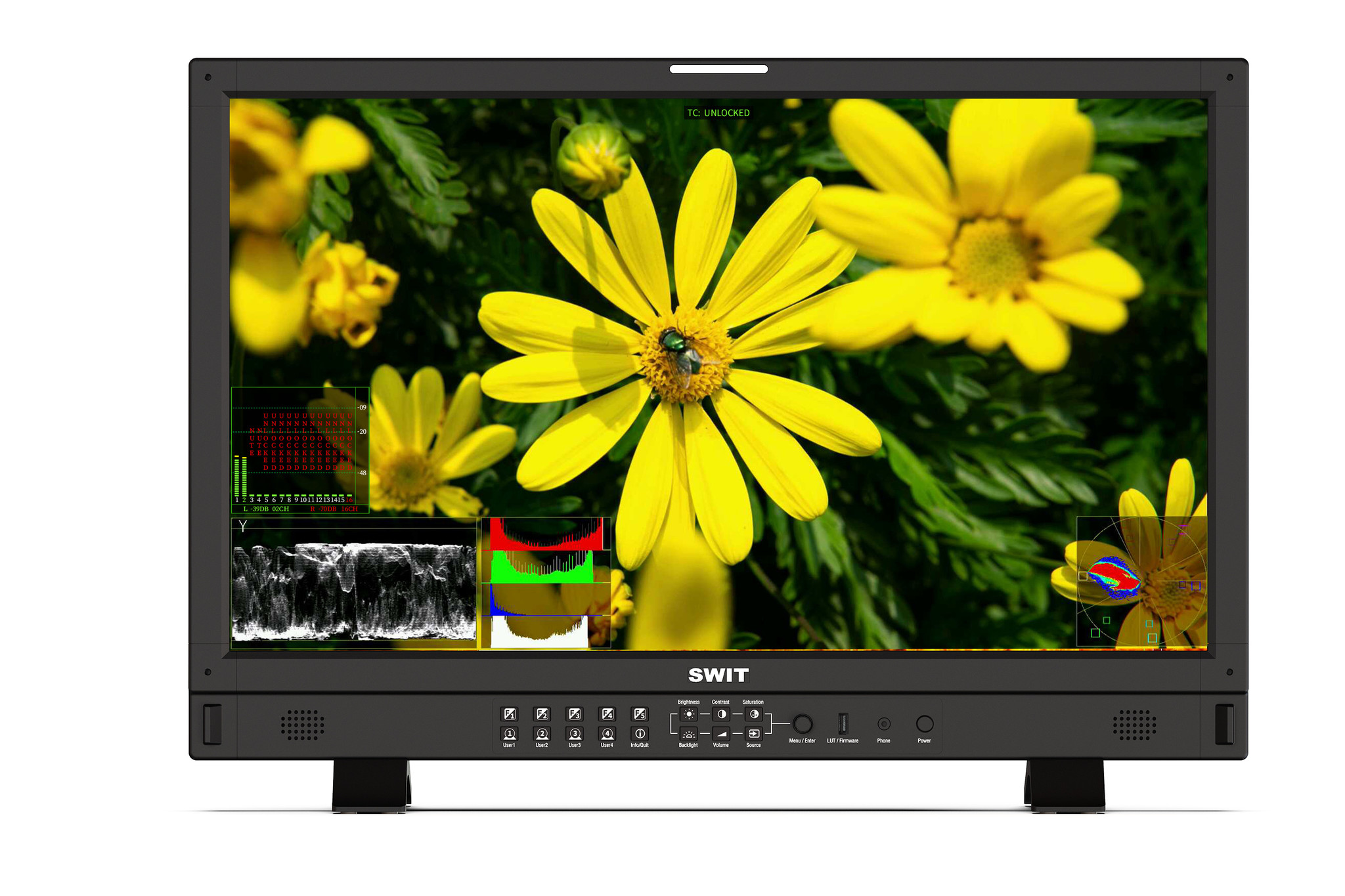

Swit BM-U275HDR LCD Studio Monitor

Merk: Swit
  • 2 - 3 werkdagen - op voorraad bij leverancier
€7.259,00 (€5.999,17 Excl. btw)
BM-U275HDR 27-inch 4K 12GSDI HDR Studio LCD Monitor...Meer informatie
+31 (0)85 1305 392
Scherpe offertes
Passend advies
Maatwerk en Service
Product informatie

27-inch 1000nit 4K LCD Monitor

UHD panel, 97.2% DCI-P3

BM-U275HDR adopts a 27-inch 10-bit LCD panel, UHD 3840×2160 resolution, 1000nit high bright LED backlight, 1400:1 contrast, 100% REC709 and 97.2% DCI-P3 color gamut. The viewing angle is Horizontal: 178° / Vertical: 178°.

Multi 4K Interfaces

BM-U275HDR supports the following 4K interfaces:

12GSDI (SDI 1&2)

Quadlink 3GSDI (SDI 1-4)

HDMI 2.0 (4K60P)

SFP Fiber 12G (Output by 12GSDI)

The Quadlink 3GSDI supports both Quad mode and 2SI interleave mode;

The SFP optical fiber adaptor is optional purchased.

HDR Monitoring

BM-U275HDR support HLG (Hybrid Log Gamma) and Dolby Vision PQ HDR monitoring, 1000nit high bright.

3DLUT Auto Self-Calibration

By X-rite i1 or JETI Specbos 1211

With built-in 3DLUT calibration software, (software copyright) support X-rite i1 and Jeti Specbos 1211 probes to directly connect with the monitor USB port.

The monitor generates color patterns and the color probes read the color, send color info to monitor via USB. Then the monitor compares the color difference and generate 3DLUT and calibrate itself automatically.

Calibration time: X-rite i1 15min, Specbos 1211 45min Calibration result: ∆E≤1.0

Audio/Video Zero Latency

Support Zero latency mode (less than 1/100 frame) under 4K input sources, for special image processing mode for lip-sync monitoring.

De-log 3DLUTs

User 3DLUT cube upload

The monitor has built-in multi camera logs to Rec 709 conversion 3DLUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm.

You can also import own 3DLUTs to monitor by USB stick, support 17x17x17 3DLUT cube files.

Audio Meters and Lissajous

Support Max 16-ch embedded audio meters display, with VU/PPM, and display audio abnormal alert. Support select any 2 channels audio to output via speaker or 3.5mm headphone socket. Support audio Lissajous pattern display for post production.

Webserver IP Remote Control

BM-U275HDR supports webserver remote control by Ethernet LAN connection.

Use computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without install any APP.

Multiple Video Analysis Patterns

Waveform Y/Cb/Cr/R/G/B

Vector scope

Red/Blue Peaking Focus assist

R/G/B/Mono mode

Single line waveform

R/G/B/Y Histogram

Over exposure zebra stripes

False color



27-inch LCD Panel, 3840×2160 resolution

1000nit high bright LED backlight

HLG/PQ/S-log3 HDR

12G-SDI / Quadlink 3G-SDI / HDMI2.0

SFP Fiber 12G input converted to 12GSDI out

3DLUT Auto Self-calibration without PC

Audio/Video 0 latency for lip-sync

 Built-in Multi camera Delog LUTs

User 3DLUTs upload via USB

Waveform / Vector / Histogram

Focus assist / False color / Zebra

16-ch audio meters / Lissajous

IP webserver remote control

TSL UMD and text TALLY display

USB firmware upgrade
