Blackmagic Design Videohub Master Control Pro

  • Op bestelling, belt u ons voor de actuele levertijd
€795,00 (€657,02 Excl. btw)
Routing Switcher / 21 Programmable Buttons / LCD Information Screen...Meer informatie
+31 (0) 316 294 700
Scherpe offertes
Passend advies
Maatwerk en Service
Product informatie

The Videohub Master Control Pro from Blackmagic Design is a network switching router with 21 programmable buttons for routing sources and destinations over a network. Housed in a 1 RU frame, the Master Videohub is suitable for use in both large broadcast systems or portable racks for routing live productions over Ethernet.

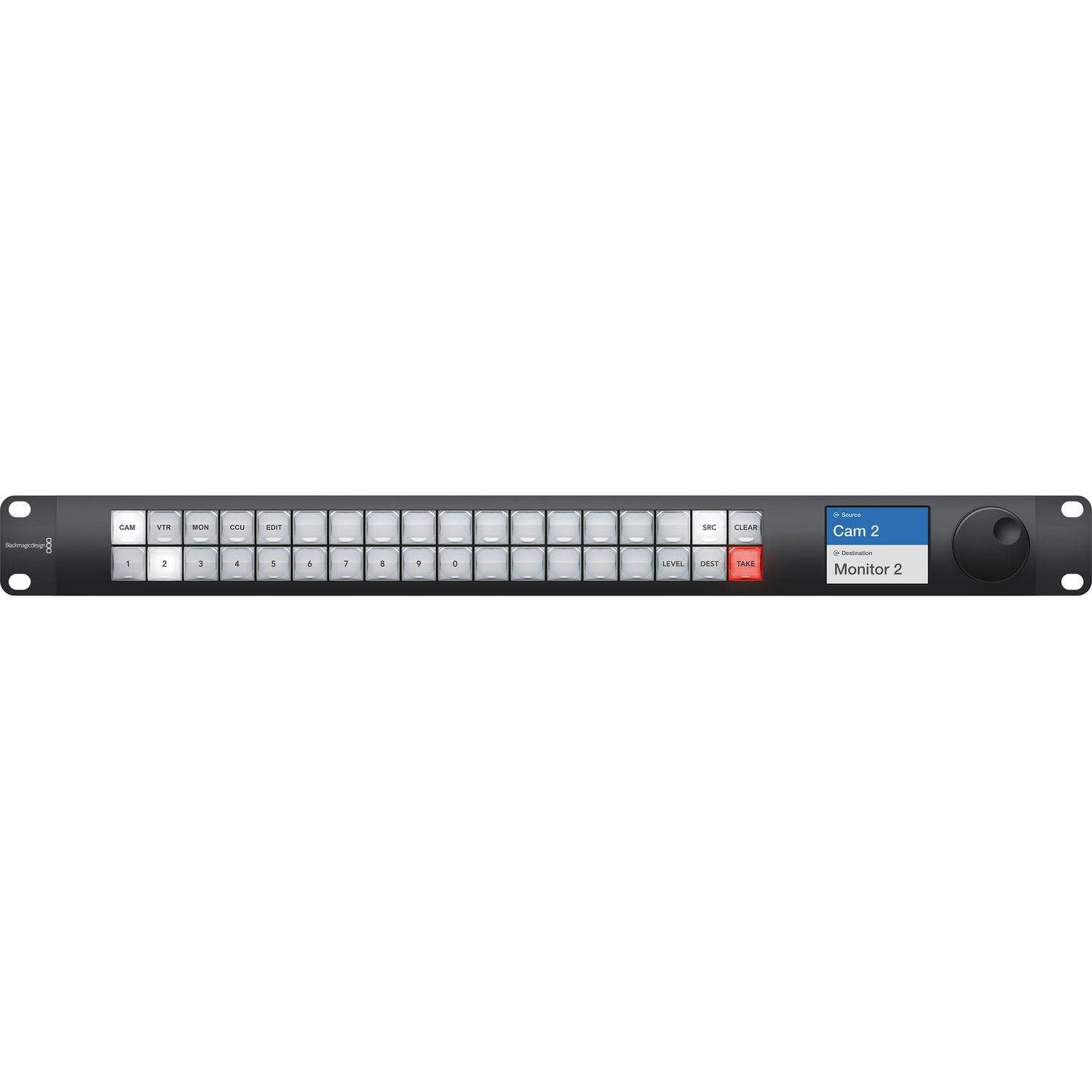

Simple push buttons on the front of the unit are configured to control source and destination as well as a scroll wheel and several configuration buttons. The buttons can be programmed via USB using the included software for Mac OS X and Windows. The unit also features power fail protection to preserve your button configurations when power is lost.

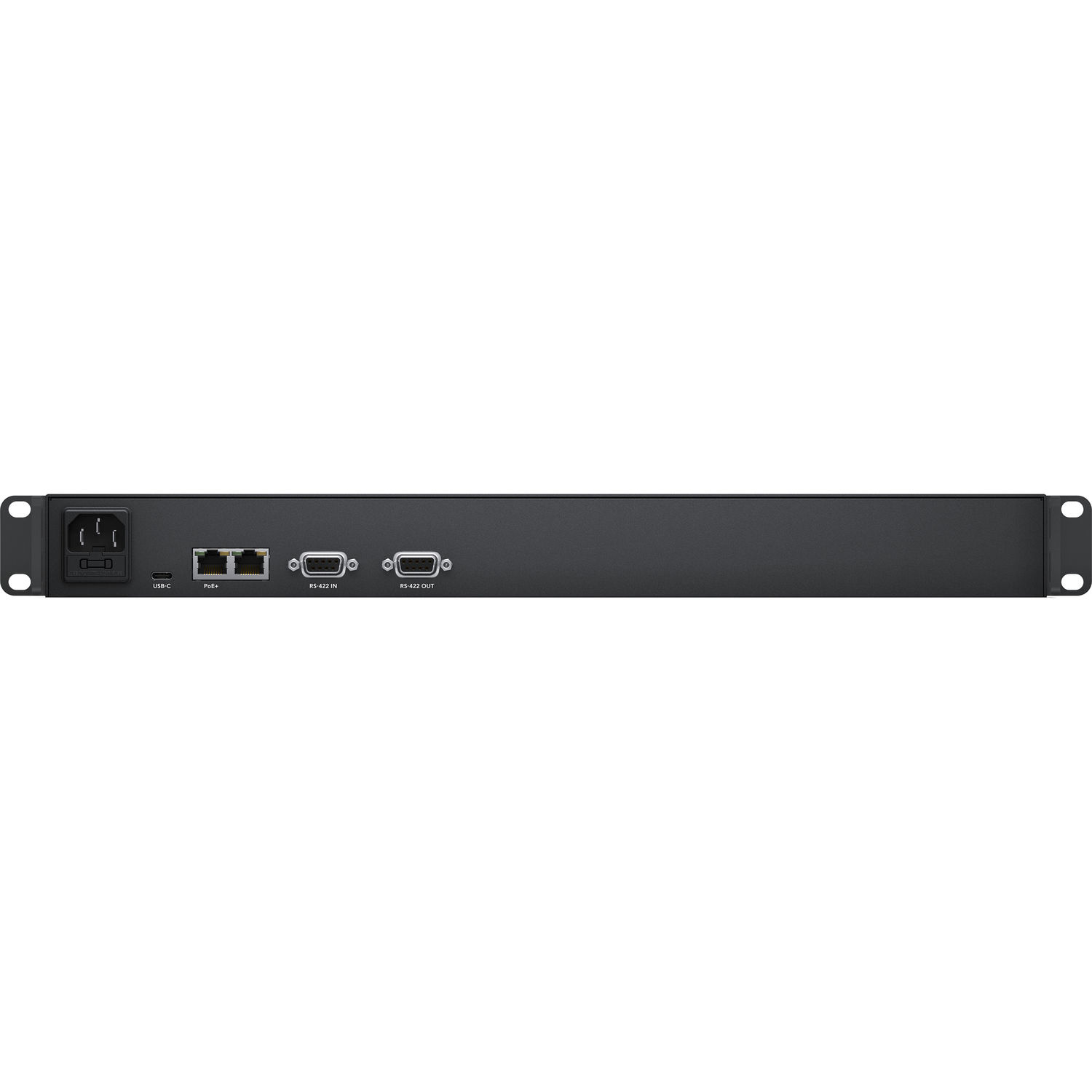

The rear of the unit features an RJ45 Ethernet input with PoE to connect your sources and power the unit, or it can be powered with a separately available C13 power cable. There is also an Ethernet loop output without PoE to communicate with your destinations. Two RS-422 input and output ports for future implementation are also on the back as well as a USB Type-C port for software configuration and firmware upgrades.



21 programmable buttons

Push buttons and a scroll wheel on front panel

Mac and Windows software included for button configuration

Ethernet source and destination control

USB Type-C software configuration port

Power fail protection to preserve button configurations

Power via PoE or separately available power cable

1 RU chassis

Technische specificaties

    Input

    21 x Programmable Buttons
    1 x Scroll Wheel
    1 x RJ45 Ethernet with PoE
    1 x RS-422
    1 x USB Type-C

    Output

    1 x RJ45 Ethernet
    1 x RS-422

    Configuration

    USB 2.0 Type-C

    Operating System Support

    macOS 10.13, 10.14 or Later
    Windows 10

    Display

    LCD

    Power Supply

    PoE
    C13

    AC Voltage

    100 to 240 VAC

    Operating Temperature

    32 to 104°F / 0 to 40°C

    Storage Temperature

    -4 to 113°F / -20 to 45°C

    Relative Humidity

    0 to 90% Non-Condensing

    Rack Space

    1 RU

    Dimensions (W x H x D)

    19 x 1.7 x 4.6" / 48.3 x 4.3 x 11.7 cm

    Weight

    2.2 lb / 1 kg



In de doos

1x Blackmagic Design Videohub Master Control Pro
