Blackmagic Design

Blackmagic Design Mini Converter - HDMI to SDI 6G

- 4K HDMI Input- 2 x 6G-SDI Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
€139,00 Incl. BTW
€114,88 Excl. BTW
CONVMBHS24K6G
Direct leverbaar
+31 (0)316 294 700
Scherpe offertes
Passend advies
Maatwerk en Service

Product omschrijving

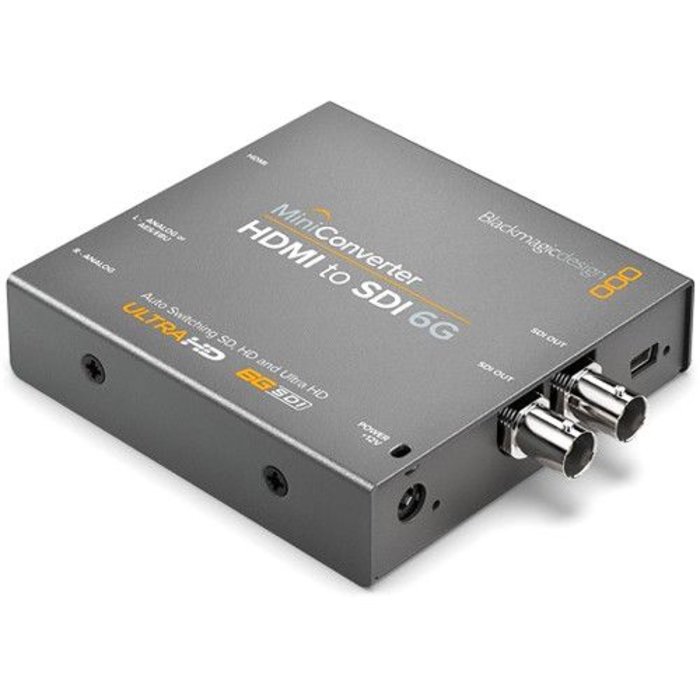

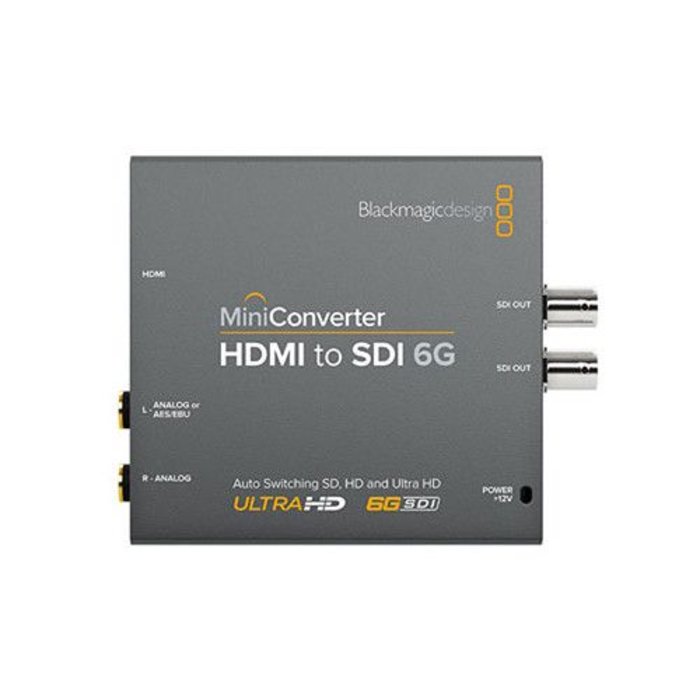

The Blackmagic Design Mini Converter - HDMI to SDI 6G converts HDMI to SD, HD, 3G, or 6G-SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 60p. This is useful for connecting consumer devices that output HDMI signals with professional SDI video equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.



Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats. The two 6G-SDI outputs also support SD and HD-SDI signals for integration into existing workflows. Both 6G-SDI outputs send duplicate signals. Audio is embedded in the SDI output from either the HDMI input or from the two 1/4" input jacks which support 4 channels of AES/EBU digital audio or 2 channels of analog audio.

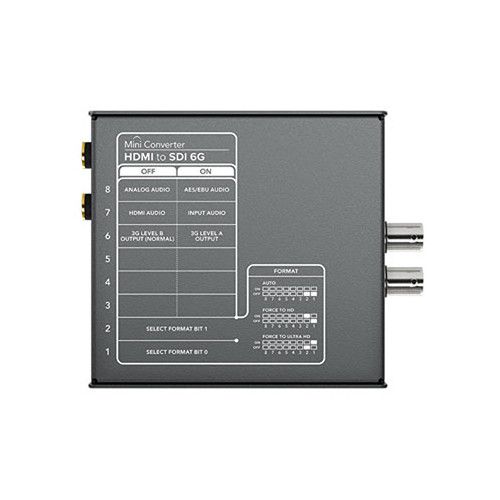

The Mini Converter's settings are controlled using the built-in switches or via USB using the control software for Max OS X or Windows computers, which can be downloaded on Blackmagic Design's website. The USB port also enables the firmware to be updated.



The device is powered by an included 12V power supply and includes international socket adapters.



Additional Features

- 4:2:2 Sampling and color precision

- HD scaler and SD down conversion

- 24-bit, 48 kHz audio sampling

- Compliant with SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A or Level B, SMPTE ST-2081, ITU-R BT.656 and ITU-R BT.601 standards

Technische specificaties

Video Input

1 x HDMI, Type A

Video Output

2 x 6G-SDI

Multi-Rate Support

Auto detection of SD, HD, 3G, or 6G-SDI signals

Reclocking

Yes

Audio Input

Analog: 2 channels with 1 x 1/4" (6.3 mm) jack per channel
AES/EBU: 4 channels with 1 x 1/4" jack (6.3 mm)

Format Support

DCI 4K
24p

UHD 4K
3840x2160p: 30/29.97/25/24/23.98

HD
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

SD:
NTSC: 525i/59.94
PAL: 625i/50

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A or Level B, SMPTE ST-2081, ITU-R BT.656 and ITU-R BT.601

SDI Video Rates

Switchable between SD, HD, Ultra HD and DCI 4K

SDI Video Sampling

4:2:2

SDI Color Precision

4:2:2

SDI Color Space

YUV

SDI Audio Sampling

24-bit, 48 kHz

SDI Auto Switching

Automatically detects SD, HD, or 6G-SDI

HDMI Format Support

UHD 4K
3840x2160p: 30/29.97/25/24/23.98

HD
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

SD:
NTSC: 525i/59.94
PAL: 625i/50

HDMI Color Space

YUV and RGB

HDMI Color Precision

4:2:2
4:4:4

HDCP Compliance

No. HDMI input is unable to capture from copy-protected HDMI sources

Format Conversion

HD down conversion

Settings Control

Mini switches or USB software

Firmware Upgradeable

Via USB

Power Supply

12 VDC

Power Consumption

4.44 W

Operational Voltage Range

12 to 31 VDC

Operating Temperature

32 to 104°F / 0 to 40 °C

Storage Temperature

-4 to 113°F / -20 to 45 °C

Relative Humidity

0 to 90% non-condensing

Dimensions

4.49 x 3.63 x 0.90" / 11.40 x 9.22 x 2.29 cm

Weight

8.6 oz / 243.8 g

Extra

Blackmagic Design Mini Converter - HDMI to SDI 6G

12V Power Supply with International Socket Adapters
