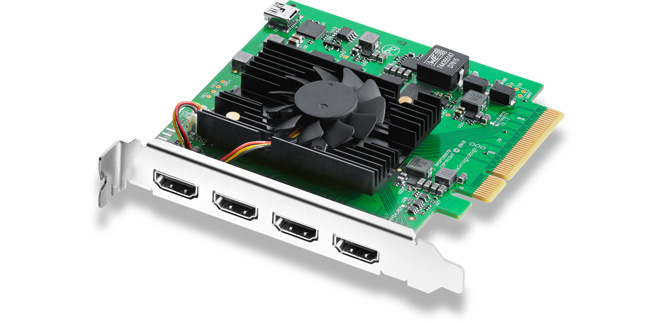

DeckLink Quad HDMI Recorder is a high performance PCIe card that lets you capture from 4 different HDMI sources in any combination of SD, HD, Ultra HD, 4K and even computer formats, all at the same time! Featuring 4 independent HDMI 2,0b input connections, DeckLink Quad HDMI is like getting 4 separate and customizable capture cards in one, making it perfect for software live switching, real time computer game capture, streaming and more!
Connections: | |
HDMI 2,0b Video Inputs | 4 |
HDMI Audio Inputs | 8 Channels embedded in SD/HD/UHD/4K, |
Computer Interface | PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots, |
Supported Codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, |
DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, | |
Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, | |
Uncompressed 8-bit 4:2:2, Uncompressed 10‑bit 4:2:2, | |
Software: | |
Software Included | Media Express, Disk Speed Test, Blackmagic Desktop Video Utility and Blackmagic driver on |
Mac OS and Windows, Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux, | |
Internal Software Upgrade | Firmware built into software driver, Loaded at system start or via updater software, |
Physical Installation | PCI Express 8 lane generation 3, compatible with 8, 16 lane PCI Express slots on Mac OS, |
Windows and Linux, Please check the Support pages to see the full system requirements, | |
Software Applications: | Wirecast, vMix, OBS |
Other supported applications include: | Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, |
Livestream Producer, Metus Ingest, Softron MovieRecorder, Tools On Air Just: In, | |
Video Standards: | |
SD Video Standards | 525i59,94 NTSC, 625i50 PAL |
HD Video Standards | 720p50, 720p59,94, 720p60 |
1080p23,98, 1080p24, 1080p25, 1080p29,97, 1080p30, 1080p50, 1080p59,94, 1080p60 | |
1080i50, 1080i59,94, 1080i60 | |
Ultra HD Video Standards | 2160p23,98, 2160p24, 2160p25, 2160p29,97, 2160p30, 2160p50, 2160p59,94, 2160p60 |
4K Video Standards | 4Kp23,98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29,97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59,94 DCI, 4Kp60 DCI |
Digital Video Interface (DVI) Standards | 640x480p60, 800x600p50, 800x600p60, 1440x900p50 1440x900p60, |
1440x1080p50 1440x1080p60, 1600x1200p50, 1600x1200p60, 1920x1200p50, 1920x1200p60, 1920x1440p50, | |
1920x1440p60, 2560x1440p50, 2560x1440p60, 2560x1600p50, 2560x1600p60 | |
Audio Sampling | Television standard sample rate of 48 kHz and 24 bit, |
HDMI Colour Precision | 8, 10, 12-bit RGB 4:4:4 in all modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 and |
4:2:0 in all modes, 8‑bit RGB 4:4:4 in all DVI modes, | |
Colour Space | REC 601, REC 709, REC 2020 |
HDMI Video Sampling | 4:4:4, 4:2:2 and 4:2:0 |
HDMI Configuration | HDMI 2,0b supports Deep Colour and HDR, Automatically configures to connected display, |
Multiple Rate Support | HDMI inputs are switchable between SD, HD, Ultra HD, 4K DCI and DVI modes, |
Copy Protection | HDMI input is unable to capture from copy protected HDMI sources, Always confirm |
copyright ownership before capture or distribution of content, | |
Physical Specification: | |
Length | 4,29in |
Weight | 127,85g (4,51oz) |
Operating Systems | Mac OS 10,13 High Sierra, Mac OS 10,14 Mojave or later |
Windows 7, 8,1 and 10, all 64-bit | |
Linux | |
Power Requirements: | |
Power Consumption | 23 W |
EMC Certifications | FCC, CE, RCM and KC |
Environmental Specifications: | |
Operating temperature | 5° to 40° C (41° to 104° F) |
Storage temperature | -20° to 45° C (-4° to 113° F) |
Relative Humidity | 0% to 90% non-condensing |
