Blackmagic Design

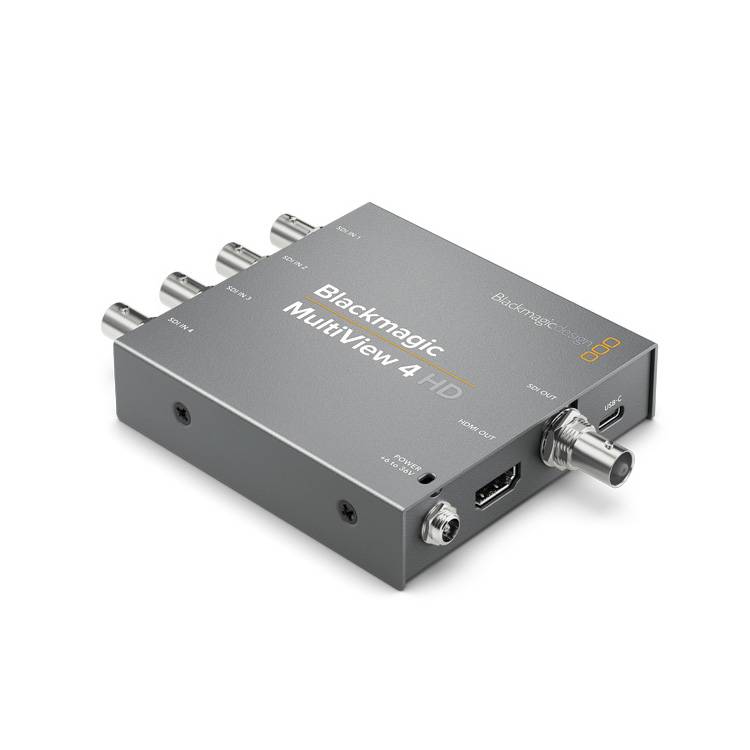

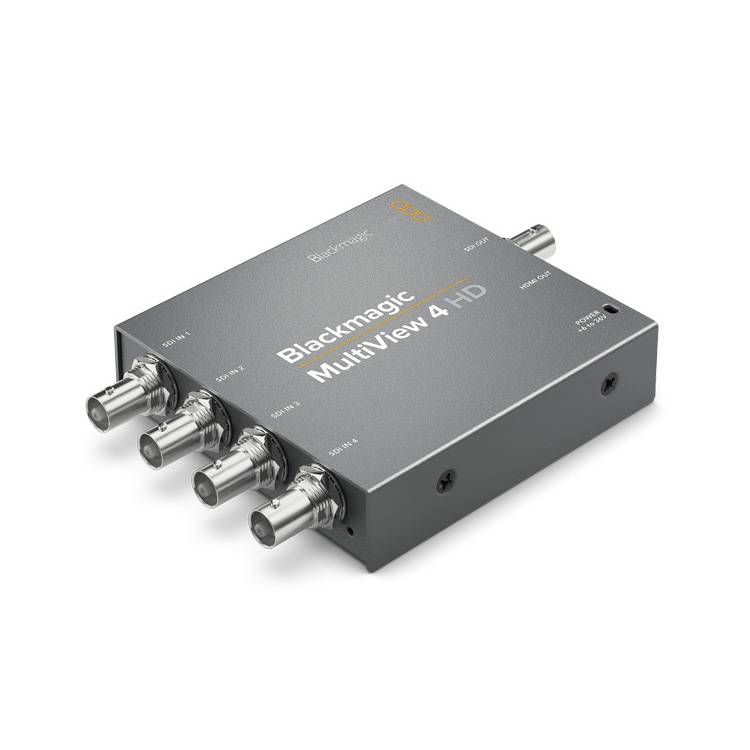

Blackmagic Design Blackmagic MultiView 4 HD

Blackmagic MultiView 4 HD is a multiviewer that lets you simultaneously monitor 4 completely independent SDI video sources on a single display!
€192,00 Incl. BTW
€158,68 Excl. BTW
HDL-MULTIP3G/04HD
Direct beschikbaar
Scherpe offertes!
Persoonlijk advies
Mogelijkheid tot afhalen
Kwaliteit en Service!

Product omschrijving

Blackmagic MultiView 4 HD is a multiviewer that lets you simultaneously monitor 4 completely independent SDI video sources on a single display! You can monitor any combination of SD and HD formats and frame rates, all at the same time. Each view can display overlays with information such as custom labels, audio meters and more. MultiView 4 HD has both SDI and HDMI outputs for monitoring on professional SDI displays, projectors or even big screen televisions!



Technische specificaties



Connections



SDI Video Inputs

4 x 10-bit SD-SDI and HD-SDI.



SDI Video Outputs

1 x HD-SDI.



SDI Rates

270Mb, 1.5G, 3G.



SDI Video Multi View Outputs

1 x 10-bit HD-SDI.



HDMI Video Multi View Outputs

1 x HDMI type A connector. Output supports EDID of the monitor.



SDI Reclocking

On all SDI outputs, auto switching between standard definition or high definition.



Reference Input

None



Multi Rate Support

Auto detection of SD or HD.



Updates

USB 2.0 high speed (480Mb/s) interface.



Configuration

USB 2.0



Standards



SD Video Standards

525i59.94 NTSC, 625i50 PAL



HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24
1080i50, 1080i59.94, 1080i60



2K Video Standards

2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p



SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601.



Audio Meters

Each view, VU standard.



Source Routing

None



SDI Video Sampling

4:2:2 and 4:4:4.



SDI Audio Sampling

Television standard sample rate of 48kHz and 24-bit.



SDI Color Precision

10-bit 4:2:2 and 4:4:4.



SDI Color Space

YUV or RGB for inputs, YUV for outputs.



SDI Auto Switching

Automatically selects between SD-SDI and HD-SDI on each input so that each input can be running a different television standard.



SDI Metadata Support

Video payload identification ancillary data as per SMPTE 352M.



Control



Built in Control Panel

None



External Control Panel

None



Display

None



Software



Software Control

MultiView software included free for Windows™ and Mac OS X™.



Internal Software Upgrade

Via included updater application.



Operating Systems

macOS 10.12 Sierra,
macOS 10.13 High Sierra or later.

Windows 8.1 or Windows 10.




Power Requirements



Power Supply

+12V universal power supply included with international socket adapters for all countries. Cable tie point.



Power Fail Protection

MultiView 4 HD settings preserved and restored instantly at power on.



Power Consumption

5.5 Watts



Operational Voltage Range

6 to 36V DC



Environmental Specifications



Operating temperature

0° to 40° C (32° to 104° F)



Storage temperature

-20° to 45° C (-4° to 113° F)



Relative Humidity

0% to 90% non-condensing

Extra

What's Included

Blackmagic MultiView 4 HD

+12V universal power supply with international socket adapters



Warranty

3 Year Limited Manufacturer's Warranty.
