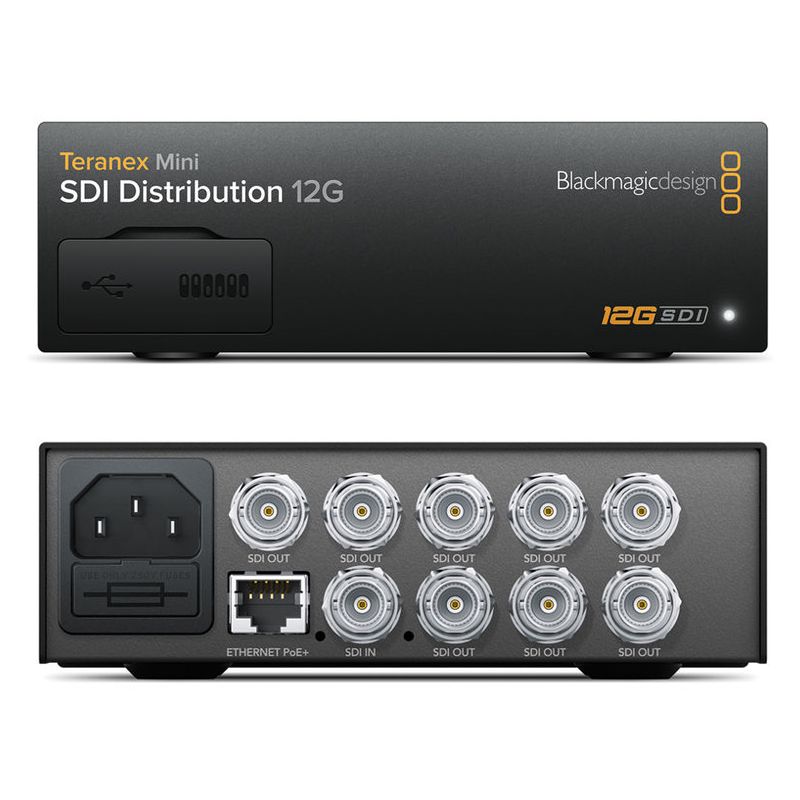

Blackmagic Design Teranex Mini - SDI Distribution 12G

  • Direct leverbaar
€529,00 (€437,19 Excl. btw)
Distribute a single SDI video input to up to eight SDI outputs ...Meer informatie
+31 (0) 316 294 700
Scherpe offertes
Passend advies
Maatwerk en Service
Product informatie
  • EAN: 9338716003505

Distribute a single SDI video input to up to eight SDI outputs. Features the latest multi rate 12G-SDI connections with full SDI re-clocking allowing the converter to automatically switch between all SD, HD and Ultra HD formats up to 2160p60. Perfect for distributing a single SDI signal to multiple devices such as monitors, switchers and encoders.

Technische specificaties

    SDI Video Input

    1 x 12G-SDI SD/HD/2K/4K auto switching.

    SDI Video Output

    8 x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI input

    Multi Rate Support

    Automatic switching between SD/HD/2K and 4K

    Updates and Configuration

    USB or Ethernet

    Re-Clocking

    Yes

    SD Format Support

    525/29.97 NTSC625/25 PAL

    HD Format Support

    720p50, 59.94, 60
    1080i50, 59.94, 60
    1080PsF23.98, 24
    1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60

    2K Format Support

    1080PsF23.98, 24, 125
    1080p23.98, 24, 25

    Ultra HD Format Support

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60.

    4K Format Support

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.

    SDI Compliance

    SMPTE 259M, 292M, 296M, 372M, 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, ST 2081 & ST 2082

    SDI Video Rates

    SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.

    SDI Video Sampling

    4:2:2 and 4:4:4

    SDI Audio Sampling

    Television standard sample rate of 48 kHz and 24-bit.

    SDI Color Space

    YUV & RGB

    Power Supply

    1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.

    Power Over Ethernet

    Can be powered via 48V DC using PoE+ (power over ethernet).

    Power Consumption

    18 Watts

    Operational Voltage Range

    90 - 240V AC

In de doos

Teranex Mini - SDI Distribution 12G

Software and manual SD Card
