Blackmagic Design MultiView 16

  • Tijdelijk uitverkocht. Informeer naar de levertijd
€1.539,00 (€1.271,90 Excl. btw)
Monitor up to 16 different SD, HD or Ultra HD sources on a single Ultra HD display at twice the resolution per view....Meer informatie
+31 85 1305 392
Scherpe offertes
Passend advies
Maatwerk en Service
Product informatie
  • EAN: 9338716002850

Blackmagic MultiViews are the world’s first native Ultra HD multi viewers that let you monitor completely independent SDI video sources on a single HD or Ultra HD display! With full frame re-synchronization on every input, you can monitor any combination of SD, HD and Ultra HD formats and frame rates all at the same time, on the same display. When used with an Ultra HD television, the quad split view gives you four full resolution 1080 HD monitors on a single screen! You also get on screen audio meters, custom view labels and much more!

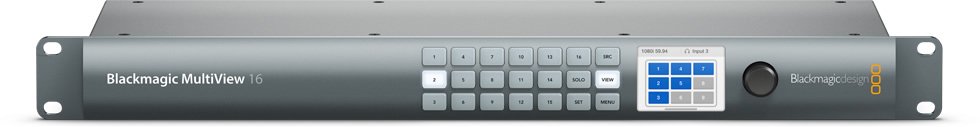

With 16 completely independent 6G-SDI inputs, Blackmagic MultiView 16 is perfect for larger installations where you need to monitor up to 16 SD, HD and Ultra HD sources at the same time. You get full front panel router style controls, along with an LCD screen and spin knob to adjust settings, route sources to different views, turn on overlays, and more. MultiView 16 can display sources in a 2x2, 3x3 or 4x4 grid, or even in a SOLO view for full screen viewing of any single source!

Multi view monitoring is perfect for massive control rooms with lots of incoming feeds, for live multi camera production or for use on location and in tight spaces that don’t have room for multiple monitors. With Blackmagic MultiViews you don’t need to connect multiple monitors, dozens of cables or run extra power to see all of your video sources! Simply plug your cameras, decks, switchers and routers into the SDI connections to see everything with amazing clarity and detail on a single HD or Ultra HD monitor!

Each view on a Blackmagic MultiView works as a completely independent video monitor. You get full frame re-synchronization on all of the 6G-SDI inputs. That means they can be any video standard and frame rate, and each input is completely independent of the others. You can mix any combination of referenced or non-referenced NTSC, PAL, 720p, 1080i, 1080p, and Ultra HD up to 2160p30, all on the same display at the same time! It's like getting 4 or 16 independent monitors in one!

Technische specificaties

    Mass

    2.1 kg

    Dimensions (W x H x D)

    48.18 x 4.42 x 15.32 cm

    Power Requirements

    IEC power cable required. 90 - 240V AC input.

    Power Consumption

    45 Watts

    Operating Temperature

    0°C to 40°C
    32°F to 104°F

    Storage Temperature

    -20°C to +60°C
    -4°F to +140°F

    SD Format Support

    525i29.97 NTSC, 625i25 PAL

    HD Format Support

    720p50, 59.94, 60
    1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    1080PsF23.98, 24, 25, 29.97, 30
    1080i50, 59.94, 60

    2K Format Support

    1080p23.98, 24, 25,
    1080PsF23.98, 24, 25

    4K Format Support

    2160p24

    SDI Compliance

    SMPTE 259M, SMPTE 292M,SMPTE 296M, SMPTE 310M,SMPTE 425M-B, ITU-R BT.656 andITU-R BT.601.



In de doos

Blackmagic MultiView 16

SD card with software and manual
