SDI Video Input
Switchable between SD, HD, 3G and 6G-SDI.
SDI Video Output
Automatically matches the SD, HD, 3G and 6G-SDI video input.
SDI Redundant Input
Automatically switches over if main SDI input is lost.
4 channels of professional balanced analog audio with standard 1/4 inch jack connections.
AES/EBU Digital Audio
8 channels of professional balanced digital with standard 1/4 inch jack connections.
Multi Rate Support
Auto detection of 4K, UHD, 2K, HD or SD SDI inputs.
Updates and Configuration
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601, SMPTE
SDI Video Rates
SDI video connections are switchable between standard definition and high definition.
SDI Video Sampling
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision
SDI Color Space
SDI Auto Switching
Automatically selects between SD, HD, 3G and 6G-SDI.
SDI Format Support
525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30 and 1080PsF30, 1080p50, 1080p60, 2048x1080p23.98, 2048x1080p24, 2048x1080p25, 2048x1080PsF23.98, 2048x1080PsF24, 2048x1080PsF25, 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p23.98, 4096x2160p24, 4096x2160p25, 4096x2160p29.97, 4096x2160p30.
Mac OS X™ and Windows™ software upgrade via USB.
Internal Software Upgrade
Via included updater application.
Mini Switches or USB software.
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Operational Voltage Range
12V - 31V DC
0° to 40° C (32° to 104° F)
-20° to 60° C (-4° to 113° F)
0% to 90% non-condensing

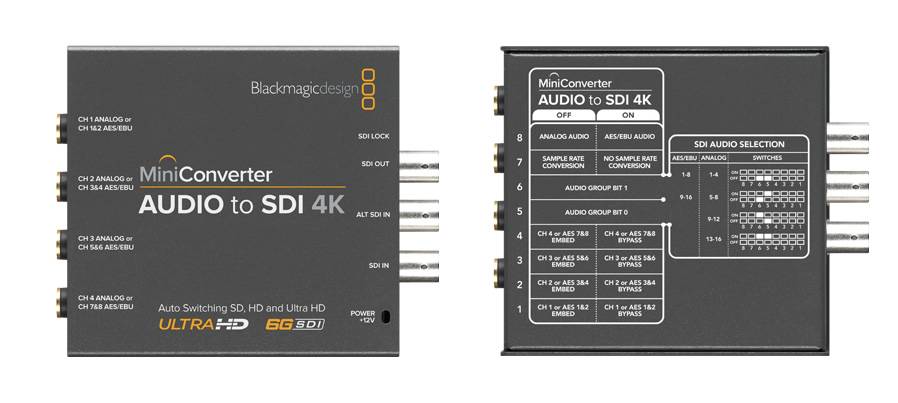

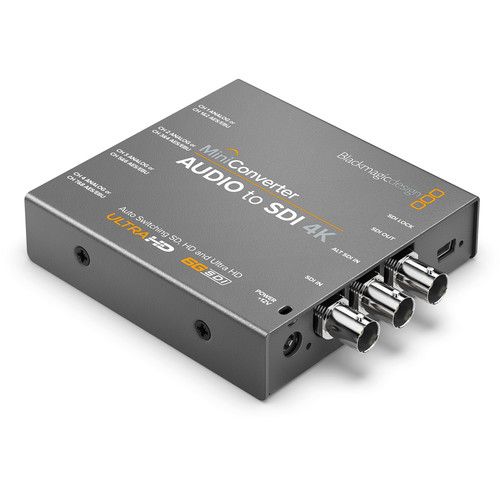

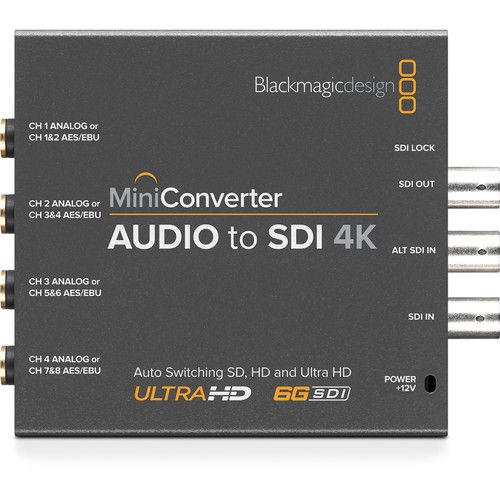

Mini Converter Audio to SDI 4K
12V universal power supply with international socket adapters
