Blackmagic Design

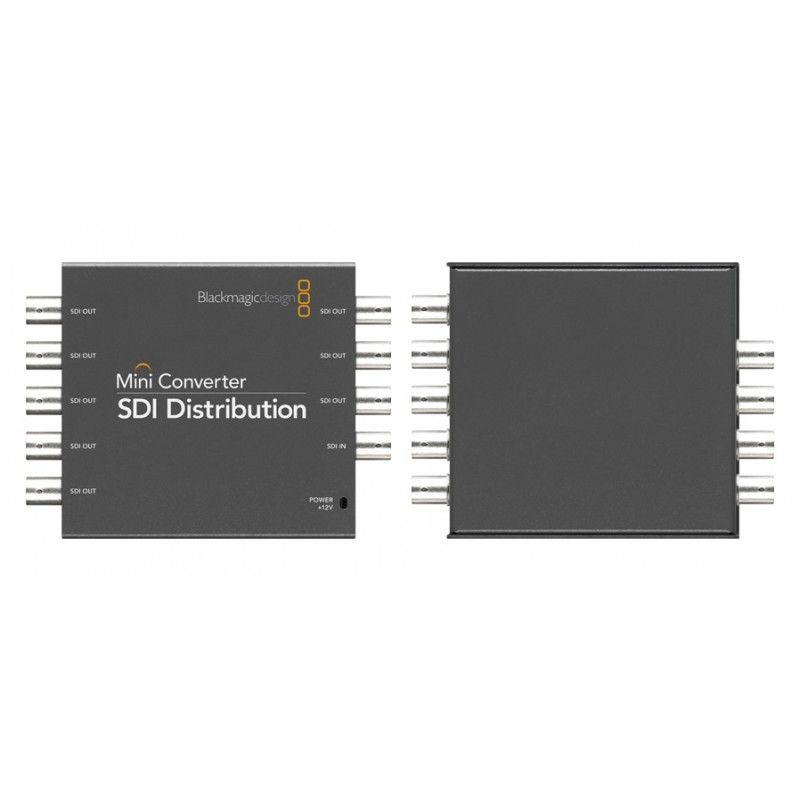

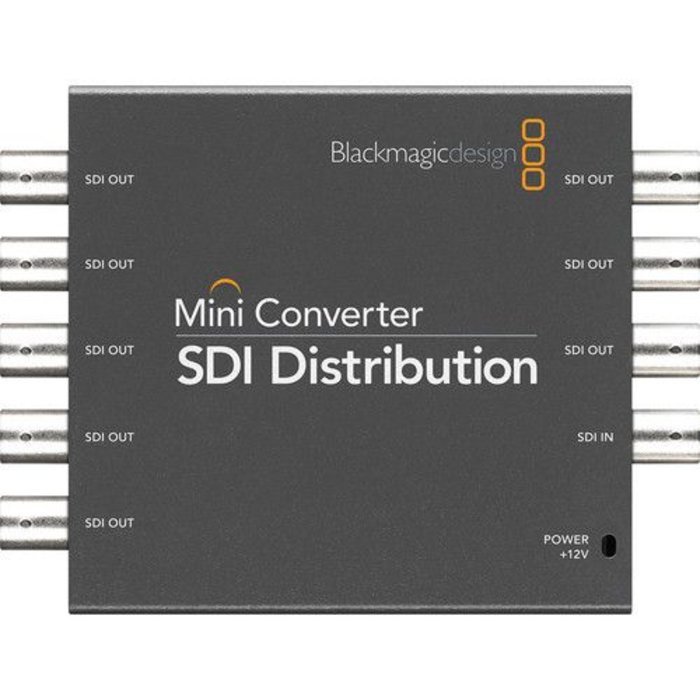

Blackmagic Design Mini Converter SDI Distribution

When you need to connect to multiple SDI devices, then Mini Converter SDI Distribution is the perfect solution! Connect a single SDI source to 8 re-clocked SDI outputs with automatic switching between all SD-SDI, HD-SDI and 3G-SDI video formats, plus all
€204,00 Incl. BTW
€168,60 Excl. BTW
CONVMSDIDA
Direct beschikbaar
Scherpe offertes!
Persoonlijk advies
Mogelijkheid tot afhalen
Videocamera Price Match!*

Product omschrijving

The Blackmagic Design Mini Converter SDI Distribution is a 1x8 distribution amplifier for SD-SDI, HD-SDI, and 3G-SDI signals. The Mini Converter auto-detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI video input. This device represents an affordable way to distribute SDI signals throughout a facility or truck.

The Mini Converter SDI Distribution supports all SDI-related transmission features, including embedded audio, ancillary data, and the 3 Gb/s transmission rate that accommodates video formats up to 1080p and 2K progressive. It even handles ASI signals – asynchronous signals that carry multiple compressed programs that can be at varying transmission speeds.

Technische specificaties

Standards

SD Format Support

525/29.97 NTSC, 625/25 PAL

HD Format Support

720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60

2K Format Support

2048x1080PsF23.98, 2048x1080p23.98, 2048x1080PsF24, 2048x1080p24, 2048x1080PsF25, 2048x1080p25

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M

SDI Video Rates

SDI video connections are switchable between HD and SD-SDI

SDI Video Sampling

4:2:2 and 4:4:4

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24 bit.

SDI Color Precision

4:2:2 and 4:4:4

SDI Color Space

YUV and RGB

SDI Auto Switching

Automatically selects between SD SDI, HD-SDI and 3G- SDI.

ASI Support

Yes

Power Requirements

Power Supply

+12V universal power supply included with international socket adapters for all countries. Cable tie point.

Power Consumption

4.80 Watts

Operational Voltage Range

12V - 30V

Environmental Specifications

Operating temperature

0° to 40° C (32° to 104° F)

Storage temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

Extra

Mini Converter SDI Distribution

Software CD

12V universal power supply with international socket adapters
