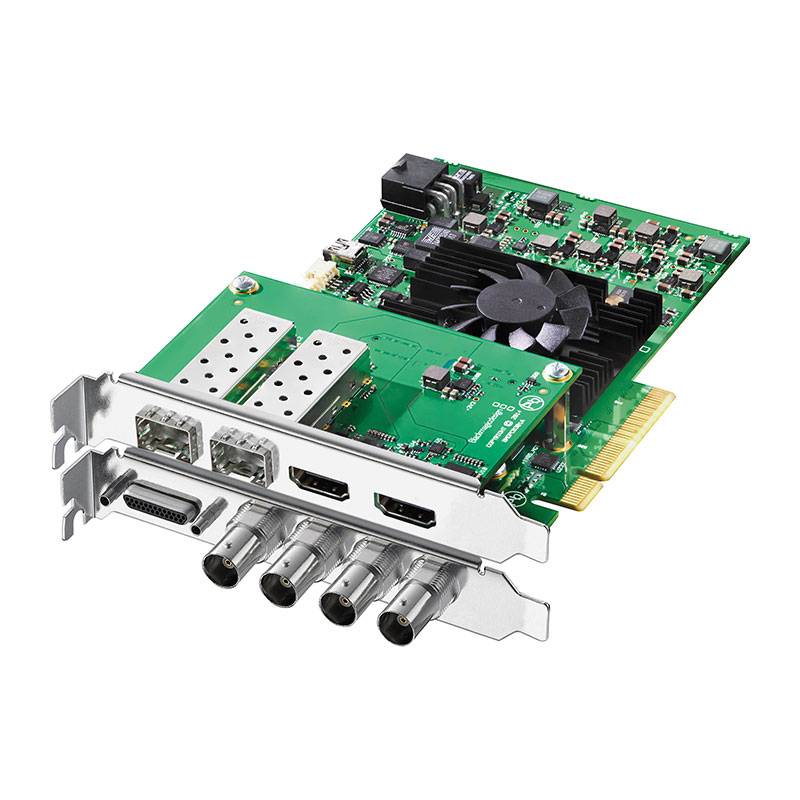

Blackmagic Design DeckLink 4K Extreme 12G

  • Tijdelijk uitverkocht. Informeer naar de levertijd
€949,00 (€784,30 Excl. btw)
The ultimate digital cinema capture card featuring two full frame DCI 4K inputs and outputs via 12G-SDI!...Meer informatie
+31 85 1305 392
Scherpe offertes
Passend advies
Maatwerk en Service
Product informatie
  • EAN: 9338716002881

The ultimate digital cinema capture card featuring two full frame DCI 4K inputs and outputs via 12G-SDI! You get dual link multi rate 12G-SDI connections that work with SD, HD and Ultra HD even in Ultra HD 60p, as well as full frame DCI 4K at 4096 x 2160 resolution up to 60p! Capture 10-bit YUV or full color bandwidth 12-bit RGB. Includes AES/EBU audio, up, down and cross conversion, plus built in 3D stereoscopic output at full bandwidth 4:4:4:4 RGB! No other capture and playback card supports more video formats and video connections!

Technische specificaties

    SDI Video Input

    2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable.

    SDI Video Output

    2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable.

    Analog Video Input

    1 x Component YUV on 3 BNCs switchable to S-Video or Composite. Component supports HD and SD.

    Analog Video Output

    1 x Component YUV on 3 BNCs switchable to S-Video and Composite. Component supports HD and SD.

    Analog Audio Input

    2 Channels of professional balanced analog audio via XLR connectors.

    Analog Audio Output

    2 Channels of professional balanced analog audio via XLR connectors.

    AES/EBU Audio Input

    2 Channels unbalanced with sample rate converter.

    AES/EBU Audio Output

    2 Channels unbalanced.

    SDI Audio Input

    16 Channels embedded in SD/HD/2K/4K.

    SDI Audio Output

    16 Channels embedded in SD/HD/2K/4K.

    HDMI Video Input

    HDMI type A connector with support for 2160p60.

    HDMI Video Output

    HDMI type A connector with support for 2160p60.

    HDMI Audio Input

    8 Channels embedded in SD/HD/4K.

    HDMI Audio Output

    8 Channels embedded in SD/HD/4K.

    Sync Input

    Black burst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD format.

    Device Control

    Sony™ compatible RS422 deck control port. Serial ports TxRx direction reversible under software control.

    Computer Interface

    PCI Express 8 lane Gen 2, compatible with 8 and 16 lane PCIe with HDMI or SDI mezzanine card.

    Codecs

    Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.

    Software

    Software Included

    Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video and Blackmagic driver on Mac OS X. Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video and Blackmagic driver on Windows 7 and Windows 8. Media Express, Blackmagic Desktop Video and Blackmagic driver on Linux.

    Internal Software Upgrade

    Firmware built into software driver. Loaded at system start or via updater software.

    Physical Installation

    PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots on Mac OS X, Windows and Linux. Mac OS X systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.

    Software Applications

     DaVinci Resolve

     Fusion

     Final Cut Pro X

     Premiere Pro CC

     Avid Media Composer

     After Effects CC

     Avid Pro Tools

     Steinberg Cubase

     Autodesk Smoke

     Photoshop CC

    Nuke, Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Flash Media Live Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster.

    Video Standards

    SD Format Support

    525/29.97 NTSC, 625/25 PAL.

    HD Format Support

    1280 x 720p501280 x 720p59.941280 x 720p601920 x 1080i501920 x 1080i59.941920 x 1080i601920 x 1080PsF23.981920 x 1080PsF241920 x 1080PsF251920 x 1080PsF29.971920 x 1080PsF301920 x 1080p23.981920 x 1080p241920 x 1080p251920 x 1080p29.971920 x 1080p301920 x 1080p501920 x 1080p59.941920 x 1080p60.

    2K Format Support

    2048 x 1080PsF23.982048 x 1080PsF242048 x 1080PsF252048 x 1080p23.982048 x 1080p242048 x 1080p25.

    4K Format Support

    3840 x 2160p23.983840 x 2160p243840 x 2160p253840 x 2160p29.973840 x 2160p303840 x 2160p503840 x 2160p59.943840 x 2160p604096 x 2160p23.984096 x 2160p244096 x 2160p25.

    SDI Compliance

    SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M level A, SMPTE 425M level B, SMPTE 435, ITU-R BT.656 and ITU-R BT.601.

    SDI Metadata Support

    VANC capture and playback using up to 3 lines of video in file. HD RP188. Closed captioning.

    Audio Sampling

    Television standard sample rate of 48 kHz at 24-bit.

    SDI Video Sampling

    4:2:2, 4:4:4 and 4:4:4:4.

    SDI Color Precision

    8, 10-bit YUV 4:2:2 and 8, 10, 12-bit RGB 4:4:4 in HD, 2K and 4K.

    Color Space

    REC 601REC 709

    HDMI Configuration

    HDMI 2.0 supports Deep Color and automatically configures to connected display.

    Multiple Rate Support

    HDMI and SDI video connections are switchable between SD/HD/2K and 4K. Component analog video connections are switchable between SD and HD.

    Copy Protection

    HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

    Processing

    Ultra HD Down Conversion

    Built in, high quality hardware down converter outputs Ultra HD to HD or HD to SD downconverted signal on SDI B and SD on Composite and S-Video. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.

    HD Up Conversion

    Built in, high quality hardware up conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom.

    HD Cross Conversion

    Built-in, high quality hardware cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback.

    Real Time Effects

    DaVinci Resolve, Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.

    Colorspace Conversion

    Hardware based real time on output.

    3D Processing

    Dual stream and frame packed capture and playback.

    Operating Systems

    Mac OS X 10.9 Mavericks,
    Mac OS X 10.10 Yosemite or later.

    Windows 7 64-bit or Windows 8 64-bit.

    Linux

    Environmental Specifications

    Operating Temperature

    5° to 40° C (41° to 104° F)

    Storage Temperature

    -20° to 45° C (-4° to 113° F)

    Relative Humidity

    0% to 90% non-condensing



In de doos

DeckLink 4K Extreme 12G

HDMI mezzanine card

SD card containing Blackmagic software driver

SD card containing DaVinci Resolve Lite

Breakout cable for analog and RS-422 control.

External power cable
