Product informatie
  • EAN: 9338716004366

Let op: de Decklink Mini Recorder 4K is een video input kaart

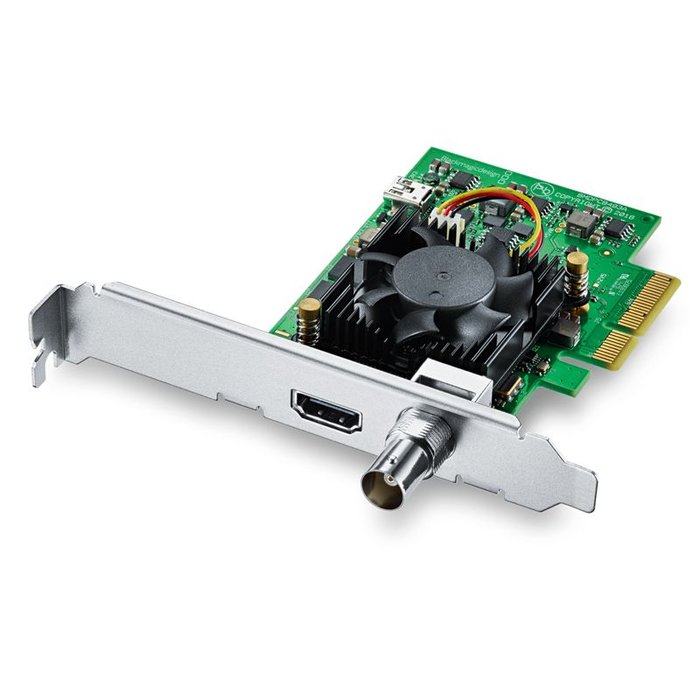

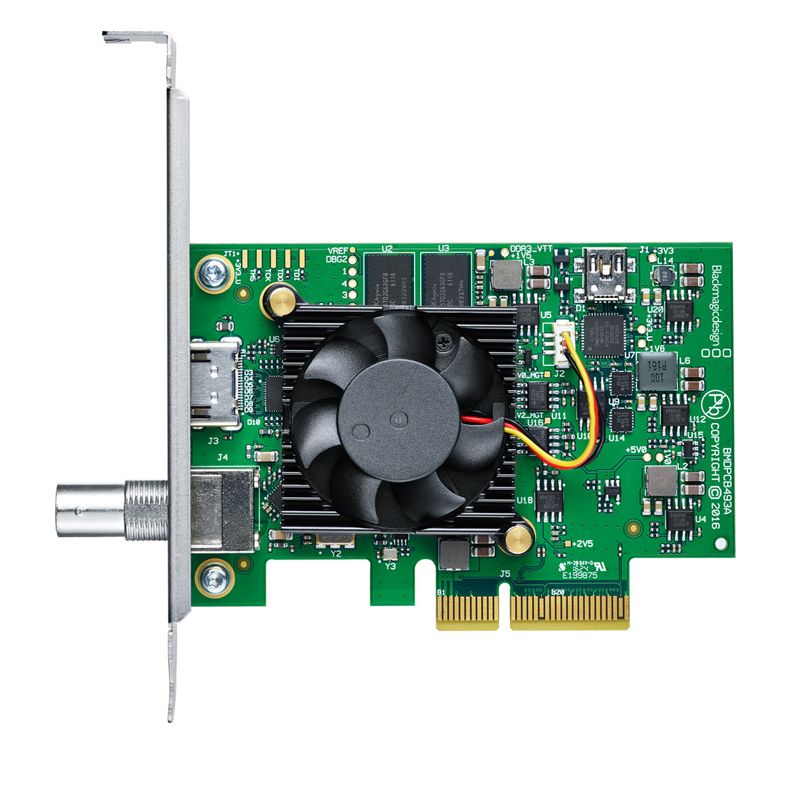

The DeckLink Mini Recorder 4K is a low profile 4 lane generation 2 PCI Express card that includes 6G-SDI and HDMI 2.0a connections. This means the high quality connections support broadcast quality 10-bit YUV and 12-bit RGB video, along with the latest Rec. 2020 color and supports for high dynamic range (HDR) formats and HDR metadata.


The DeckLink Mini Recorder 4K is fully compatible with the Blackmagic Desktop Video SDK, making them perfect for OEMs or developers that are building custom playback or recording solutions. The DeckLink Mini Recorder 4K supports all SD, HD and Ultra HD formats up to 2160p30.


DeckLink Mini Recorder 4K lets customers capture broadcast quality video directly from SDI and HDMI sources like decks and cameras to their computer. The low profile design of DeckLink Mini Recorder 4K makes it incredibly versatile and ideal for integrating into mobile live capture environments and outside broadcast trucks. DeckLink Mini Recorder 4K works with uncompressed and compressed video in open standard file formats such as QuickTime and DPX so it is compatible with virtually all professional editing, color correction and visual effects software. That means customers can use the DeckLink Mini rekorder 4K with software such as DaVinci Resolve, Fusion, Media Composer, Final Cut Pro, Premiere Pro and more.

Technische specificaties


    SDI Video Input

    1 x 10-bit SD/HD/Ultra HD switchable

    SDI Audio Input

    16 channels embedded in SD, HD, Ultra HD.

    HDMI Video Input

    1 x HDMI 2.0a connector.

    HDMI Audio Input

    8 Channels embedded in SD, HD, Ultra HD.

    Computer Interface

    Gen 2 PCIe Express 4 lane, compatible with 4, 8 and 16 lane PCIe slots.


    Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.


    Software Included

    Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X and Windows.

    Internal Software Upgrade

    Firmware built into software driver. Loaded at system start or via updater software.

    Physical Installation

    PCI Express 4 lane, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS X, Windows and Linux. Mac OS X systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.

    Software Applications

    DaVinci Resolve


    Premiere Pro CC

    Avid Media Composer

    After Effects CC

    Avid Pro Tools

    Steinberg Cubase

    Steinberg Nuendo

    Photoshop CC

    Media Express

    Other supported applications include: Nuke, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster.

    Video Standards

    SD Format Support

    525i59.94 NTSC, 625i50 PAL

    HD Format Support

    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    1080i50, 1080i59.94, 1080i60

    Ultra HD Format Support

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

    4K DCI Format Support

    4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

    SDI Compliance

    SMPTE 259M and 292M.

    SDI Metadata Support

    VITC read for 3:2 pulldown removal. VANC capture using up to 3 lines of video in file. HD RP188 and closed captioning.

    Audio Sampling

    Television standard sample rate of 48 kHz and 24 bit.

    Video Sampling


    Color Precision


    Color Space

    REC 601, REC 709, REC 2020

    HDMI Configuration

    HDMI automatically configures to connected display.

    HDMI Resolution

    Pixel for pixel HD resolution input to connected device.

    HDMI Color Precision


    Multiple Rate support

    SDI and HDMI are switchable between standard definitlon and high definition.

    Copy Protection

    HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.


    Colorspace Conversion

    Hardware based real time.

    HD Up Conversion

    Software based up conversion during video capture.

    Operating Systems

    Mac OS X 10.10 Yosemite,
    Mac OS X 10.11 El Capitan or later.

    Windows 7, 8.1 and 10, all 64-bit.


    EMC Certifications

    FCC, CE and C-Tick

    Environmental Specifications

    Operating Temperature

    5° to 40° C (32° to 104° F)

    Storage Temperature

    -20° to 45° C (-4° to 113° F)

    Relative Humidity

    0% to 90% non-condensing

In de doos

  • DeckLink Mini Recorder 4K
  • Low profile slot bracket
  • SD card with software and manual
