Atomos

Atomos Ninja V

- 1920 x 1200 Touchscreen Display
- 10-Bit Exterior Viewable Monitor
- 4K HDMI Input
€839,00 Incl. BTW
€693,39 Excl. BTW
AT108061
Direct leverbaar
+31 (0)316 294 700
Scherpe offertes
Passend advies
Maatwerk en Service

Product tags

Product omschrijving

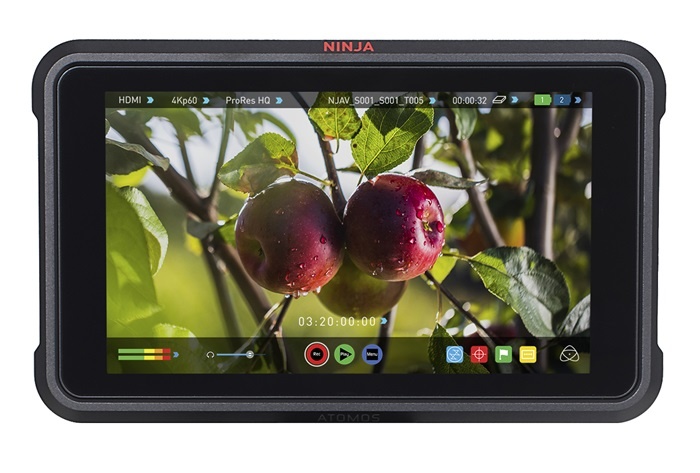

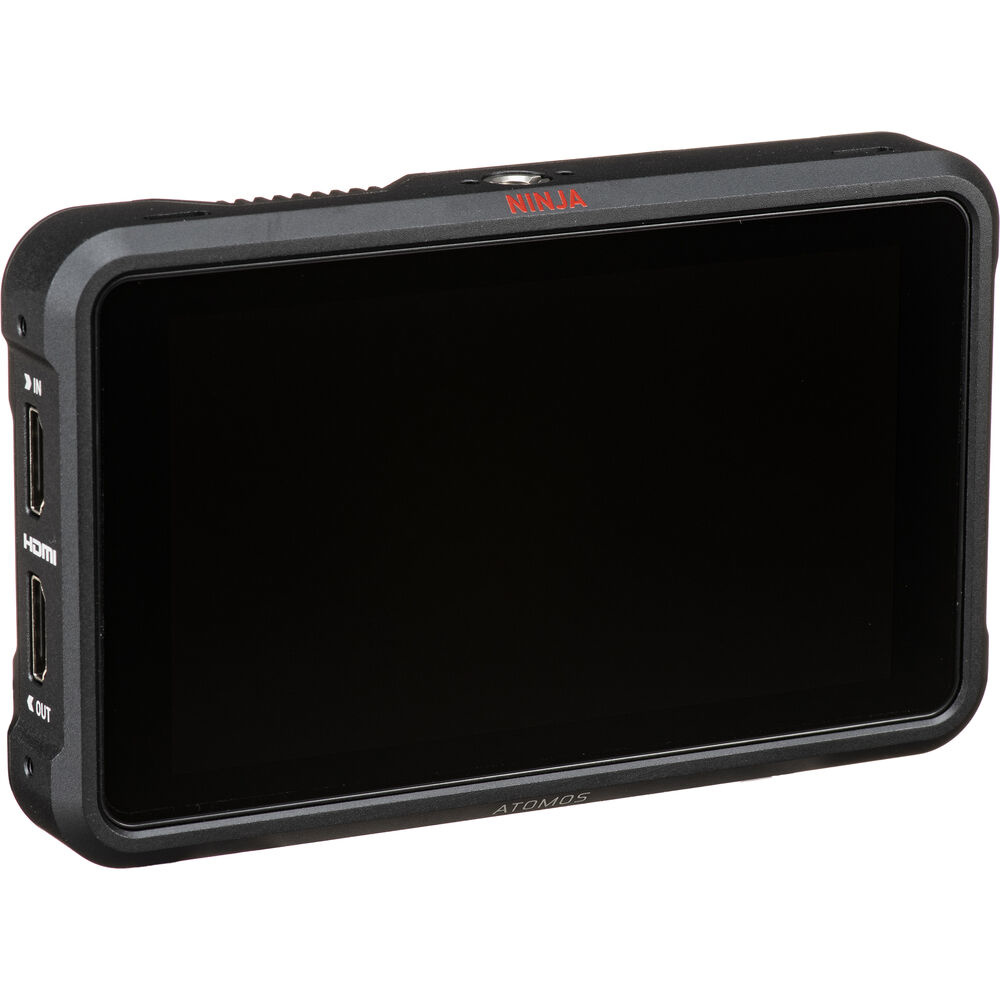

he Atomos Ninja V 5" 4K HDMI Recording Monitor is a 5" on-camera monitor/recorder that records and plays back DCI 4K, UHD 4K, and HD video from purpose-built mini-SSDs. It features a 10-bit FRC IPS screen with a brightness of 1000 cd/m², which makes it suitable for use in both exterior and interior conditions. The AtomHDR display technology allows you to accurately monitor your log gamma footage without having to view flat, washed-out looking images or use a LUT to compress the dynamic range and color space. The monitor supports popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras. The settings only affect viewing, with recorded video remaining unaltered.

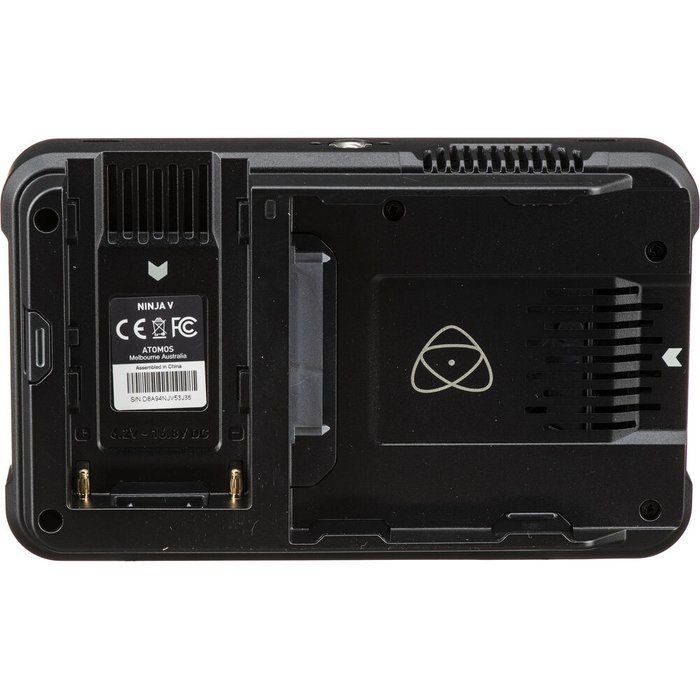

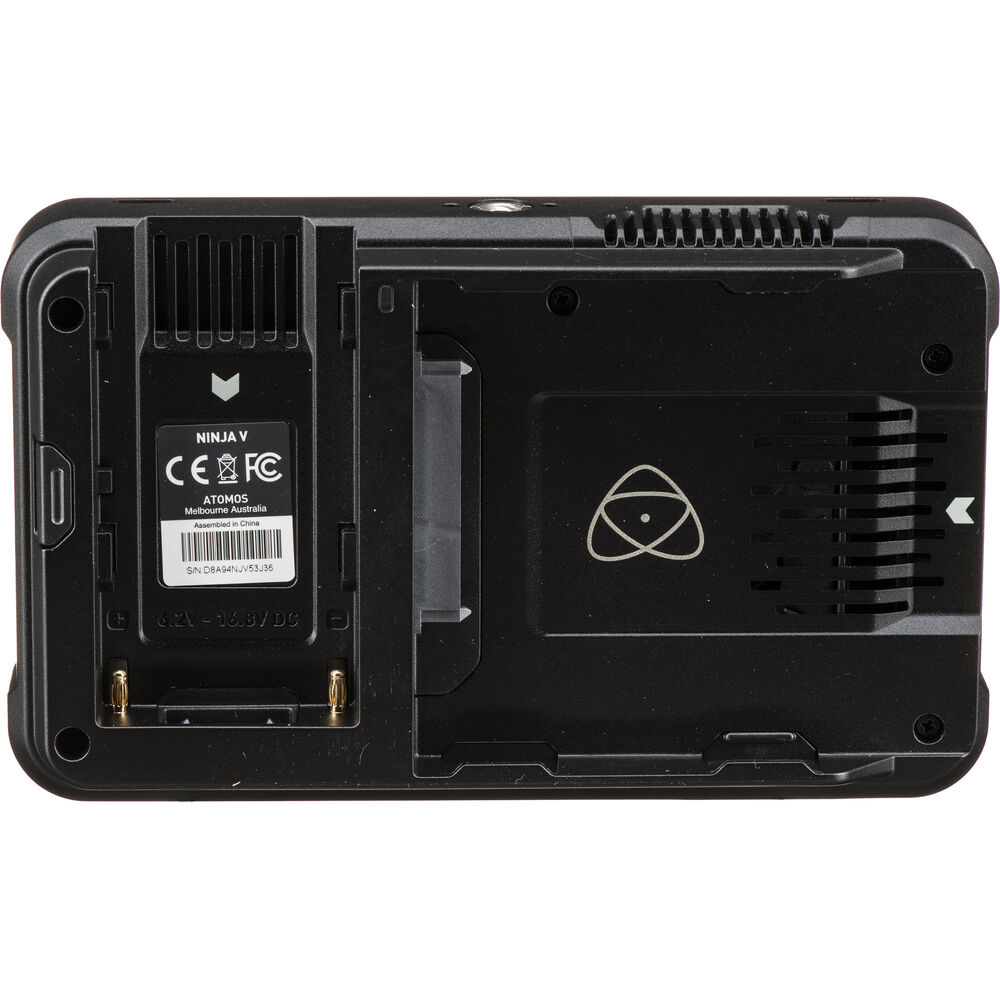

Built to withstand the rigors of production, the Ninja V features an aluminum chassis and powers from a single L-series battery. Additional features include a variety of onscreen exposure analysis, framing, and focus assist tools, as well as anamorphic de-squeeze. A power supply and SSD Caddy are included with the unit.



AtomHDR



With AtomHDR you can monitor up to ten stops of dynamic range of your camera's LOG image. Most conventional monitors can only display six or seven stops, which is fine for standard footage; but a Log image will look overly flat. It is also superior to monitoring with a loaded LUT, which can clip the highlights and mask shadows.



Supported Log Formats

  • ARRI Log C
  • Canon CLog / CLog 2
  • Fuji F-Log
  • JVC JLog
  • Sony SLog2 / SLog3
  • Panasonic Vlog
  • RED LogFilm



HDR Recording

  • ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320/ LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600
  • Canon CLog / CLog2 / Clog3
  • Fuji F-Log
  • JVC JLog1
  • Panasonic Vlog
  • PQ10k, HLG
  • RED LogFilm / Log3G10 / Log3G12
  • Sony SLog / SLog2 / SLog3



HDR Monitoring

  • ARRI ALEXA Wide Gamut
  • Canon Cinema / DCI P3 / DCI P3+ / BT2020
  • Fuji F-Log
  • JVC LS300
  • Panasonic V Gamut
  • Rec. 2100
  • Rec. 709
  • RED DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
  • Sony SGamut / SGamut3 / SGamut3.cine / BT2020
  • Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / ARRI ALEXA Wide Gamut) mapping to Rec. 709 on screen
  • Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / ARRI ALEXA Wide Gamut) mapping to Rec. 709 / BT2020 / DCI P3 on loop out



4K 60p Capabilities



Record high-resolution 4K footage in DCI or UHD formats up to 60 fps, including 24 and 25 fps for a more film-like aesthetic. All recordings are stored as high-quality Apple ProRes or Avid DNxHR files with 10-bit 4:2:2 chroma subsampling. A variety of bit rates are available to fit your project and storage needs.



Audio I/O

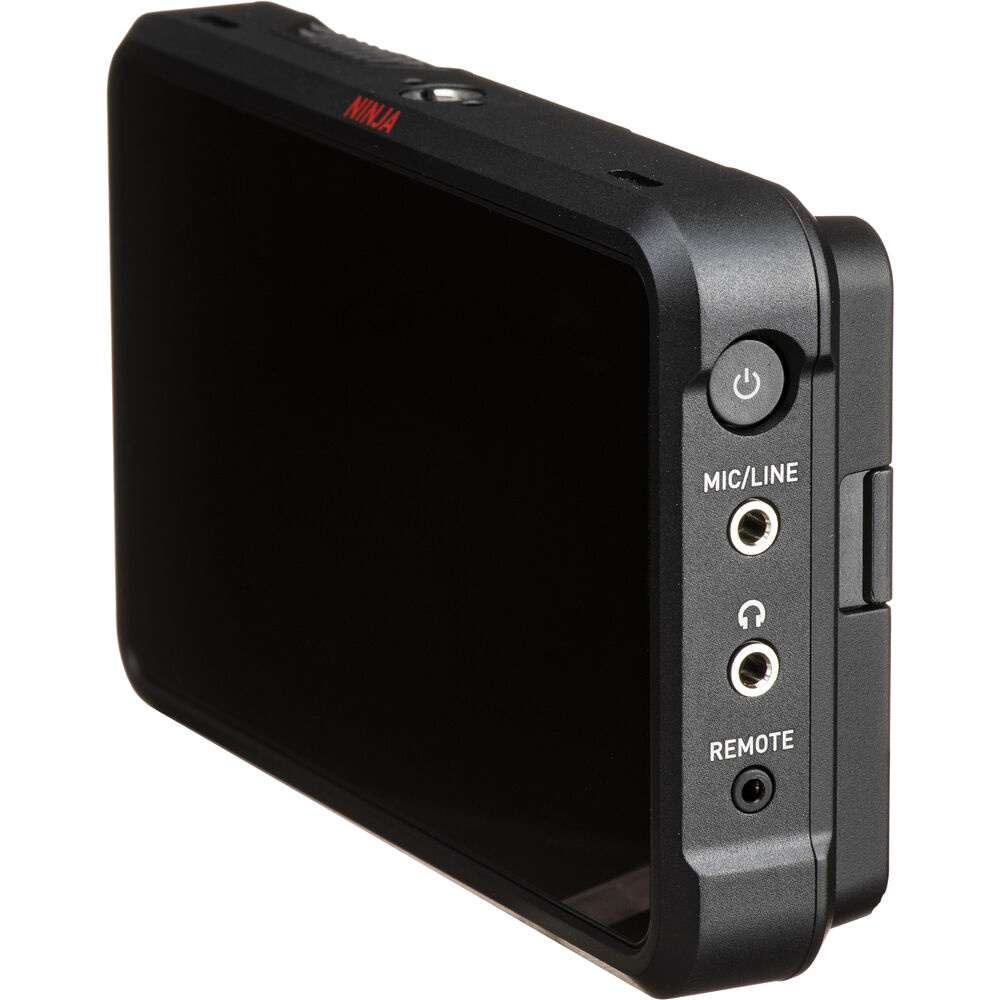

Audio can be input and output via the multi-pin locking connector. Separately available breakout cables can provide XLR audio input with 48V phantom power and output. A 3.5mm headphone jack on the side can be used for convenient audio monitoring.



5" Daylight Viewable Screen



The Ninja V features a 5" IPS LCD screen that is illuminated by a bright 1000 cd/m² LED backlight, making it possible to view in daylight without requiring a hood. Plus, the screen is also color calibrated from the factory to ensure accurate image representation.



HDR Signal Management



Log and HDR signals can be difficult to monitor with conventional equipment. Though, with the Ninja V's built-in HDR signal management functions, the log signal can be converted to the PQ standard for compatibility with existing consumer and professional HDR equipment.



Anamorphic De-Squeeze



The Ninja V supports Anamorphic de-squeeze, allowing you to comfortably view anamorphic footage with a squeeze of 2x, 1.5x, 1.33, and Panasonic's 8:3.



Edit-Ready Recording



Incoming video signals can be recorded in a wide range of Apple ProRes and Avid DNx codecs which maintain high quality while not requiring the storage space of uncompressed video. Both ProRes and DNx are edit-friendly, requiring no conversion in post-production to ensure smooth playback and compatibility with most common video editing software.



Expansion Modules



The Ninja V features a bidirectional high-speed video port along with power and audio which allows future expansion modules to increase the Ninja V's capabilities.

Technische specificaties

Display

Type

5"

Resolution

1920 x 1200
427 ppi

Video Aspect Ratio

Native: 16:9

Brightness

1000 cd/m²

Bit Depth

10-bit

LUT Support

3D LUT (.cube file format)





Interface

Inputs

1 x HDMI type A, v2.0
1 x 2.5 mm, LANC
1 x 10-pin LEMO, analog audio (also serves as output)

Outputs

1 x HDMI type A, v2.0
1 x 3.5 mm, headphone
1 x 10-pin LEMO, analog audio (also serves as input)





Supported Video Format



Supported Signal

Input: 8/10-bit 4:2:2 (dependent on video source)
Output: 8/10-bit 4:2:2 (dependent on video source)

Input/Output Resolutions

HDMI:
4096 x 2160: 60/59.94/50/30/29.97/25/24/23.98
3840 x 2160: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/50
720p: 60/50

Pulldown Conversion

24/25/30PsF to 24/25/30p (2:2 pulldown)
60i to 24p (3:2 pulldown)

Supported Codecs

Apple ProRes: HQ, 422, LT
Avid DNxHR: HQX, HQ, SQ, LB





Supported Audio Formats

HDMI

2- or 8-channel, up to 24-bit (camera dependent)

Signal Level

Line in / mic in / headphone out 2-channel 48 kHz 24-bit

LANC

Supports slave configuration





Recording Media

Master Caddy Dock

Interface: 2.5" SATA to USB 2.0/3.0

Supported Applications

Final Cut Pro X/7+
Avid Media Composer 5.0+
Adobe Premiere 5.5+
Grass Valley EDIUS 6.0+
Sony Vegas Pro 10+
Lightworks
Autodesk Smoke 2015

XML Support

FCPX XML native, FCPX/Adobe limited supported with third-party conversion tools





General

Power Requirements

6.2 to 16.8 VDC (battery or DC power input)

Power Consumption

10-19 W

Supported Battery Types

Sony L-series

Battery Life

5200 mAh: Up to 2 hours (monitor and 4K 60p recording)
7800 mAh: Up to 3 hours (monitor and 4K 60p recording)

Construction

Aluminum alloy chassis
ABS polycarbonate

Dimensions

5.94 x 3.6 x 1.22" / 15.1 x 9.15 x 3.1 cm

Weight

Without Batteries & Media: 11.3 oz / 320 g

Extra



Atomos Ninja V 5" 4K HDMI Recording Monitor

Power Supply

Master Caddy II
