AIDA - CS Mount 2.8mm / 6mm / 12mm Fixed Focal Mega-Pixel Lens

Merk: AIDA
  • Vanuit voorraad leverancier, ca. 1 - 3 werkdagen
€41,00 (€33,88 Excl. btw)
2.8mm HD CS Mount Lens For GEN3G Camera /
6mm HD CS Mount Lens For GEN3G Camera /
12mm HD CS Mount Lens For GEN3G Camera...Meer informatie
+31 (0) 316 294 700
Scherpe offertes
Passend advies
Maatwerk en Service
Product informatie

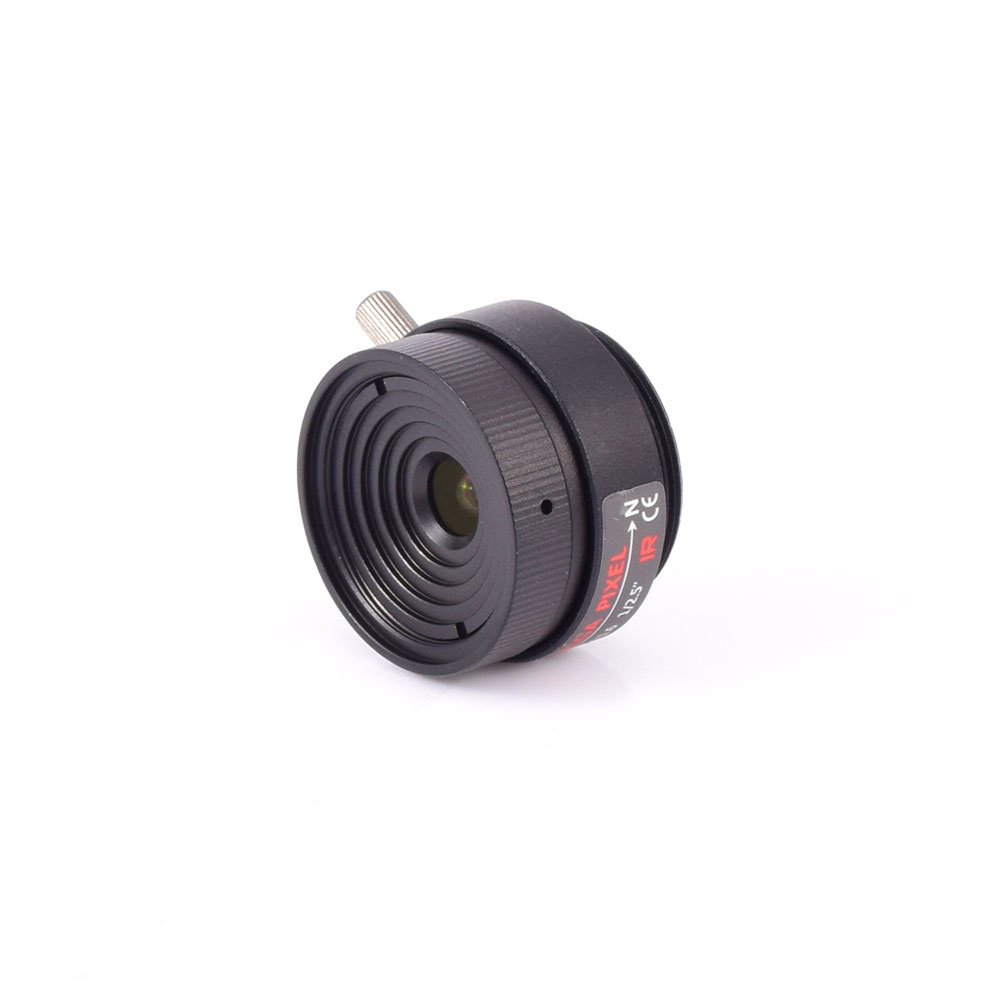

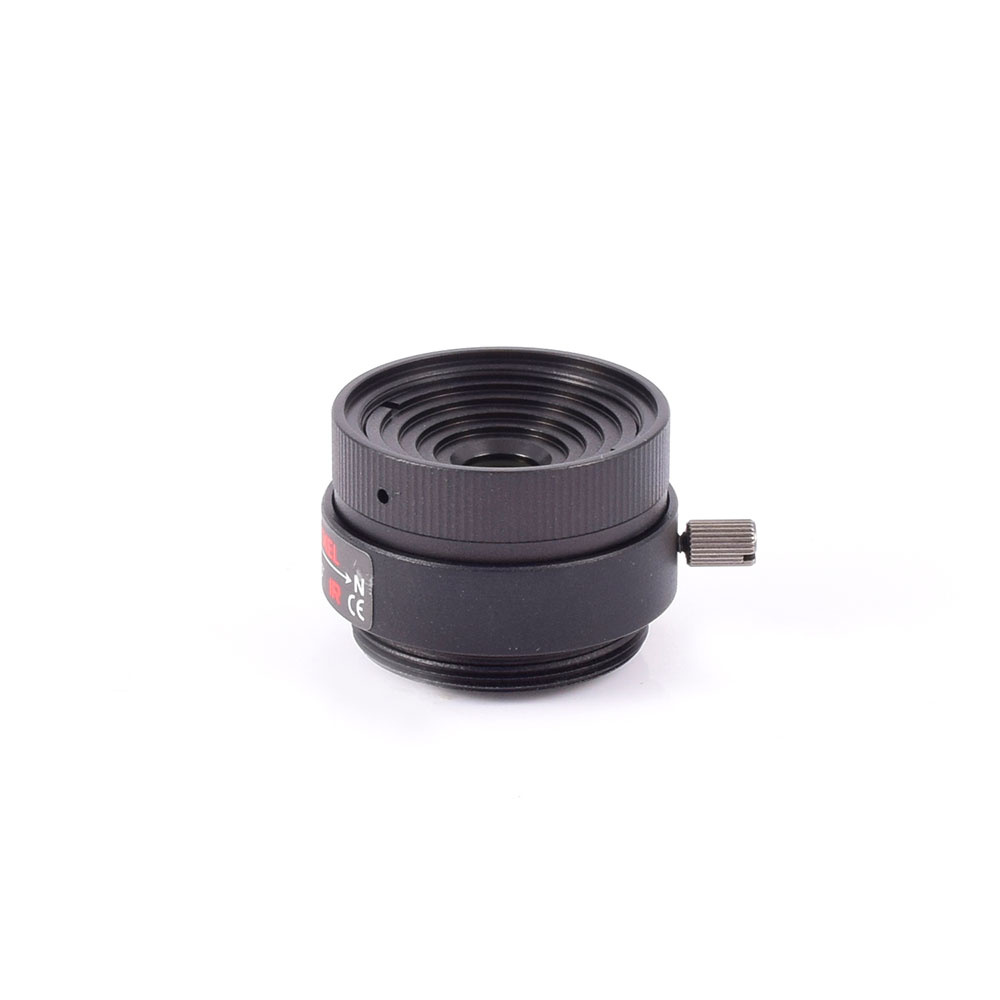

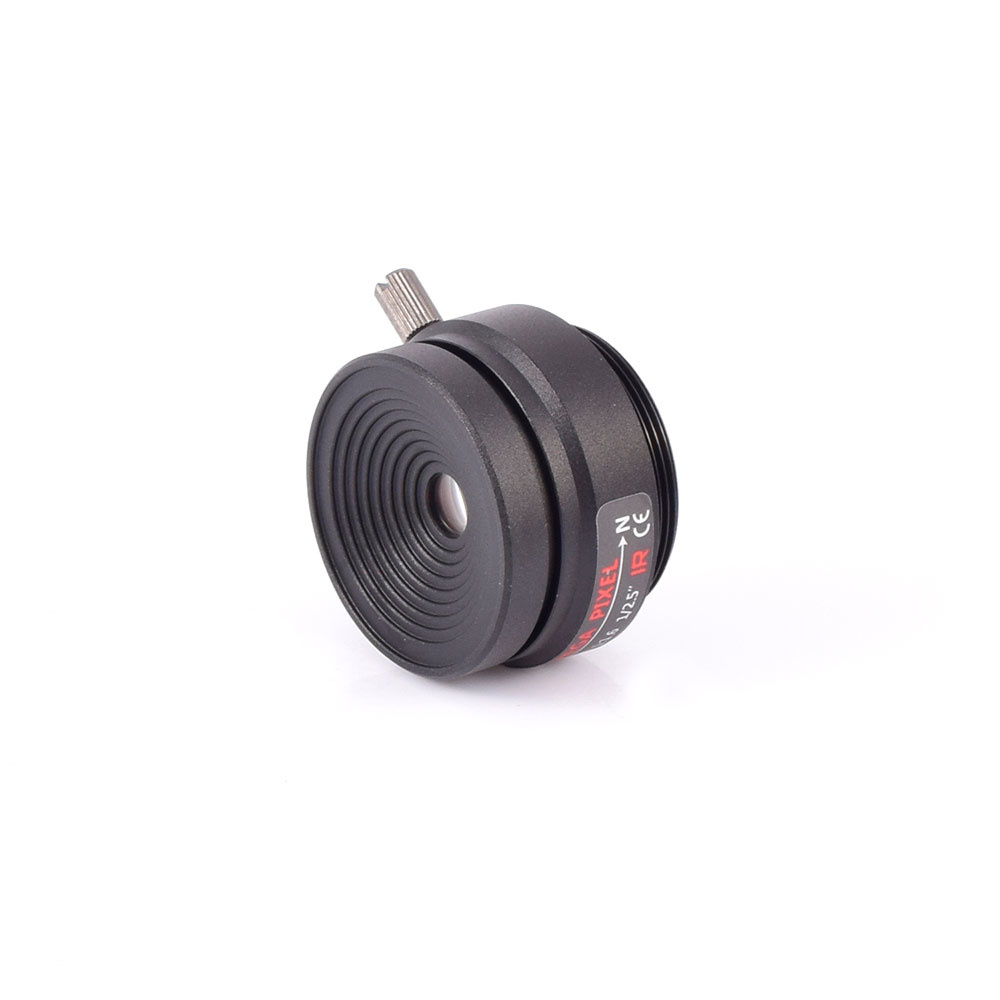

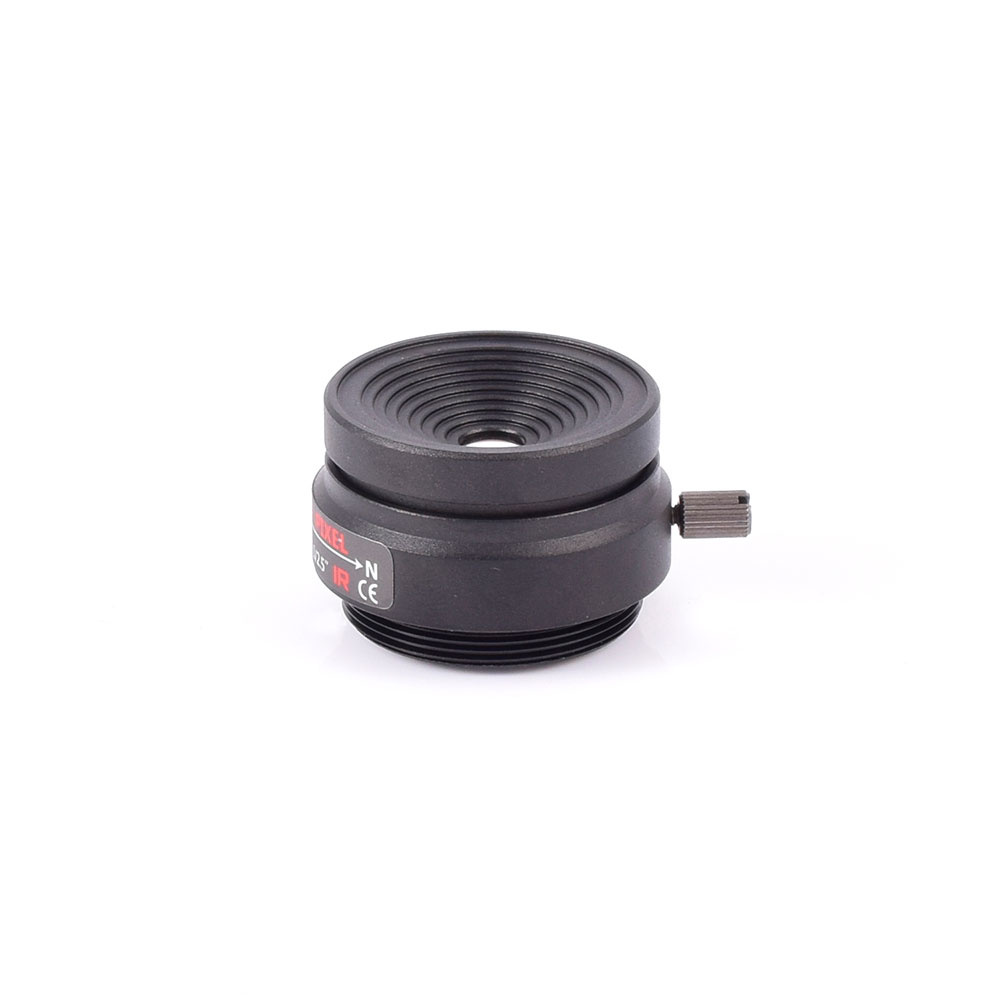

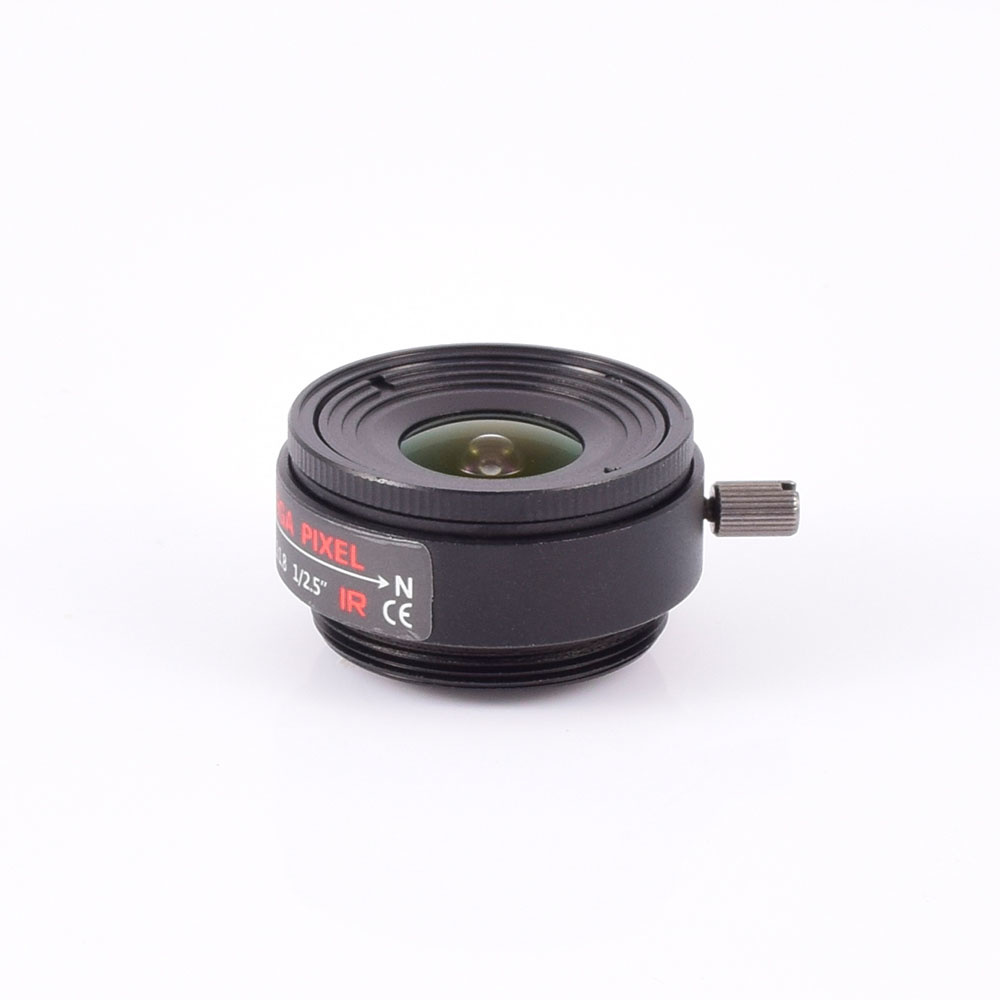

AIDA - CS Mount Fixed Focal Mega-Pixel Lens



3 MODELS:

  • Model CS-2.8F
  • Model CS-6.0F
  • Model CS-12.0F

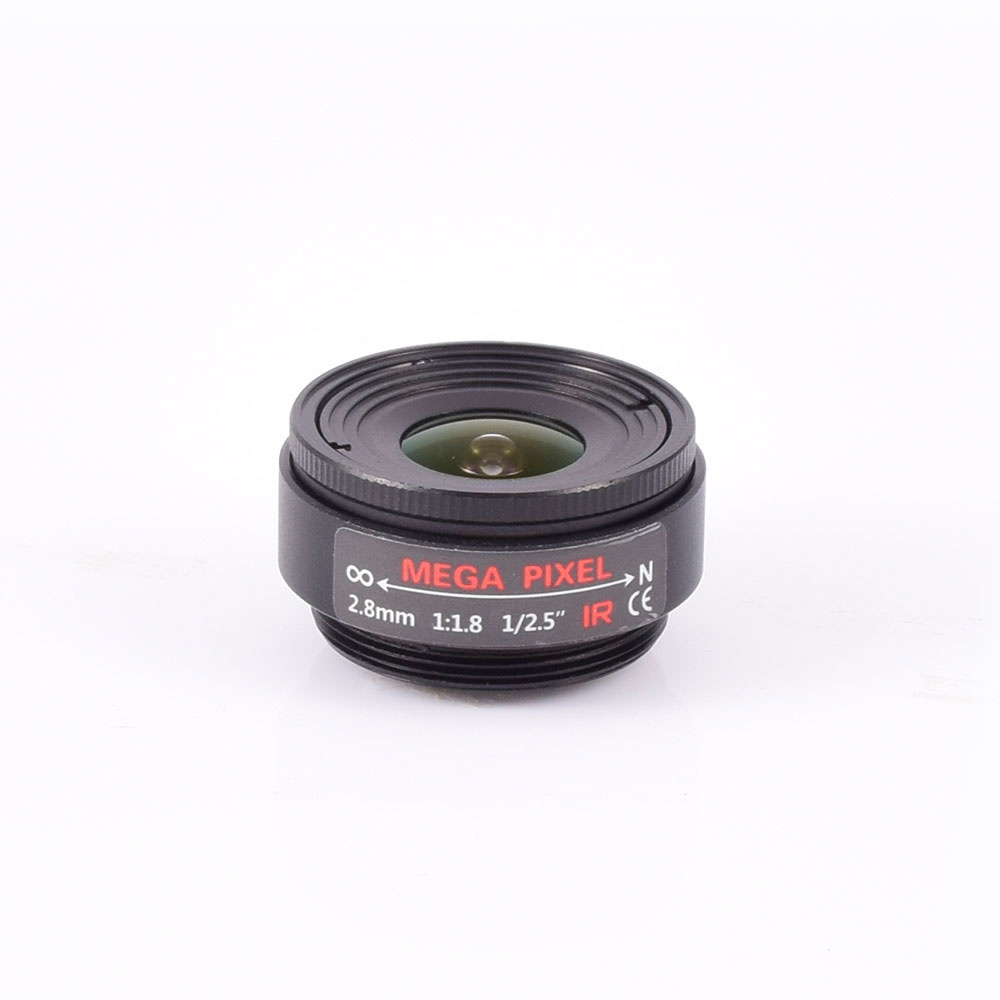

Model CS-2.8F

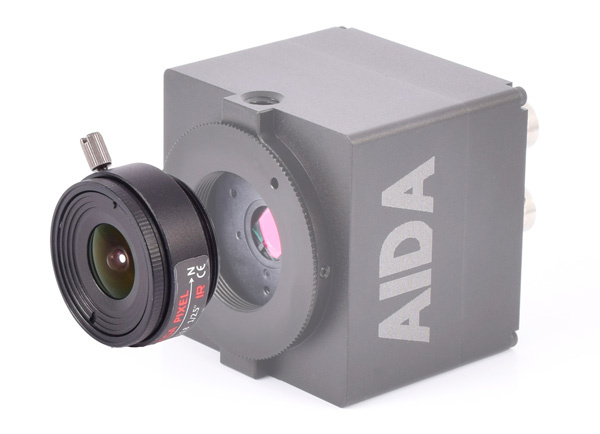

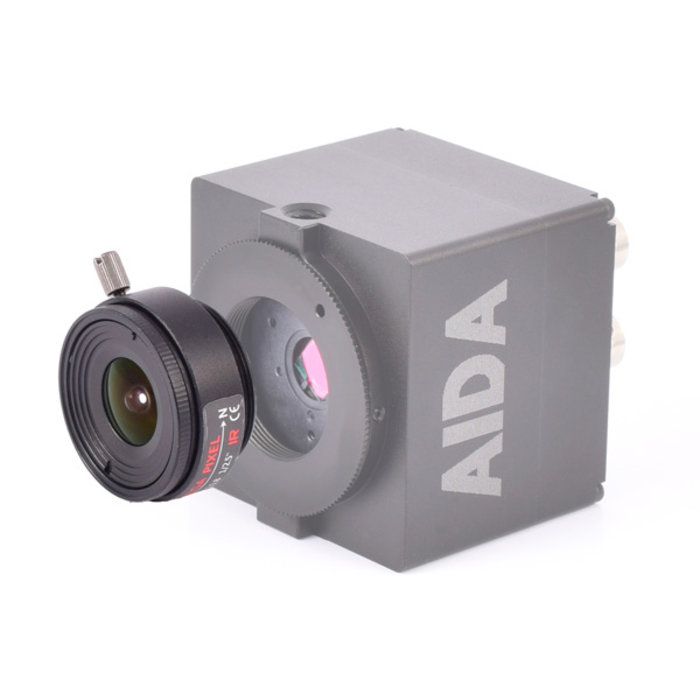

The CS-Mount 2.8mm Fixed Focal Megapixel Lens from AIDA is optimized with the AIDA Imaging Full HD cameras with 1/3″ Progressive CMOS sensors.

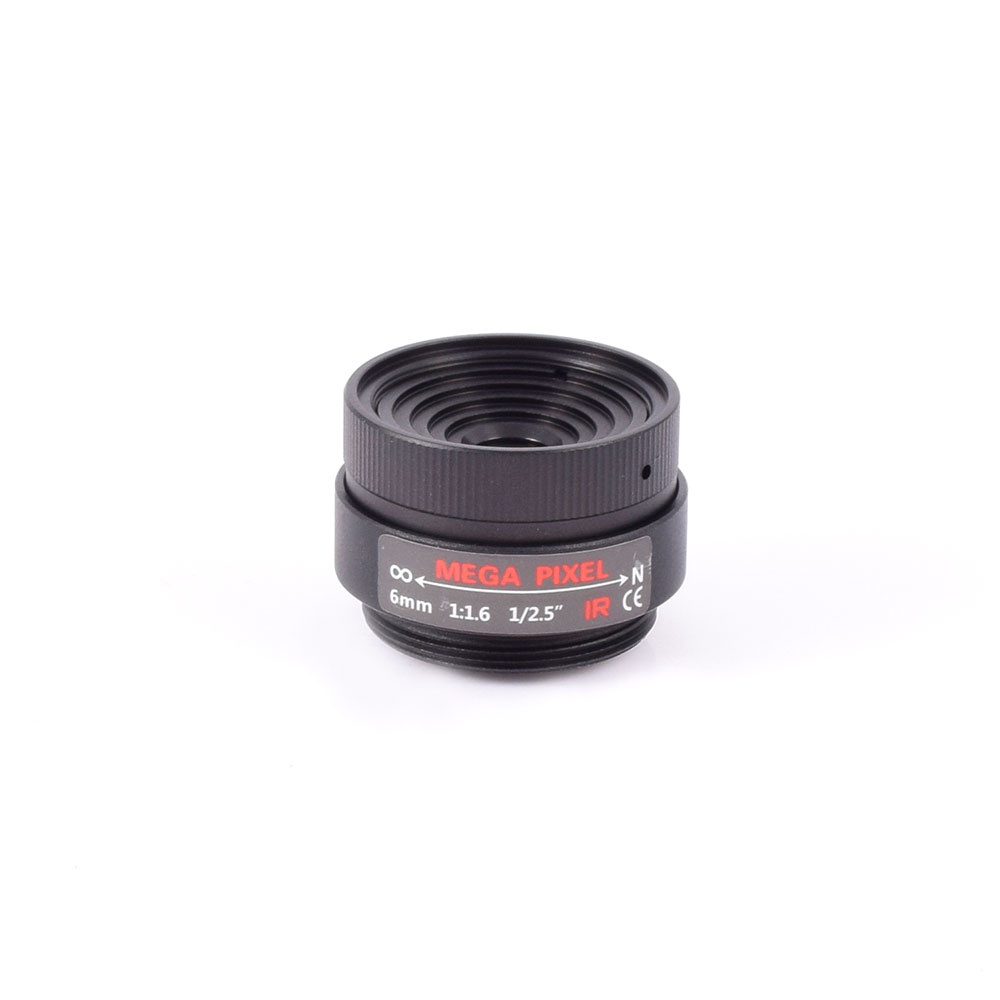

Model CS-6.0F

The CS-Mount 6mm Fixed Focal Megapixel Lens from AIDA is optimized with the AIDA Imaging Full HD cameras with 1/3″ Progressive CMOS sensors.

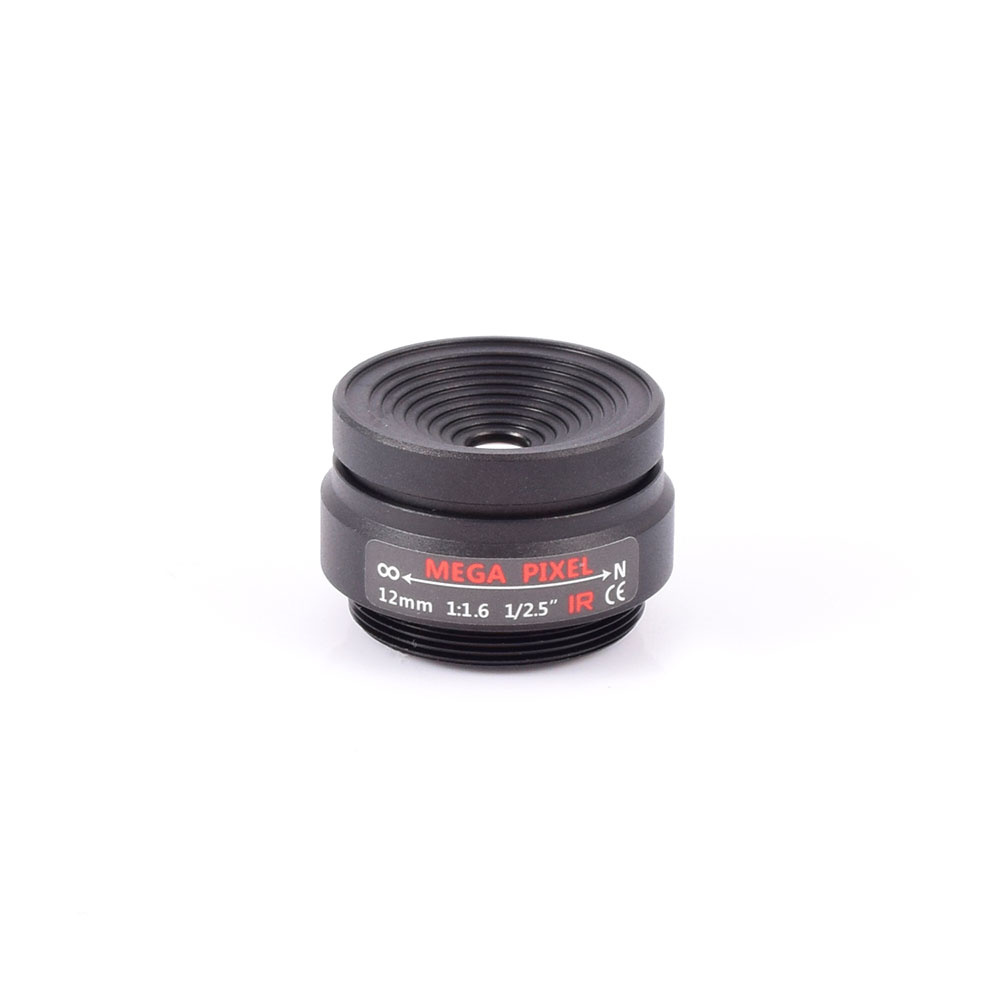

Model CS-12.0F

The CS-Mount 12mm Fixed Focal Megapixel Lens from AIDA is optimized with the AIDA Imaging Full HD cameras with 1/3″ Progressive CMOS sensors.



MAIN FEATURES



  • Optimized and tuned with HD Cameras.
  • Compatible with 1.3 to 5MP Cameras.
  • CS-Mount.
  • 1/2.5″ Optical Format.
  • Fixed Iris Range.



SPECIFICATIONS



Model CS-2.8F



Optical

Focal Length

2.8mm

F-Stop

F1.8

Focus Operation

Manual

Iris Operation

Fixed

FOV (Horizontal)

1/2.5″ : 115°
1/2.8″ : 109°
1/3.2″ : 90°

Image Format

Max. 1/2.5″ Sensor

TV Distortion

-19% with 1/2.5″ Sensor

Physical

Mount Type

CS

Operation Temp

-4°F – 140°F

Dimension

30m x 17.6mm / 1.18″ x 0.69″





Model CS-6.0F



Optical

Focal Length

6mm

F-Stop

F1.6

Focus Operation

Manual

Iris Operation

Fixed

FOV (Horizontal)

1/2.5″ : 54°

1/2.8″ : 51°

1/3.2″ : 42°

Image Format

Max. 1/2.5″ Sensor

TV Distortion

6% with 1/2.5″ Sensor

Physical

Mount Type

CS

Operation Temp

-4°F – 140°F

Dimension

30m x 22.2mm / 1.18″ x 0.87″

Weight

28g / 0.06lbs





Model CS-12.0F



Optical

Focal Length

12mm

F-Stop

F1.6

Focus Operation

Manual

Iris Operation

Fixed

FOV (Horizontal)

1/2.5″ : 30.8°

1/2.8″ : 27°

1/3.2″ : 15.4°

Image Format

Max. 1/2.5″ Sensor

TV Distortion

1.5% with 1/2.5″ Sensor

Physical

Mount Type

CS

Operation Temp

-4°F – 140°F

Dimension

30m x 20.7mm / 1.18″ x 0.81″

Weight

27g / 0.06lbs
