AIDA - CCS-USB VISCA Camera Control Unit & Software

Merk: AIDA
  • Vanuit voorraad leverancier, ca. 1 - 3 werkdagen
€174,00 (€143,80 Excl. btw)
Features multi serial port control (RS232, RS485, and RS422), making this the go-to software for all your camera control needs....Meer informatie
+31 (0) 316 294 700
Scherpe offertes
Passend advies
Maatwerk en Service
Product informatie

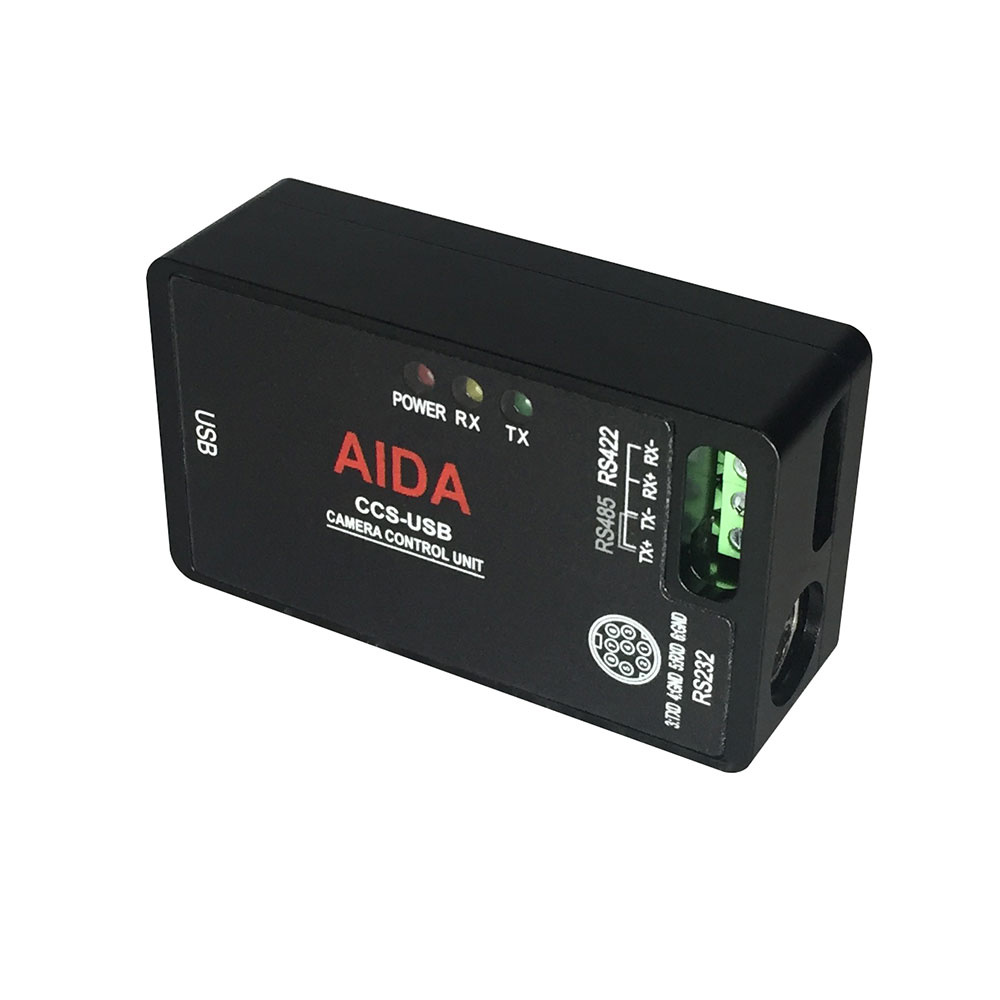

SMALL BUT MIGHTY – One CCS to control them all



The CCS-USB camera control unit and software features multi serial port control (RS232, RS485, and RS422), making this the go-to software for all your camera control needs. Automatically set up your COM ports through connection to computer via USB. Control up to 7 primary cameras utilizing advanced SONY VISCA™ protocol and up to 255 cameras utilizing PELCO™ protocol. Compatible with Windows and Mac OSX™ operating systems. Includes an RS232 to Cross-RJ45 converter for longer communication relays when you need it most. Designed for mobility and versatility, the CCS-USB is the one CCS to control them all.



MAIN FEATURES



  • SONY VISCA Compatible and work with most of major VISCA protocol products.
  • Support PELCO Pan / Tilt / Zoom / Focus protocol.
  • Control up to 7 VISCA control cameras and 255 third party control cameras.

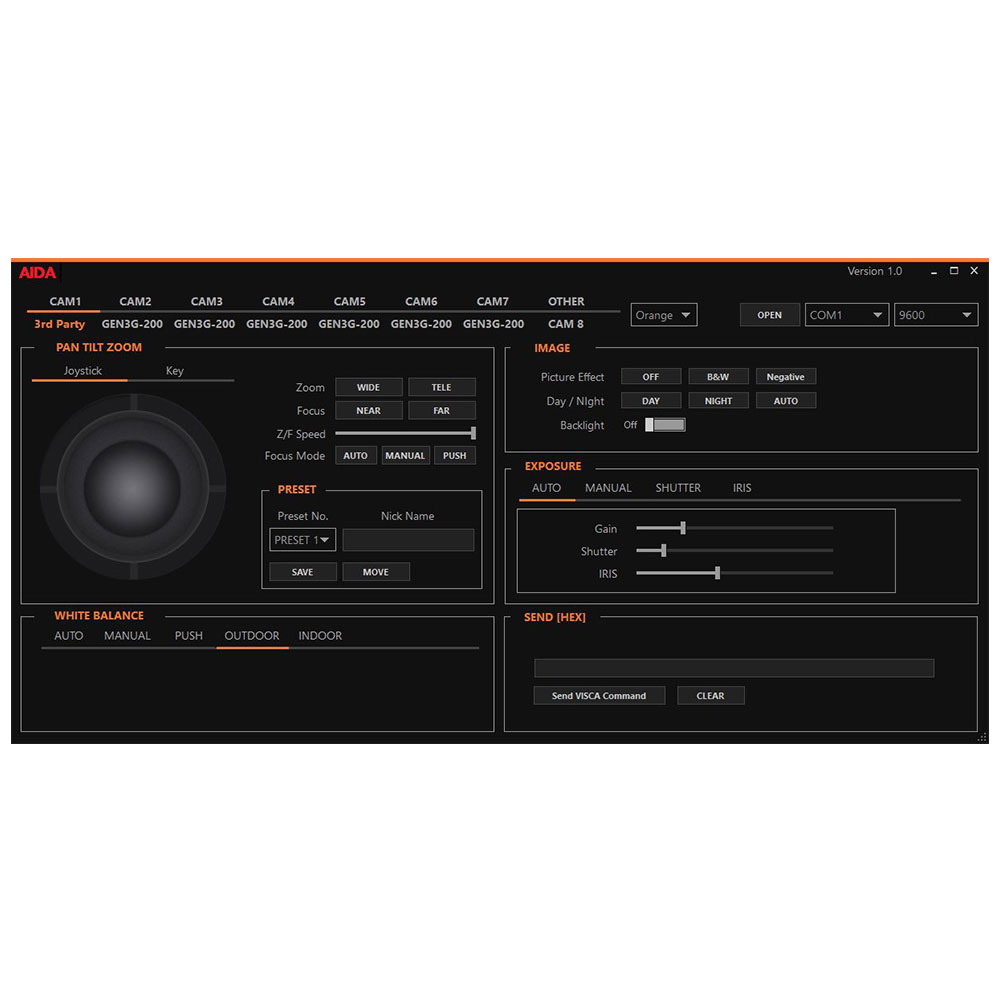

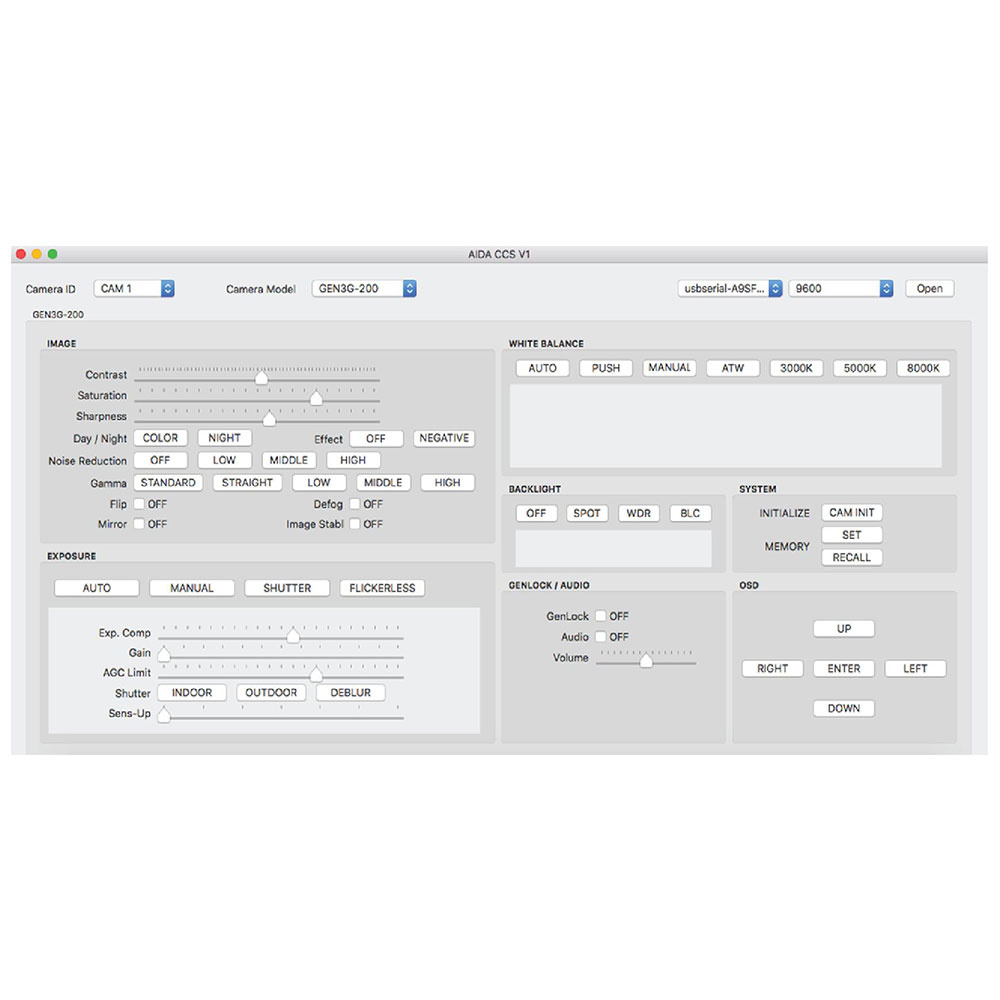

  • User friendly software interface.
  • Support RS-232, RS-485, RS-422.
  • USB interface for easy installation.
  • Windows and MAC OSX compatible.
  • Compact and rugged design.



APPLICATIONS



  • Video Conference
  • Education
  • Worship
  • Theater
  • Broadcast
  • Live Production
  • Security
  • Medical



Technische specificaties



    SPECIFICATIONS



    Control

    Camera Interface

    RS-232C
    RS-485/RS-422: Terminal Block Connector

    Protocol

    VISCA for Camera Settng up to 7 Cameras
    PELCO for Pan/Tilt/Zoom Control up to 255 Cameras

    User Interface

    Graphic User interface

    PC interface

    USB

    Compatibility

    All VISCA Protocol Camera
    All PELCO Protocol Camera

    Main Functions on VISCA Control


    Contrast, Saturation, Sharpness, Gamma

    Exposure

    Auto, Shutter Priority, Iris Priority, Manual, Flickerless

    White Balance

    Auto, Manual, ATW

    Backlight

    WDR, BLC

    Physical

    Camera Control

    RS-232C: 8 Pin Mini Din Connector
    RS-485/RS-422: Terminal Block Connector

    Accessory

    CBL-RJ45 (RS232 to Cross-RJ45 converter cable)

    Operation Temp

    32° F - 104° F

    Dimension

    62m x 35m x 19mm / 2.44" x 1.37" x 0.74"

    Weight

    50g / 0.11lbs

    Power

    USB Powered
