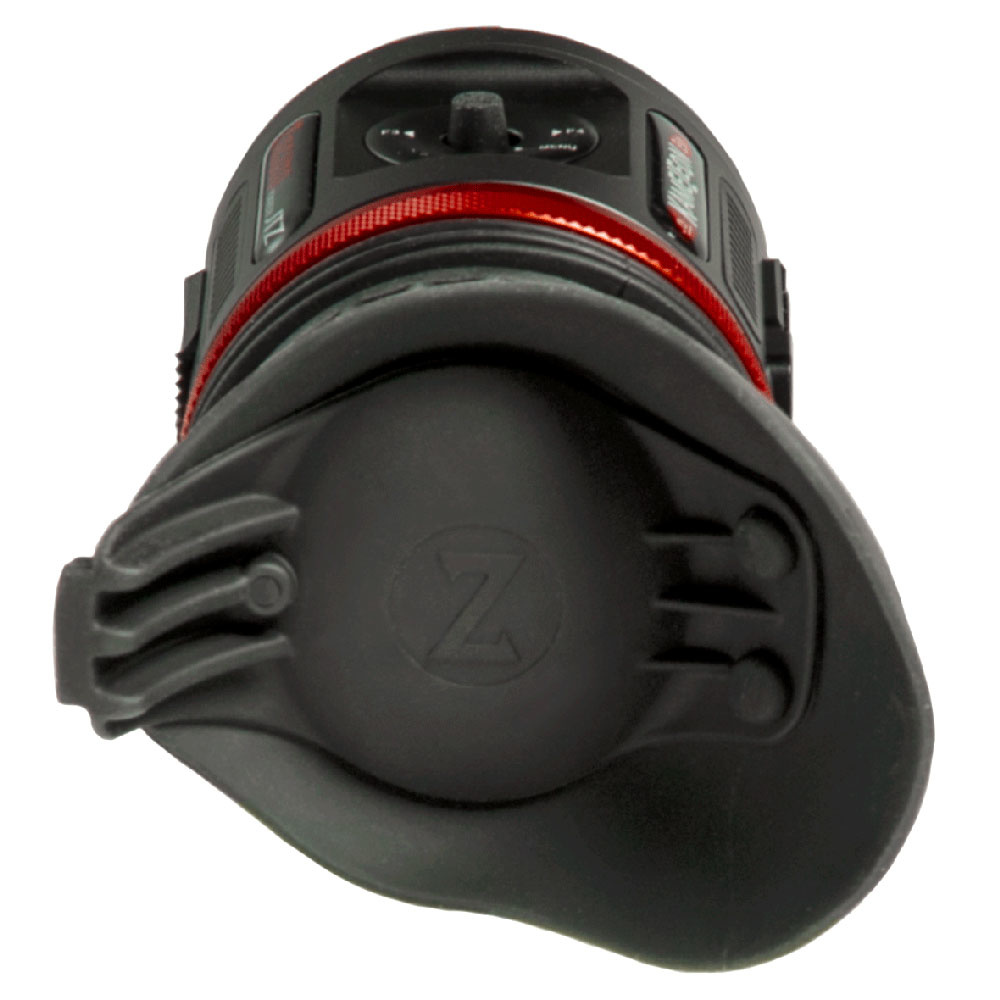

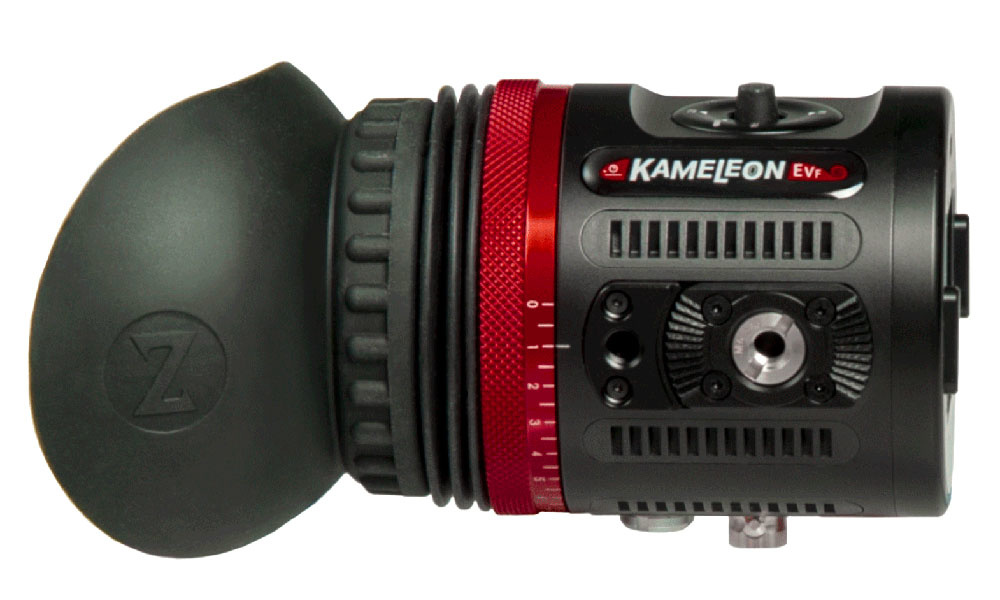

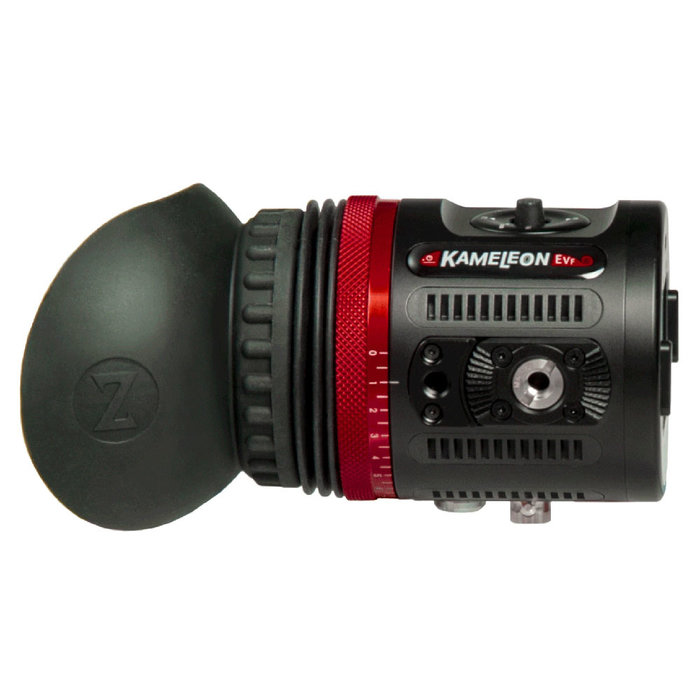

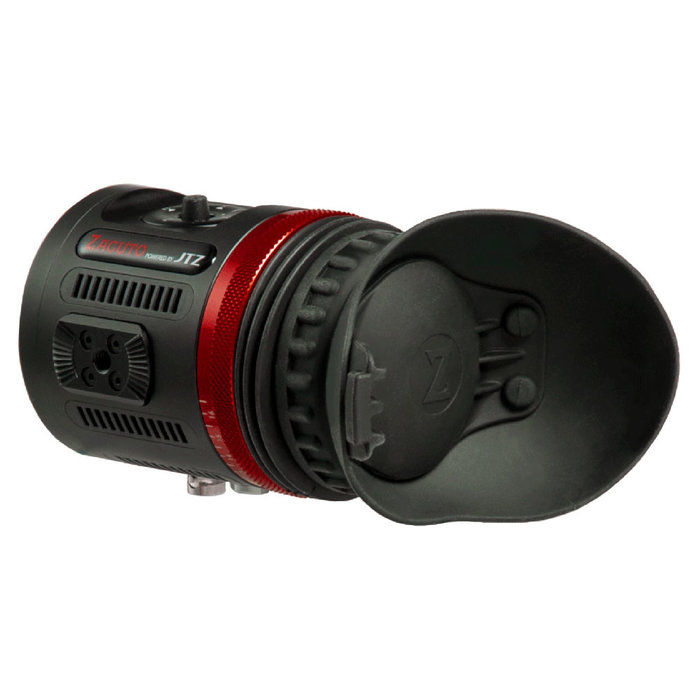

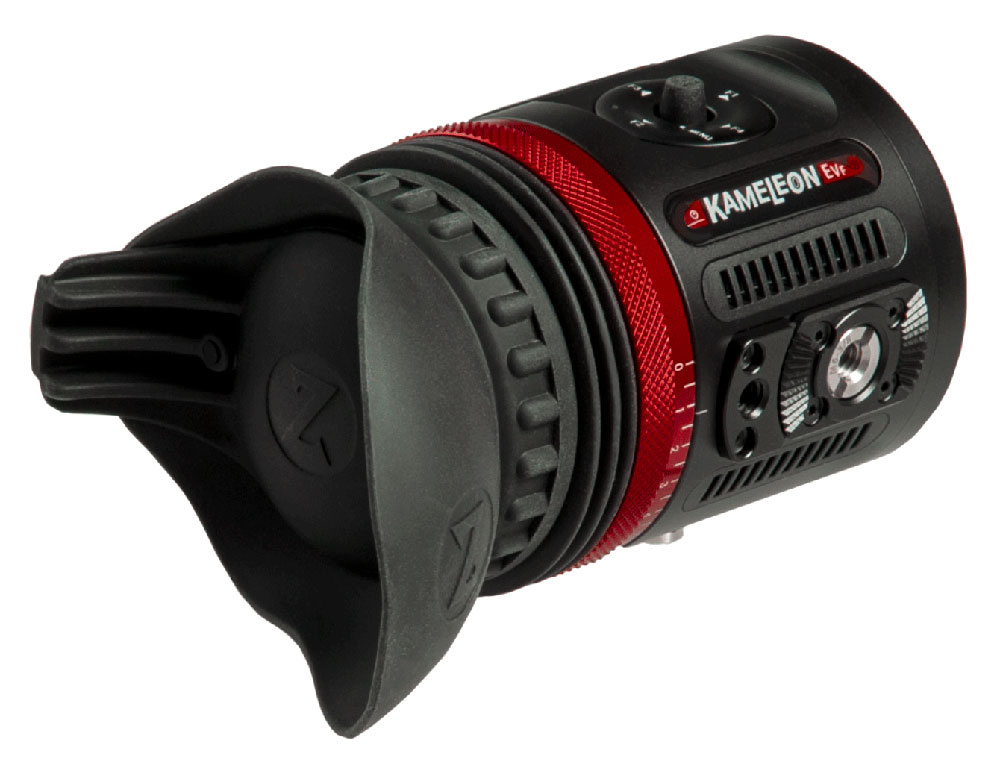

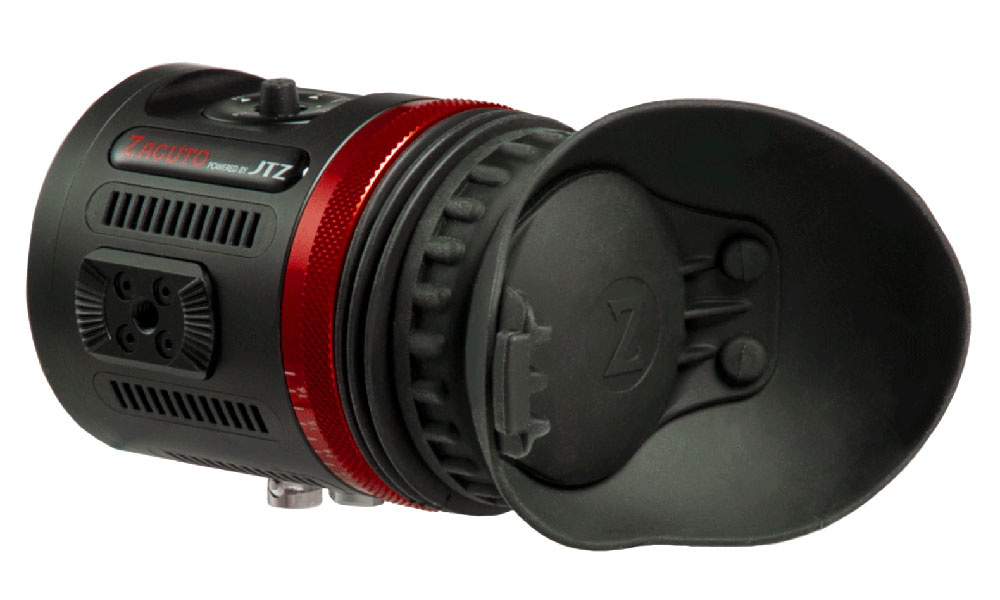

Zacuto Kameleon EVF

Merk: Zacuto
  • Vanuit voorraad leverancier, ca. 1 - 3 werkdagen
€2.359,00 €2.359,00 (€1.949,59 Excl. btw)
0.71" OLED EVF / 1920 x 1080 Resolution, up to 4K HDMI Input / 3G-SDI, HDMI, and USB-C...Meer informatie
+31 (0) 316 294 700
Scherpe offertes
Passend advies
Maatwerk en Service
Product informatie



Taking their micro-OLED Gratical technology a step further, Zacuto's Kameleon Micro-OLED EVF increases the resolution to a full 1920 x 1080, supporting frame rates up to 60p. The larger 0.71" micro-OLED diagonal panel, compared to previous Gratical EVFs, allows for the meaningful increase in resolution to Full HD while maintaining the same contrast ratio of 10,000:1 that you have come to expect from the Gratical line.

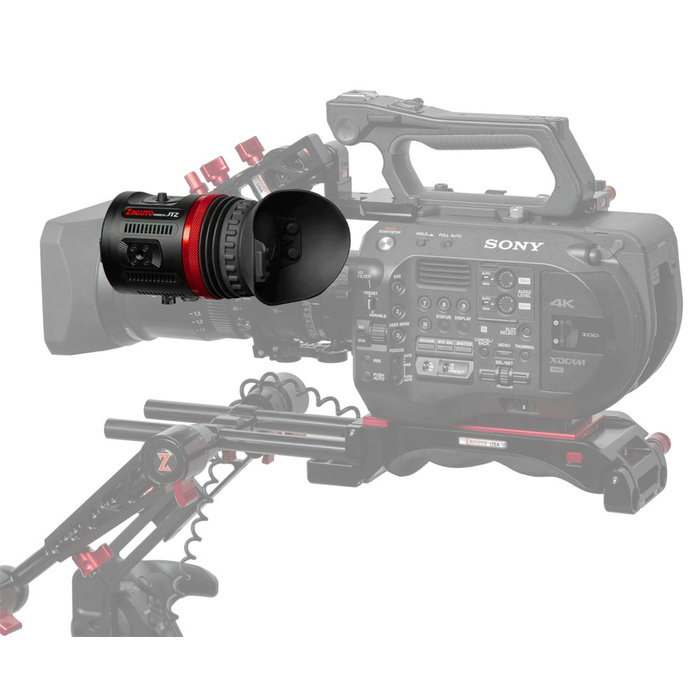

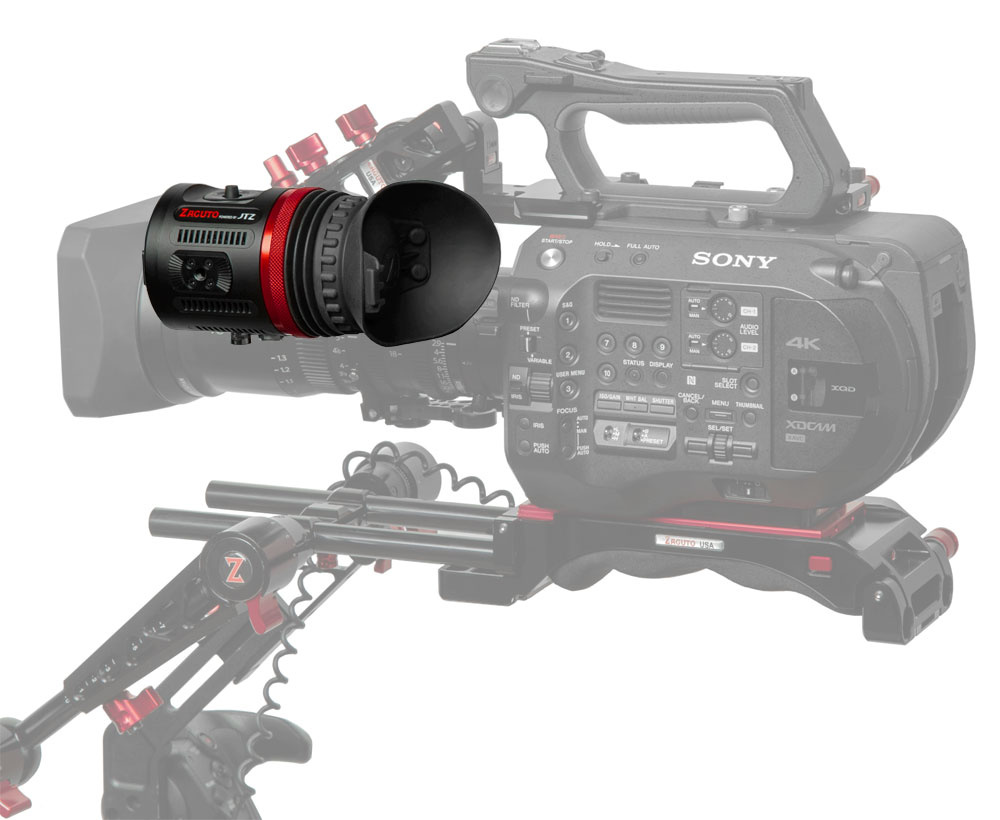

The Kameleon features 3G-SDI and HDMI inputs, making it an extremely versatile piece of gear ready for your signal path of choice. It supports 4K input via the HDMI port, and 1920 x 1080p60 via its 3G-SDI port. You can upload 1D and 3D LUTs, allowing you to clearly see the image as finally intended, even when feeding it a flat signal. It supports image tools such as histogram, peaking, false color, and zebra bars. Two ARRI-compatible rosettes with 1/4"-20 threading and a 1/4"-20 threaded hole provide you with flexible mounting choices. The micro-OLED display features calibration adjustments, while the viewfinder incorporates a diopter adjustment ring, supports drop-in diopters, and features a 4:1 zoom ratio. All in all, the Kameleon is an EVF ideally suited for use with a variety of cameras and rigs that use external power solutions.



Features



0.71", 1920 x 1080 micro-OLED display with 10,000:1 contrast ratio

3G-SDI. HDMI, and USB-C connections

Displays resolutions up to 1080p and frame rates up to 60 fps

4K video is supported via the HDMI input, but scaled to display as 1920 x 1080

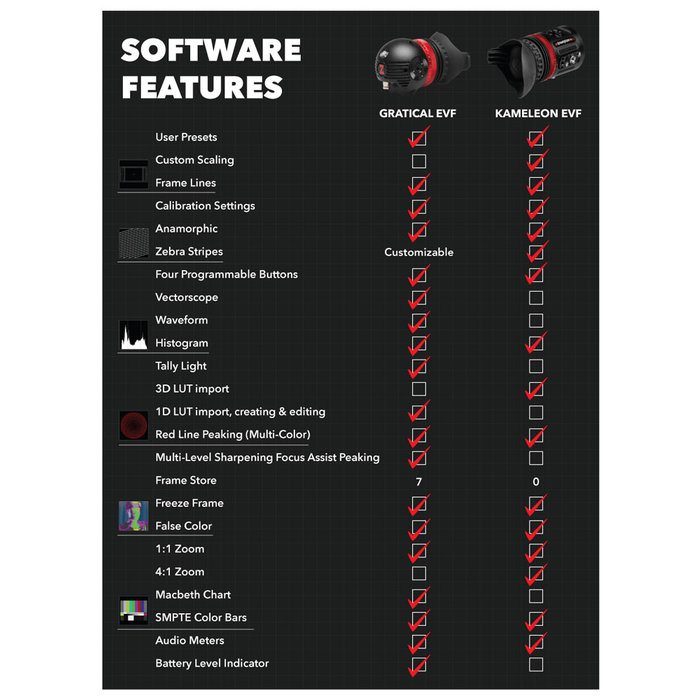

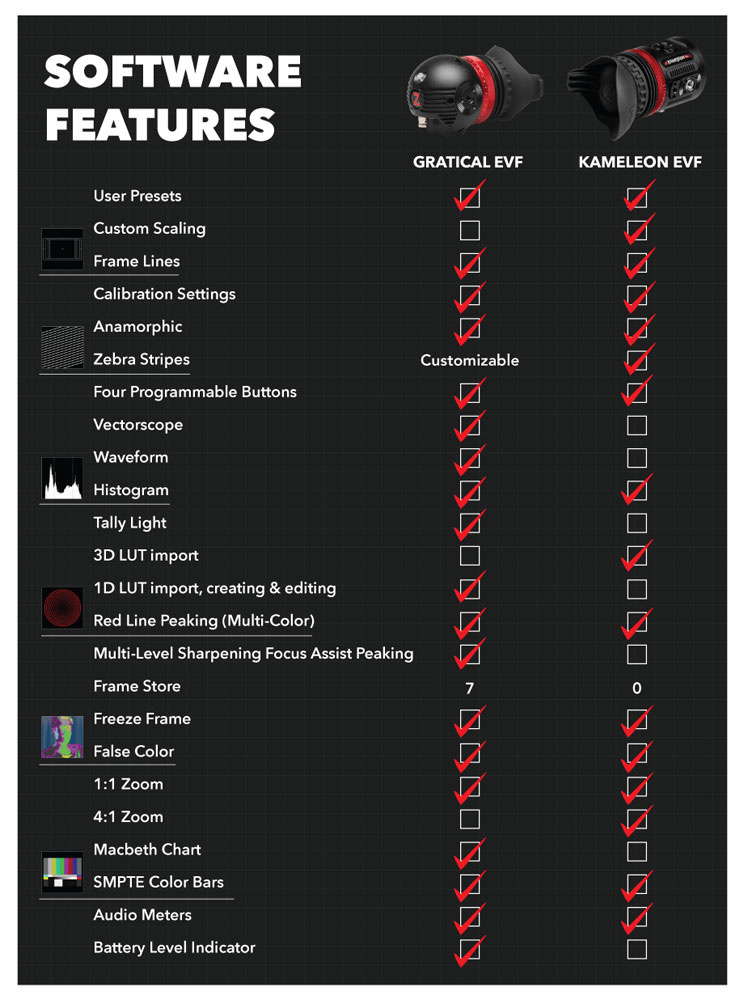

Monitoring & Image Analysis Tools



Custom scaling/user presets

Joystick and four programmable hotkeys

Frame lines

Anamorphic support

4:1 zoom

RGB, saturation, brightness, and contrast adjustments

Zebra with customer wide, color, and thresholds

Histogram

Audio meters

LUT import

Peaking (red)

False color



LUTs



Built-in LUTs: SLOG2, SLOG3, LOG3, VLOG

Upload additional LUTs via USB-C connector



Programmable Buttons



Default: Full screen (magnify), input select, zoom, histogram

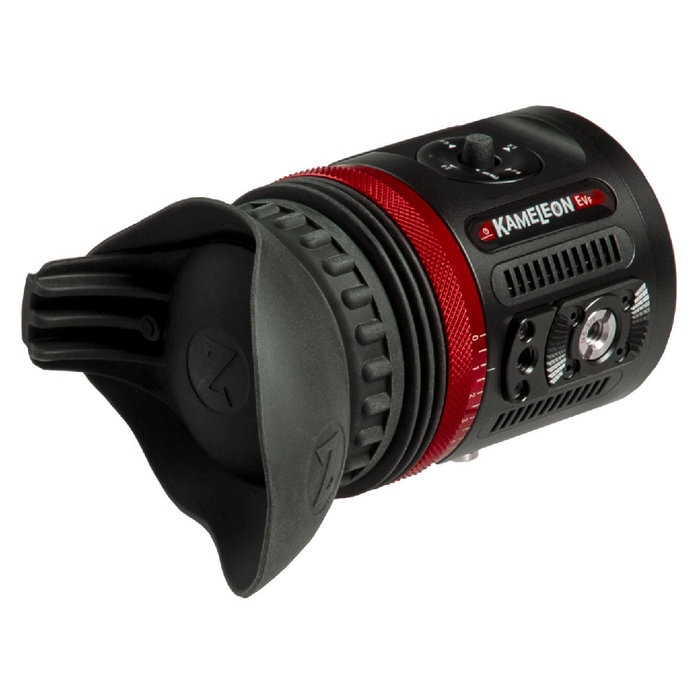

Physical Attributes



Two ARRI-type rosettes with 1/4"-20 threading and a 1/4"-20 thread for mounting

Adjustable diopter range from -5 to +5

Accepts drop-in diopters that fit the Gratical EVF

Includes Zacuto's anti-fog disc compatible with the Gratical EVF

Joystick menu/function button

Removable rubber eyepiece light trap

Fan-cooled

Technische specificaties

    Display

    Color/Monochrome

    Color

    Panel Type

    OLED

    Display Size

    0.7" / 1.8 cm

    Screen Resolution

    1920 x 1080

    Aspect Ratio

    16:9

    Touchscreen

    No

    Bit Depth / Color Support

    8-Bit (16.7 Million Colors)

    Pixels Per Inch (ppi)

    3103 ppi

    Image Controls

    Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Screen Markers, Zebra

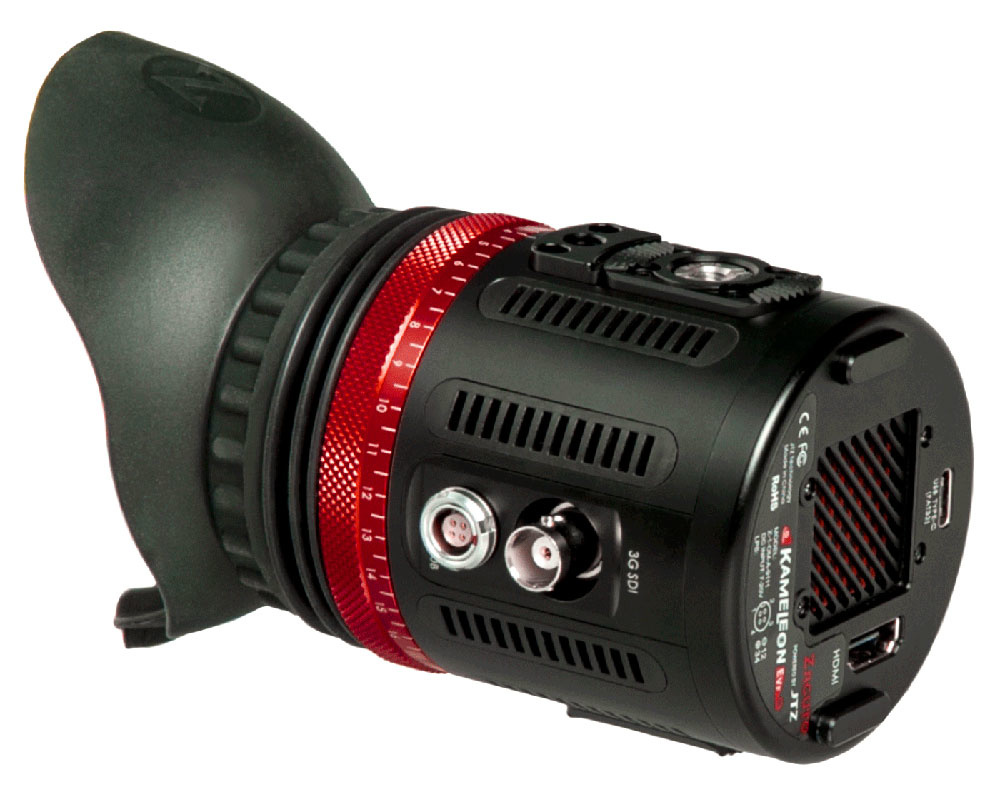

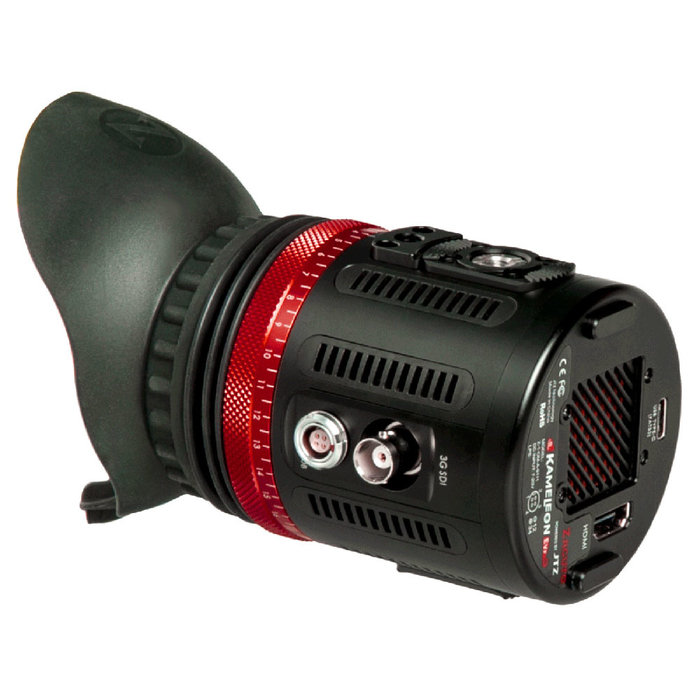

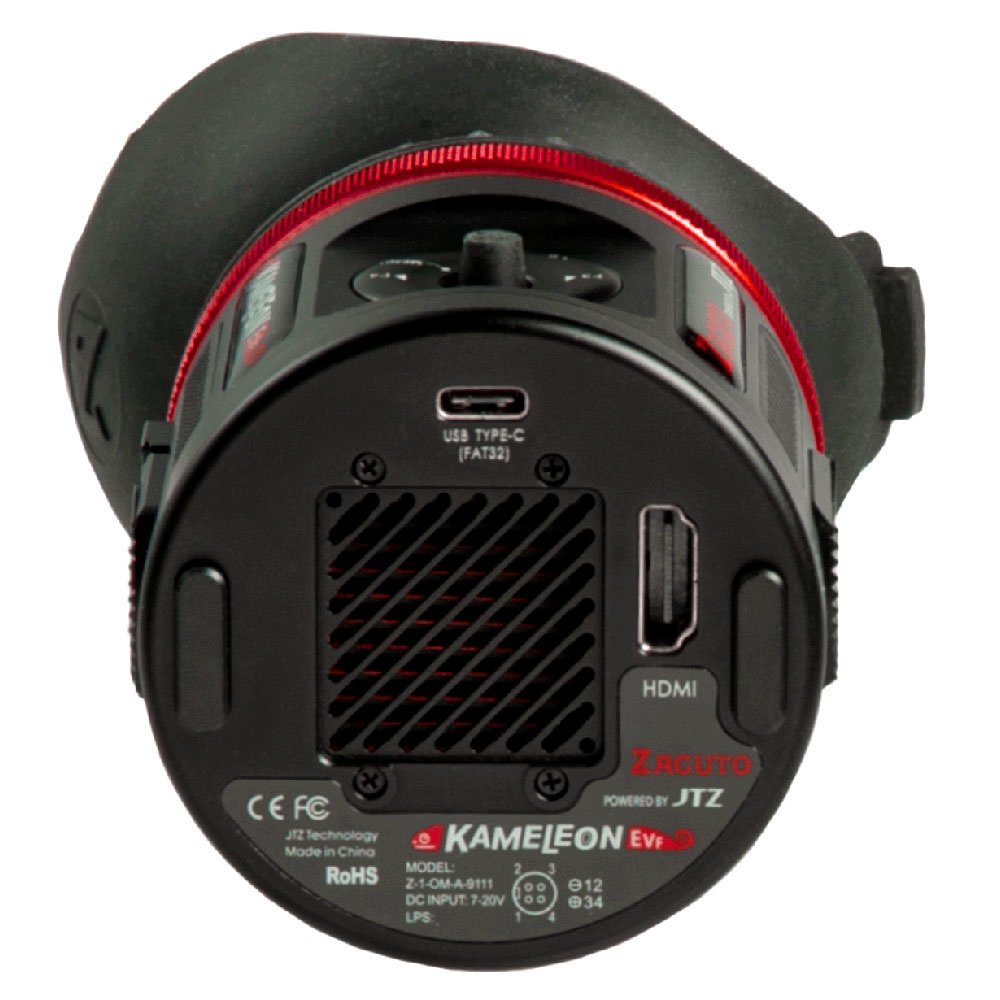

    I/O

    Video

    1 x BNC (3G-SDI) Input
    1 x HDMI Type A Input

    Power

    1 x 4-Pin LEMO 0B  (20 VDC) Input

    Other I/O

    1 x USB Type-C





    Optics

    Diopter Correction

    -5.0 to +5.0





    Power

    DC Input Power

    7 to 20 VDC

    Power Consumption

    5 W





    General

    Mounting

    1 x 1/4"-20 Female
    2 x Rosette with 1/4"-20 Female

    Dimensions (W x H x D)

    4.9 x 2.75 x 2.83" / 12.45 x 6.99 x 7.19 cm

    Weight

    15 oz / 0.43 kg
