SWIT - M-1073H Dual 7-inch FHD Rack LCD Monitor

SWIT - M-1073H Dual 7-inch FHD Rack LCD Monitor
€1.720,00 Incl. BTW
€1.421,49 Excl. BTW
M-1073H
Indien bij leverancier op voorraad 1 tot 3 werkdagen. Belt u ons voor de actuele levertijd
+31 (0)316 294 700
Scherpe offertes
Passend advies
Maatwerk en Service

Product omschrijving

PRODUCT OVERVIEW

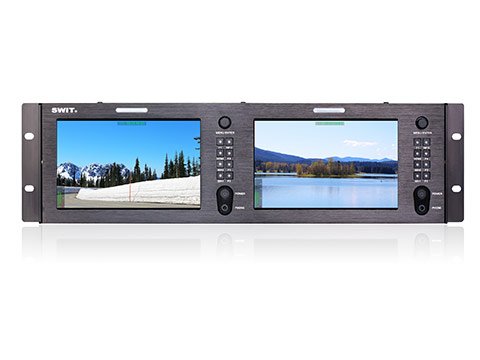

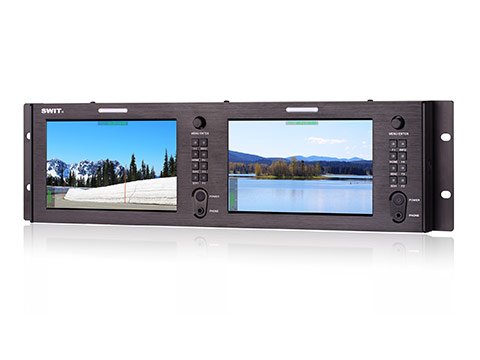

7-inch Full HD LCD


TFT panel with LED backlight

The M-1073H adopts dual 7-inch LCD panels with LED backlight, The native resolution is Full HD 1920×1200, contrast 1000:1, and viewing angle is Horizontal: 160° / Vertical: 160°



Input/Output Interfaces

3G-SDI、4K-HDMI


Each LCD of M-1073H supports:
2K/3G/HD/SD-SDI input × 2
2K/3G/HD/SD-SDI loop output × 1
HDMI 2.0 (4K60p) input × 1
HDMI 2.0 (4K60p) loop output × 1
3.5mm SDI/HDMI embedded audio output



3DLUT Log to Rec709


User LUT cube import

M-1073H monitor has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm.
You can also import own 3DLUTs to monitor by USB stick, support 17x17x17 3DLUT cube files.



Embedded audio monitoring

Up to 16-ch meters with alert and select output

M-1073H supports SDI-16ch and HDMI-2ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.


On-screen Tally


M-1073H supports on-screen TALLY display, and the TALLY control signal inputs via GPI(RS485) port on the rear panel of the monitor.

USB Firmware Upgrade

The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into M-1073H monitor to upgrade, without PC connection.



Power Supply


M-1073H provides DC 6.5-24V power input socket, for the both 2 screens, and an AC-DC adaptor is attached on the rear panel of the monitor.


Installation

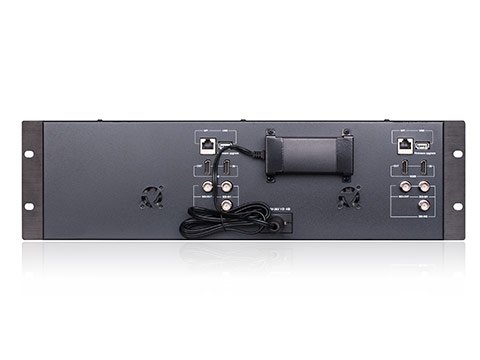

M-1073H is standard 19” rack mount fixing, occupies 3U height. The monitor is ±30° up and down rotatable when installed on racks.



FEATURES



◆ Dual 7” non-glaring LCD, 1920×1200
◆ 19-inch 3U rack mount, ±30° rotatable
◆ 2K/3G/HD/SD-SDI input & loop output
◆ HDMI 2.0 (4K60p) input & loop output
◆ 16-ch embedded audio meters with alert
◆ Select any 2 audio channels to output
◆ 9 steps quick zoom-in and mapping
◆ Focus assist with precision adjustment
◆ Build-in multi-camera logs to Rec.709
◆ User 3DLUT cube file import by USB
◆ On-screen TALLY display and GPI
◆ Zebra stripes, False color, R/G/B/Mono
◆ H/V delay, AFD, Timecode display
◆ Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
◆ USB firmware upgrade



SPECIFICATION



LCD Performance

Size

7 inches

Display area

151.2×94.5mm

Resolution

1920×1200

Aspect ratio

16:9 (4:3 adjustable)

Brightness

400cd/m2

Contrast

1000:1

Color

16.77 million colors

Viewing angle

Horizontal: 160°; Vertical: 160°



Input(Each LCD)

BNC ×2

2K/3G/HD/SD-SDI input

HDMI ×1

HDMI 2.0 input

USB ×1

Firmware upgrade

RS485 ×1

GPI (Tally) input



Output(Each LCD)

BNC ×1

2K/3G/HD/SD-SDI loop output

HDMI ×1

HDMI 2.0 loop output

3.5mm ×1

SDI, HDMI embedded audio output



Video Format

SDI

SMPTE 2048-2

2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (60 / 59.94 / 50)

SMPTE-425M

1080p (60 / 59.94 / 50)

SMPTE-274M

1080i (60 / 59.94 / 50)

1080p (30 / 29.97 / 25 / 24 / 23.98)

SMPTE-RP211

1080psf (30 / 29.97 / 25 / 24 / 23.98)

SMPTE-296M

720p (60 / 59.94 / 50)

SMPTE-125M

480i (59.94)

ITU-R BT.656

576i (50)

HDMI



4096×2160p (60 / 50 / 30 / 25 / 24)

3840×2160p (60 / 50 / 30 / 25 / 24)

480i/ 576i / 480p / 576p

1080i (60 / 59.94 / 50)

720p (60 / 59.94 / 50)

1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)



General

Working voltage

DC / battery 6.5V-36V

Power consumption

18-26W

Working temperature

-10°C~+50°C

Working humidity

10%~90%

Storage temperature

-15°C~+60°C

Storage humidity

10%~90%

Dimensions

485×130×82mm

Net weight (main body)

2.4kg
