SDI Video Inputs
1

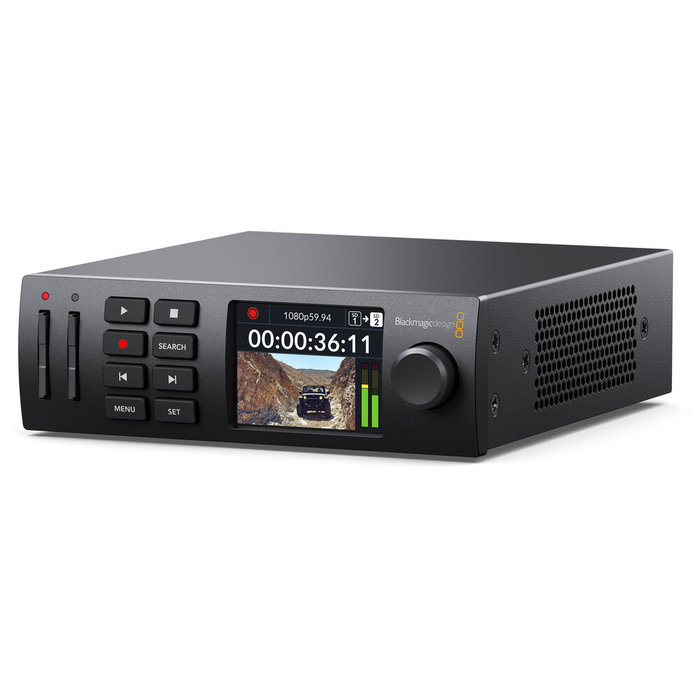

The most compact model of the HyperDeck Studio is based on the Teranex Mini form factor. This modular design means that you can use a Teranex Mini Rack Shelf to mount 3 HyperDeck Studio HD Minis in a single rack unit, or you can combine them with other products such as switchers, converters or streaming processors. It may be small, but you still get powerful features such as 3G-SDI in and out, HDMI output, dual SD card media slots, built-in sync and timecode generators, front panel controls and both AC and DC power inputs. You can even connect the USB to a computer because the HyperDeck Studio HD Mini works as a webcam, so you can use any video software you want!

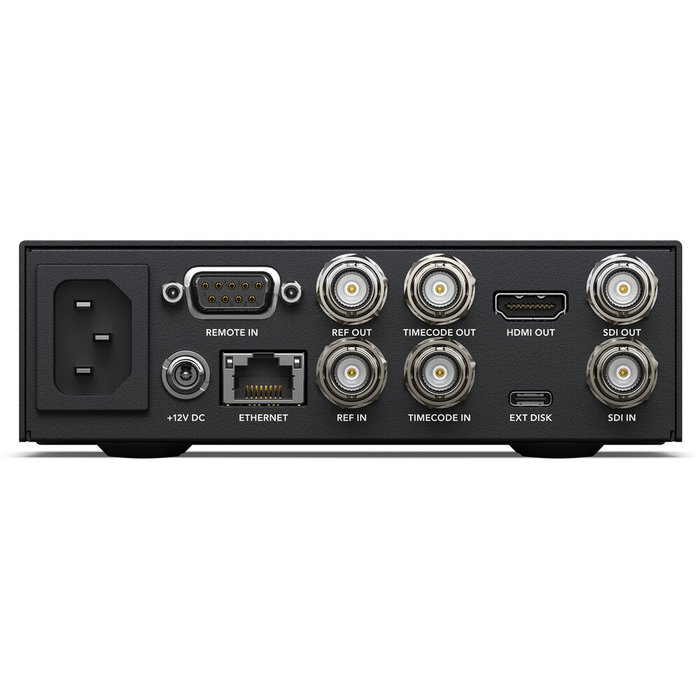

The 1 RU high recorder is 1/3 rack wide and is powered by 100 to 240 VAC, or via an optional 12 VDC power supply for portability. With one 3G-SDI input, one HDMI and 3G-SDI output, and a USB Type-C webcam output, the recorder is flexible and allows you to input, record, and output/stream simultaneously. This unit supports both reference and timecode in/out, making it a perfect fit for a broadcast environment. You can use one recorder to capture ISO from each camera with perfect synchronization for live and post production work.
Dual SD card slots let you record with virtually unlimited recording time, and the unit also supports recording to USB drives via its USB Type-C output port. The HyperDeck Studio HD Mini has a front-panel knob control and a jog/shuttle wheel for an analog scrub feel. RS-422 control is supported for external control, and you can also control the unit via its USB port or via Ethernet at 1G speeds for faster deck control and file transfers via the RJ45 connector. An integrated LCD screen on the front panel lets you monitor the video.
1080p60 recording and playback
The HyperDeck Studio HD Mini records SD and FullHD up to 1080p60
Video inputs
It supports SD, HD and 3G signals via SDI
Supported Codecs
VTR style controls
Features VTR-style front panel controls for recording and playback; a built-in jog/shuttle wheel provides analog control over your playback
Remotely
The unit can be operated via RS-422 control and via the Ethernet or USB port

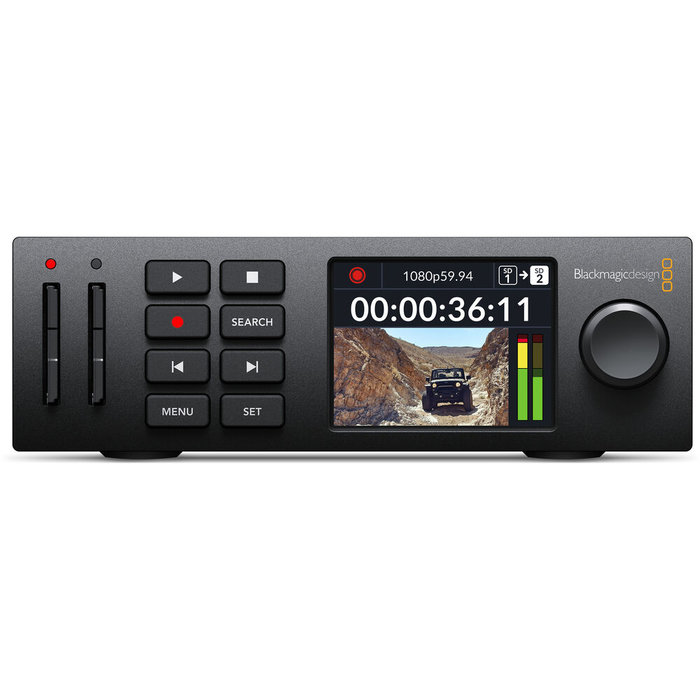

Built-in LCD monitor
The front panel of the unit also features a built-in LCD screen that allows you to monitor input or play video
1x HyperDeck Studio HD Mini
1
1
270Mb, 1.5G, 3G.
1
2.2 inch LCD
1 x BNC In, 1 x BNC Out.
1 x BNC In, 1 x BNC Out.
Tri-Sync or Black Burst.
16 channels embedded audio.
16 channels embedded audio.
8 channels embedded audio.
1 x RS-422 In.
Via user interface or Blackmagic HyperDeck Ethernet Protocol.
1Gb/s
1 x USB Type-C 3.0 (up to 5Gb/s) for external drive recording, webcam out, software configuration and updates.
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2084 and SMPTE 2108‑1.
HD RP188 and closed captioning CEA‑708. HDR Metadata supported on SDI.
525i59.94 NTSC, 625i50 PAL,
720p50, 720p59.94, 720p60,
1080i50, 1080i59.94, 1080i60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
Television standard 24‑bit, 48 kHz sample rate.
4:2:2 YUV
10-bit
REC 601, REC 709, REC 2020.
Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
Auto detection of SD and HD.
2 x SD card slots
1 x USB-C 3.0 expansion port for external recording of SD, HD and 2K DCI.
UHS-I and UHS-II SD cards.
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 1080p60. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60.
8 buttons for transport and device control with search dial and 2.2 inch color display.
RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload.
Blackmagic OS
Blackmagic HyperDeck Setup
Internal Software Upgrade
Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10, 64-bit.
Built in 2.2 inch LCD for video, audio and timecode monitoring and menu settings.
LED indicator lights above the SD media slots.
1 x Internal 100 - 240V AC 50/60Hz.
1 x Locking 5.5mm barrel 12V DC In for external power supply or battery use.
50 W max.
HyperDeck Extreme Control
Teranex Mini Rack Shelf
One third rack unit width, 1 rack unit height.
0° to 40° C (32° to 104° F)
-20° to 60° C (-4° to 140° F)
0% to 90% non-condensing
