Accsoon CineView M7 Pro 7" 4K Recording Monitor & Transceiver

Features

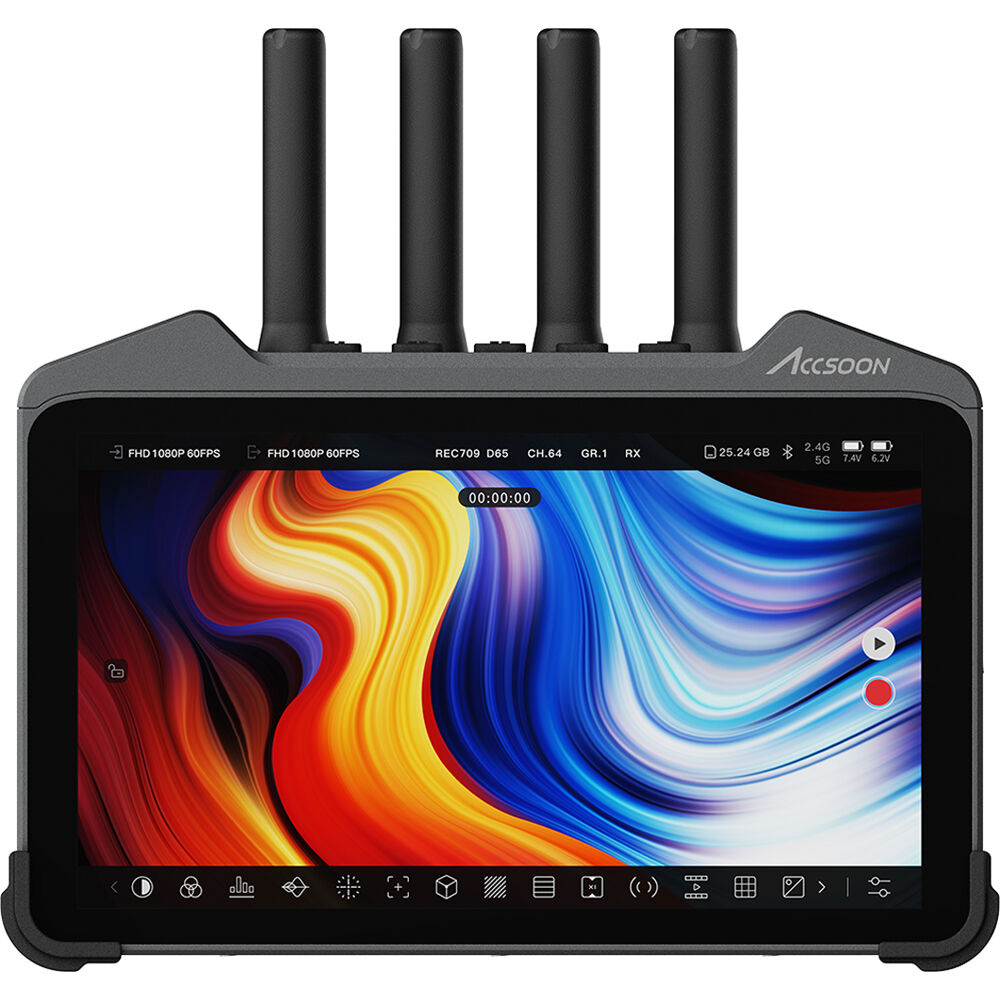

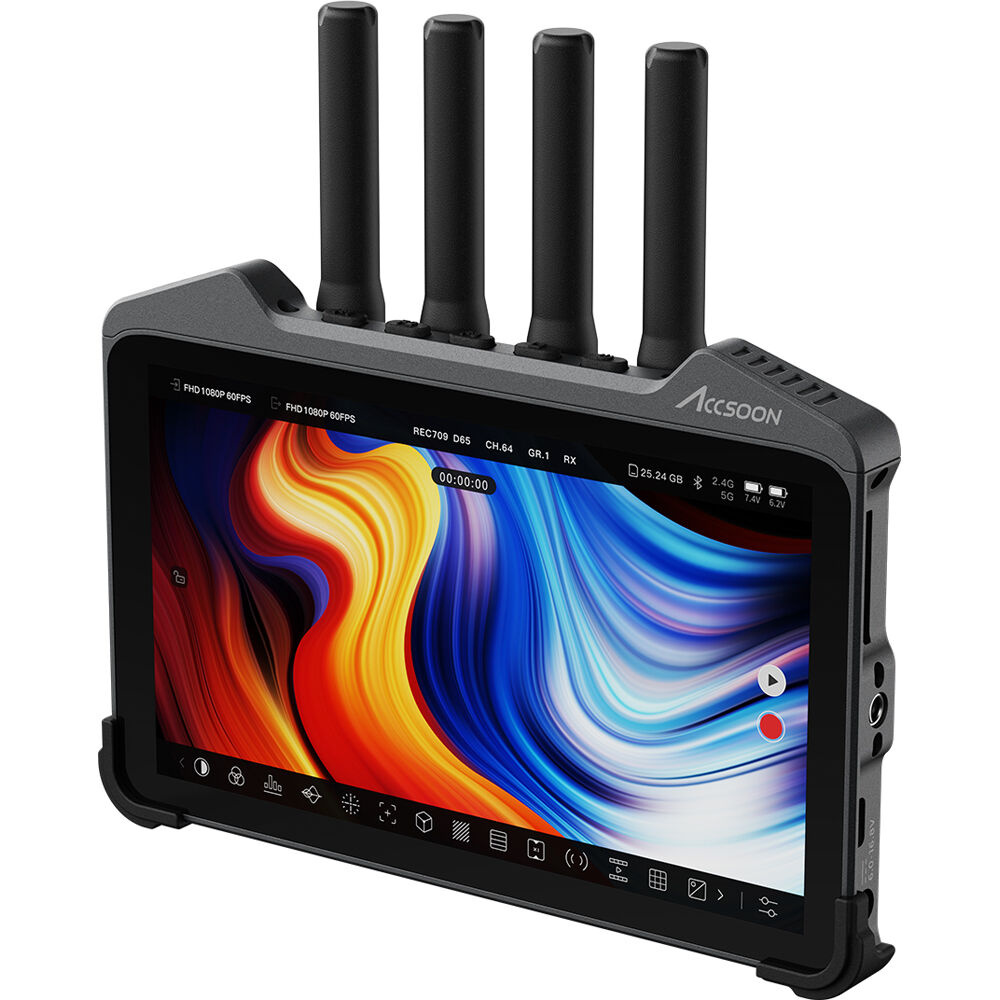

The Accsoon CineView M7 Pro is a professional 7" 4K monitor with a built-in recorder and wireless transmitter/receiver functionality . It combines HDMI and 3G-SDI monitoring, internal recording, and wireless video transmission in a single unit.

Key features:

• 7″ multi-touch LCD (1920 × 1080)

• 1000 cd/m² brightness

• 100% Rec.709 calibration

• HDMI 2.0 in/out up to DCI 4K60

• 3G-SDI in/out up to 1080p60

• Internal recording up to 4K60 (HDMI)

• Built-in dual-band wireless receiver

• Transmitter mode via firmware update

• 3D LUT support

• H.264/H.265 recording

The M7 Pro is designed for video production, live streaming, and mobile workflows that require the combination of monitoring, recording, and wireless transmission.

Operation

Wireless functionality

The integrated dual-band wireless receiver can receive 1080p video up to approximately 1200 ft (±365 meters) under optimal conditions.

With the appropriate firmware and compatible Accsoon equipment or SEE app, the monitor can also function as a transmitter , sending video to other receivers or mobile devices.

Supported:

• Wireless video transmission (Full HD)

• Wi-Fi file sharing

• Bluetooth file transfer

• Cloud upload

• Live streaming to the internet

Display & Monitoring

The edge-lit LED LCD screen offers:

• 1920 × 1080 resolution

• 176° viewing angle

• 1000:1 contrast

• 1000 nits brightness

• Anti-reflective DXC coating

SmartOS includes professional tools such as:

• 3D LUT support

• Waveform

• Vectorscope

• Histogram

• Zebra

• Gamma and gain settings

• Color management

• Device status (temperature, fan)

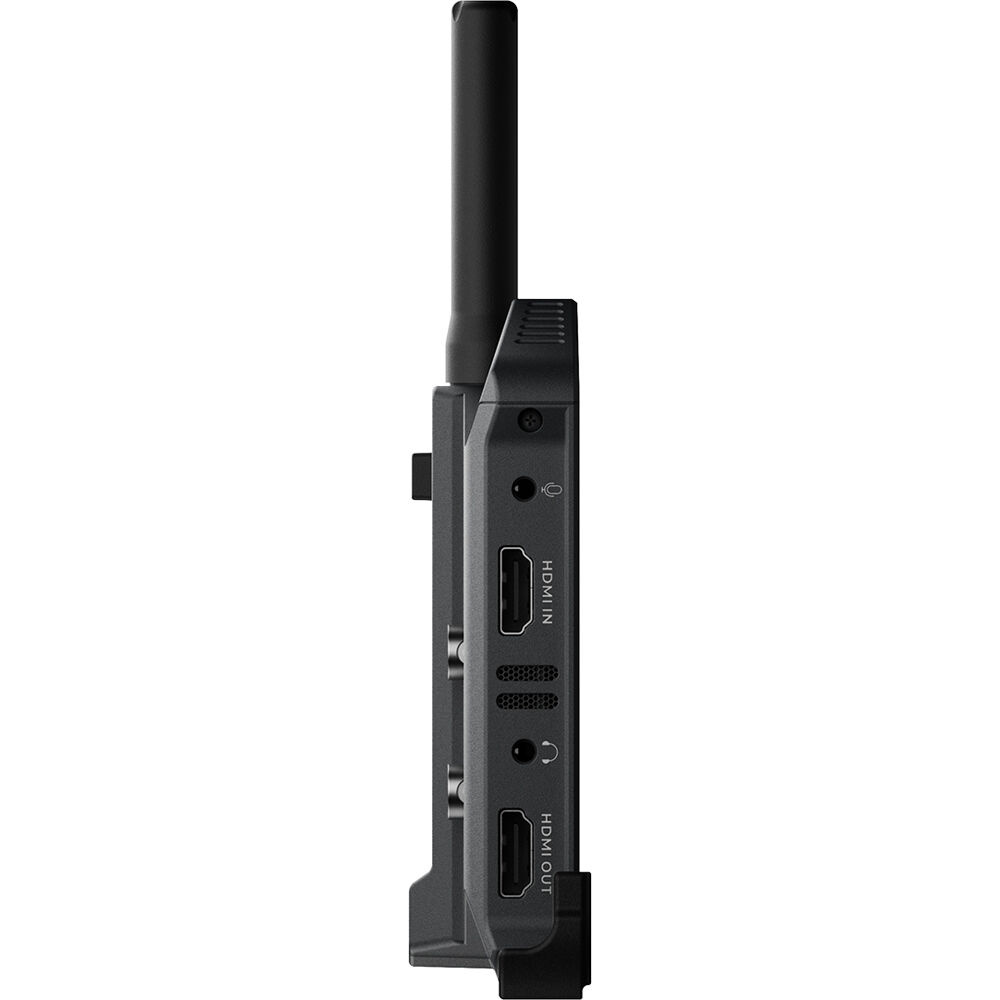

Video I/O

• HDMI 2.0 in/out: up to DCI 4K60

• 3G-SDI in/out: up to 1080p60

• Support for 8/10-bit RGB

• YUV 4:2:2 / 4:4:4

• 3.5 mm microphone input (audio embed)

• 3.5mm headphone output (source selection)

Intake

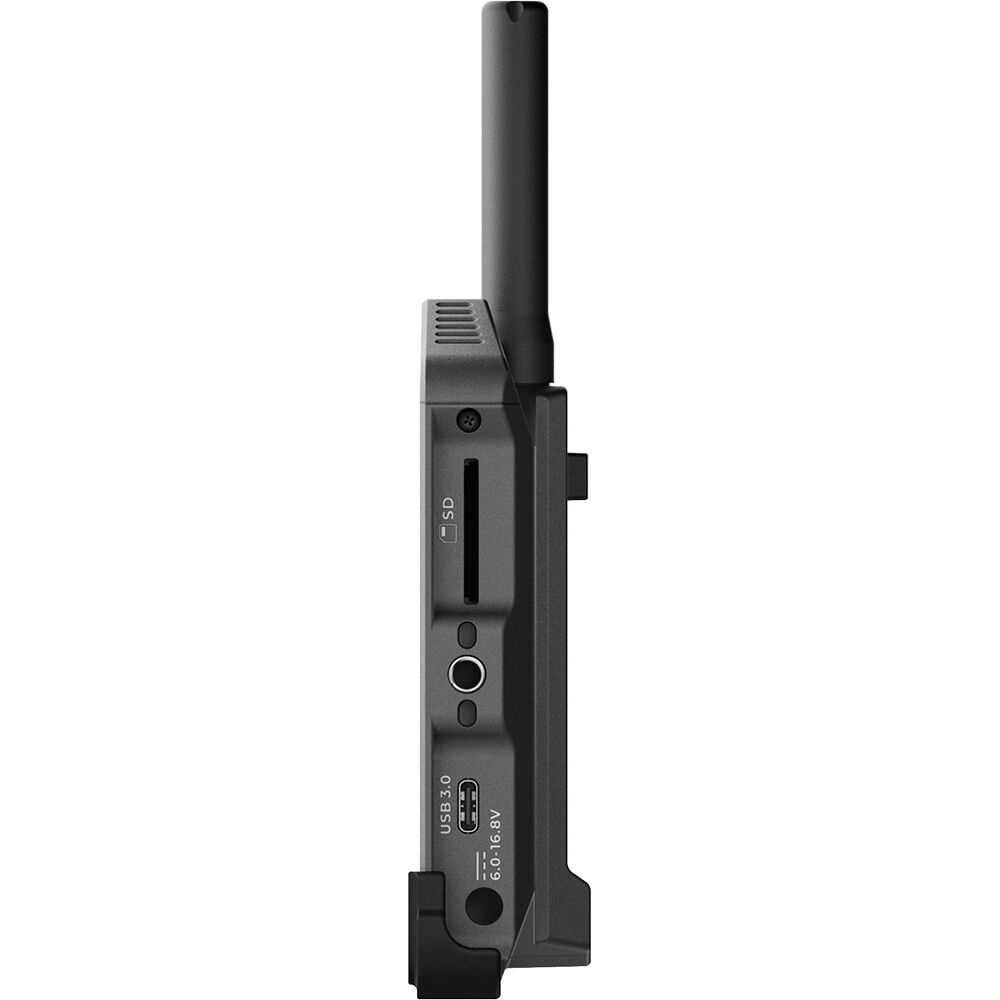

Internal recording via:

• SD card

• USB (flash drive or external SSD)

Maximum recording:

• 4K60 via HDMI

• 1080p60 via SDI

Recording formats:

• H.264

• H.265

• CBR/VBR bitrate control

• LUT application possible during recording

SmartOS offers integrated file management and playback.

Application

Suitable for:

• Wireless on-set monitoring

• Multi-camera livestream productions

• Field recording

• Production and control vans

• Event production

• Content creation and hybrid productions

The combination of monitor, recorder and wireless transmission reduces the number of separate devices in a setup.

Limits

• SDI limited to 1080p60

• Wireless transmission limited to Full HD

• No RAW or ProRes recording

• External power supply or NP-F batteries required

• Maximum wireless distance depends on environment
