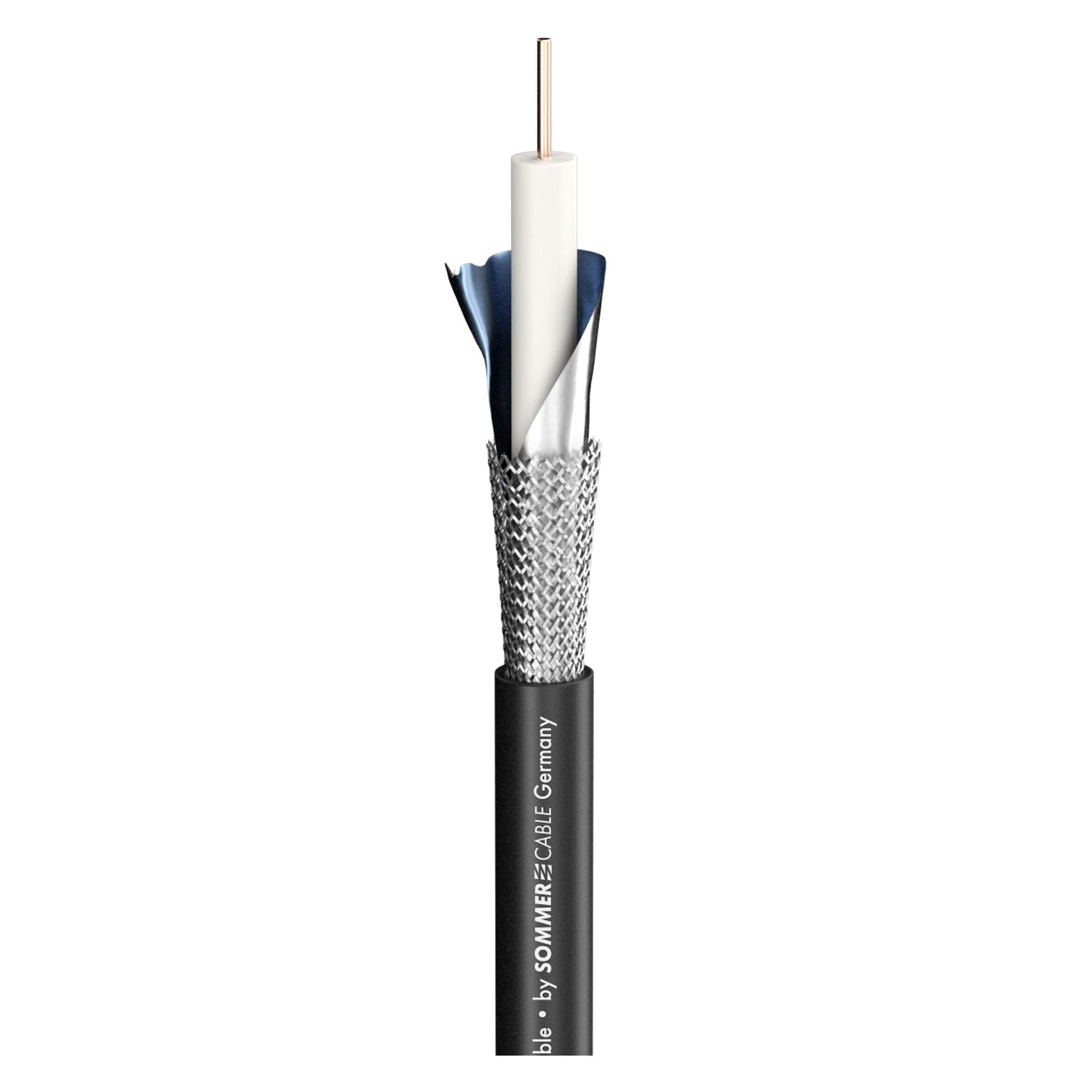

Sommer Cable SC-Vector (RCB) PVC

Features

The Sommer Cable SC Vector RCB is a high-quality 75 Ω video cable designed for professional SDI applications in broadcast, studio, and AV installations. The cable design combines a 0.80 mm solid copper inner conductor with dual shielding for stable signal transmission with digital video formats.

Key Features:

• Inner conductor: 1 × 0.80 mm

• PVC sheath with Ø 6.00 mm

• Characteristic impedance: 75 Ω

• Dual shielding (foil + copper braid)

• Robust black PVC casing

• Suitable for long distance transmission

Operation

The SC Vector RCB is designed for digital SDI signals , including 3G-SDI and 6G-SDI , with low attenuation and high signal quality over distance. Its solid internal structure and shielding maintain signal integrity during video and HD-SDI signal transmission.

Application

The cable is suitable for:

• SDI/3G-SDI and 6G-SDI video connections

• Professional broadcast installations

• Studio environments

• Field productions and live events

• OB vans and mobile video setups

Due to its low attenuation and durable sheathing, this cable can be used for both indoor and outdoor use.

Limits

• Coaxial video signal transmission only; no power or data transmission

• PVC sheathing may be less flexible than high-quality PUR versions when flexed frequently
