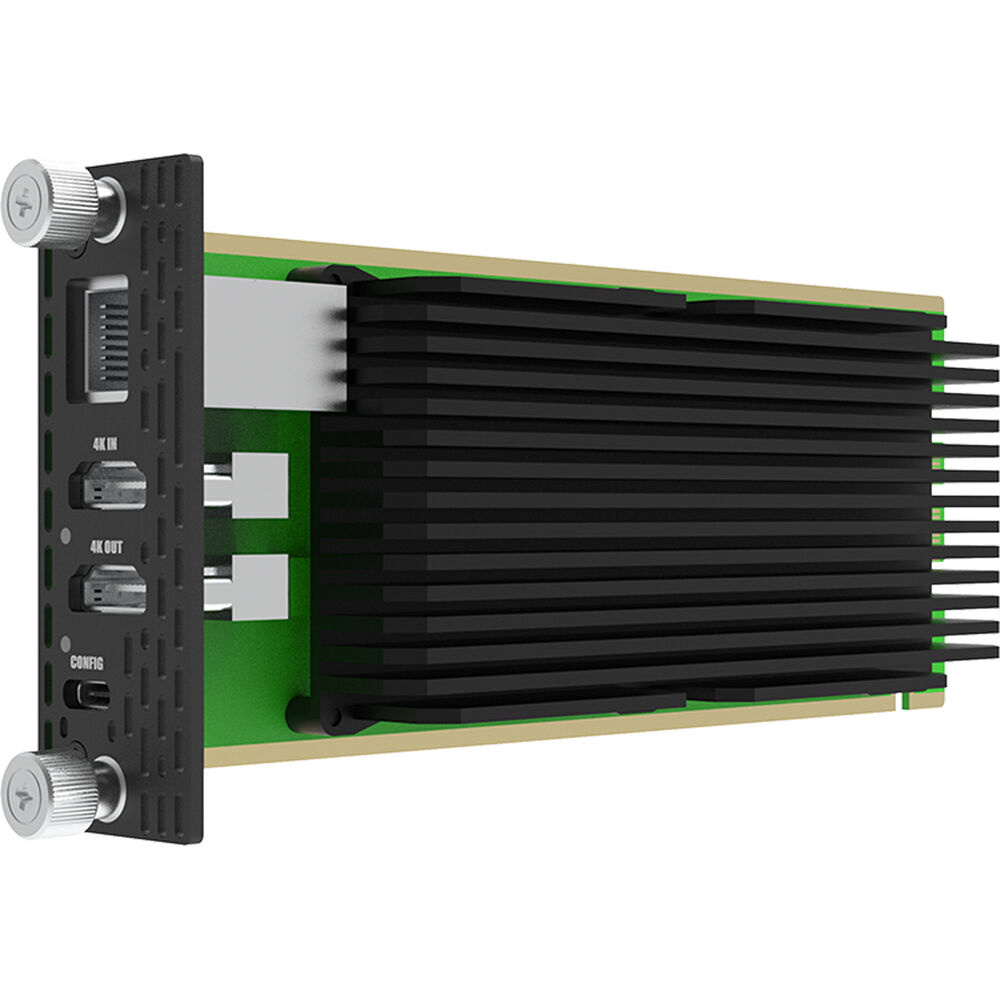

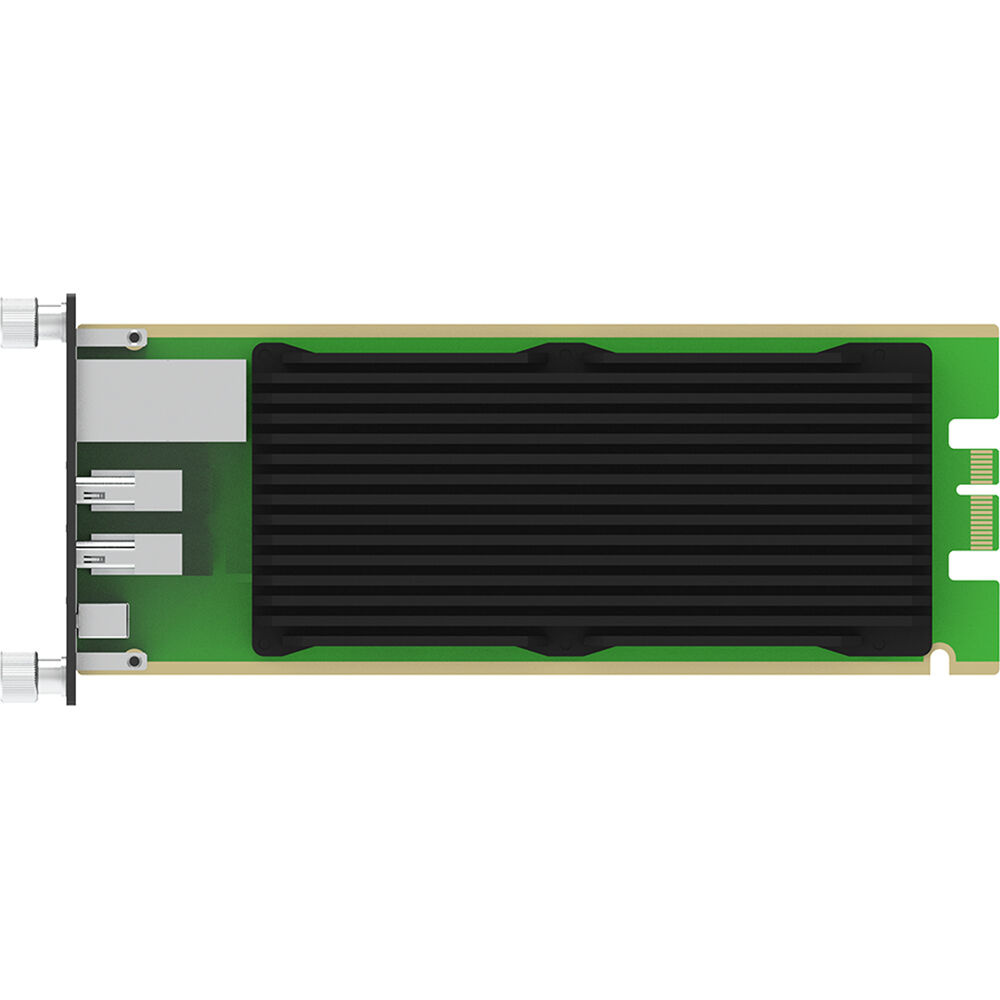

Magewell Pro Convert HDMI 4K Plus Module
The Magewell Pro Convert HDMI 4K Plus module accepts 4K HDMI signals and offers 4K HDMI loop-through and high-bandwidth NDI encoding, outputting up to 4K. The hot-swappable module integrates directly into the Magewell Modator 2 RU rackmount chassis and features a built-in interface for control via the Modator's touchscreen. Featuring eight-channel HDMI and built-in NDI audio, a USB-C port for configuration, and ultra-low latency, this Pro Convert module is designed for professional AV applications.
Input and output
Up to 4096 x 2160 4:4:4 at 60 fps HDMI input and loopthrough
Up to 4096 x 2160 at 60 fps 8-bit NDI encoding and output
Output at the same resolution as input or any desired resolution via NDI
8-channel HDMI built-in audio input and output
8-channel NDI built-in audio output
Connectivity
HDMI 2.0 video input port
HDMI 2.0 video output port
RJ45 1000 Mb/s Ethernet port
USB-C configuration port
Modator 2U interface for control

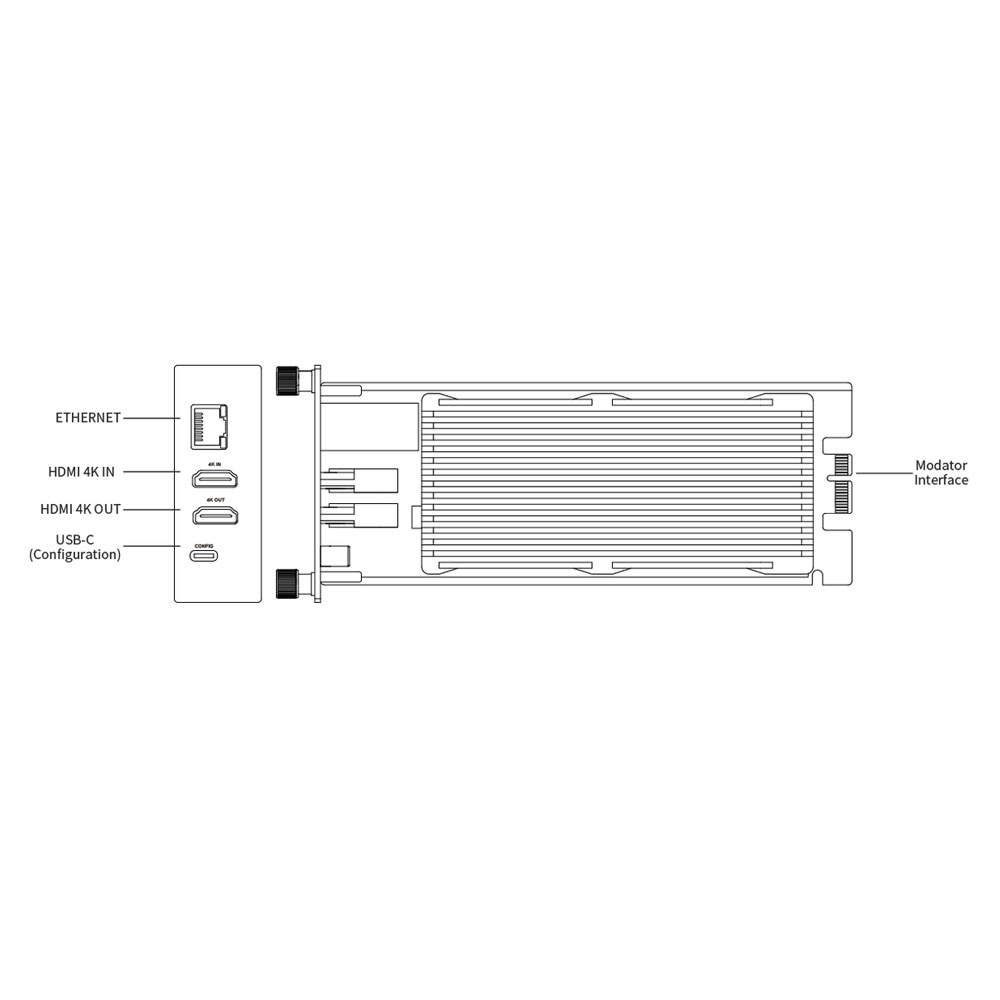

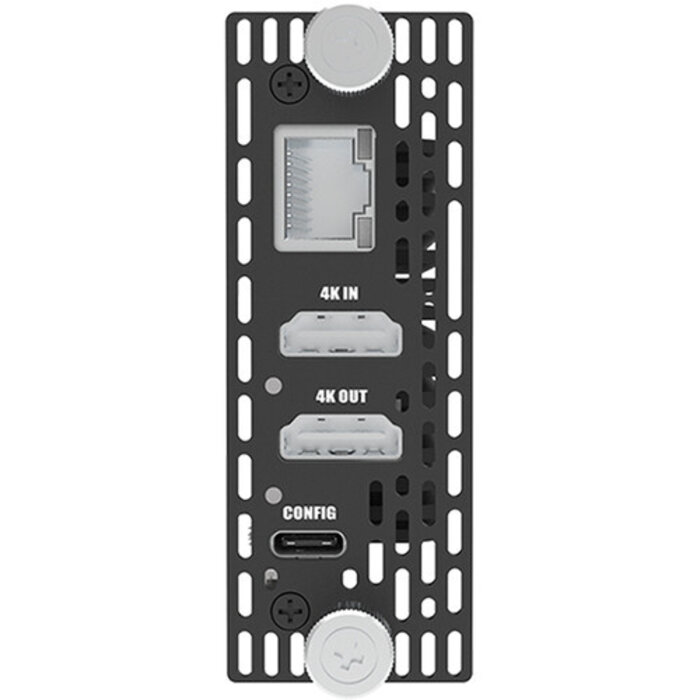

Magewell Pro Convert HDMI 4K Plus Module
- 1* RJ45 1000Mbps Ethernet port
- 1* USB Type-C port for configuration
- 1* HDMI 2.0 input port
- 1* HDMI 2.0 output port
- 1* Modator interface for connecting to Modator 2U (hot-swappable)
- Max. input & loop-through signal: 4096x2160 60fps 4:4:4 8-bit
- Input videos at any format by customizing the EDID of input port
- Supports RGB and YUV BT.601/709/2020 signals
- Supports 8-channel HDMI embedded audio
- Encode and output real-time streams of NDI High Bandwidth at up to:
- 4096x2160 60fps 4:2:2 8-bit
- 1920x1080 240fps 4:2:2 8-bit
- Output the same resolution as input or any custom resolution. Typical outputs include:
- 4096x2160p/3840x2160p/2048x1080p 23.98/24/25/29.97/30/50/59.94/60
- 1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
- 1920x1080i 25/29.97/30/50/59.94/60
- 720x480p/720x480i 59.94/60/119.88/120
- 720x576p/720x576i 50/100
- Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate
- Encode 8-channel NDI embedded audio
- Supports NDI 6.2
- Register with Magewell Control Hub for remote centralized management
- Supports configuring and managing via Web UI
- Provides comprehensive information regarding the device and signals in real-time
- Allow to configure how a signal is encoded and output, including deinterlacing, EDID settings, up/down scale, frame rate, aspect ratio, as well as the network connection
- Supports updating firmware
- Supports USB RNDIS/ECM
- Supports IE/Edge/Firefox/Chrome/Safari/Opera web browsers
- Provides HTTP APIs
- Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H)
- Weight: ≈295g
- Max power consumption: 7W
- Operating temperature: 0 to 50 deg C
- Storage temperature: –20 to 70 deg C
- Relative humidity: 5% to 90% non-condensing
Interfaces
Input & Loop-Through Features
NDI Encoding Features
Web UI
Physical Specifications
Power Consumption
Working Environment
