Dracast X Series LED2000 Bi-Color LED Light Panel
Dracast X Series LED2000 Bi-Color LED Light Panel
Key Features
- For Live Events, Broadcast & Video
- Output: 3101 Lux at 3.3' (5600K)
- 3200-5600K CCT
- 20.25 x 12.25" Panel; AC/DC Operation
- V-Mount Battery Plate
- CRI 96 | TLCI 96
- Onboard, DMX & App Control
- 0-100% Dimming

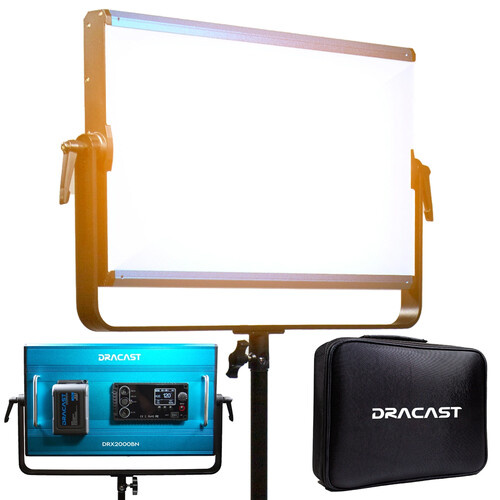

- Yoke, Diffuser, Power Supply & Case
The X Series LED2000 Bi-Color LED Light Panel from Dracast is the ideal choice for shooting environments where quality, extended control, and matching ambient light or other fixtures are important. The 20.25 x 12.25" panel features 3200-5600K CCT and 0-100% variable light intensity. This 120W fixture has an aluminum housing for durability and a V-mount battery plate for practical outdoor use. In addition, it comes with a diffusion filter that produces soft output and an installed yoke with a 5/8" Baby Pin receiver that allows easy mounting on compatible and separately available light stands.

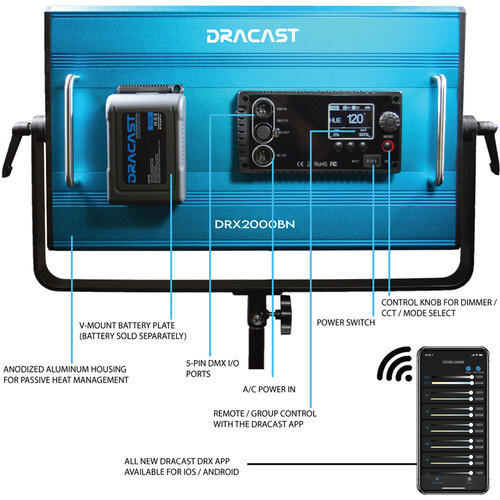

Adjustments can be made locally via the control panel on the rear of the fixture or with the free Dracast DRX app. Control all the light's functions and manage one or multiple X Series lights simultaneously from over 100' away with the app. The unit can be controlled manually, via DMX using DMX 5-pin connectors, or with the app. The LED2000 is powered via an included AC/DC adapter and accepts a separately available V-mount battery for maximum portability. A soft carrying case is also supplied for storage and transport.
App Control & DMX Capability
The Dracast DRX app helps you achieve the look you need quickly and accurately. Easily control all features of the light from up to 100' away with the app. For advanced users, the LED2000 also features DMX connectivity.
- Adjust CCT and dimming from 0 to 100% to smoothly increase or decrease your light output
- Control multiple X Series lights simultaneously
- Make adjustments to a single master light and other lights in a group will follow suit
- DMX in and out ports that enable external control through a user-supplied console
Benefits & Details
- This panel emits up to 3101 lux at 3.3' (5600K)
- High CRI/TLCI ratings of 96 for superior color rendition
- Built-in V-mount battery plate for maximum portability
- Durable aluminum housing
- Compatible with separately available barndoors, softboxes, and other accessories
Item Type | 1x LED Light Panel |
Included Storage Case | Yes |
Photometrics | Not Specified by Manufacturer |
Color Temperature | 3200 to 5600K |
Color Modes | Daylight, Tungsten |
Color Accuracy Standard | CRI 96 |
Dimming | Built-In Dimmer |
Power Source | AC to DC Adapter (Included) |
Battery Plate Type | 1x V-Mount (Built-In) |
Battery | 1x V-Mount Rechargeable (Not Included) |
Input Power | 15 VDC |
Power Consumption | 120 W |
Fixture Mounting | 1x 5/8" Receiver (Via Yoke Mount) |
Light Fixture
Item Type | 1x LED Light Panel |
Included Filters | Soft Diffusion |
Included Storage Case | Yes |
Photometrics | Not Specified by Manufacturer |
Color Temperature | 3200 to 5600K |
Color Modes | Daylight, Tungsten |
Color Accuracy Standard | CRI 96 |
Dimming | Built-In Dimmer |
Cooling System | Passive |
Built-In Flash | No |
Umbrella Mount | No |
Connectivity
Mobile App Compatible | Yes: Android & iOS |
Power & I/O
Power Source | AC to DC Adapter (Included) |
Inputs/Outputs | 1x XLR 4-Pin Power Input |
Battery Plate Type | 1x V-Mount (Built-In) |
Battery | 1x V-Mount Rechargeable (Not Included) |
Input Power | 15 VDC |
Included Adapter / Cable | Yes |
Inline Switch | No |
Power Pass-Thru | No |
Power Consumption | 120 W |
Mounting
Yoke Type | Manually-Operated Yoke |
Fixture Mounting | 1x 5/8" Receiver (Via Yoke Mount) |
General
Display | Yes |
Materials | Aluminum |

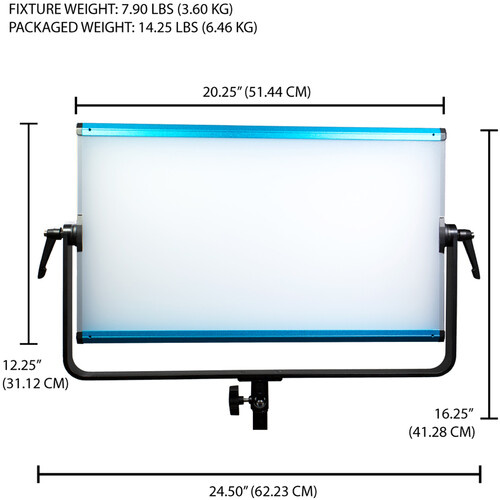

Dimensions | 20.2 x 12.2" / 51.3 x 31 cm |
Weight | 8.05 lb / 3.65 kg |
Packaging Info
Package Weight | 14.93 lb |
Box Dimensions (LxWxH) | 29.4 x 19 x 5.2" |
