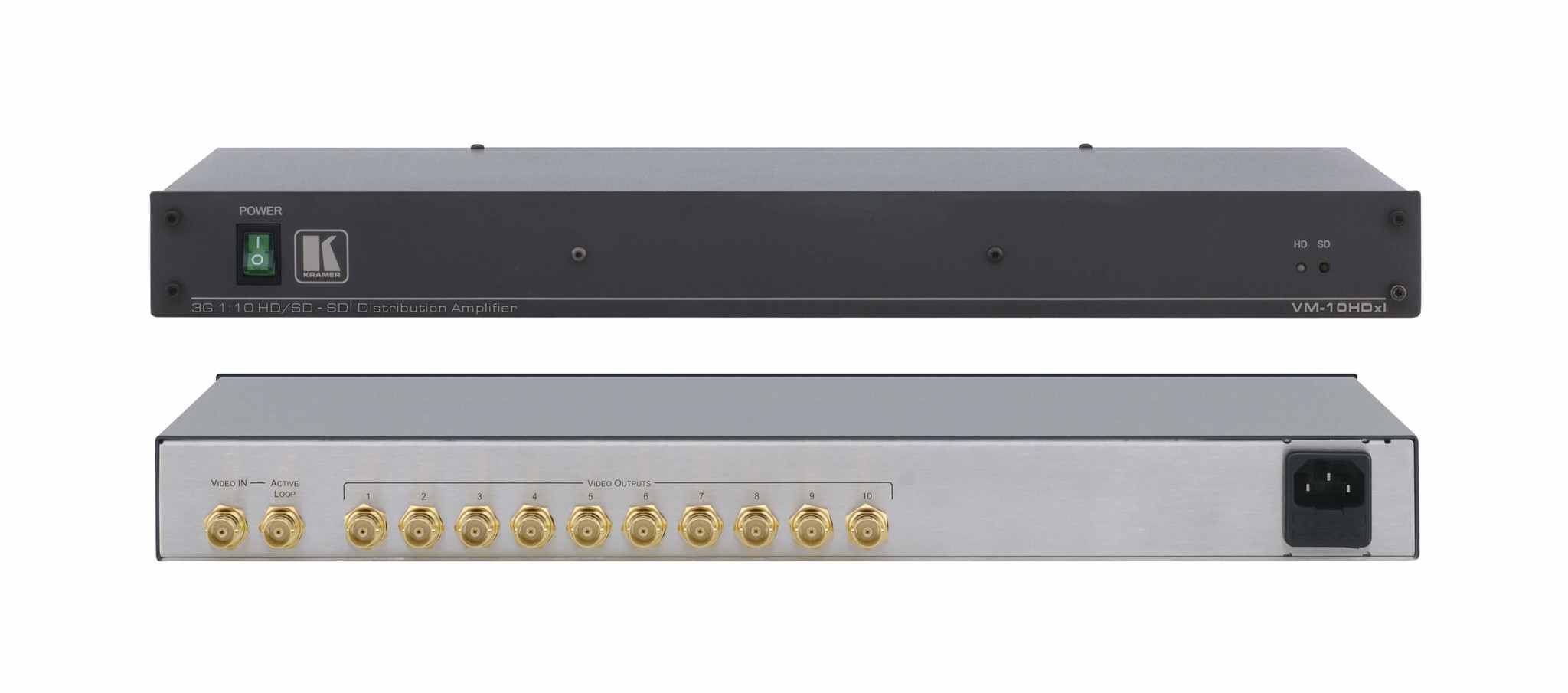

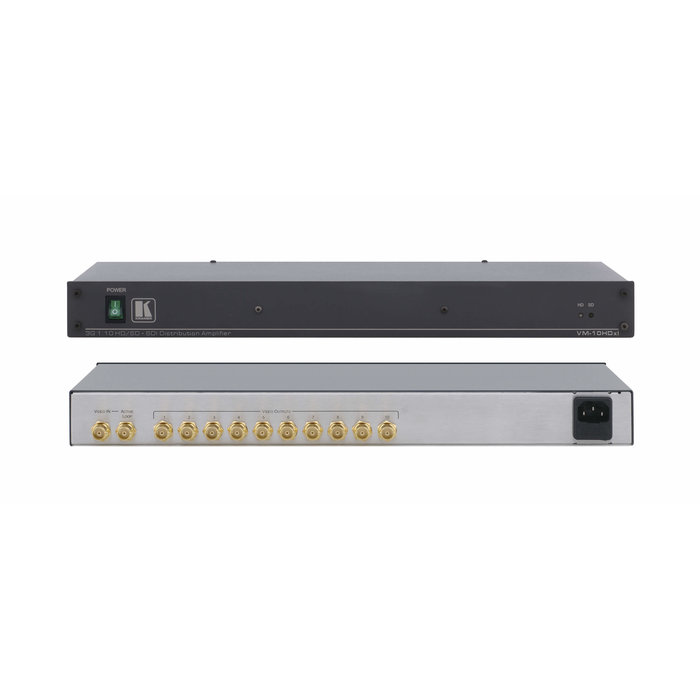

KRAMER - VM-10HDxl 1:10 3G HD–SDI Distribution Amplifier

Brand: KRAMER
  • Supplier stock, 1 - 3 business days
€1.809,00 (€1.495,04 Excl. tax)
The VM-10HDxl is a high-performance distribution amplifier for 3G HD-SDI signals...More information
+31 (0) 6 4436 1093
Great deals
Professional advice
Tailored Services
Product information

The VM-10HDxl is a high-performance distribution amplifier for 3G HD-SDI signals. The unit takes one input, provides reclocking and equalization and distributes the signal to ten identical outputs.



  •  Max. Data Rate — 3Gbps.
  •  HDTV Compatible.
  •  Multi–Standard Operation — SDI (SMPTE 259M/344M), HD–SDI (SMPTE 292M) & 3G HD–SDI (SMPTE 424M).
  •  Kramer Equalization & re‑Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
  •  HD–SDI & SDI Input Indication LEDs.
  •  Looping Input.
  •  Standard 19” Rack Mount Size — 1U. Rack "earsincluded.

CONSULT AN EXPERT

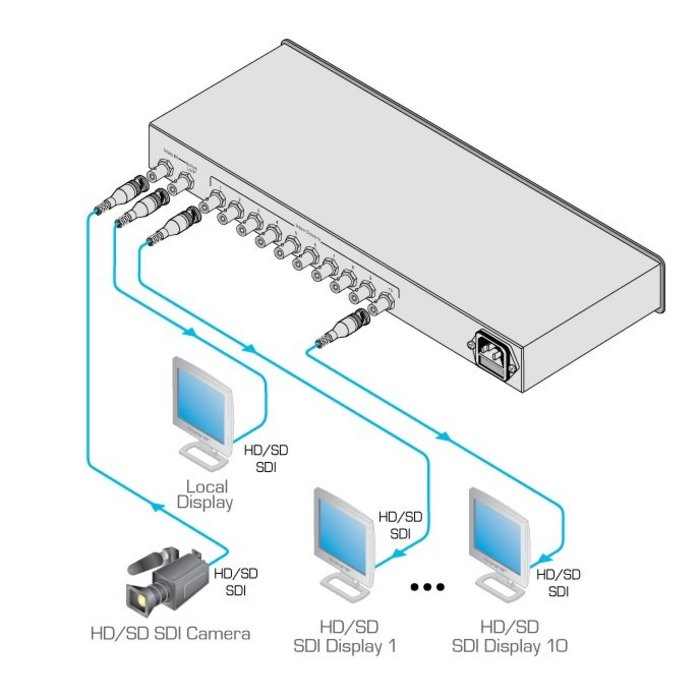

APPLICATIONS

  •  SDI production studios for signal distribution and equalizations.
  •  Broadcast studios for on–air operation.
  •  SDI field production.
  •  Using with SDI video sources such a professional digital camera.



Technische specificaties




    SPECIFICATIONS



    INPUTS

    • 1 SMPTE–259M/292M/424M serial video, 75Ω on a BNC connector

    OUTPUTS

    • 10 equalized and reclocked SMPTE–259M/292M/424M outputs, 75Ω on BNC connectors
    • 1 looped GENLOCK 75Ω/Hi–Z on a BNC connector

    MAX. OUTPUT LEVEL

    • 800mVpp/75Ω

    MAXIMUM DATA RATE

    • Up to 2.97Gbps

    COUPLING

    • AC

    POWER CONSUMPTION

    • 100/240V AC, 50/60Hz, 5VA

    INCLUDED ACCESSORIES

    • Power cord, rack "ears"

    PRODUCT DIMENSION

    • 19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H

    PRODUCT WEIGHT

    • 1.5kg (3.3lbs) approx.

    SHIPPING DIMENSION

    • 55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H

    SHIPPING WEIGHT

    • 2.5kg (5.5lbs) approx.
