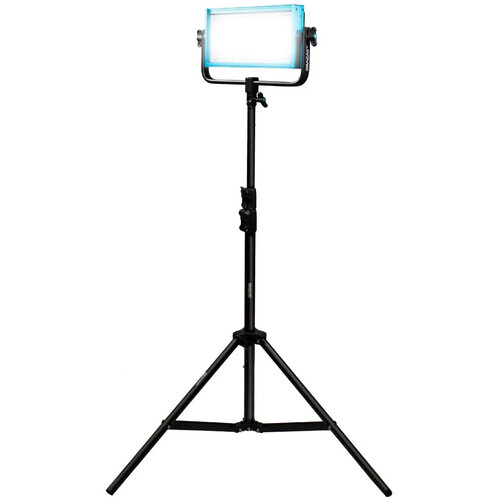

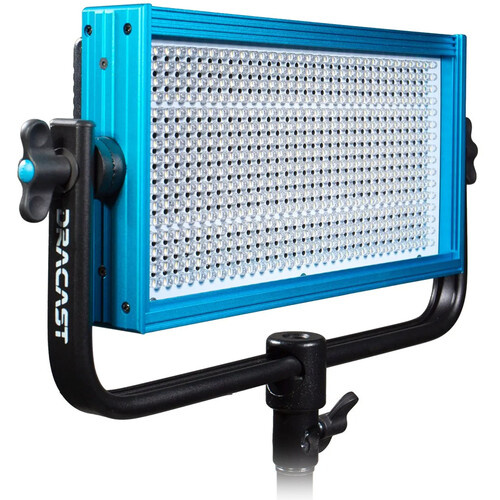

Dracast Plus Series LED1000 Daylight LED Light Panel
Key Features
- Light with Gold & V-Mount Battery Plates
- Output: 4455 Lux at 3.3' (5600K)
- 5600K CCT
- 12 x 6 x 2" Panel; AC/DC Operation
- CRI 95
- Onboard & DMX Control
- 45° Beam Angle
- 0-100% Dimming
- Digital Display & Aluminum Chassis

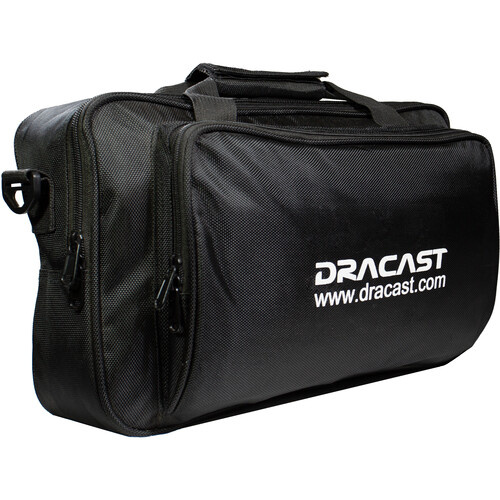

- Includes Carry Case

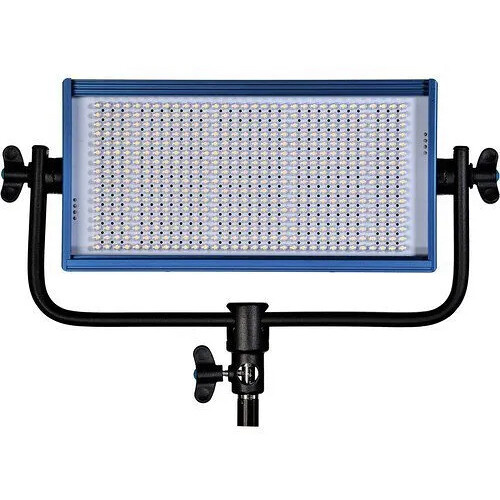

Expanding on their line of panels, the Plus Series LED500 Daylight LED Light Panel from Dracast adds a digital display for adjusting output as well as Cat 5 DMX input and output for linking and comes with V-mount battery plates. The light features 512 LEDs with a high CRI of 95 for excellent color accuracy. Also, this model has a daylight-balanced color temperature of 5600K for matching with natural light and other fixtures.

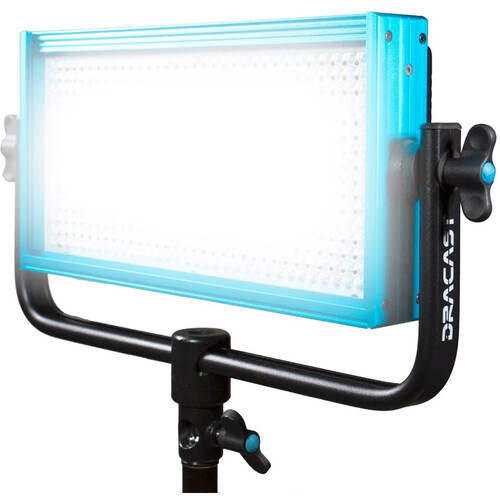

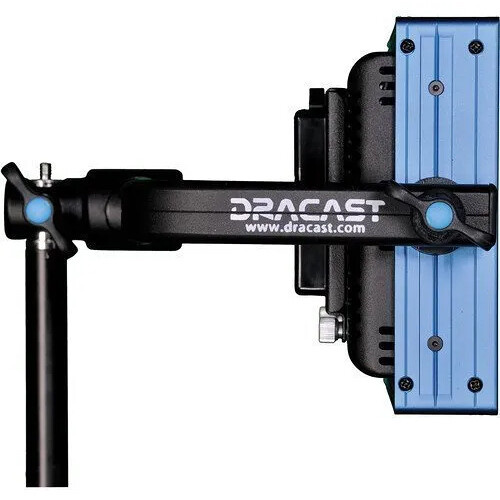

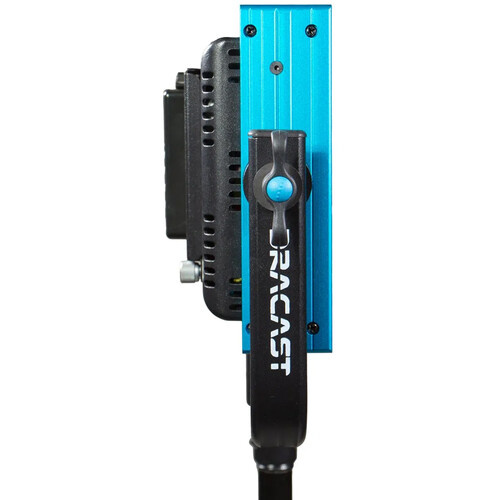

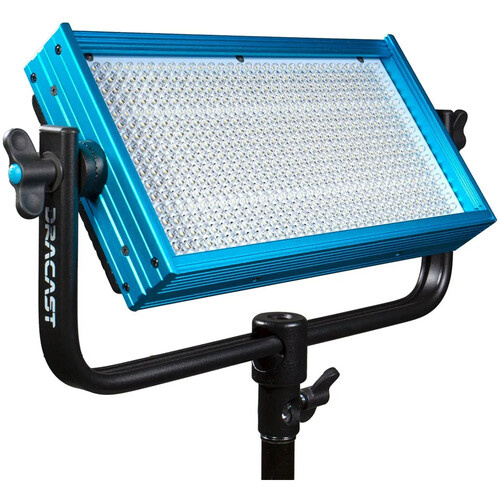

The lights offer a spot beam angle of 45°, as well as dimming from 0-100%. Benefiting operation, it can run from either a DC source, such as a Gold mount or V-mount battery, or a universal 100-240 VAC adapter. The light is durable as well, with an aluminum chassis, frame, and mounting yoke, and it only consumes 30W of power. Additionally, it is lightweight at just 4 lb and measures 12 x 6 x 2" in size.
Photometrics
5500 lux/511 fc at 3'
1550 lux/144 fc at 6'
725 lux/67 fc at 9'
430 lux/40 fc at 12'
| Item Type | 1x LED Light Panel |
| Included Storage Case | Yes |
| Photometrics | 5600K: 413 fc / 4455 Lux at 3.3' / 1 m* 511 fc / 5500 Lux at 3' / 0.9 m 144 fc / 1550 Lux at 5.9' / 1.8 m 67 fc / 725 Lux at 8.9' / 2.7 m 40 fc / 430 Lux at 11.8' / 3.6 m |
| Color Temperature | 5600K |
| Color Modes | Daylight |
| Color Accuracy Standard | CRI 95 |
| Dimming | Built-In Dimmer • 0 to 100% |
| Front Accessory Mount | Proprietary |
| Power Source | AC to DC Adapter (Included) Battery (Not Included) |
| Battery Plate Type | 1x V-Mount (Included) |
| Battery | 1x V-Mount Rechargeable (Not Included) |
| Input Power | 12 VDC 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 30 W |
| Fixture Mounting | 1x 5/8" Receiver (Via Yoke Mount) |
| Item Type | 1x LED Light Panel |
| Included Storage Case | Yes |
| Photometrics | 5600K: 413 fc / 4455 Lux at 3.3' / 1 m* 511 fc / 5500 Lux at 3' / 0.9 m 144 fc / 1550 Lux at 5.9' / 1.8 m 67 fc / 725 Lux at 8.9' / 2.7 m 40 fc / 430 Lux at 11.8' / 3.6 m *Standardized Measurement Calculated Internally Based on Closest Distance |
| Color Temperature | 5600K |
| Color Modes | Daylight |
| Color Accuracy Standard | CRI 95 |
| Dimming | Built-In Dimmer • 0 to 100% |
| Cooling System | No |
| Beam Angle | 45° |
| Built-In Flash | No |
| Umbrella Mount | No |
| Front Accessory Mount | Proprietary |
| Power Source | AC to DC Adapter (Included) Battery (Not Included) |
| Inputs/Outputs | 1x XLR 4-Pin Power Input 1x RJ45 DMX Input 1x RJ45 DMX Output |
| Battery Plate Type | 1x V-Mount (Included) |
| Battery | or 1x V-Mount Rechargeable (Not Included) |
| Input Power | 12 VDC 100 to 240 VAC, 50 / 60 Hz |
| Included Adapter / Cable | 1x USA Type-A/B to XLR 4-Pin AC to DC Adapter |
| Inline Switch | No |
| Power Pass-Thru | No |
| Power Consumption | 30 W |
| Yoke Type | Manually-Operated Yoke |

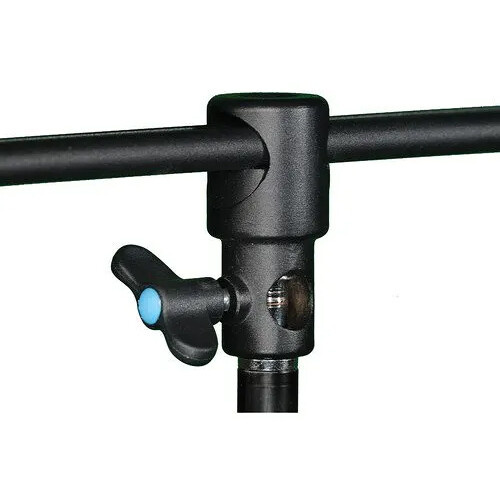

| Fixture Mounting | 1x 5/8" Receiver (Via Yoke Mount) |
| Display | Yes |
| Environmental Resistance | Dust-Resistant (IP20) |
| Materials | Aluminum (Housing) |
| Dimensions | 12 x 6 x 2" / 30.5 x 15.2 x 5.1 cm (Fixture) |
| Weight | 4 lb / 1.8 kg (Fixture with Yoke) |
| Package Weight | 9 lb |
| Box Dimensions (LxWxH) | 17 x 11 x 8" |
