INOGENI

Inogeni Cam 300 4x1 HDMI/USB 2.0 Camera Switcher

2 HDMI and 2 USB Inputs / Input up to 1080p30 Video over HDMI / HDMI and USB 3.0 Outputs
€1.720,00 Incl. BTW
€1.421,49 Excl. BTW
INO-CAM300
Supplier stock, 1 - 3 business days
+31 (0)316 294 700
Great deals
Professional advice
Tailored Services

Product description

Plug your USB and HDMI video sources into the Inogeni CAM 300 4x1 HDMI/USB 2.0 Camera Switcher and achieve quick camera switching to both HDMI and USB outputs.

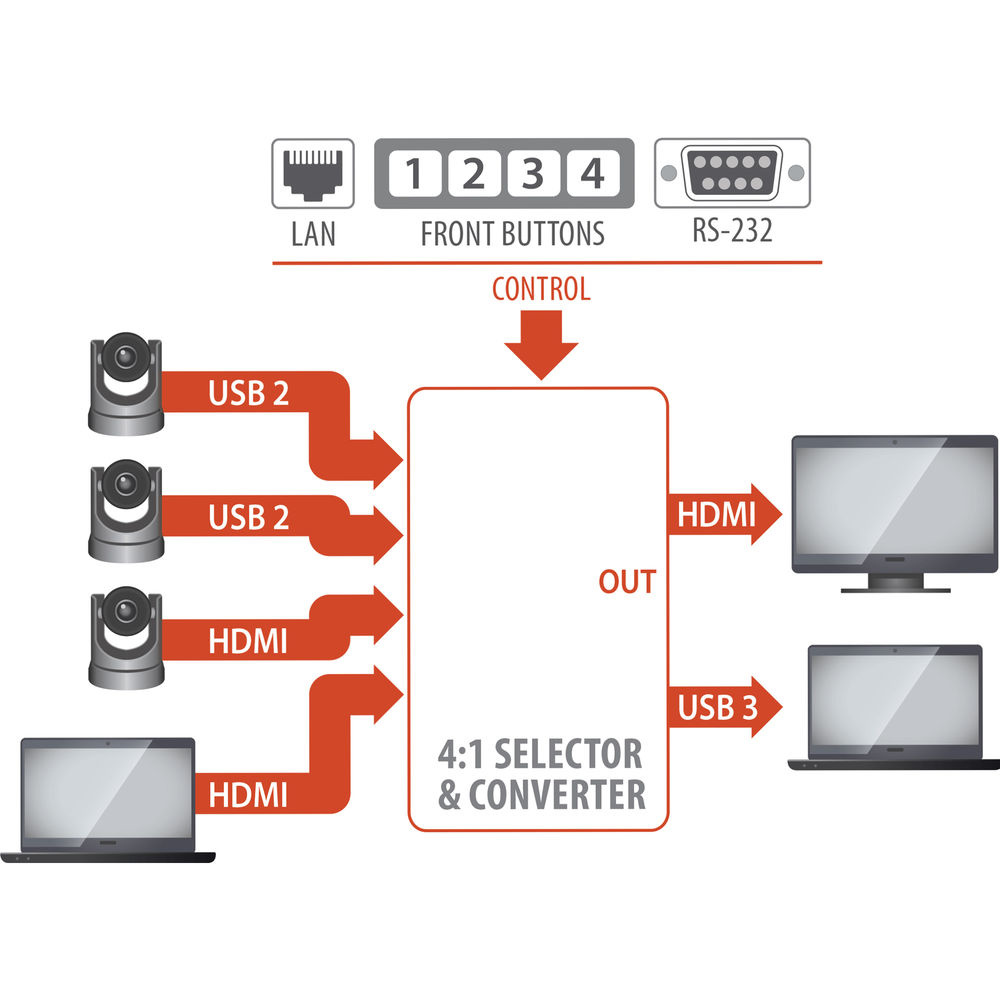

Inputs 1 and 2 are USB 2.0 and they accept USB cameras that output MJPEG or H.264 video. Video from the USB ports is decoded and output via the HDMI and USB ports as uncompressed video. Inputs 3 and 4 are full-sized HDMI inputs that accept video up to 1080p30 in resolution.



Embedded audio is routed to the both HDMI and USB outputs from the selected input (audio follows video).



To control the I/O routing, use the simple front-panel controls, or connect a software/hardware control via RS-232 and Ethernet terminals. Two full-size USB 3.0 ports are built-in to the CAM 300 for connecting further USB accessories to your host system.



Scenarios where this switcher would be useful include convention centers, presentation areas, meeting rooms, and more, where both HDMI display output and USB video capture are required simultaneously.



Inputs

2 x USB 2.0 Type-A
2 x HDMI type A

Outputs

1 x HDMI type A
1 x USB 3.0 Type-B

Other I/O

1 x Ethernet
1 x 4-pin Phoenix, RS-232
2 x USB 3.0 Type-A, host

Video Input Format

USB:
MJPEG
H.264

HDMI:
1080p 30
720p 60
480p 60

Audio Input Format

USB: USB camera audio
HDMI: Embedded PCM

Video Output Format

Up to 1080p 60

Audio Output Format

Embedded PCM (audio output follows selected video input)

Power Supply

12 VDC, 500 mA

Environmental

Operating Temperature: 32 to 113°F / 0 to 45°C
Storage Temperature: -40 to 221°F / -40 to 105°C
Humidity: 0-90%, non-condensing

Dimensions

7.3 x 4.4 x 1.2" / 18.5 x 11.2 x 3 cm

Weight

1 lb / 469 g



In the Box



INOGENI CAM 300

Power Supply
