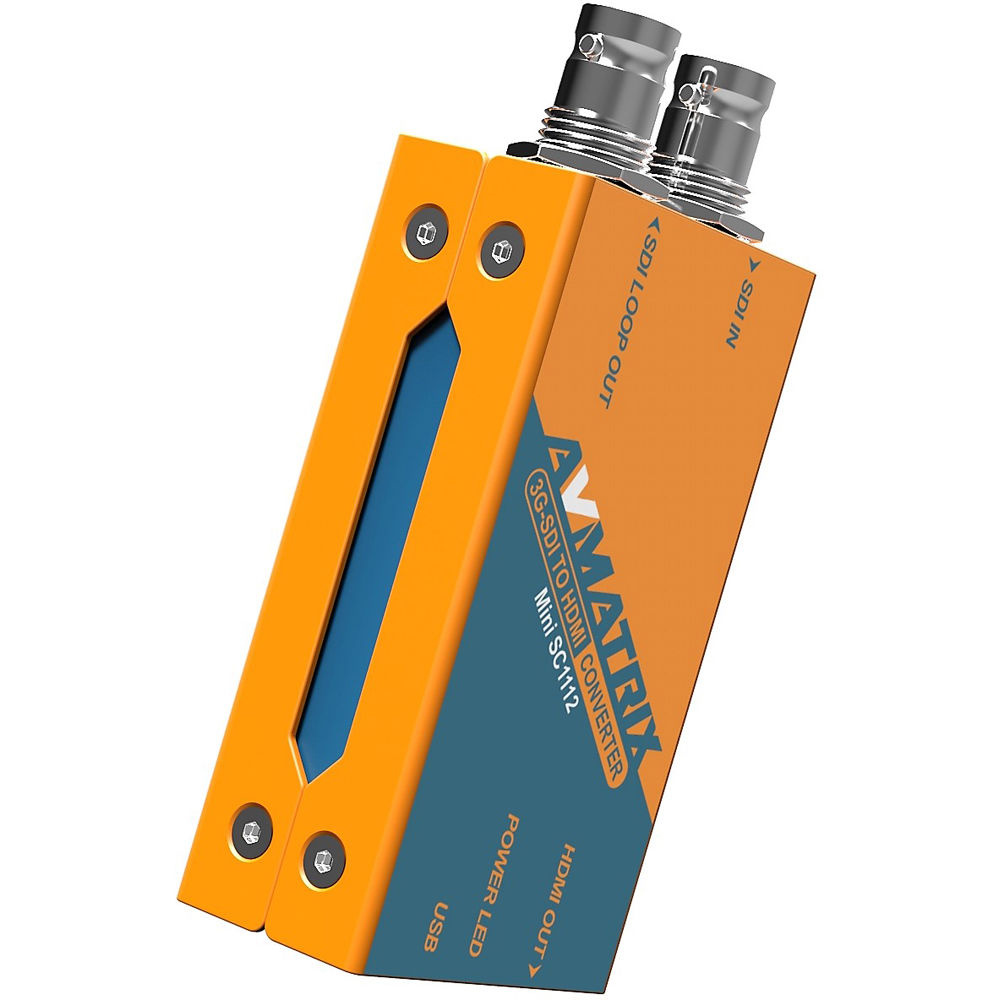

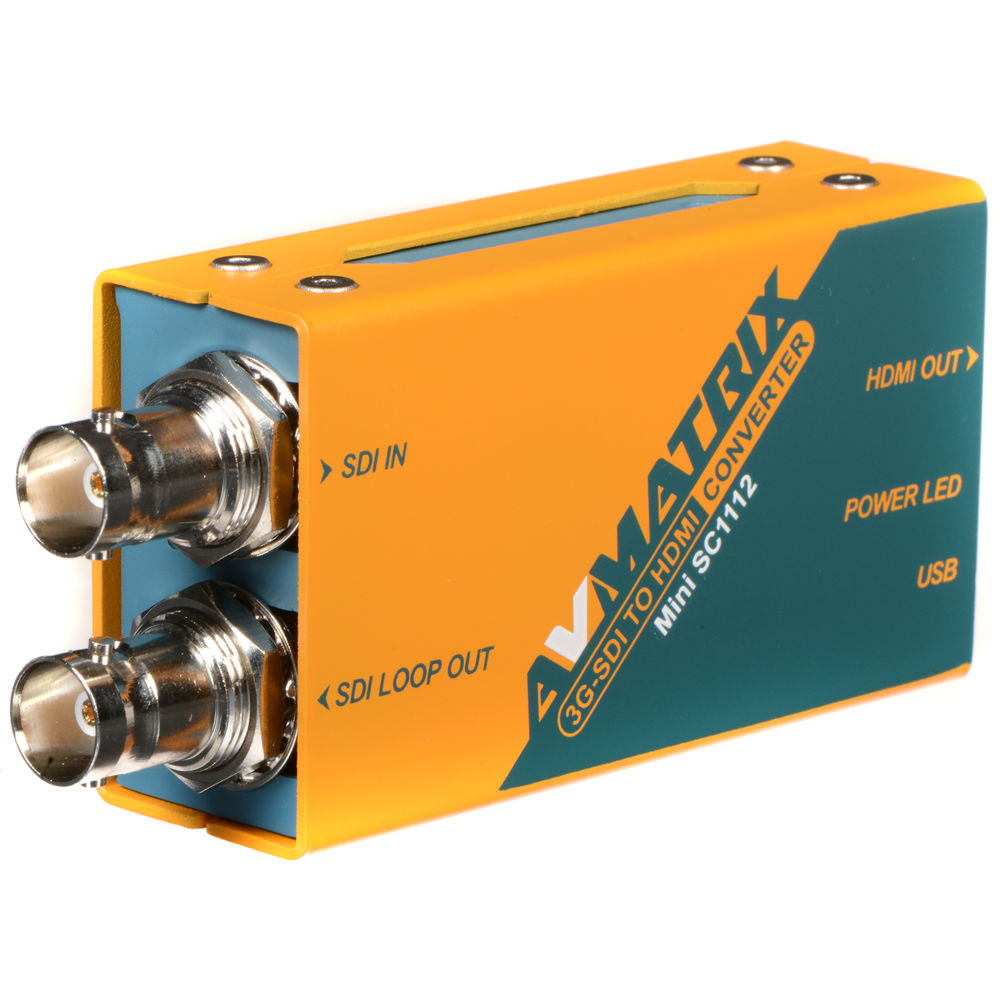

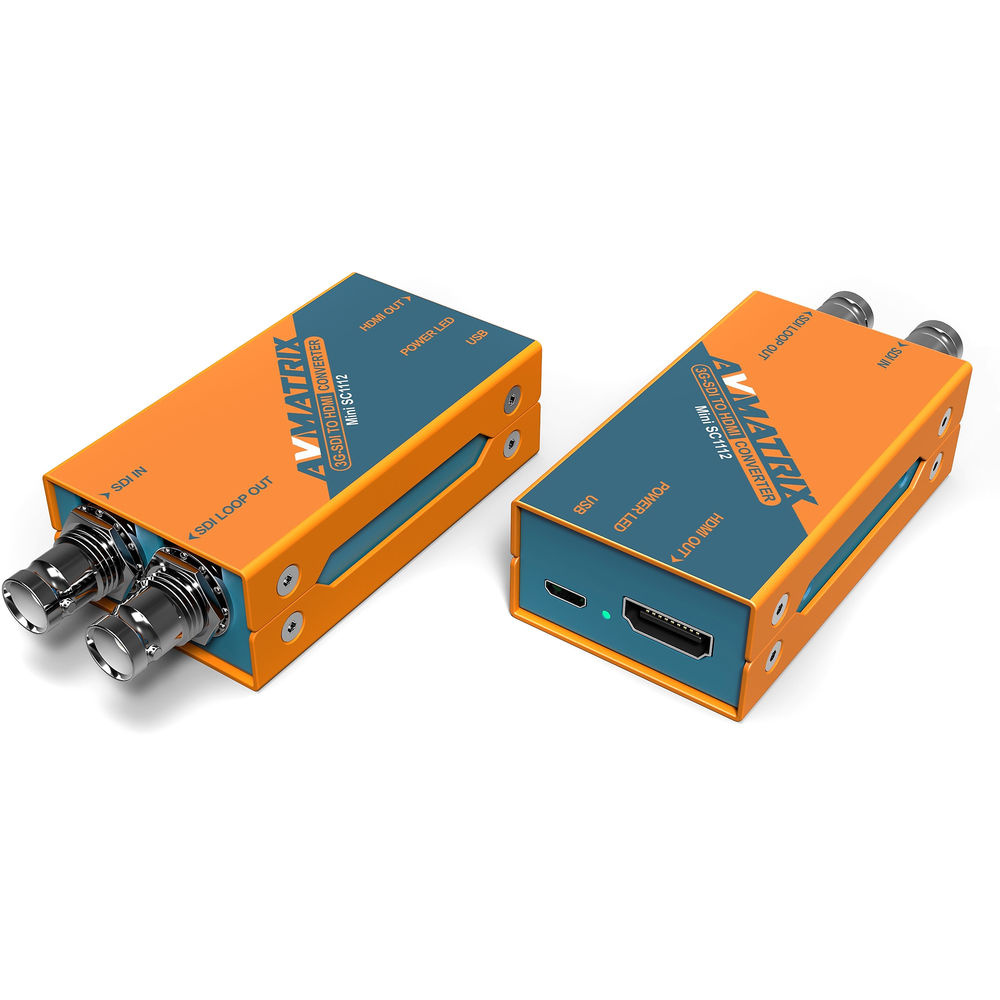

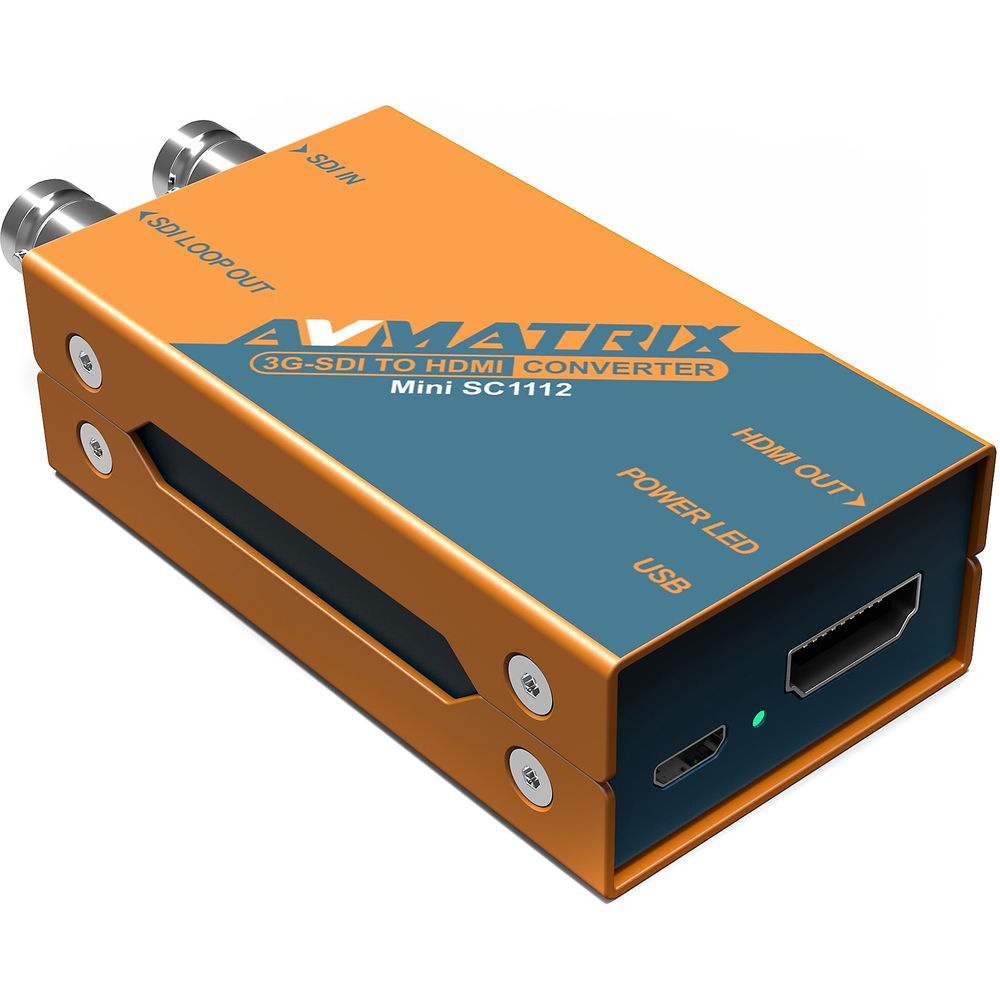

AVMATRIX Mini SC1112 3G-SDI to HDMI Mini Converter

Features

The AVMATRIX Mini SDI to HDMI Video Converter is a compact video converter that converts professional SD, HD, and 3G SDI signals to HDMI. This allows broadcast cameras, video mixers, recorders, and other SDI equipment to be easily connected to HDMI monitors, televisions, projectors, and capture solutions. The converter supports video signals up to 1080p60 , automatically detects the incoming video signal, and also features an SDI loop output to simultaneously pass the original SDI signal through to other equipment.

Key features

• Converts SD, HD, and 3G-SDI to HDMI

• Supports video signals up to 1080p60

• Automatic detection of SDI video signals

• SDI loop output for simultaneous throughput

• Supports embedded SDI audio via HDMI

• Compatible with SMPTE 259M, 292M and 424M

• Compact metal design

• Power supply via USB or external DC power supply

• Suitable for studio and mobile applications

Operation

The Mini SDI to HDMI Converter converts a professional SDI video signal to an HDMI signal in real time without noticeable delay. Thanks to automatic format detection, no manual settings are required; the converter automatically recognizes the incoming SD, HD, or 3G SDI signal.

In addition to the HDMI output, the converter features an SDI loop output. This allows the same SDI signal to be simultaneously passed to, for example, a video mixer, recorder, or extra monitor, while an HDMI monitor is connected for monitoring. Embedded SDI audio is automatically carried over to the HDMI output.

Application

The AVMATRIX Mini SDI to HDMI Video Converter is suitable for:

• Broadcast monitoring

• Video directing

• Livestreams

• ENG and EFP productions

• Studio installations

• Presentations

• Videoconferencing

• HDMI monitoring of SDI cameras

• Use with recorders and capture equipment

Due to its compact size and flexible power supply options, the converter is suitable for both fixed installations and mobile production.

Limits

Although the Mini SDI to HDMI Converter is very suitable for Full HD workflows, there are a few points to consider:

• Supports a maximum of 1080p60 ; UHD and 4K signals are not supported.

• Converts only from SDI to HDMI ; HDMI to SDI is not possible.

• No up/down or cross-conversion of video standards takes place; the output signal follows the incoming SDI format.

• No scaler or image processing present.

• No Ethernet, USB video, or streaming functionality.

• No support for HDR or LUT processing.

Specifications

Video

• 1× SD/HD/3G-SDI input (BNC)

• 1× SDI loop output (BNC)

• 1× HDMI Type-A output

• Automatic SDI format detection

• Support up to 1080p60

• Support for 1080PSF

• SDI Level A and Level B compatible

Supported standards

• SMPTE 259M

• SMPTE 292M

• SMPTE 424M

• SD-SDI

• HD-SDI

• 3G-SDI

Video formats

• 1080p up to 60 fps

• 1080i up to 60 fps

• 1080PsF

• 720p

• 625i

• 525i

Audio

• Embedded SDI audio via HDMI

• 48 kHz audio passthrough

Power supply

• USB 5V

• External DC power supply 6–23 V

• Power consumption: approximately 4 W

Dimensions & weight

• 125.5 × 104 × 24.5 mm

• Weight: approximately 485 g
