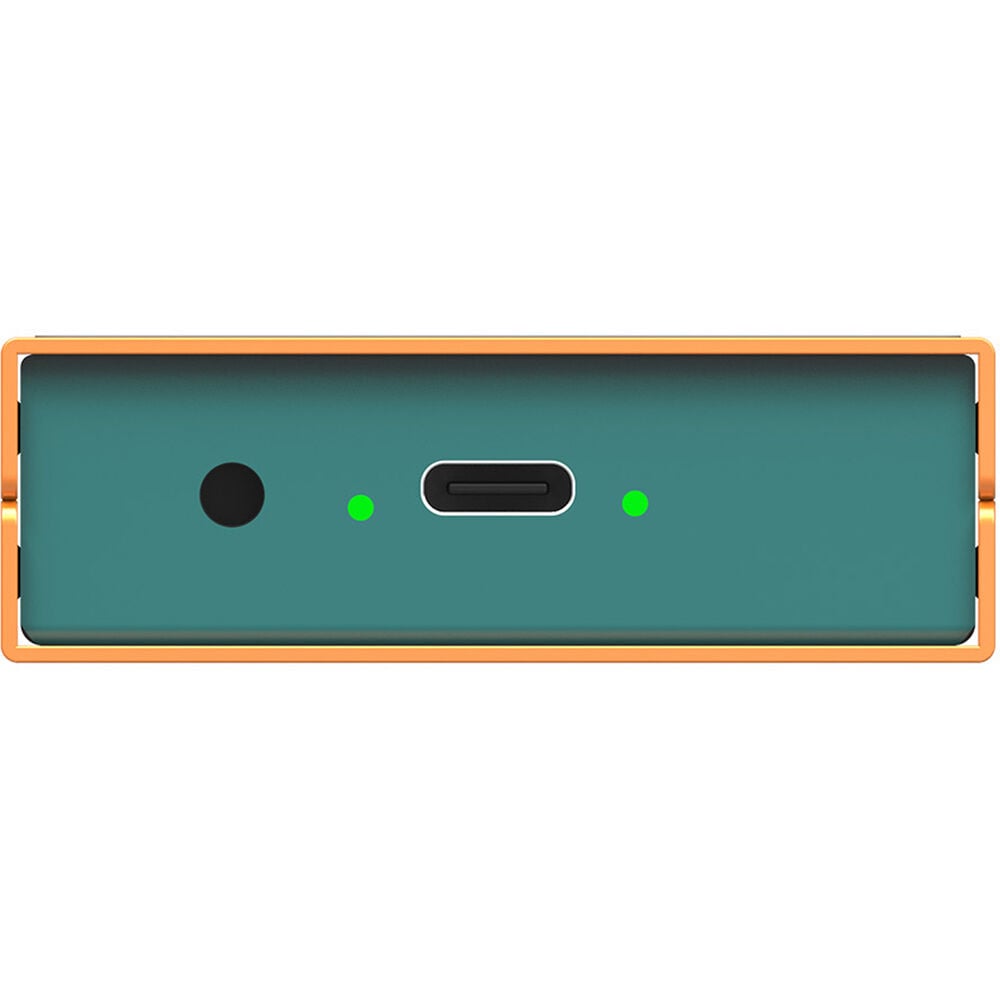

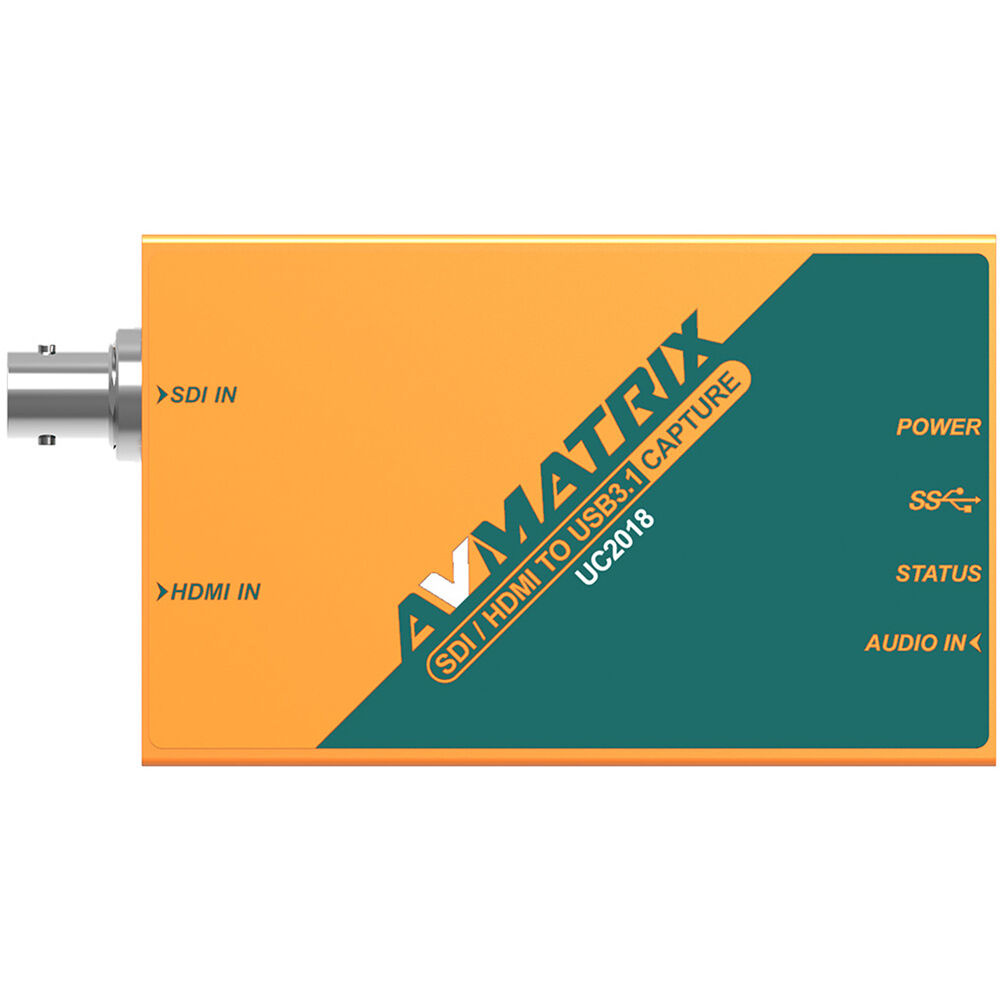

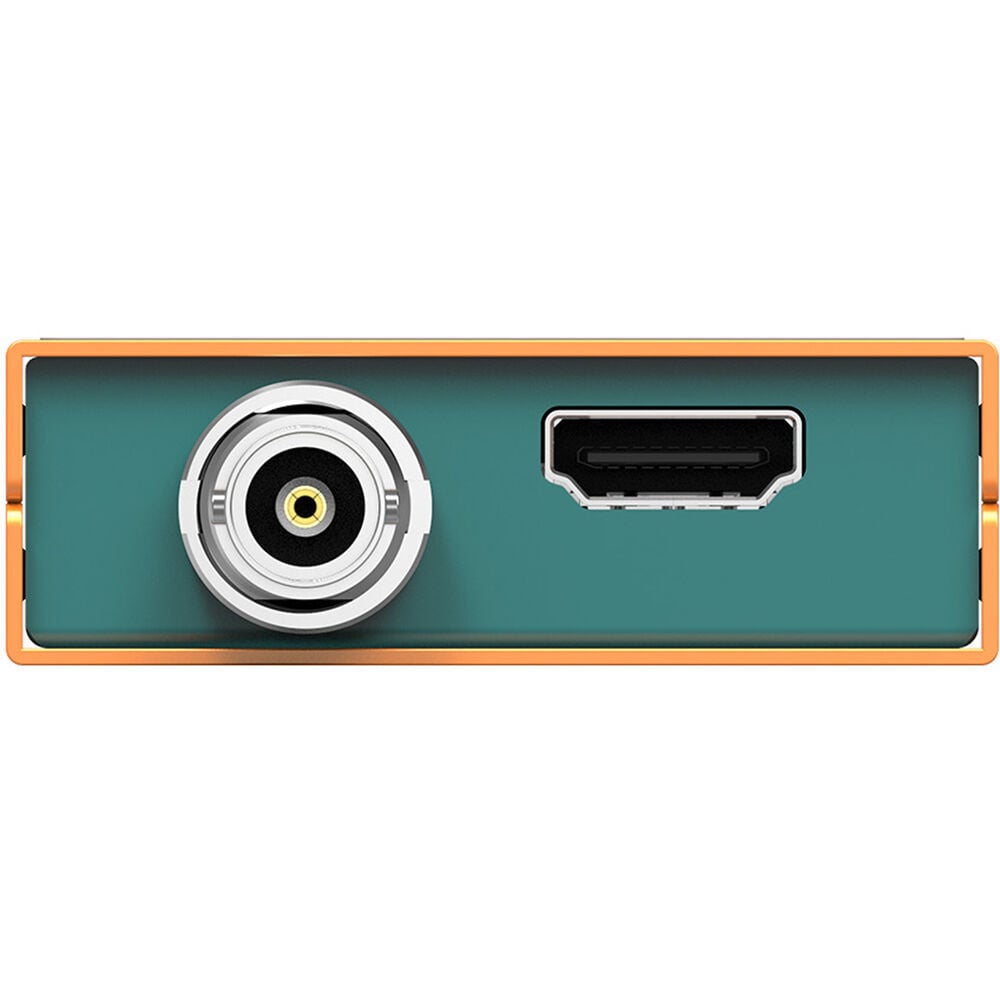

AVMatrix UC2018 SDI/HDMI to USB-C Video Capture

Features

The AVMatrix UC2018 is a compact video capture interface that allows you to easily record or stream HDMI and 3G-SDI video signals via USB 3.0. The capture card supports video sources up to Full HD 1080p60 and is automatically recognized as a UVC device, eliminating the need for driver installation.

Thanks to broad compatibility with Windows, macOS, and Linux, the UC2018 is suitable for livestreaming, video recording, videoconferencing, and professional AV applications.

• HDMI 1.4a and 3G-SDI video inputs

• Supports video up to Full HD 1080p60

• USB 3.0 Type-C connection

• UVC compatible, no drivers required

• Automatic detection of the video signal

• Supports embedded audio via HDMI and SDI

• Additional 3.5mm stereo audio input

• Compatible with Windows, macOS, and Linux

• Suitable for streaming, recording, and video conferencing software

• Compact, bus-powered housing

Operation

The UC2018 receives an HDMI or SDI video signal and converts it in real time into a USB video stream that is immediately recognized by the computer.

Because the interface uses the UVC standard, no separate software or driver installation is required. As a result, the capture card works directly with virtually all popular streaming and recording programs.

The USB connection supplies both power and video and audio data, meaning only one cable is needed for use.

Application

The AVMatrix UC2018 is ideal for:

• Livestreaming

• Video recording

• Webinar and meeting software

• Online training courses

• Podcast productions

• Videoconferencing

• Presentations

• Camera capture for OBS and vMix

• Medical and industrial video solutions

Thanks to its compact dimensions, the UC2018 is easy to take to any production environment.

Key features

Full HD video capture

Supports HDMI and 3G-SDI signals up to 1920 × 1080 at 60 frames per second.

Plug & Play

Works directly via the UVC standard without driver installation on Windows, macOS, and Linux.

HDMI and SDI

Suitable for professional SDI cameras as well as HDMI cameras and other video sources.

Embedded audio

Automatically carries audio via HDMI, SDI, or the separate 3.5 mm stereo line-in.

Broad software compatibility

Works with, among others:

• OBS Studio

• Wirecast

• VLC

• QuickTime

• Adobe Flash Media Live Encoder

• Windows Media Encoder

• PotPlayer

• Various UVC-compatible applications

Compact and bus-powered

Power is supplied entirely via USB, eliminating the need for an external power supply.

Limits

• Maximum video resolution is Full HD 1080p60

• No support for UHD or 4K video

• No HDMI loop output

• Only one video input can be used at a time (HDMI or SDI)

• No hardware video processing or scaling

• No HDR support

• No standalone recording function

• No network functionality or IP streaming

• No built-in encoder for H.264 or H.265
