Dracast X Series LED1000 Daylight LED Light Panel
Dracast X Series LED1000 Daylight LED Light Panel
Key Features
- For Video Production and Vlogging
- Output: 1480 Lux at 3.3' (5600K)
- 5600K CCT
- 17 x 8" Panel; AC/DC Operation
- Dual NP-F Battery Plate
- CRI 96
- Onboard & App Control
- 0-100% Dimming
- Includes Yoke & Diffuser
- Includes Power Supply & Case

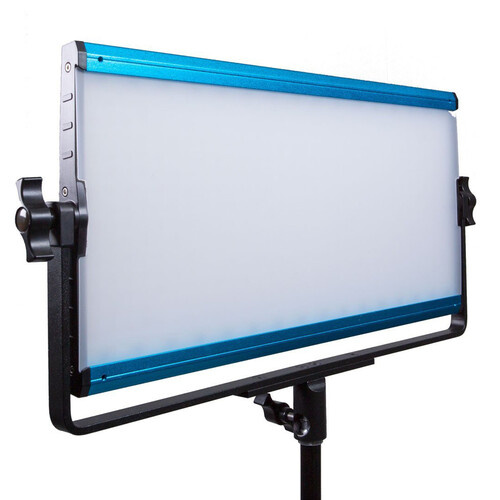

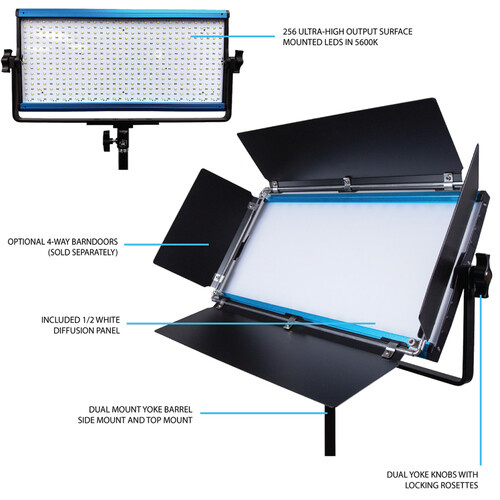

Designed with portability in mind, the X Series LED1000 Daylight LED Light Panel from Dracast features single CCT at 5600K for higher output in a slim, significantly larger fixture compared to the LED500. With a high CRI rating of 96, this 17 x 8" panel offers superior color rendition as well as extended control and power options. A diffusion filter is supplied to produce soft, even lighting for your interviews, live streams, video conferences, and other scenarios in the studio or on location.

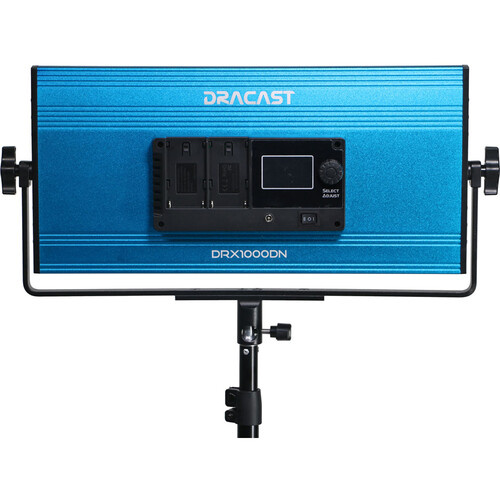

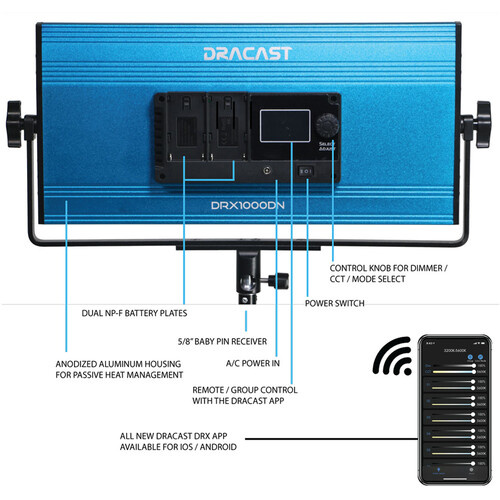

This 70W light can be adjusted manually via the control panel on the back of the fixture or by using the Dracast DRX app available for iOS and Android devices. The panel includes an installed mounting yoke with a 5/8" Baby Pin receiver for fast and easy mounting on compatible light stands or suspension clamps. The X Series 1000 can be used worldwide via the included 100 to 240 VAC adapter but it will also run on two optional NP-F-type batteries in situations where AC power is unavailable. A soft carry case is included for convenient storage and transport of the light.
App Control
The Dracast DRX app helps you achieve the look you need quickly and accurately. Easily control all features of the light from up to 100' away using the app.
- Adjust dimming from 0 to 100% to smoothly increase or decrease your light output
- Control multiple X Series lights simultaneously
- Make adjustments to a single master light and other lights in a group will follow suit
Benefits & Details
- This panel emits up to 1480 lux at 3.3'
- Built-in dual NP-F battery plate for maximum portability
- Durable aluminum housing
- Compatible with separately available barndoors, softboxes, and other accessories

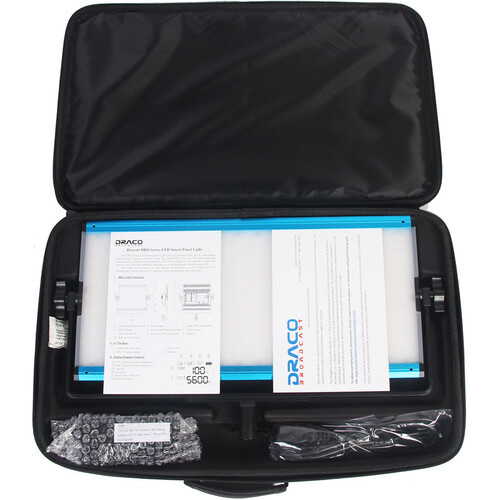

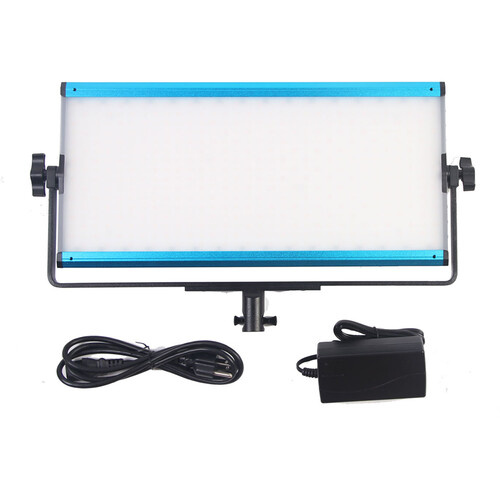

What's in the Box
- Dracast LED1000 X-Series Panel
- Diffusor Filter

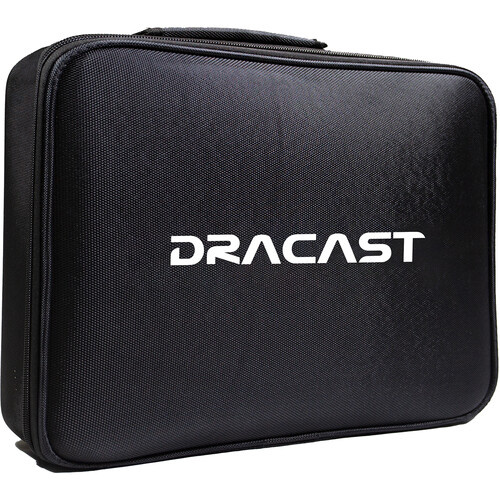

- Nylon Soft Case
- Power Adapter
- Power Cord
- 1 Year Guarantee
Item Type | 1x LED Light Panel |
Included Storage Case | Yes |
Photometrics | 5600K: |
Color Temperature | 5600K |
Color Modes | Daylight |
Color Accuracy Standard | CRI 96 |
Dimming | Built-In Dimmer |
Front Accessory Mount | Proprietary |
Power Source | AC to DC Adapter (Included) |
Battery Plate Type | 2x Sony L-Series / NP-F (Built-In) |
Battery | 2x Rechargeable (Not Included) |
Input Power | 12 VDC |
Power Consumption | 70 W |
Fixture Mounting | 1x 5/8" Receiver (Via Yoke Mount) |
Light Fixture
Item Type | 1x LED Light Panel |
Included Filters | Diffusion |
Included Storage Case | Yes |
Photometrics | 5600K: |
Color Temperature | 5600K |
Color Modes | Daylight |
Color Accuracy Standard | CRI 96 |
Dimming | Built-In Dimmer |
Cooling System | Passive |
Beam Angle | 100° |
Built-In Flash | No |
Umbrella Mount | No |
Front Accessory Mount | Proprietary |
Connectivity
Mobile App Compatible | Yes: Android & iOS |
Wireless Range | 100' / 30.5 m |
Power & I/O
Power Source | AC to DC Adapter (Included) |
Inputs/Outputs | 1x Barrel / Coax Power Input |
Battery Plate Type | 2x Sony L-Series / NP-F (Built-In) |
Battery | 2x Rechargeable (Not Included) |
Input Power | 12 VDC |
Included Adapter / Cable | 1x USA Type-A/B to Barrel / Coax AC to DC Adapter |
Inline Switch | No |
Power Pass-Thru | No |
Power Consumption | 70 W |
Mounting
Yoke Type | Manually-Operated Yoke |
Fixture Mounting | 1x 5/8" Receiver (Via Yoke Mount) |
General
Display | Yes |
Environmental Resistance | No |
Materials | Aluminum |

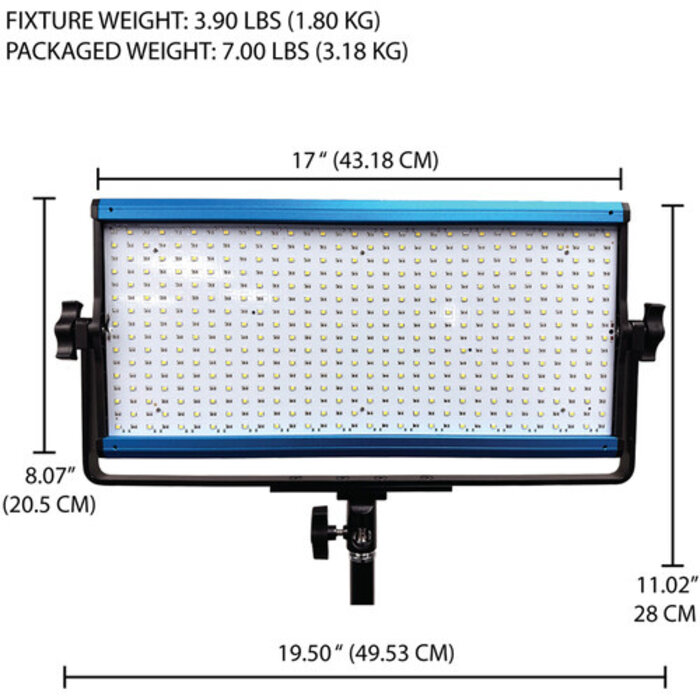

Dimensions | 17 x 8.07 x 2.05" / 43.2 x 20.5 x 5.21 cm (Fixture) |
Weight | 3.7 lb / 1.7 kg |
Packaging Info
Package Weight | 6.995 lb |
Box Dimensions (LxWxH) | 21 x 13.7 x 3.7" |
