Tilta Nucleus-M II Ultimate Kit
The Tilta Nucleus-M II Wireless Lens Control Ultimate Kit offers advanced, four-channel lens control for cine-style photographers. Compatible with first-generation Nucleus-M components, this upgraded version features more reliable transmission, greater precision, a 2.4” display, updated algorithms, and L-series battery power.
Ultimate kit

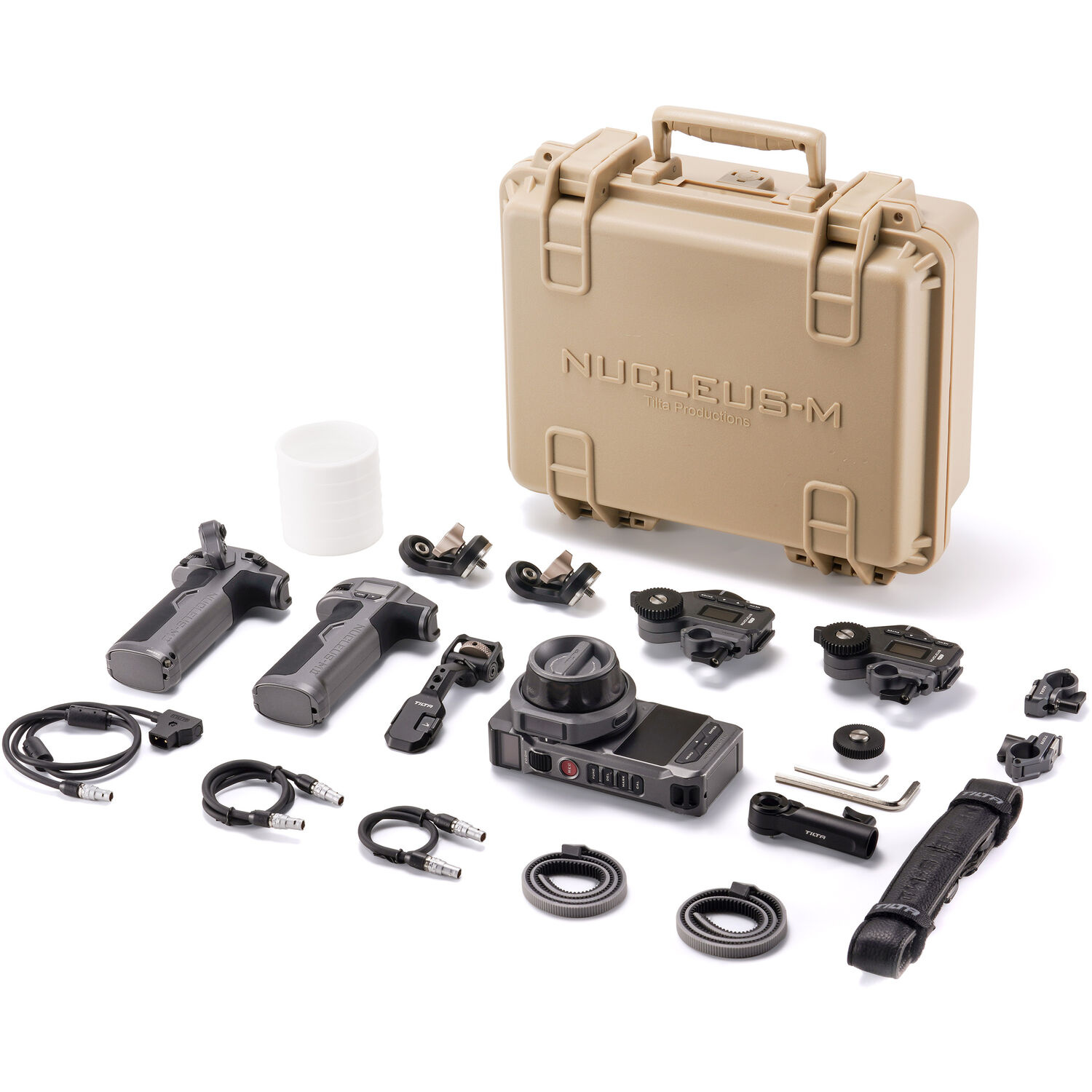

This Nucleus-M II Ultimate kit includes a FIZ handwheel controller, lanyard, ARRI rosette adapter, one 0.5 and two 0.8 MOD gears, one electronic focus and five standard focus disks, two motors, right and left handgrips, 15 and 19mm rod mounts, baby pin and handpiece monitor mounts, 7-pin and D-Tap cables, and a waterproof hard case to protect the system during transport and storage.
Core Upgrades
Trusted ecosystem
This new system is seamlessly integrated with the first generation Nucleus-M, making it instantly recognizable to existing Nucleus-M users. It retains the damping adjustment and menu shortcuts of the original version.

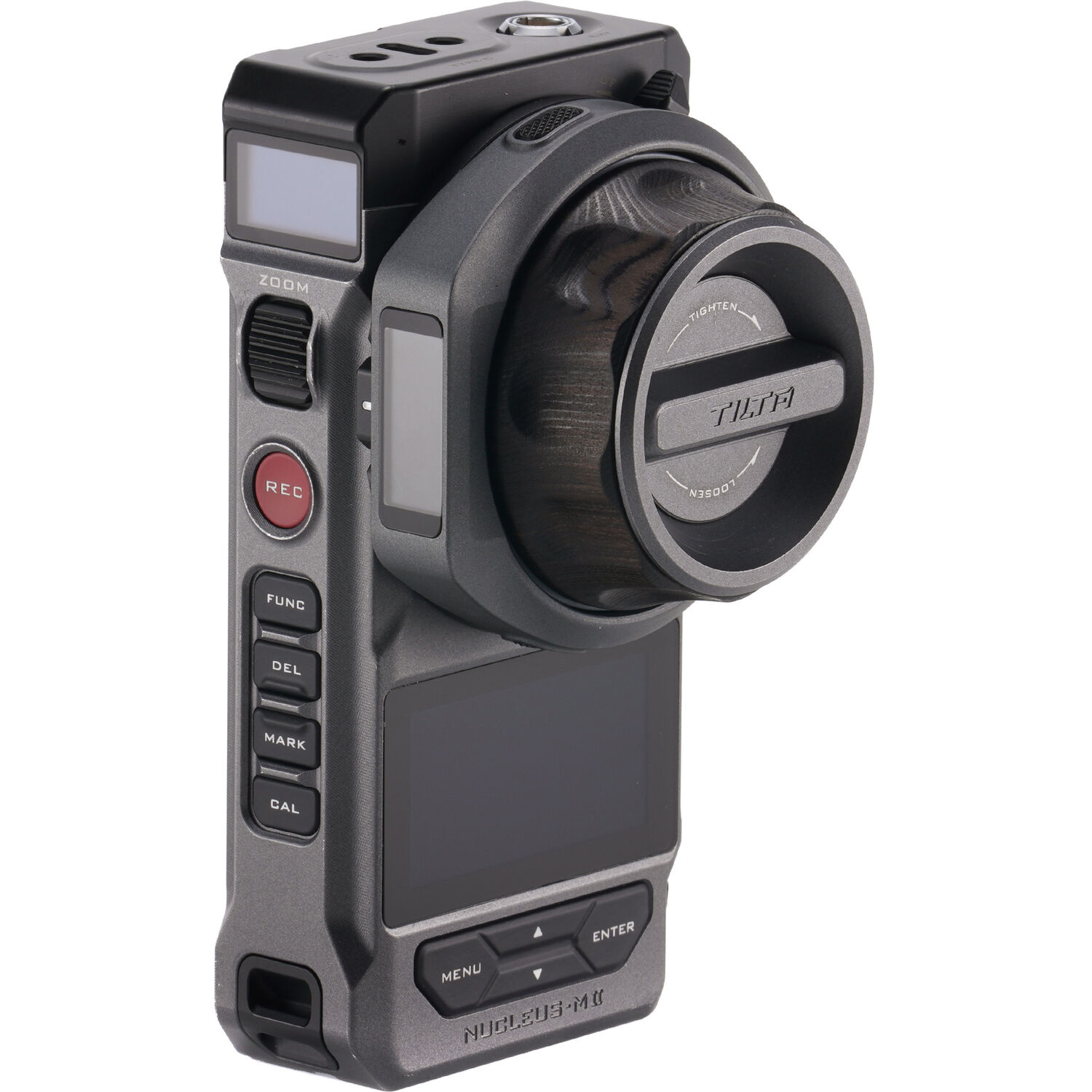

Handwheel
The handwheel unit now features adjustable tension, built-in lens mapping, and clear focus, iris, and zoom information displayed in up to four different locations.
Four control options are now the wheel and a rocker switch, slider and rotary knob
Control settings such as white balance, ISO, and shutter speed for certain cameras.
Electronic marking ring
The Nucleus-M II features a new electronic marker ring that allows for accurate focusing even in low light. This detachable ring can be removed to allow use of a standard marker ring.
Larger 2.4” touchscreen display
Use the new 2.4” color touchscreen for quick access to controls such as focus, aperture, ISO and more.

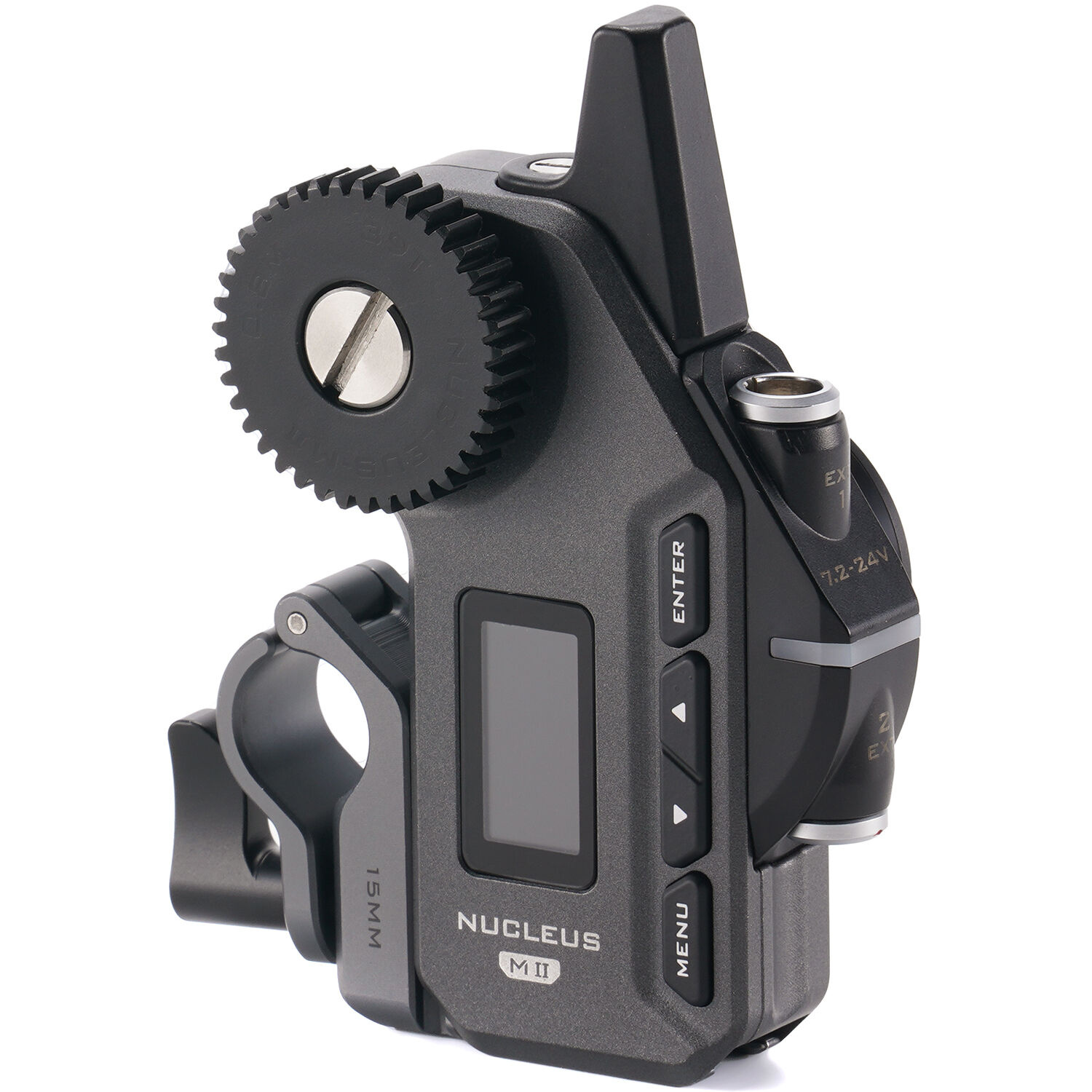

Redesigned lens motors
The redesigned lens motors now offer a streamlined user interface, high torque, color-coded LED indicators, and a compact form factor ideal for gimbal, handheld, and drone use.
Updated algorithms
The Nucleus-M II's new PID 2.0 (Proportional Integral Derivative) algorithm now provides a fast response time of 0.02 seconds with smooth, stutter- and lag-free adjustments.
In combination with the handwheel you can now control up to four channels.
It pairs effortlessly with stabilizers like the DJI RS 2, saving you time on setup.
The modular design allows you to quickly replace gears.
This kit includes both 15 and 19mm single-rod mounts.
Professional design

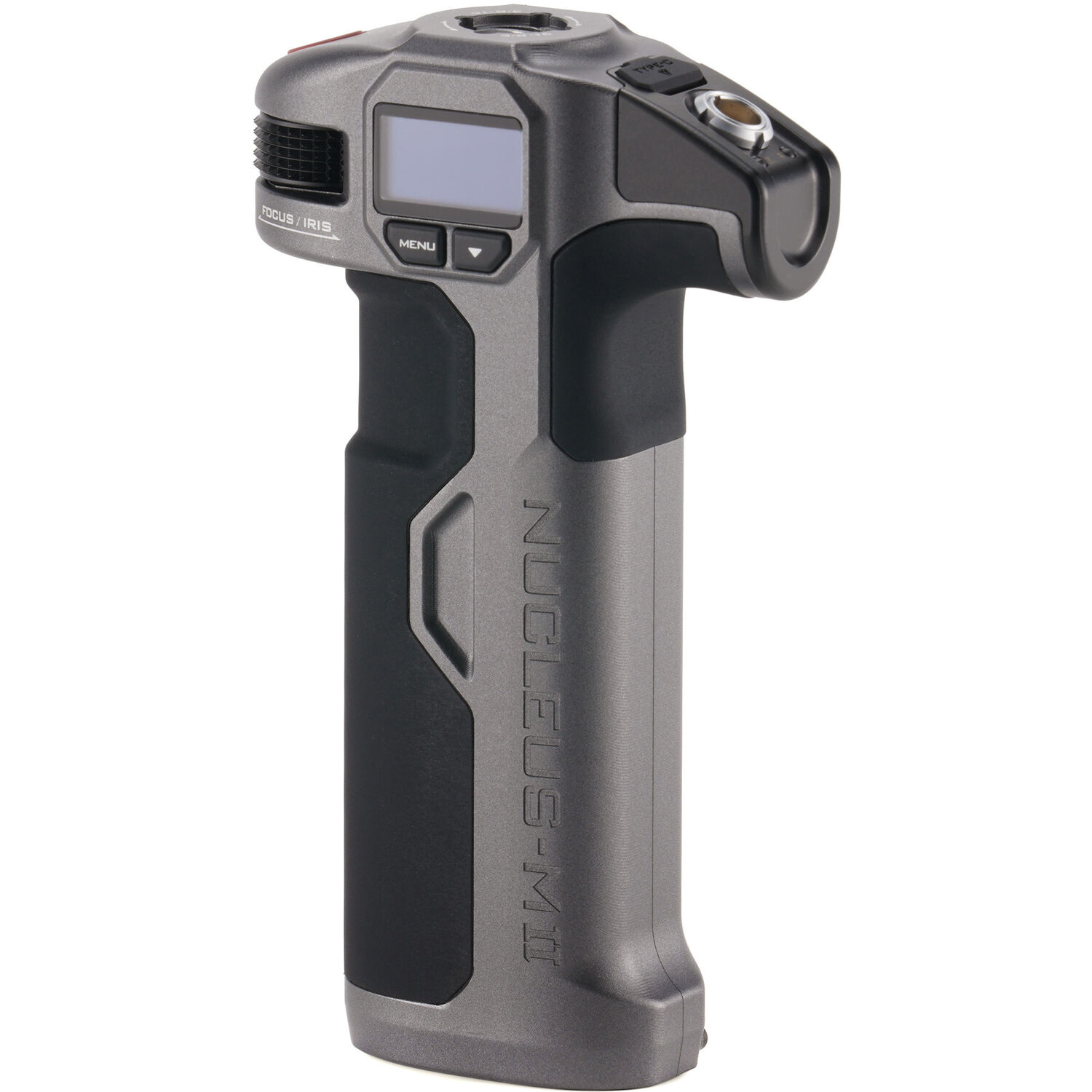

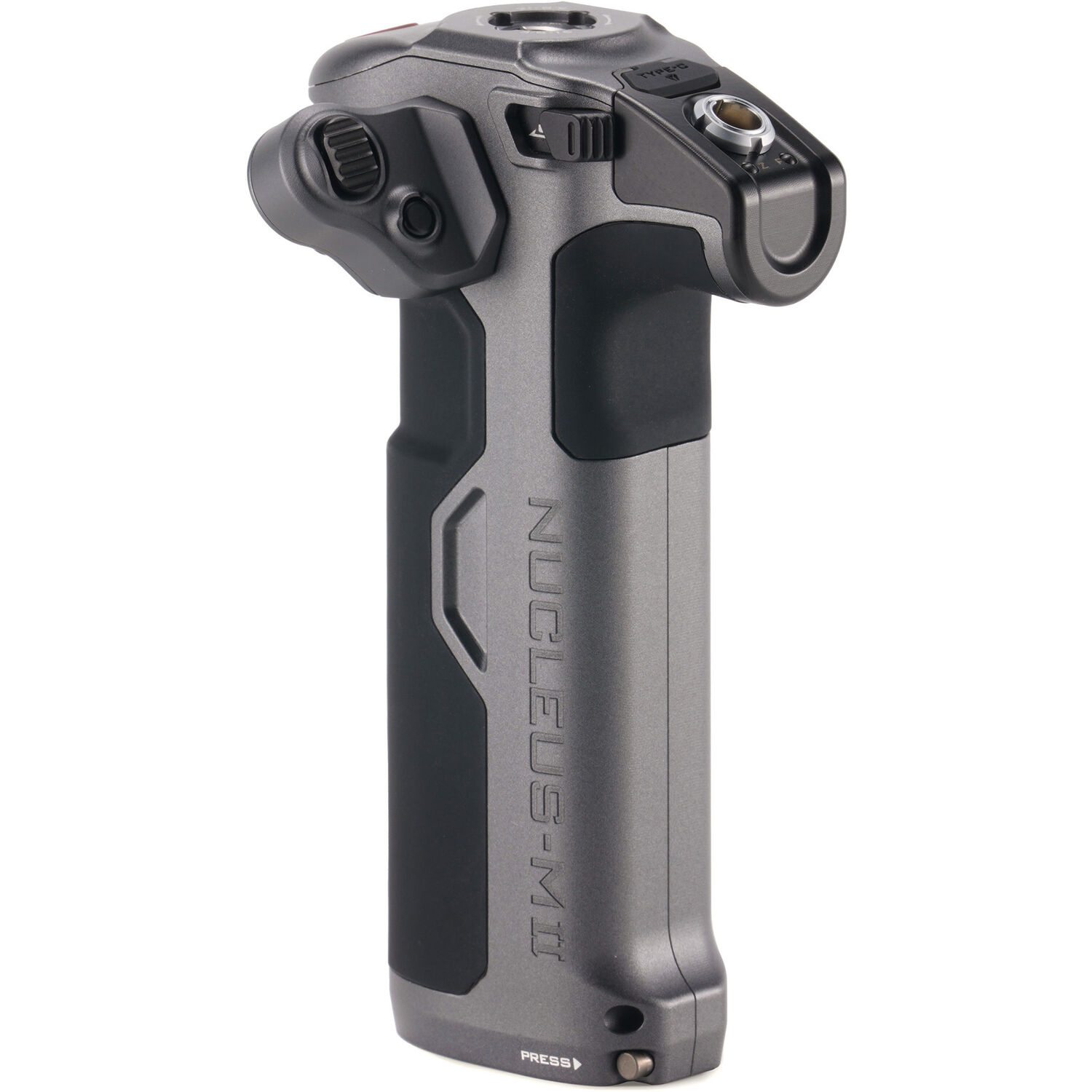

Ergonomic handles
You can configure the ergonomic handles for maximum comfort and easily switch between primary and secondary controls.
Set the Nucleus-M II up as a top grip, in handheld mode, or in a stabilizer configuration.
Four channel control
In addition to focus, iris and zoom, the Nucleus-M II also offers a fourth channel used for custom filters such as Tilta's Variable ND for the Mirage Pro Matte Box.
The ND control lets you adjust exposure in real time from a distance, a useful feature for capturing gimbal, stabilizer, handheld, or complex dolly shots.
Sony L-series batteries
The handwheel unit runs on commonly available Sony L-series batteries that you may already have in your kit, for long life.
Presets
The Nucleus-M II handwheel controller can store up to 128 presets, allowing you to quickly recall settings at the touch of a button.
Power failure protection
Power failure protection ensures that your MARK point and RANK memory setting are retained even after a power failure.
Improved controls
Multi-Point Collaboration
The Nucleus-M II supports multi-control adjustments for both camera and lens motor settings, allowing lone workers or teams to adjust any FIZ parameter.
Extensive compatibility
Configuration options
The removable handwheel allows you to easily set the Nucleus-M II in a left-handed configuration.
Use the included baby pin and monitor brackets to mount your system to a C-stand, camera cart, or handheld rig.
More robust channels provide a stronger, more stable signal for precise focusing.
Works with a wide range of systems
This system works with both Tilta and DJI ecosystems for seamless compatibility with handhelds.
Compatible with Tilta:
First generation Nucleus M lens control motors.
Nucleus Nano lens control motors.
DJI Compatibility:
Thanks to the built-in DJI RS protocol, you can control DJI lens motors directly via a DJI RS stabilizer.
Additional features
The Nucleus-M II system allows you to dim the lens motor LEDs so you won't be distracted on a set with lower light levels.
Transport your Ultimate Kit with the soft carrying case or the durable, waterproof hard case.
Nucleus-M II Motor *2
Nucleus-M II 0.5 Mod Motor Gear *1
Nucleus-M II 0.8 Mod Motor Gear *2
Nucleus-M II Motor Rod Mount (15mm) *2
Nucleus-M II Motor Rod Mount (19mm) *2
Nucleus-M II 7-Pin to 7-Pin Connection Cable (30cm) *1
Nucleus-M II 7-Pin to 7-Pin Connection Cable (50cm) *1
Nucleus-M II P-Tap to 7-Pin Power Cable (70cm) *1
Nucleus-M II Hand Grip (Left) *1
Nucleus-M II Hand Grip (Right) *1
Nucleus-M II Zoom Module for Hand Grip *1
Nucleus-M II Hand Grip to Arri Standard Rosette Adapter *2
Nucleus-M II FIZ Hand Unit *1
Nucleus-M II Electronic Focus Marking Disk *1
Nucleus-M II Follow Focus Marking Disk *5
Nucleus-M II Monitor Mounting Bracket for FIZ Hand Unit *1
Nucleus-M II Baby Pin Adapter for Monitor Mounting Bracket *1
Nucleus-M II FIZ Hand Unit Lanyard *1
Nucleus-M II Hard Shell Waterproof Safety Case *1
System
Number of Channels | 4 |
Receiver / Motor
Bluetooth | Yes |
Included Drive Gear | 0.5 / 0.8 MOD |
Rod Standard | Motor: 15mm Single Rod |
Included Motors | 2 |
Engine Model | Nucleus-M II |
Maximum Peak Torque | Not Specified by Manufacturer |
IO | 1 x LEMO 7-Pin Input |
Battery Type | No |
Transmitter / Controller
Camera Trigger | Yes |
Battery Type | L-Series |
