Summer Cable SC Vector Plus (PUR)

Features

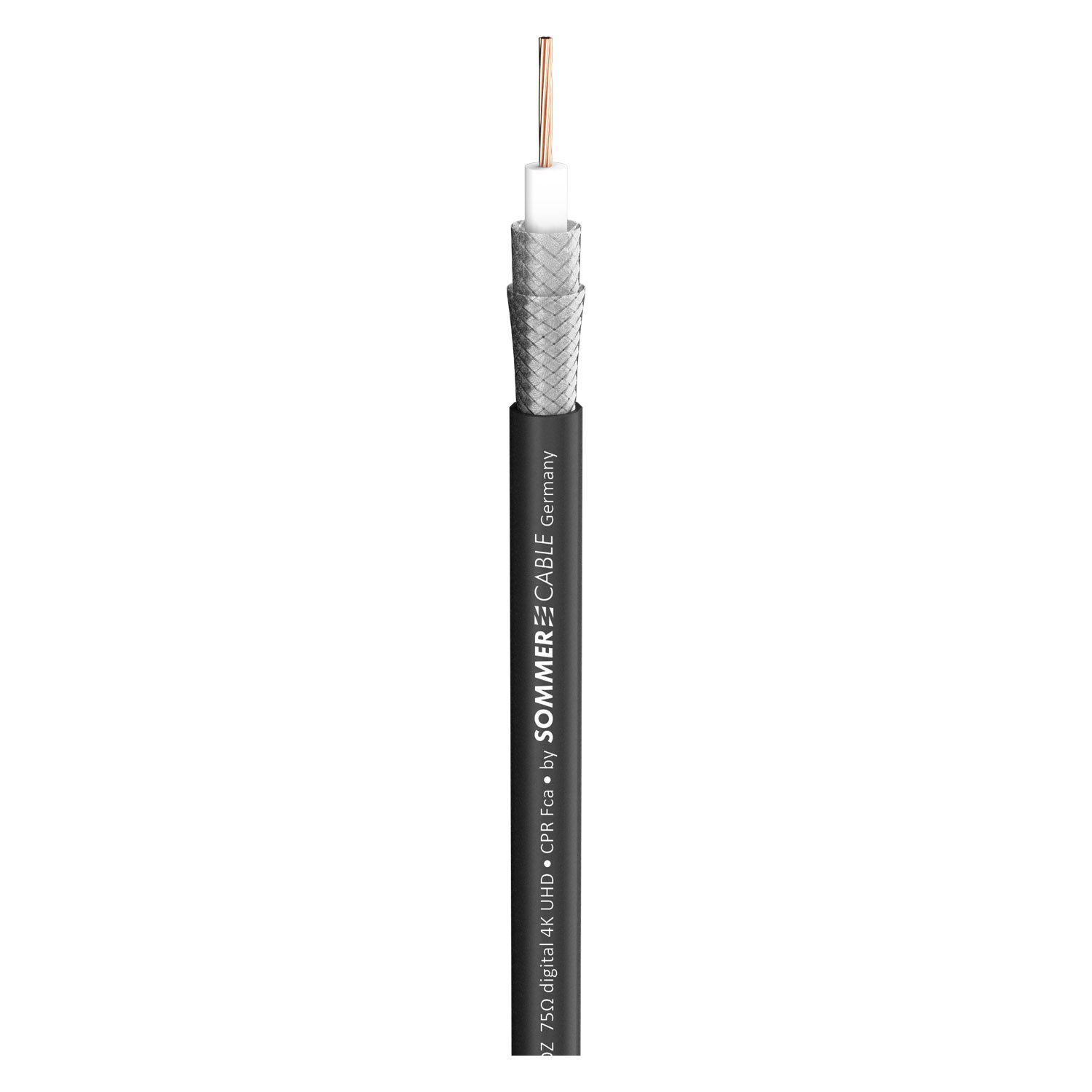

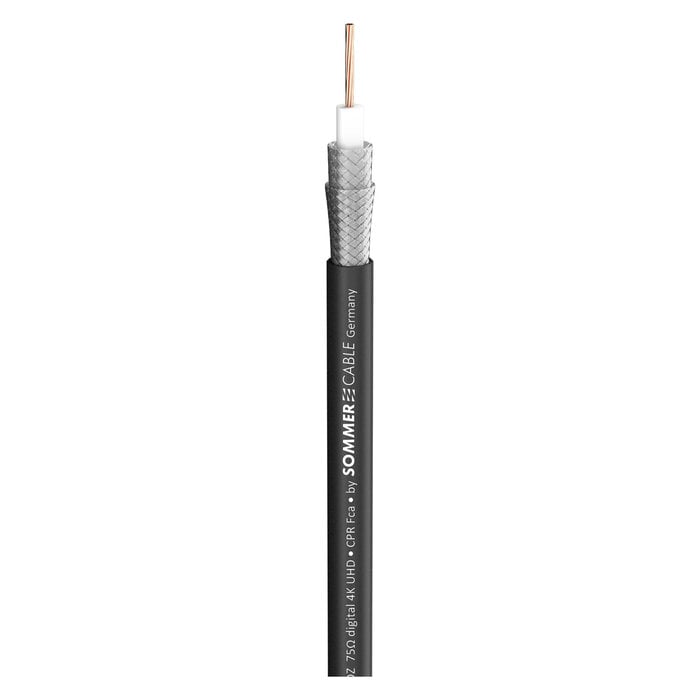

The Sommer Cable SC Vector Plus 0.8L 3.7 is a high-quality 75 Ω SDI video cable with a robust PUR (polyurethane) jacket and a diameter of 6.10 mm , designed for professional video and broadcast applications. The cable combines a 1x0.80 mmbraidedinner conductor with strong multi-shielding for low attenuation and reliable signal transmission, even during intensive use in field and installation scenarios.

Key features:

• Inner conductor: 1 × 0.80 mm

• Impedance: 75 Ω

• Outer sheath: PUR (very flexible, wear-resistant)

• Diameter: 6.10 mm

• Enhanced shielding for minimal interference

• Professional SDI quality for 3G/6G/12G signaling

Operation

The cable is designed for the transmission of digital video signals with a characteristic impedance of 75 Ω , making it suitable for various SDI standards. The inner conductor and high-quality shielding minimize signal loss, reflections, and interference, ensuring stable transmission of HD and 4K video over longer distances.

Thanks to its PUR sheathing, the cable offers greater mechanical flexibility and abrasion resistance than standard PVC cables. This makes it suitable for mobile use, demanding installations, and environments where cables are frequently moved or subjected to stress.

Application

This cable can be used for:

• SDI video connections in broadcast and studio equipment

• Live production and event installations

• Field productions with frequent cable use

• HD and UHD video applications (3G, 6G, 12G-SDI)

• Camera-to-recorders, switchers, or distribution points

• Installation projects in AV networks

The combination of low attenuation and flexible PUR sheathing makes the cable suitable for indoor and outdoor use on location.

Limits

• Video signal only; no power or data transmission

• Length-dependent signal quality (protocol specifications follow SMPTE guidelines)

• PUR coating is more durable but can feel stiffer at low temperatures
