ROLAND - VC-1-SH SDI to HDMI Video Converter

Brand: Roland
  • Supplier stock, 1 - 3 business days
€454,00 (€375,21 Excl. tax)
CONVERSION OF VIDEO AND AUDIO SIGNALS FROM SDI INPUT TO HDMI OUTPUT...More information
+31 (0) 6 4436 1093
Great deals
Professional advice
Tailored Services
Product information

CONVERSION OF VIDEO AND AUDIO SIGNALS FROM SDI INPUT TO HDMI OUTPUT



Roland's new video converters address the demand for high-quality, lossless video and audio converters for live/post production as well as installed systems. They include the Roland VC-1-HS (HDMI to SDI), VC-1-SH (SDI to HDMI), VC-1-DL (Bi-directional SDI/HDMI with audio/video delay and frame sync) and VC-1-SC (Up/Down/Cross Scan converterto/from SDI/HDMI).



  • SDI to HDMI Conversion
  • Lossless Image Conversion
  • 3G (Level A&B) /HD/ SD SDI
  • HDCP Support
  • VC-1 RCS, PC/MAC Control Application
  • Selectable Channel for Embedded/De-Embedded Audio



The VC-1 Video Converter series



The VC-1 Video Converter series provides uncompromising picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1 series also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources.



The VC-1 series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL additionally enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow.

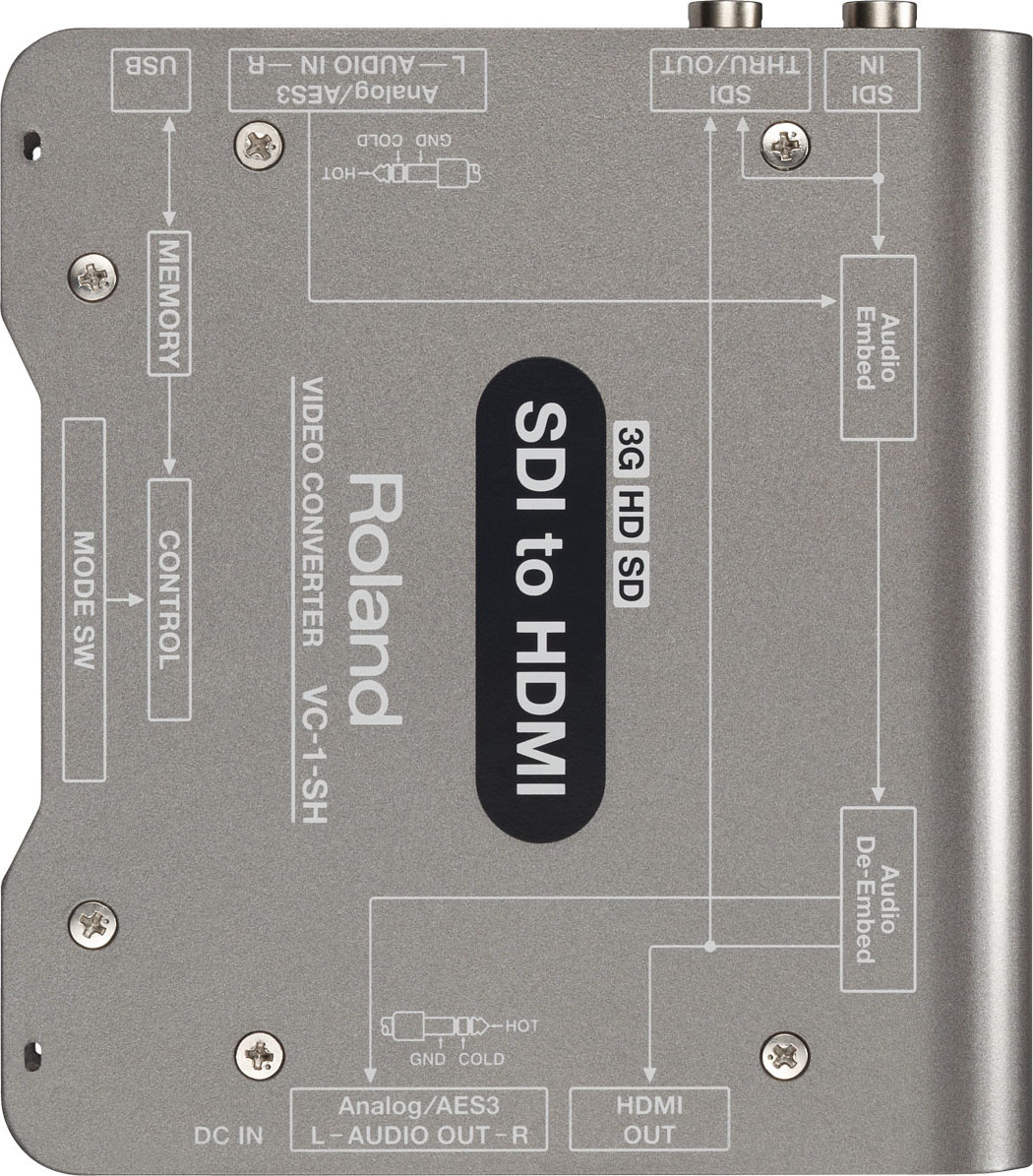

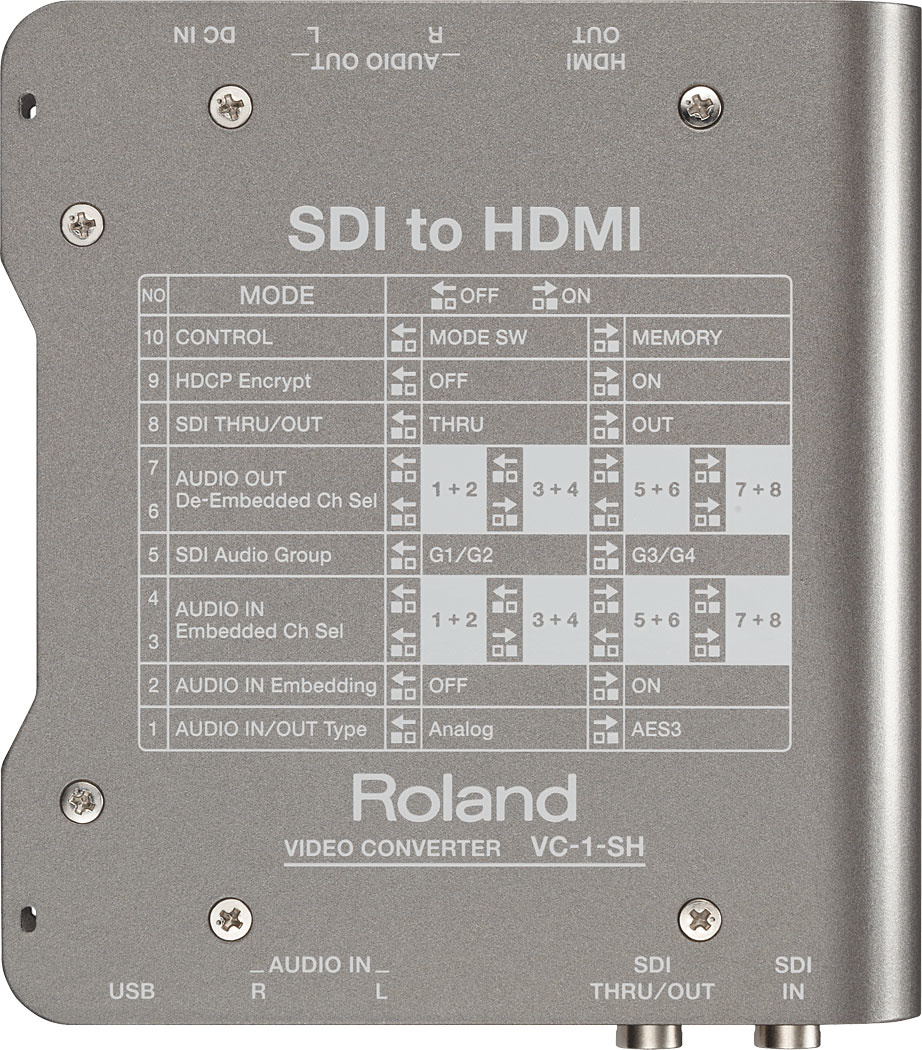

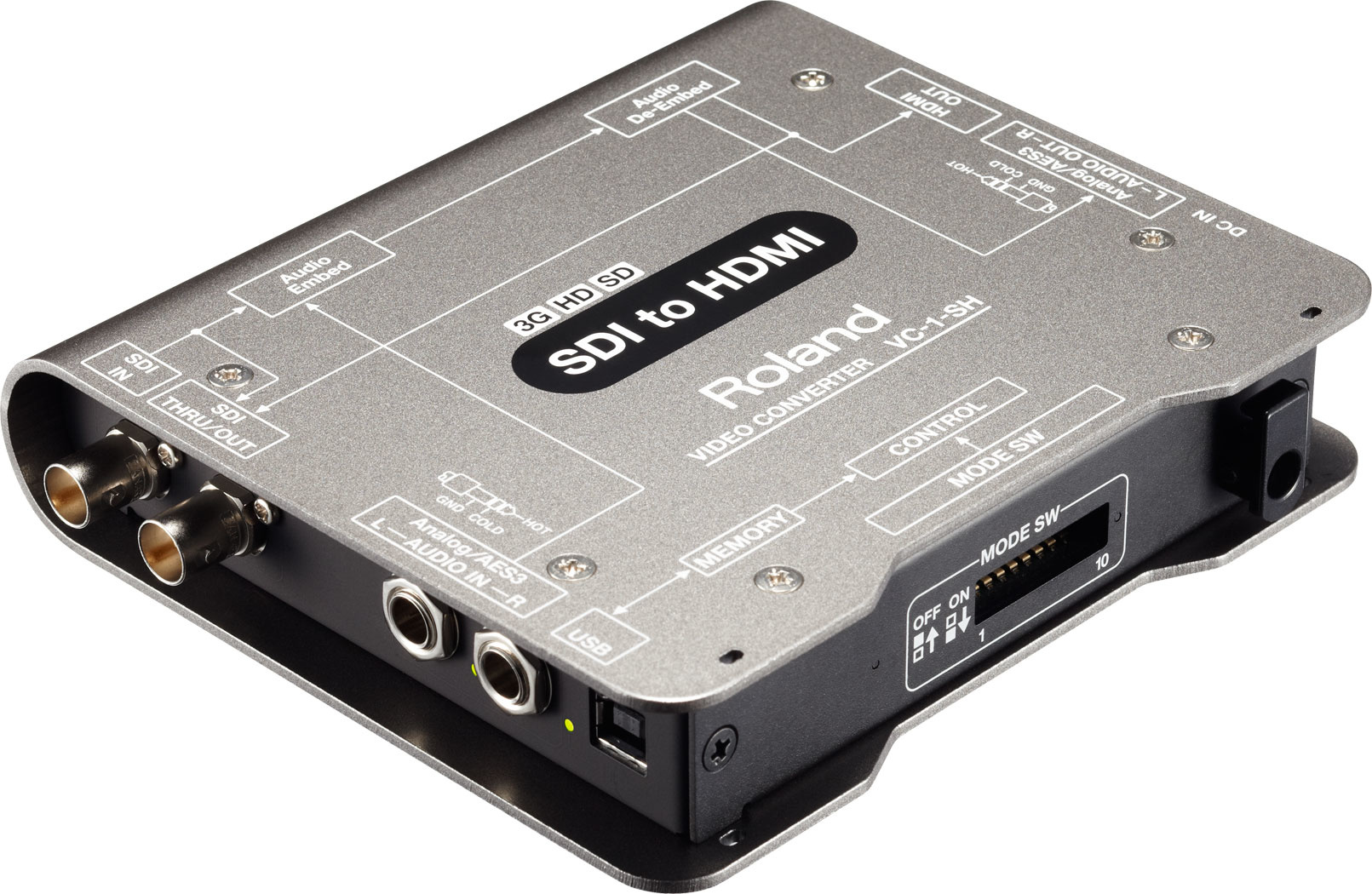

Roland VC-1-SH

The cost of SDI monitoring sometimes can be prohibitive for certain applications.  The VC-1-SH converter allows you to convert an SDI signal to HDMI, providing a more cost effective monitoring solution. This converter is also complimentary to the Roland V-40HD multi-format video mixer when you want to use an SDI camera as an input to the mixer.



Technische specificaties



    SPECIFICATIONS

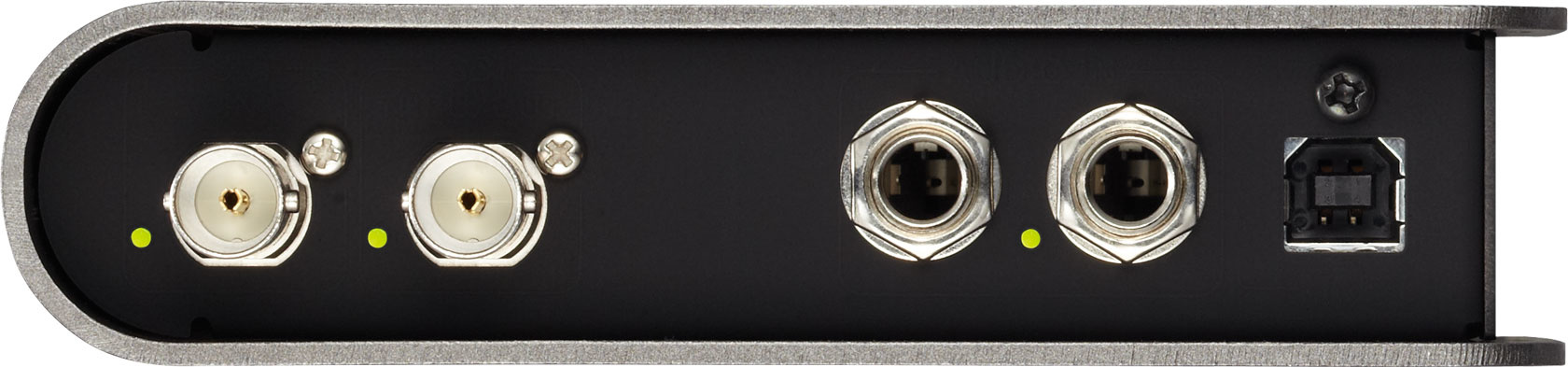

    INPUT

    SDI Connector

    BNC type x 1

    Analog Audio Connector

    1/4" TRS phone type ( balanced ) x 1 pair (L/R)

    Digital Audio Connector

    1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector )



    PROCESSING

    Audio embedding Audio de-embedding

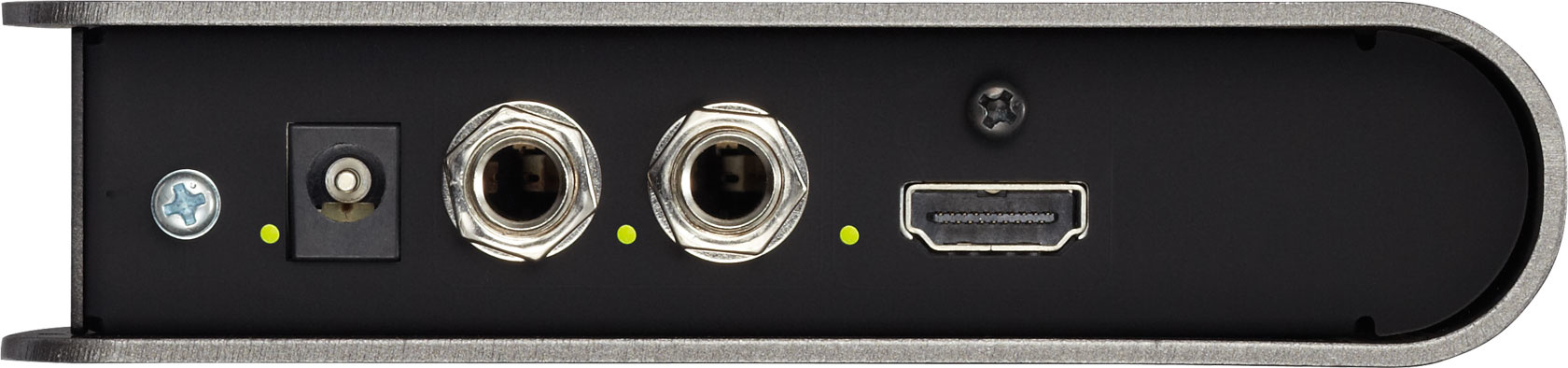

    OUTPUT

    SDI Connector

    BNC type x 1 ( Thru/Out )

    HDMI Connector

    Type A (19 pins ) x 1

    Analog Audio Connector

    1/4" TRS phone type ( balanced) x 1 pair (L/R)

    Digital Audio Connector

    1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector )



    INPUT / OUTPUT FORMAT

    SDI Input Signal Standards

    SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C

    SDI Input Video Format

    1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M ), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )

    Audio Format

    Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)

    HDMI Input Video Format

    1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)

    HDMI Input Audio Format

    Linear PCM, 24 bit, 48 kHz, 8 ch

    SDI Output Signal Standards

    SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C

    SDI Output Video Format

    1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )

    SDI Output Audio Format

    Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)

    HDMI Output Video Format

    1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)

    HDMI Output Audio Format

    Linear PCM, 24 bit, 48 kHz, 8 ch



    AUDIO INPUT / OUTPUT

    Analog Audio Input Level

    +4dBu

    Analog Audio Maximum Input Level

    +24dBu

    Analog Audio Input Impedance

    110 ohms

    Analog Audio Output Level

    +4dBu

    Analog Audio Output Impedance

    600 ohms

    Digital Audio Output Signal Format

    AES3, 16/24 bits, 32/48 kHz, 2 ch

    Digital Audio Output Impedance

    110 ohms

    OTHERS

    USB Connector

    USB Type B (Hi-Speed USB) x 1

    Power Supply

    DC 9V

    Power Consumption

    8W

    Operation Temperature

    +0 to + 40 degrees Celsius

    Accessories

    AC adaptor, Power Cord, Rubber Foot x 4, Owner's Manual



    SIZE AND WEIGHT

    Width

    150 mm
    5-15/16 inches

    Depth

    130 mm
    5-1/8 inches

    Height

    30 mm
    1-3/16 inches

    Weight

    500 g
    1 lbs. 2 oz.
