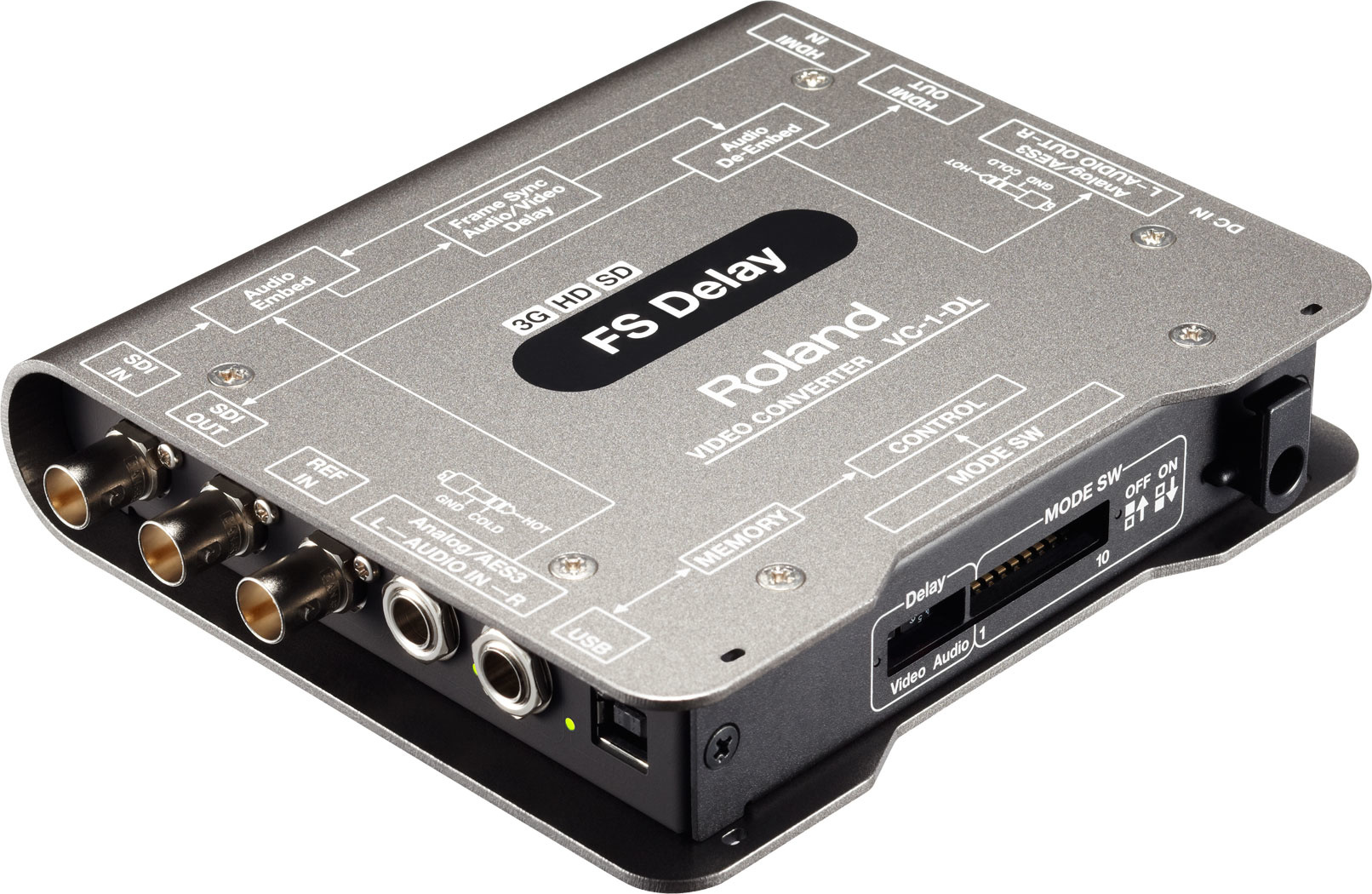

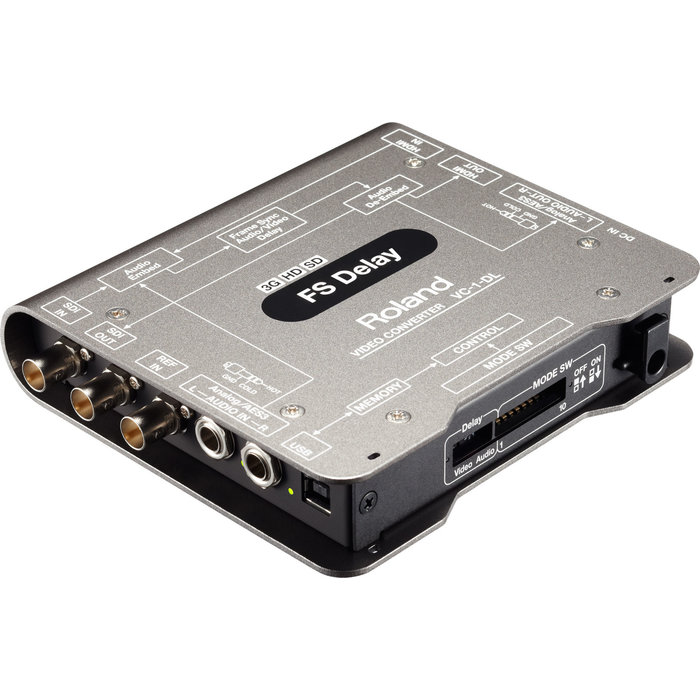

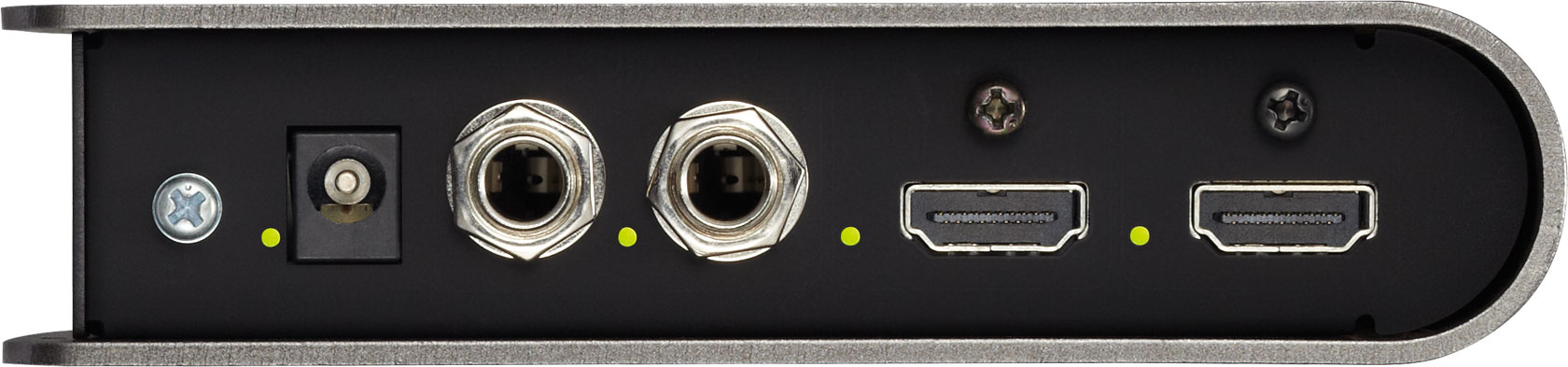

VC-1-DL - Video Converter



BI-DIRECTIONAL SDI/HDMI WITH DELAY AND FRAME SYNC



Roland's new video converters address the demand for high-quality, lossless video and audio converters for live/post production as well as installed systems.



FEATURES



  • HDMI to SDI Conversion
  • SDI to HDMI Conversion
  • Lossless Image Conversion
  • 3G (Level A&B) /HD/ SD SDI
  • HDCP Support
  • Built-in Frame Synchronizer

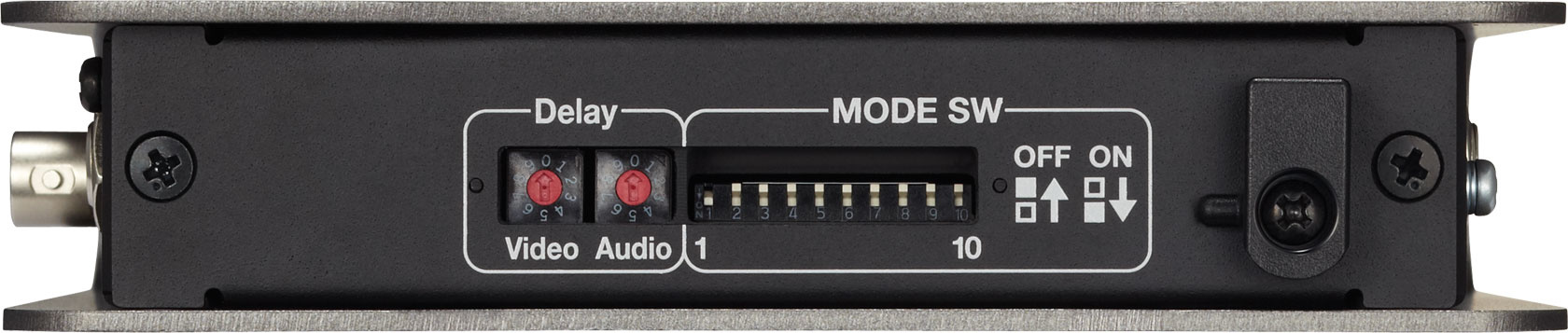

  • Audio Delay - up to 9 fields (4.5 frames)
  • Video Delay - up to 9 fields (4.5 frames)
  • VC-1 RCS, PC/MAC Control Application
  • Selectable Channel for Embedded/De-Embedded Audio



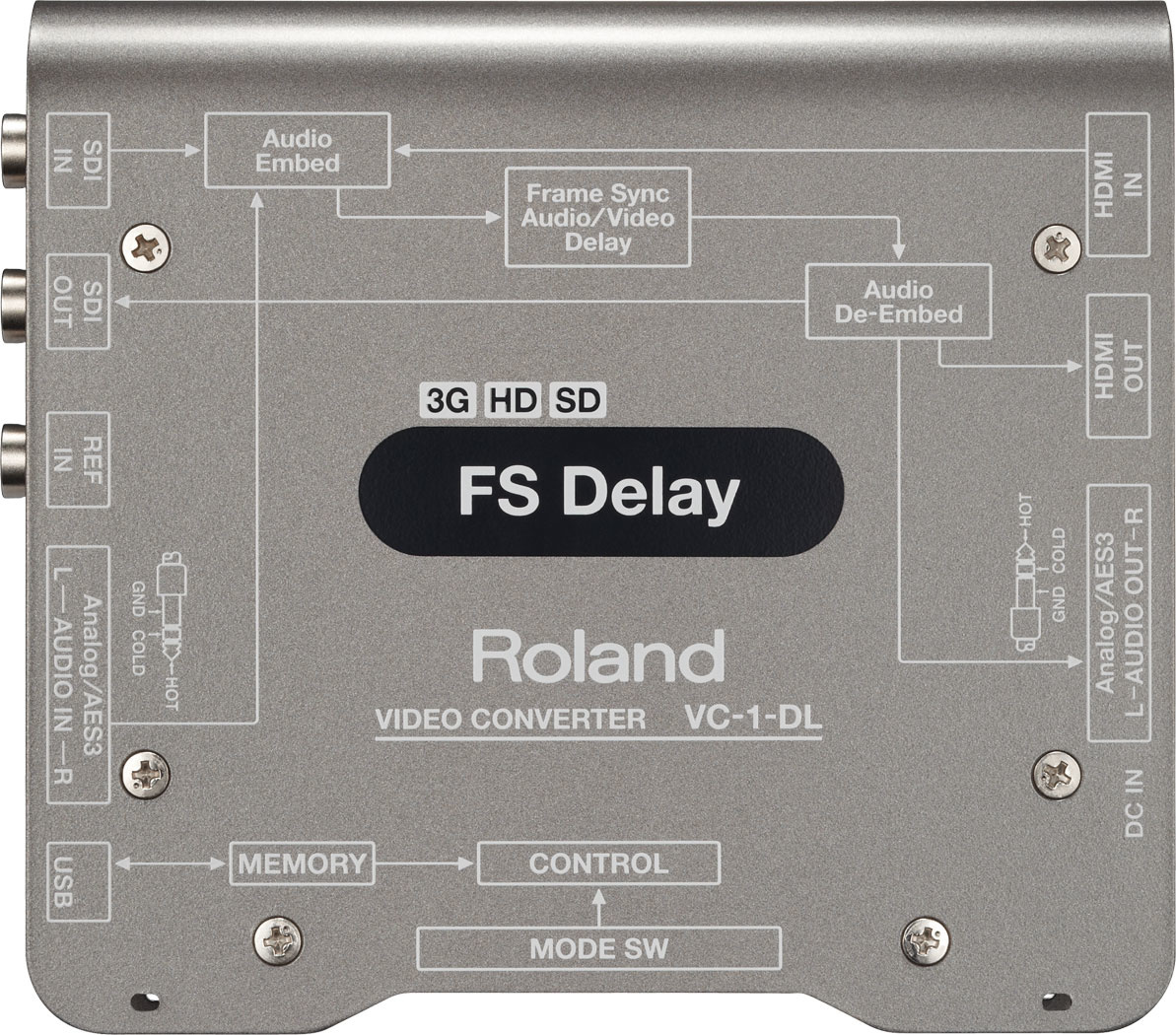

The VC-1 Video Converter series



The VC-1 Video Converter series provides uncompromising picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1 series also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources.



The VC-1 series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL additionally enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow.

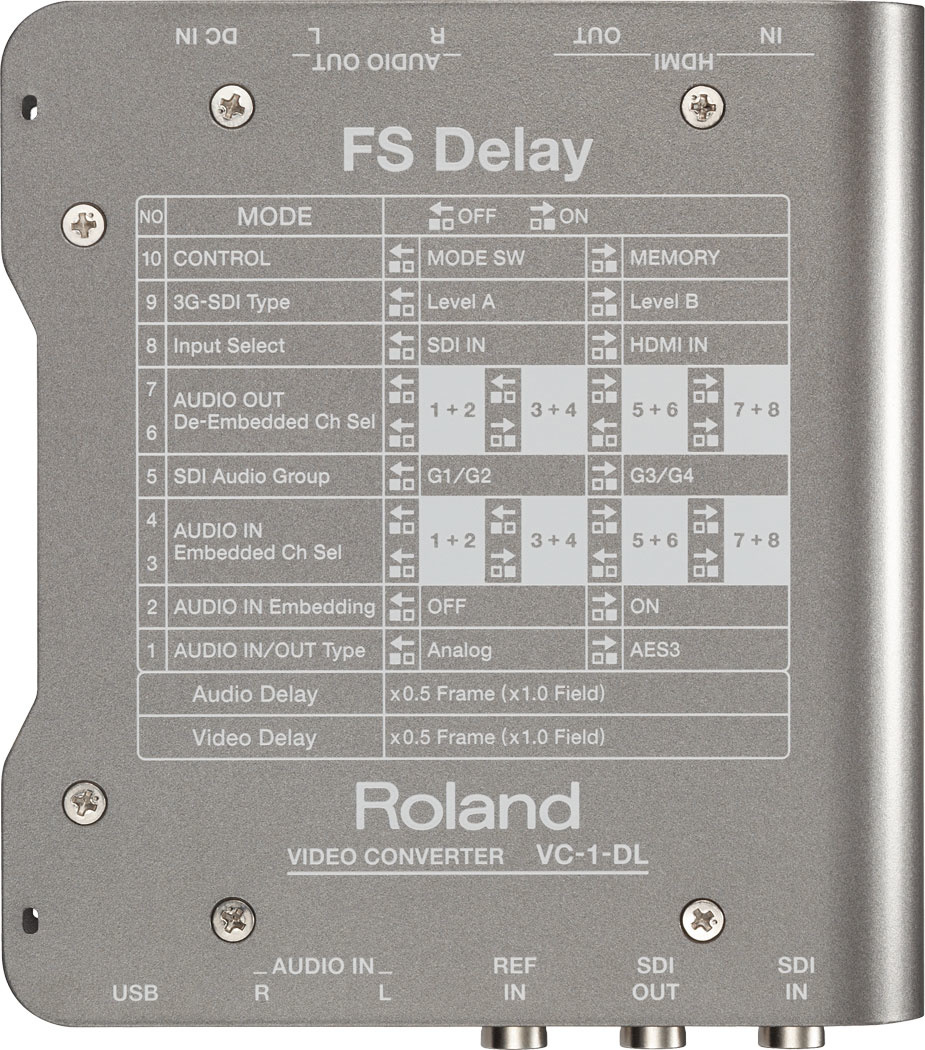

Roland VC-1-DL



In live production as you add more video components to a signal flow, latency is introduced. The VC-1-DL converter not only allows bidirectional conversion of SDI/HDMI but it also provides frame sync and delay adjustment of up to 9 fields (4.5 frames) for audio and video independently. This is helpful when keeping various types of cameras in sync as well as ensuring a projector stays in sync with an LED wall. In this way it is an indispensable tool live production, broadcast and recording applications.



Technische specificaties



    SPECIFICATIONS



    INPUT

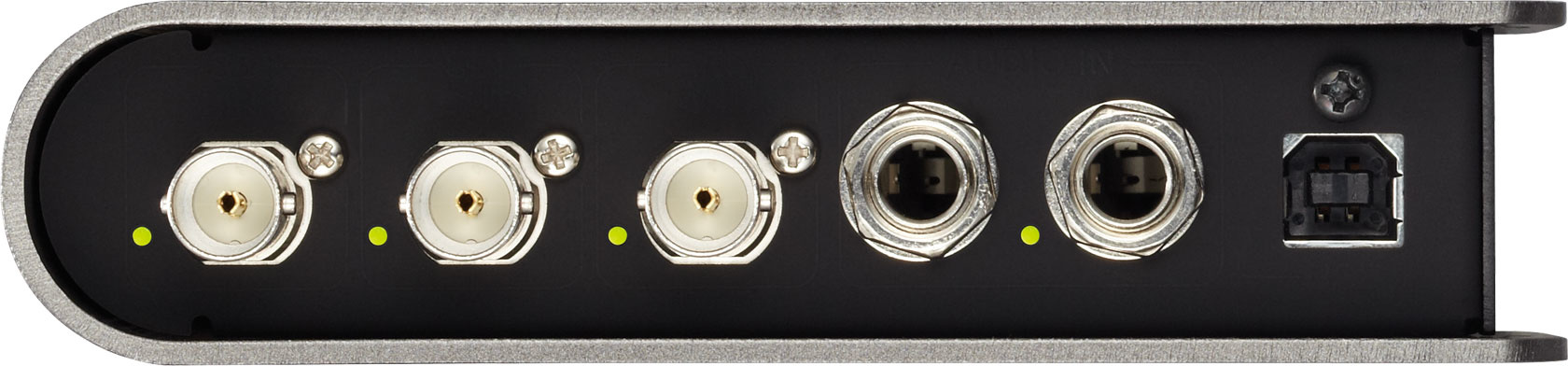

    SDI Connector

    BNC type x 1

    HDMI Connector

    Type A (19 pins) x 1

    Analog Audio Connector

    1/4" TRS phone type ( balanced ) x 1 pair (L/R)

    Digital Audio Connector

    1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector )

    Reference Connector

    BNC type x 1

    Reference Signal Format

    Black Burst, Bi-level, Tri-level

    Reference Impedance

    75 ohms



    PROCESSING



    Video delay ( 0 to 4.5 frames ) Audio delay ( 0 to 4.5 frames ) Audio embedding Audio de-embedding



    OUTPUT



    SDI Connector

    BNC type x 1

    HDMI Connector

    Type A (19 pins ) x 1

    Analog Audio Connector

    1/4" TRS phone type ( balanced ) x 1 pair ( L/R)

    Digital Audio Connector

    1/4" TRS phone type (balanced ) x 1 (Combined use with Analog Audio R ch Connector )



    INPUT / OUTPUT FORMAT



    SDI Input Signal Standards

    SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C

    SDI Input Video Format

    1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M ), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )

    Audio Format

    Linear PCM, 24 bits, 48 kHz, 16 ch *1 (Conforms to SMPTE 299M, SMPTE 272M-C)

    HDMI Input Video Format

    1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)

    HDMI Input Audio Format

    Linear PCM, 24 bit, 48 kHz, 8 ch *1

    SDI Output Signal Standards

    SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C

    SDI Output Video Format

    1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )

    SDI Output Audio Format

    Linear PCM, 24 bits, 48 kHz, 16 ch *1 (Conforms to SMPTE 299M, SMPTE 272M-C)

    HDMI Output Video Format

    1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-D)

    HDMI Output Audio Format

    Linear PCM, 24 bit, 48 kHz, 8 ch *1



    AUDIO INPUT / OUTPUT



    Analog Audio Input Level

    +4dBu

    Analog Audio Maximum Input Level

    +24dBu

    Analog Audio Input Impedance

    110 ohms

    Analog Audio Output Level

    +4dBu

    Analog Audio Output Impedance

    600 ohms

    Digital Audio Output Signal Format

    AES3, 16/24 bits, 32/48 kHz, 2 ch

    Digital Audio Output Impedance

    110 ohms



    OTHERS



    USB Connector

    USB Type B (Hi-Speed USB) x 1

    Power Supply

    DC 9V

    Power Consumption

    8W

    Operation Temperature

    +0 to + 40 degrees Celsius

    Accessories

    AC adaptor, Power Cord, Rubber Foot x 4, Owner's Manual



    SIZE AND WEIGHT



    Width

    150 mm
    5-15/16 inches

    Depth

    130 mm
    5-1/8 inches

    Height

    30 mm
    1-3/16 inches

    Weight

    500 g
    1 lbs. 2 oz.

    (0dBu=0.775Vrms)
