ROLAND - V-60HD HD - 6 channels HD Video Switcher w. SDI, HDMI I/O

Brand: Roland
  • Supplier stock, 1 - 3 business days
€3.619,00 (€2.990,91 Excl. tax)
V-60HD: Plug-n-play HD Video Switcher met Audio voor Live Events en Streaming...More information
+31 (0) 6 4436 1093
Great deals
Professional advice
Tailored Services
Product information

V-60HD: Plug-n-play HD Video Switcher met Audio voor Live Events en Streaming



  • 4 SDI Inputs (with de-interlacer)
  • 22 HDMI Inputs (scaled)
  • 31 RGB shared with HDMI input 6 (scaled)
  • 42 SDI Outputs ‒ Assignable to PGM, PVW, AUX
  • 52 HDMI Outputs ‒ Assignable to PGM, PVW, AUX
  • 61 Multiview Outputs ‒ Program, Preview, plus 8 video sources with Audio meters
  • 7LAN ‒ Remote control and Smart Tally
  • 8RS-232 ‒ Remote control
  • 9USB Port ‒ Still Image Upload, Saving Program Files



Features



PLUG-N-PLAY PRODUCTION SWITCHER WITH AUDIO FOR LIVE EVENT AND PRODUCTION



Live event production and streaming continues to grow and the demand for more features requires a sophisticated feature set. The V-60HD simplifies your set-ups and combines the best of both worlds that includes SDI inputs for camera sources and scaled HDMI inputs for data, computer, tablet and other video sources. The combination of powerful audio features that include multi-channel embedded audio, XLR and RCA analog inputs, de-embedded audio from digital SDI or HDMI sources plus a variety of video connections with a Program and Aux Bus makes the V-60HD ideal for a variety of live event production and streaming applications.



V-60HD SYSTEM PROGRAM VER.2.5



The Ver.2.5 update supports Panasonic PTZ and Canon camcorder control, audio effect preset, adds PNG still image format, improves User interface, and more.



VIDEO



Cut, Mix with cross dissolve and NAM, FAM transitions. Use up to 30 different wipe patterns. Time based corrected and frame synched provides seamless transitions between 6 video sources and 2 still images instead of buses. Auto-Scan (Ver.2.0) enables to switch automatically to reduce operator work.



  • 14 SDI Inputs (with de-interlacer)
  • 22 HDMI Inputs (scaled)
  • 31 RGB shared with HDMI input 6 (scaled)
  • 42 SDI Outputs ‒ Assignable to PGM, PVW, AUX
  • 52 HDMI Outputs ‒ Assignable to PGM, PVW, AUX
  • 61 Multiview Outputs ‒ Program, Preview, plus 8 video sources with Audio meters.
  • 7LAN ‒ Remote control and Smart Tally
  • 8RS-232 ‒ Remote control
  • 9USB Port ‒ Still Image Upload, Saving Program Files
  • 10DC IN – PSB-7U, provided AC adaptor or Battery operation

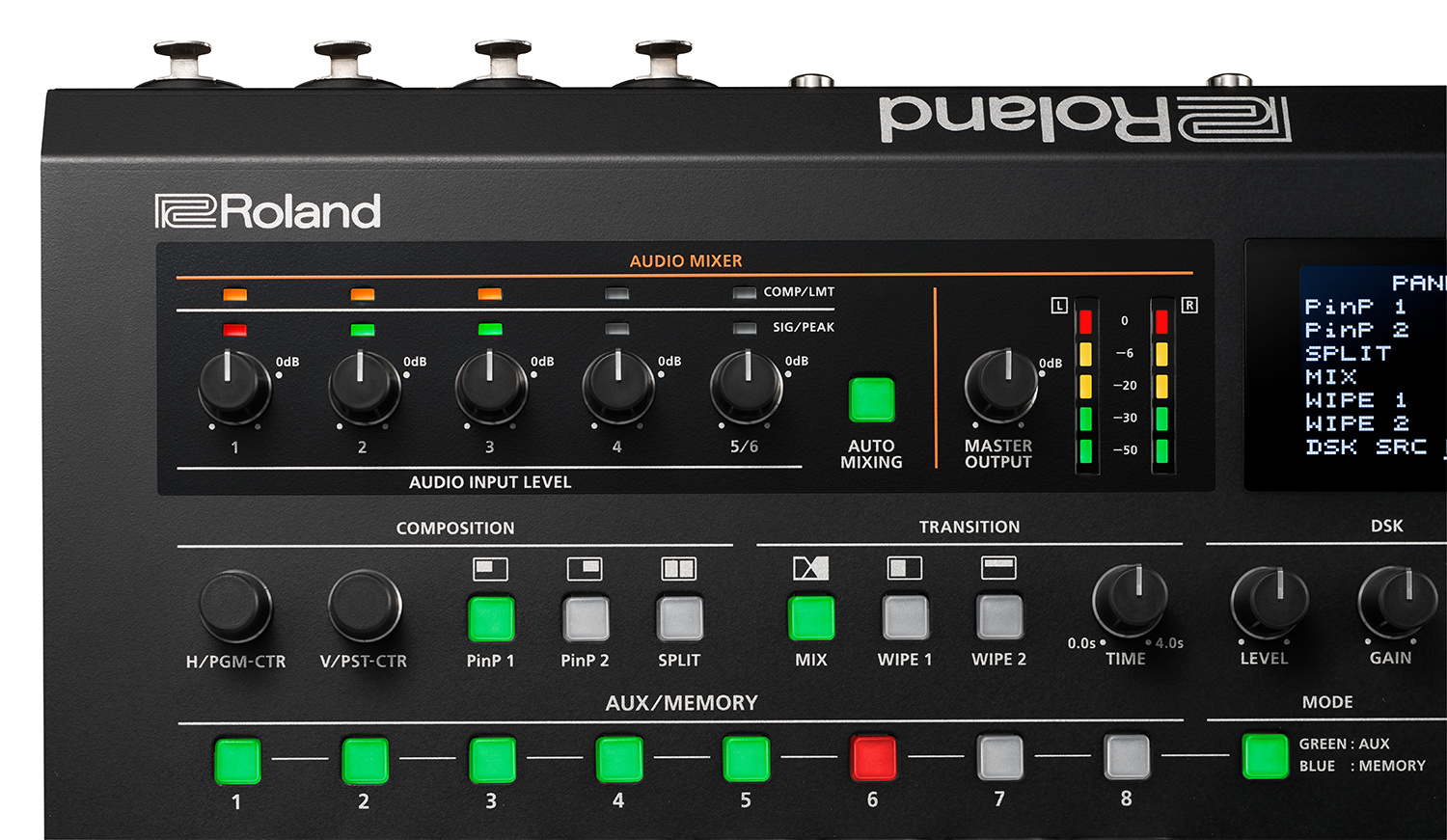

Professional user interface



Professional broadcast cross point buttons with PGM/PST LED color indicators. Rugged T-Bar, DSK quick edit knobs for key level and gain. Two dedicated in Pand Split buttons with knobs for center framing of Split and PinP placement. Change transition type using either mix or two preset wipe buttons with dedicated transition dissolve time knob. Front panel 3-inch LCD display with quick access menu navigation to adjust switcher parameters.



Video composition



The V-60HD includes a DSK (downstream keyer), Picture-in-Picture (PinP), Split composition effects ideal for creating news style broadcasts and corporate presentations. PinP window shapes include rectangle, circle, heart and diamond patterns to add a special touch to special events. Cropping of in Pand adjusting of SPLIT center portion (Ver.2.0) are suitable for composition of vertically long screen of smart phone.



The DSK can be used for overlaying titles, song lyrics, logos or graphics coming from the video sources with up to three layers of composition. The DSK supports both Luminance Keying (Black/White) and Chroma Keying (Blue/Green) for compositing two video sources plus the additional layer of PinP plus your background video ensuring creative live production environments.



AUX bus



Live streams, HD recording, and confidence monitors often have different visual needs from the main program output. Switch any of the connected input sources to any of the four SDI or HDMI outputs without affecting the main PGM destination. AUX Linked PGM enables AUX output to synchronize with the Program (PGM) output.



Multi-view output



V-60HD can preview all six video inputs and two still images, PGM and PVW to a single preview monitor via the Multi-view output. In addition, you can display the menu on the Multi-view display, so you make setting changes without changing your focus from the preview display. From Ver.2.0, exchanging PGM and PVW window and editing label name of IN1 to 6 are possible.



AUDIO



The V-60HD features an 18-channel audio mixer which includes four XLR/TRS Combo jacks with 48v phantom power, RCA stereo Pair, plus audio de-embed from the six video inputs.

A built-in effects library added from Ver 2.5 is packed with presets for common production scenarios including interviews, ambient sound recording, and eliminated wind noise when recording at field. Anyone can easily set up without audio knowledge.



Audio Mixer with preamp and dynamics (compressor)



The V-60HDs’ preamp and dynamics effects include a high-pass filter, gate, compressor, a 3-band EQ and delay. Anyone without audio knowledge can run sound thanks to the built-in effect's library packed with presets for common production scenarios including interviews, ambient sound recording and elimination of “pops” & wind noise.
Allowing the AV operator to focus on video switching, the onboard intelligence automatically crafts the perfect mix for conferences and panel talks.



Auto mixing



The included Auto-Mixing function ensures the correct mix for multiple panel participants at conferences by automatically adjusting levels across multiple audio sources. A priority weighting assignment that is channel specific can be set giving the moderator or priority audio channel a higher volume level while using the Auto-Mixing function allowing the operator to focus on video switching and production.



Discreet Multi-Channel Audio Embedding



Assign up to eight analog audio inputs a separate audio embed channel on SDI 1 and 2 outputs to ensure a separate mix pre-effect (dry) or post effect (wet) for correcting audio problems post live event. This feature is additionally useful for multi-language events to record the voice-over or language translation on its own audio channel to a separate master.



SMART TALLY



Roland’s innovative Smart Tally wireless tally system strengthens camera operator confidence and ends the hassle of custom made tally cable harnesses. Configured using standard IP protocols, Smart Tally turns smartphones, tablets, computers or ANY web browser into a fully functioning tally light including GREEN for Preview and RED for Program.



REMOTE CONTROL



Extending the V-60HD’s audio mixer with outboard USB control surfaces is an economical alternative to using a dedicated full-size audio mixer. 3rd party USB MIDI control devices are instantly recognizable by Mac and Windows PCs including the V-60HD Remote Control Software.





Technische specificaties



    Specifications



    VIDEO

    Video Processing

    4:2:2 (Y/Pb/Pr), 8-bit

    Input Connectors

    SDI IN 1--4: BNC type x 4
    * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M

    HDMI IN 5--6: HDMI type A x 2
    * HDCP Supported
    * Multi-format Supported

    RGB/COMPONENT IN 6: HD DB-15 type x 1
    * INPUT 6: HDMI or RGB/COMPONENT selected.
    * Multi-format Supported

    Output Connectors

    SDI OUT 1--2: BNC type x 2
    * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M

    HDMI OUT 1--2: HDMI type A x 2
    HDMI MULTI-VIEW: HDMI type A x 1
    * HDCP Supported

    Input formats

    SDI IN 1--4: Conforms to SMPTE 296M, SMPTE 274M
    720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)
    1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080i or 1080p)
    * The input interlaced video signal is converted to progressive video signal by internal processing.
    * The video signal frame rate can be selected at the SYSTEM menu (59.94 or 50).

    HDMI IN 5:
    HDMI/RGB/COMPONENT IN 6:
    480/59.94i, 576/50i, 480/59.94p, 576/50p
    720/59.94p, 720/50p, 1080/59.94i, 1080/50i
    1080/59.94p, 1080/50p
    VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
    WXGA (1280 x 768/60 Hz), SXGA (1280 x 1024/60 Hz)
    FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
    UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
    * The refresh rate is the maximum value of each resolution.
    * Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
    * 1920 x 1200/60 Hz: Reduced blanking
    * The input interlaced video signal is converted to progressive video signal by internal processing.
    * The video signal frame rate can be selected at the SYSTEM menu (59.94 or 50).

    Still Image

    Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
    PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color
    * It can be stored up to 2 files in the internal memory.
    * PNG alpha channel not supported.

    Output formats

    SDI OUT 1--2: Conforms to SMPTE 296M, 274M
    HDMI OUT 1--2:
    720/59.94p, 720/50p (SYSTEM FORMAT = 720p)
    1080/59.94i, 1080/50i (SYSTEM FORMAT = 1080i)
    1080/59.94p, 1080/50p (SYSTEM FORMAT = 1080p)
    * The video signal frame rate can be selected at the SYSYTEM menu (59.94 or 50).

    HDMI MULTI-VIEW:

    1080/59.94p, 1080/50p

    Video Effects

    Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (30 types)Composition: PinP (SQUARE, CIRCLE, HEART, DIAMOND), SPLIT (4 types), DSK (Luminance Key, Chroma Key)
    Others: Flip horizontal, Output fade, Still Image Capture, Still Image Playback, Test pattern output

    AUDIO

    Audio Processing

    Sampling rate: 24 bits/48 kHz

    Audio formats

    SDI IN: Linear PCM, 24 bits/48 kHz, 2ch (Conforms to SMPTE 299M)
    SDI OUT: Linear PCM, 24 bits/48 kHz, 8ch (Conforms to SMPTE 299M)
    HDMI IN/OUT: Linear PCM, 24 bits/48 kHz, 2ch

    Input Connectors

    Digital: SDI IN 1--4: BNC tyep x 4
    HDMI IN 5--6 (HDMI Type A 19 pins) x 2

    Analog: AUDIO IN 1--4: Combo type (XLR, 1/4-inch TRS phone), phantom power
    AUDIO IN 5--6: RCA phono type

    Phantom Power

    DC 48 V (unloaded maximum), 10 mA (maximum load)
    * Current value per channel

    Output Connectors

    Digital: SDI OUT 1--2: BNC type x 2
    HDMI OUT 1--2: HDMI type A x 2
    HDMI MULTI-VIEW: HDMI type A x 1

    Analog: AUDIO OUT: XLR type
    AUDIO OUT: RCA phono type
    PHONES: Stereo 1/4-inch phone type

    Input Level

    AUDIO IN 1--4: -60--+4 dBu (Maximum: +22 dBu)
    AUDIO IN 5--6: -10 dBu (Maximum: +8 dBu)

    Input Impedance

    AUDIO IN 1--4: 10 k ohms (HEAD AMP GAIN 0--23 dB), 5 k ohms (HEAD AMP GAIN 24--+64 dBu)
    AUDIO IN 5--6: 15 k ohms

    Output Level

    AUDIO OUT (XLR): +4 dBu (Maximum: +22 dBu)
    AUDIO OUT (RCA): -10 dBu (Maximum: +8 dBu)
    PHONES: 92 mW + 92 mW (32 ohms)

    Output Impedance

    AUDIO OUT (XLR): 600 ohms
    AUDIO OUT (RCA): 1 k ohm
    PHONES: 10 ohms

    Audio Effects

    Auto Mixing, EQ, Delay, Compressor, HPF, Gate, Multi-Band Compressor, Limiter

    OTHERS

    Other Connectors

    USB: USB A type (for USB memory)

    TALLY/GPI: DB-25 type (Female)(Tally: 12, GPI: 8)
    RS-232: DB-9 type (Male) *for Remote Control
    LAN: RJ45 100BASE-TX *for Remote Control

    Other Functions

    MEMORY (8 types)
    Panel lock function
    EDID Emulator
    Smart Tally

    Display

    Graphic LCD: 128 x 64 dots

    Power Supply

    AC Adaptor

    Current Draw

    3.1 A

    Power Consumption

    37.0 W

    Operation Temperature

    +0 to +40 degrees Celsius
    +32 to +104 degrees Fahrenheit

    Dimensions

    356 (W) x 221 (D) x 96 (H) mm
    14-1/16 (W) x 8-3/4 (D) x 3-13/16 (H) inches

    Weight (excluding AC adaptor)

    3.0 kg
    6 lbs 10 oz

    Accessories

    Owner's Manual
    AC adaptor
    Power cord
