PTZOptics SuperJoy NDI|HX/IP & Serial PTZ Camera Joystick Remote

Brand: PTZ Optics
  • Ready for delivery
€1.090,00 (€900,83 Excl. tax)
Pan/Tilt/Zoom/Lock PTZ Controls / NDI|HX, IP & Serial Communication / Control 4 Groups of 7 Cameras Each...More information
Gewijzigde openingstijden
Great deals
Professional advice
Tailored Services
Product information
  • Article number: PT-SUPERJOY-G1

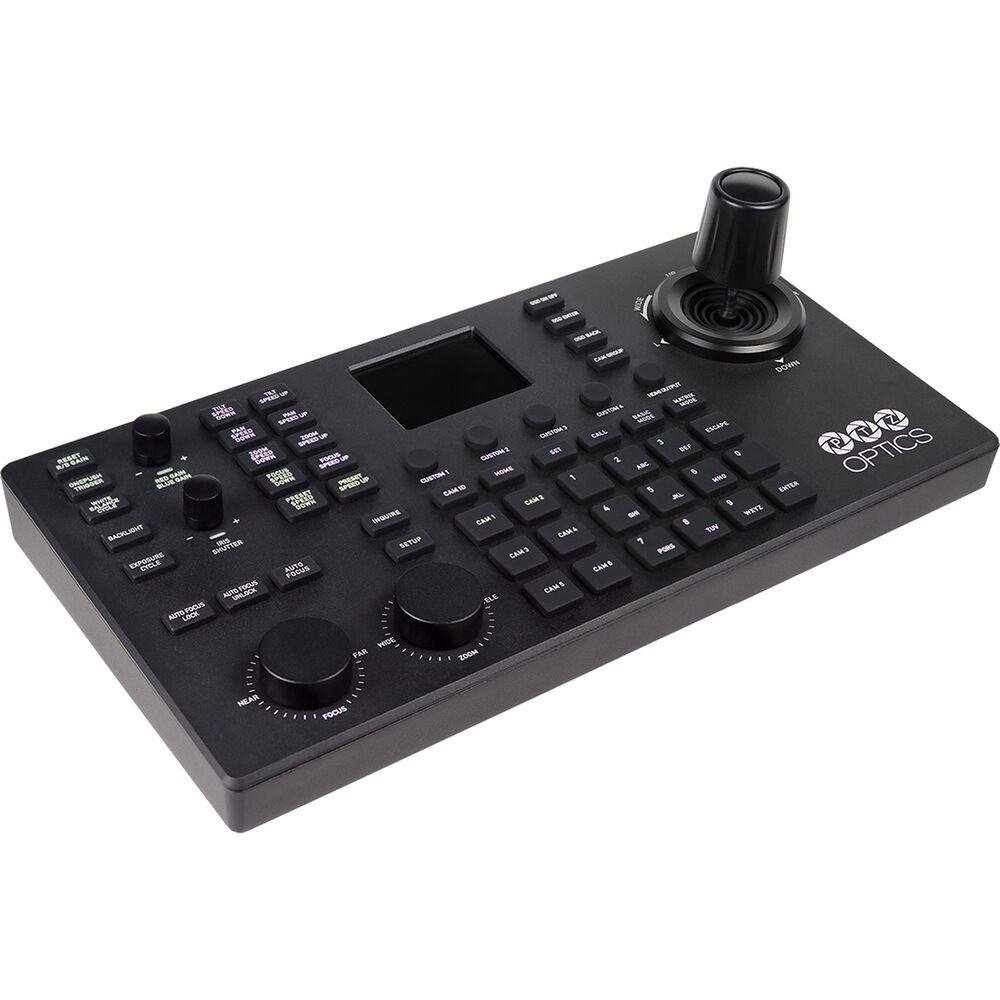

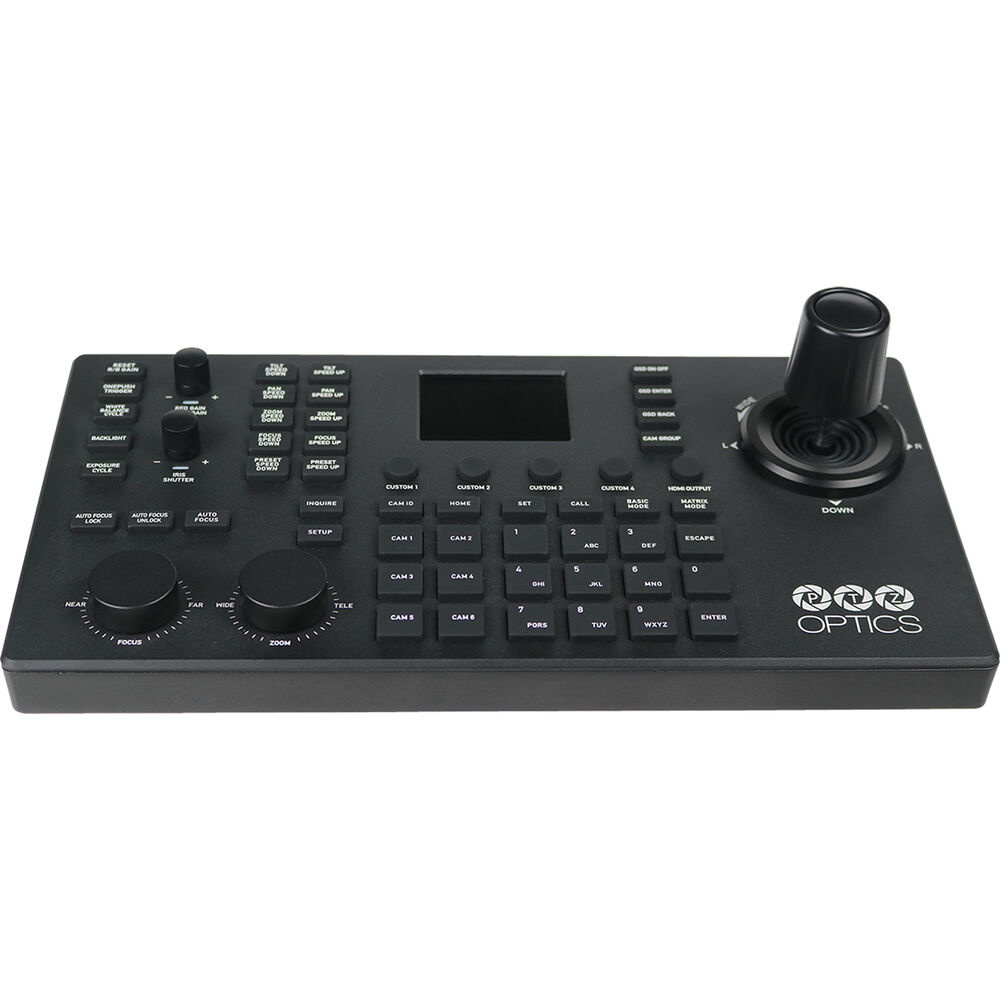

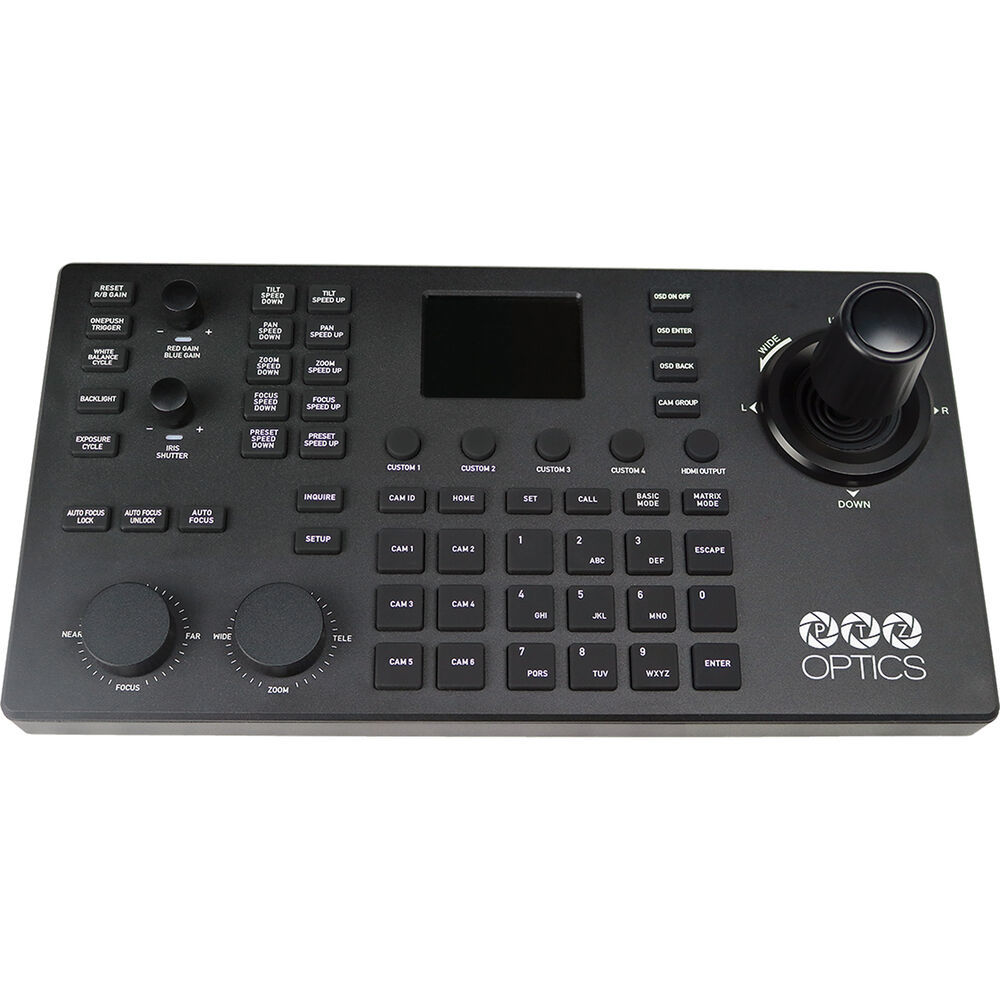

Control up to 28 PTZ cameras using NDI, IP, or serial with the SuperJoy NDI|HX/IP & Serial PTZ Camera Joystick Controller from PTZOptics. The SuperJoy offers joystick and button control for up to 28 PTZ cameras, in four groups of seven cameras each, with support for NDI, VISCA, VISCA-over-IP, Pelco-P, and Pelco-D protocols over IP and serial RS-232, RS-422, and RS-485 communication. It enables you to control the speed of your pan, tilt, zoom, and lock moves and incorporates an LCD screen.

The controller also offers the ability to control iris, focus, white balance, exposure, and on-the-fly speed control to control the finer camera settings on the PTZ cameras. An HDMI output allows you to send the camera video to a remote streaming unit, and the status information can also be included in the output. Other features include glowing buttons for working in the dark, 255 camera presets, nine quick presets, and four super preset buttons. You can import and export configurations using IP or via the USB port.

The SuperJoy supports a variety of camera models and manufacturers, and you can simultaneously control multiple brands such as HuddleCamHD, Sony, PTZOptics, BirdDog, and NewTek. The unit comes with an 8' long RS-232C cable and 12 VDC power supply, or it can be powered using Power-over-Ethernet (PoE).

Features

Limited NDI|HX and Sony control

IP, RS-232, RS-422, and RS-485 communication

VISCA-over-IP, Pelco-P, Pelco-D, ONVIF, and VISCA protocols

Camera on-screen display control

Control four groups with up to seven cameras in each group for a total of 28 cameras

Control multiple different PTZ camera brands simultaneously, including HuddleCamHD, PTZOptics, Sony, BirdDog, and NewTek

Full pan/tilt/zoom PTZ camera control with speed adjustments on the fly

255 presets, nine quick presets, four super presets

Exposure and white balance control

Four customizable buttons using TCP, UDP, and HTTP control

Program and RTSP output via HDMI

Power-over-Ethernet (PoE) support

Fine-tune zoom and focus control dials, redesigned joystick, and focus lock/unlock

Glowing buttons for viewing in dark rooms

Large LCD screen with controller status

Import and export settings via LAN or USB

Power adapter and 8' RS-232C cable are included

Technische specificaties

    General

    Number of Supported Cameras

    4 Channels via IP (7 Per Group)
    4 Channels via Serial (7 Per Group)

    Supported Control Protocols

    IP
    Pelco-D
    Pelco-P
    RS-232
    RS-422
    RS-485
    VISCA

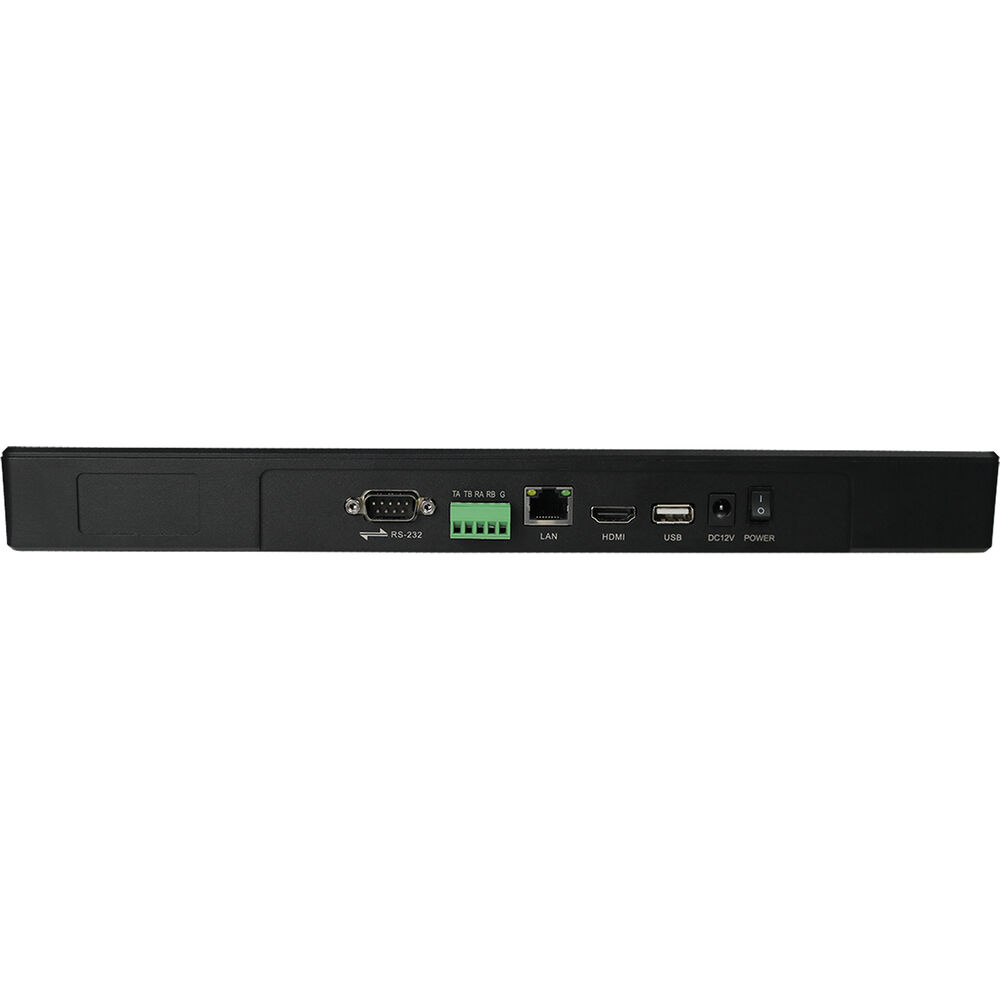

    Control Interface

    1 x RJ45 (LAN)
    1 x Terminal Block (RS-422, RS-485) Output
    1 x DE-15/DB-15 (Pelco-D, Pelco-P, RS-232, VISCA) Output

    Other I/O

    1 x USB Type-A Input

    Video Connectors

    1 x HDMI Type A (Loop Output)

    Controls

    1 x Pan/Tilt, Zoom Joystick

    Presets

    255 via IP, RS-232, VISCA

    Display

    Touchscreen

    No

    Power

    PoE Support

    PoE 802.3af

    Power Connectors

    1 x Barrel / Coaxial

    Power Consumption

    6 W

    DC Input Power

    12 VDC

    Environmental

    Operating Temperature

    14 to 122°F / -10 to 50°C

    Operating Humidity

    10 to 90%

    Physical

    Security Lock Support

    None

    Dimensions

    14.6 x 7.1 x 4" / 37 x 18 x 10.1 cm

    Weight

    3.7 lb / 1.7 kg

In de doos

PTZOptics SuperJoy NDI|HX/IP & Serial PTZ Camera Joystick Controller

12 VDC Power Adapter

RS-232C Cable (8')
