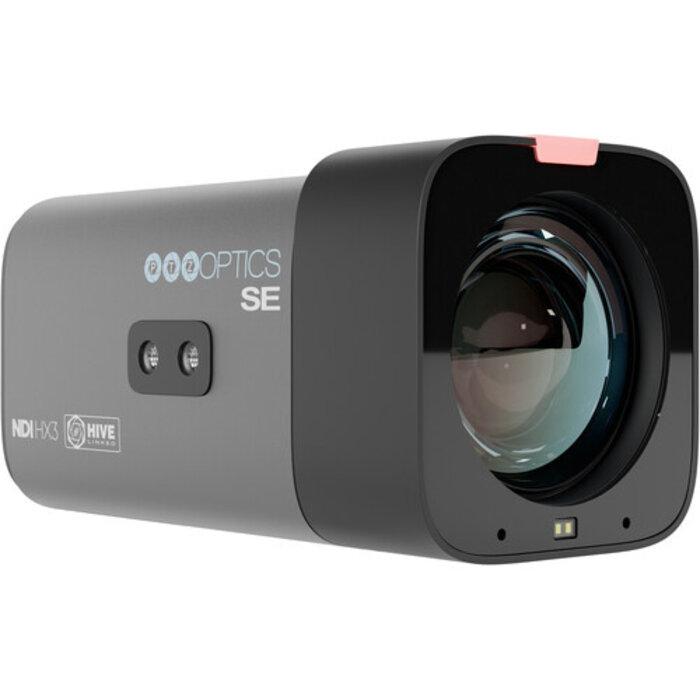

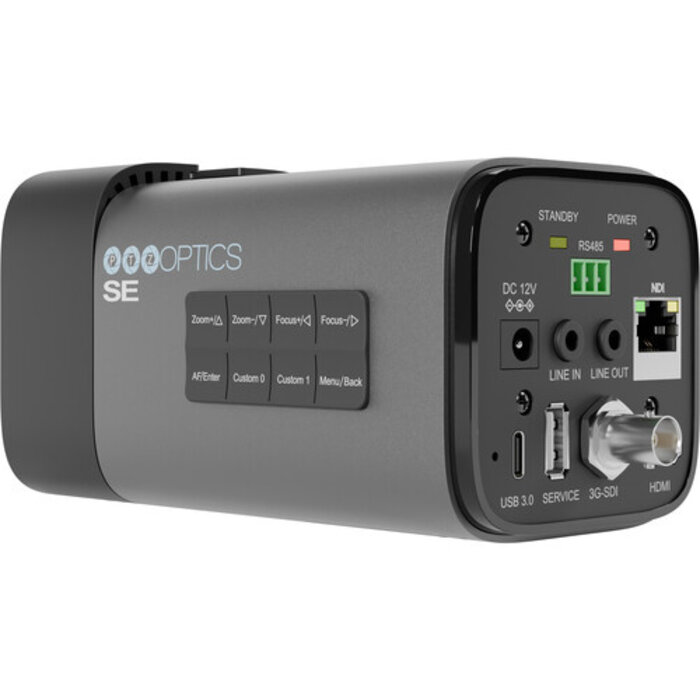

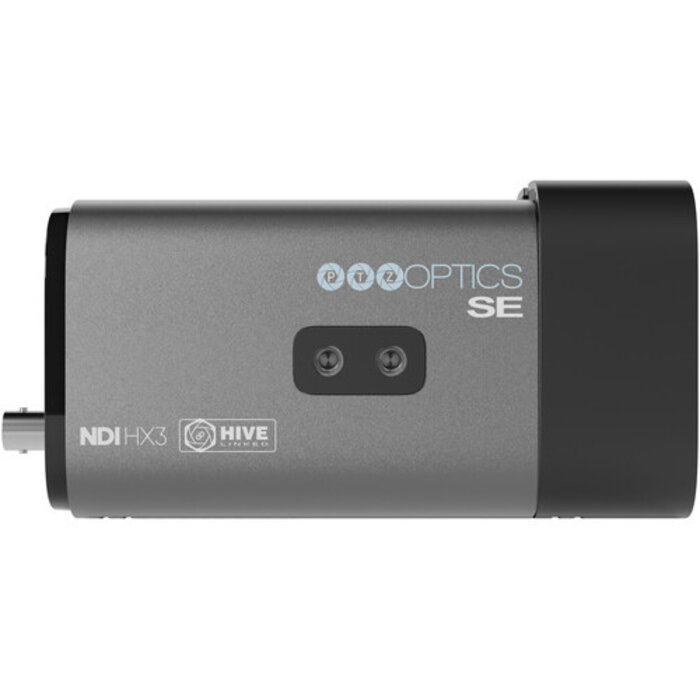

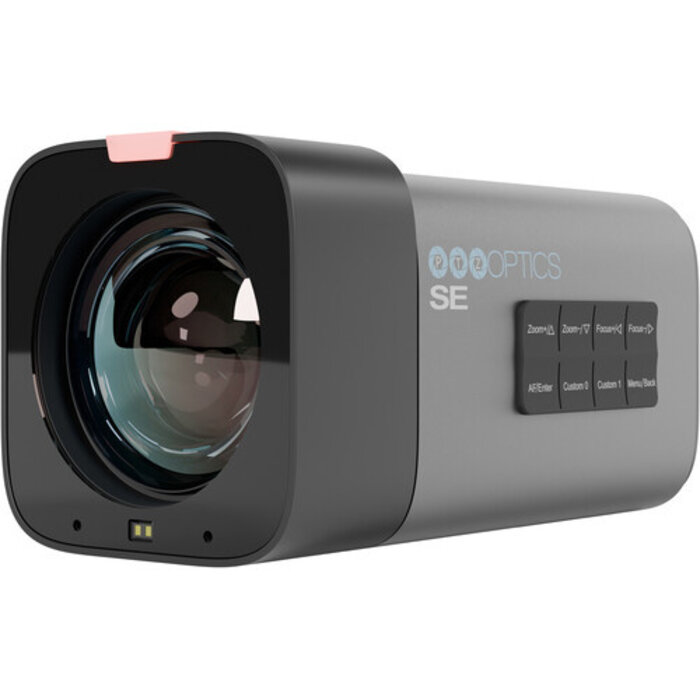

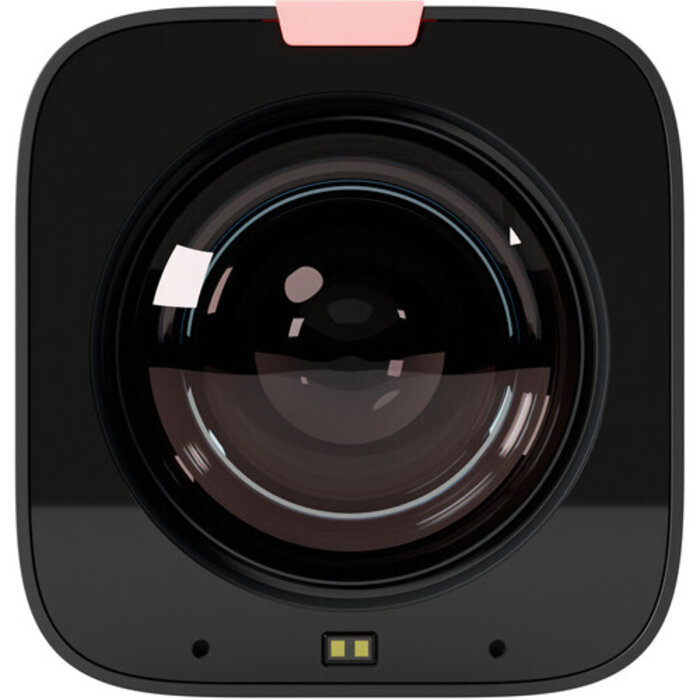

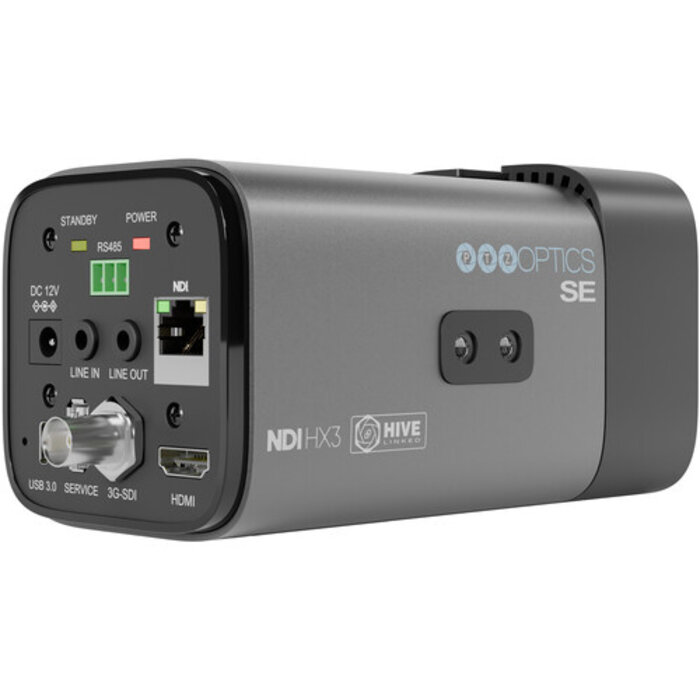

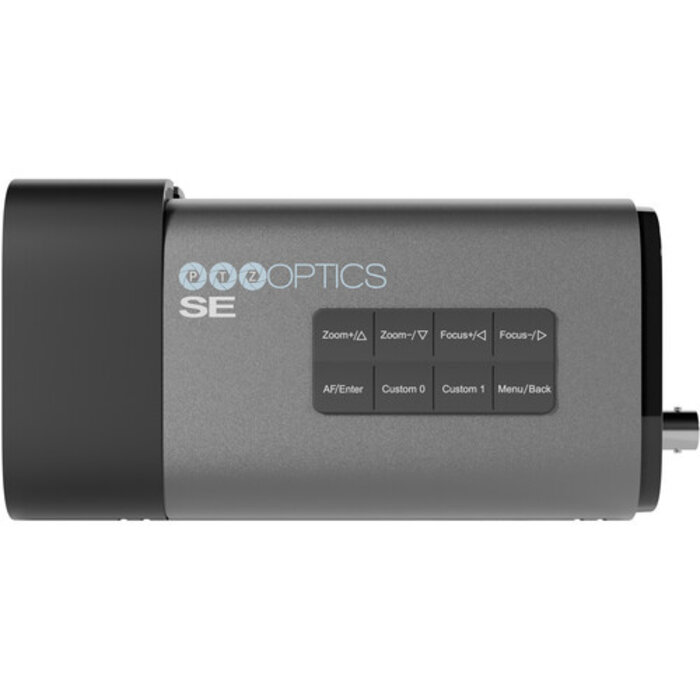

PTZOptics Studio SE Hive-Linked Camera with 12x Optical Zoom (grey)
Key Features
- Link to Easy Hive Studio Platform
- Up to 1080p60 Video, 1/2.8" CMOS Sensor
- 3G-SDI, HDMI & USB-C Outputs
- IP & Native NDI HX3 Streaming
- 12x Optical Zoom, 16x Digital Zoom
- 72.5 to 6.9° Field of View
- Easy Network Connection, LED Tally Light
- Built-In Mic, 3.5mm Line Input & Output
- IR Remote, Web UI & App Control Options
- 12 VDC or PoE with Separate Switch
Studio Camera with Hive-Linked Connectivity
Get remote camera control and future-proof connectivity for your content creation with the Studio SE Hive-Linked Camera from PTZOptics. This compact camera features a 12x optical zoom and native NDI HX3, 3G-SDI, HDMI, USB-C, and IP outputs. Its Hive Studio link provides an instant connection to PTZOptic's easy online platform.
Designed for Content Creation
The Studio SE is a convenient content creation and livestreaming solution that uses a 1/2.8" CMOS sensor to support up to 1080p60 video capture. It features a 12x optical zoom, 72.5 to 6.9° field of view, front-tally light, built-in microphone, and line input and output.
Multiple Output Options Including NDI HX3
- Simultaneously outputs:
- HDMI or SDI + IP + RTMP + NDI
- HDMI or SDI + USB
- HDMI or SDI + IP + USB
- The Studio SE camera comes native with NDI HX3, so no additional license is needed to access your camera over the network.
Control Options
The Studio SE offers flexible control via the included IR remote, a web UI, PTZ control app, USB port, PTZOptics joysticks, camera management platform, and Hive Studio.
Power Methods
Power the Studio SE camera using the included AC adapter or using PoE with a separate network switch.

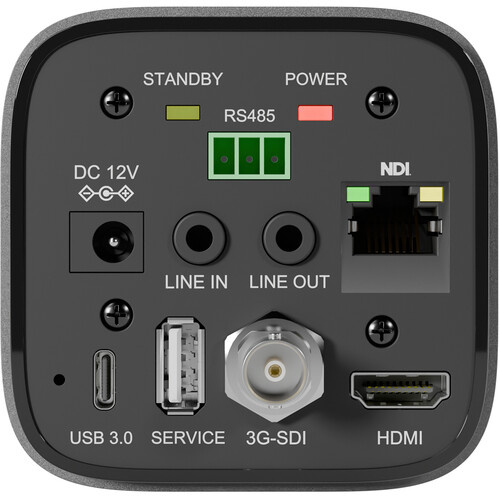

| USB I/O | 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Female Output 1 x USB-A Female Input |
| Video I/O | 1x RJ45 (NDI) Output 1x HDMI Output 1x BNC (3G-SDI) Output |
| Audio I/O | 1x 1/8" / 3.5 mm Line Input 1x 1/8" / 3.5 mm Line Output |
| Internal Storage | Yes |
| Other Input/Output | Control: 1 x RS485 3-Pin Block |
| Optical Zoom | 12x |
| Field of View | 72.5 to 6.9° |
| Power Source | AC Adapter with Power Brick (Included) , PoE (Not Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 12 VDC |
| Power Consumption | 18 W (Maximum) |
| Operating Current | 2 A (Maximum) |
| Mounting | Top: 1x Shoe Mount Bottom: 1x 1/4"-20 Thread |
| Color | White |
| Material of Construction | Aluminum, Plastic |
| Operating Conditions | 14 to 104°F / -10 to 40°C at 10 to 80% Humidity |
| Storage Conditions | -40 to 140°F / -40 to 60°C at 10 to 80% Humidity |
| Dimensions | 5.7 x 3.1 x 3" / 145 x 78.5 x 76 mm |
| Weight | 24 oz / 680 g |
