Netgear AV Line M4250-26G4F-PoE+ - Managed AV Switch / 24× 1G PoE+ / 2× 1G / 4× SFP / 300W

Key features

• 24× 1G PoE+ (30 W per port), 300 W PoE budget
• 2× extra 1G and 4× SFP (1G)
• NETGEAR IGMP Plus: multicast works out of the box
• AV web interface with per-port profiles (Dante, NDI, Q-SYS, video)
• AVB support

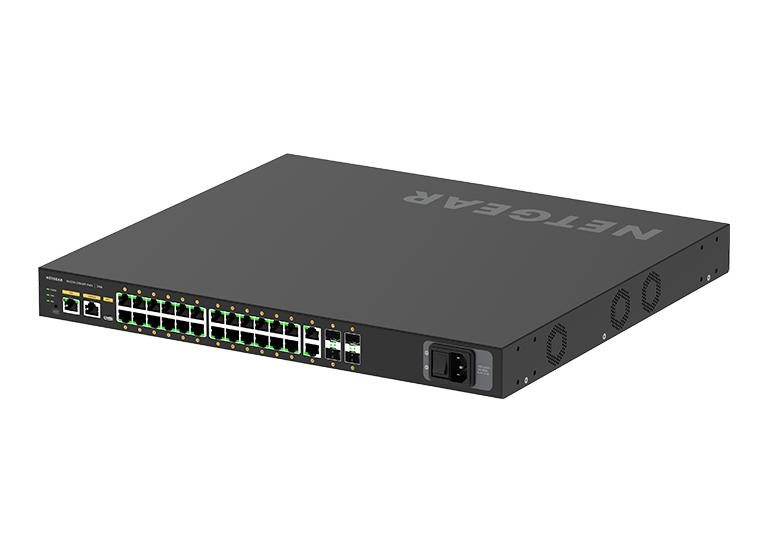

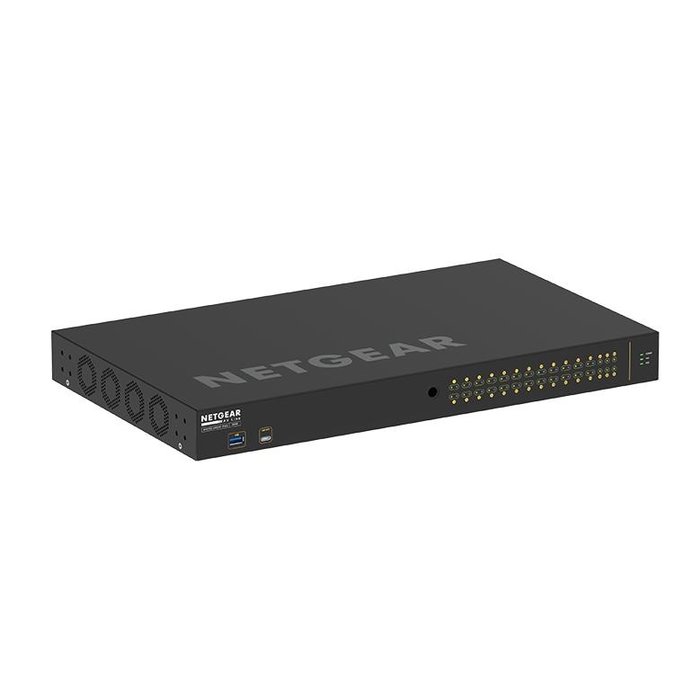

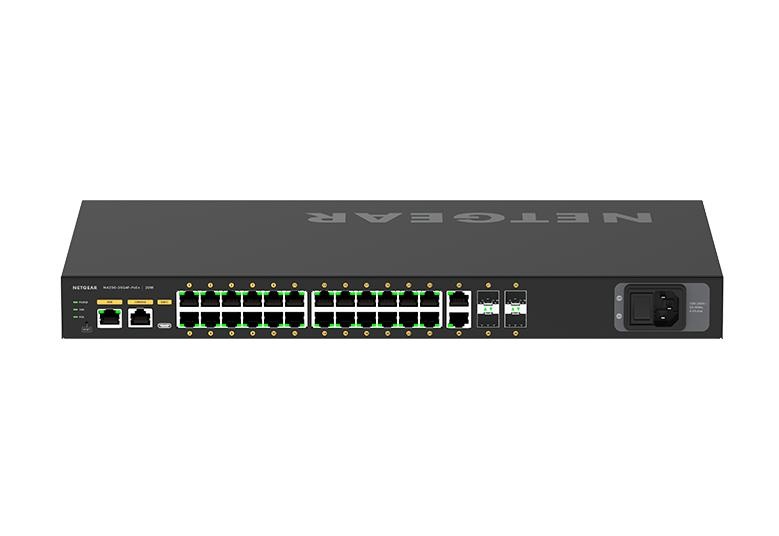

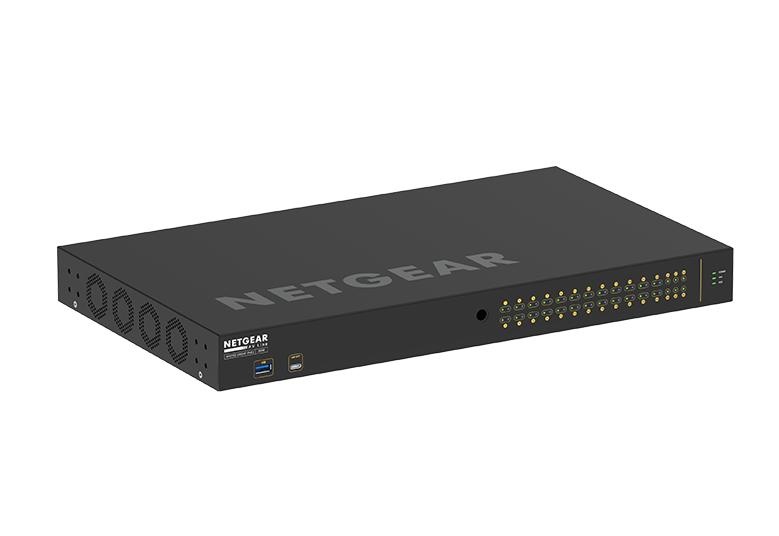

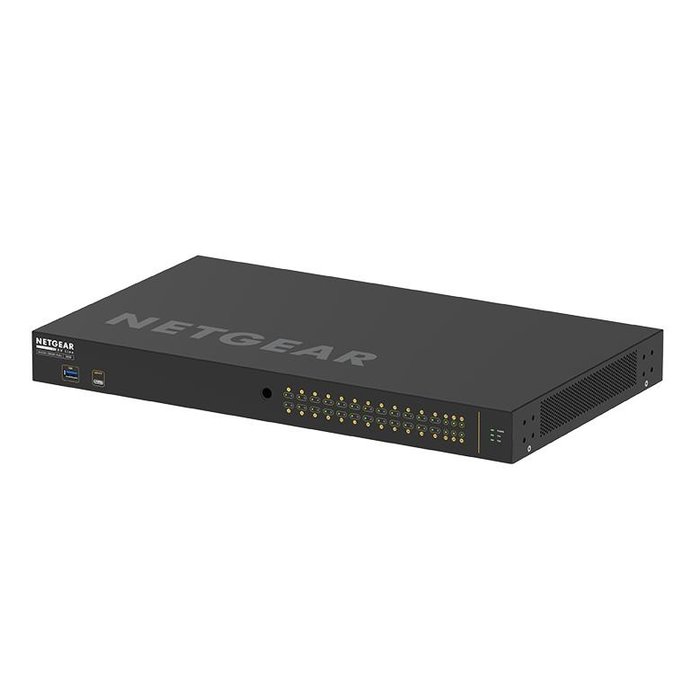

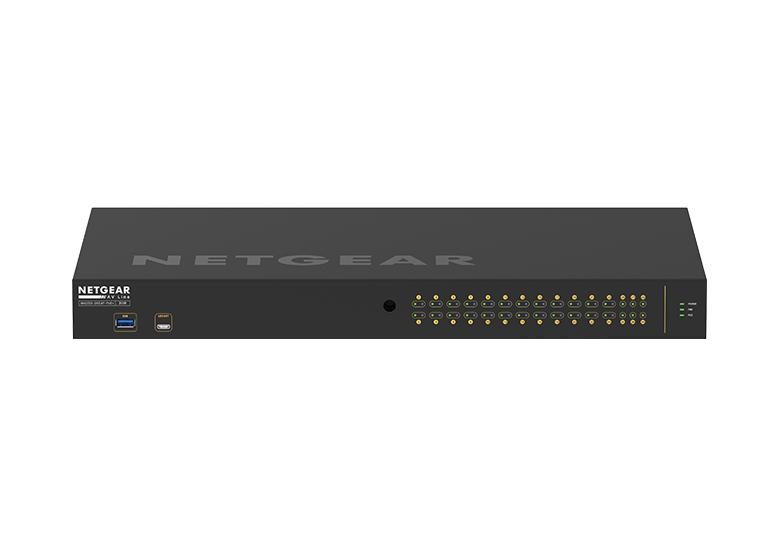

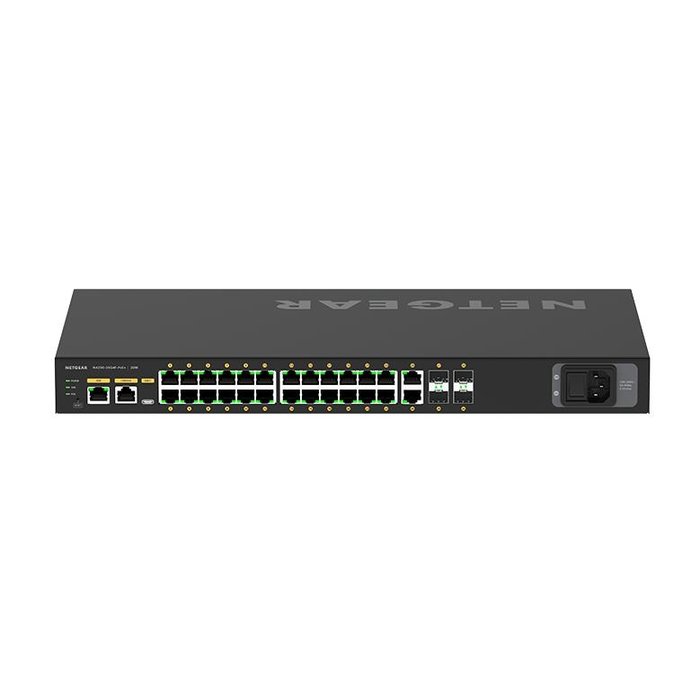

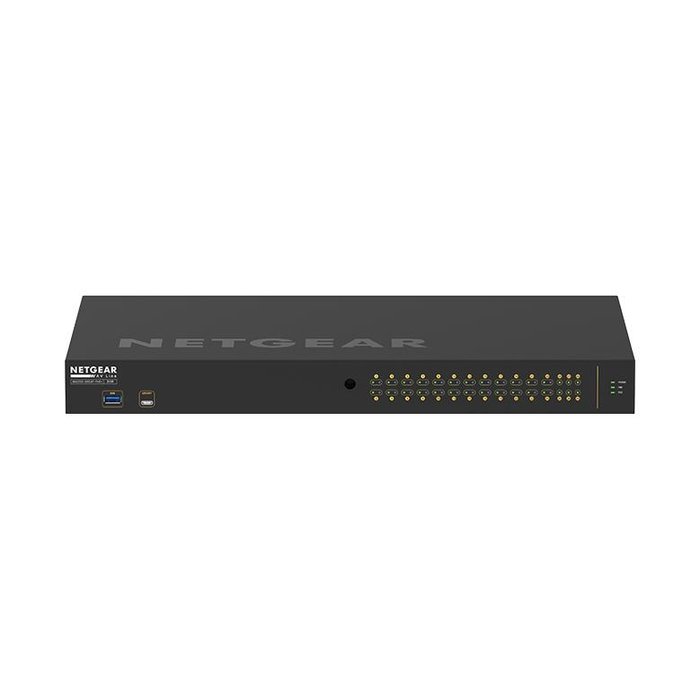

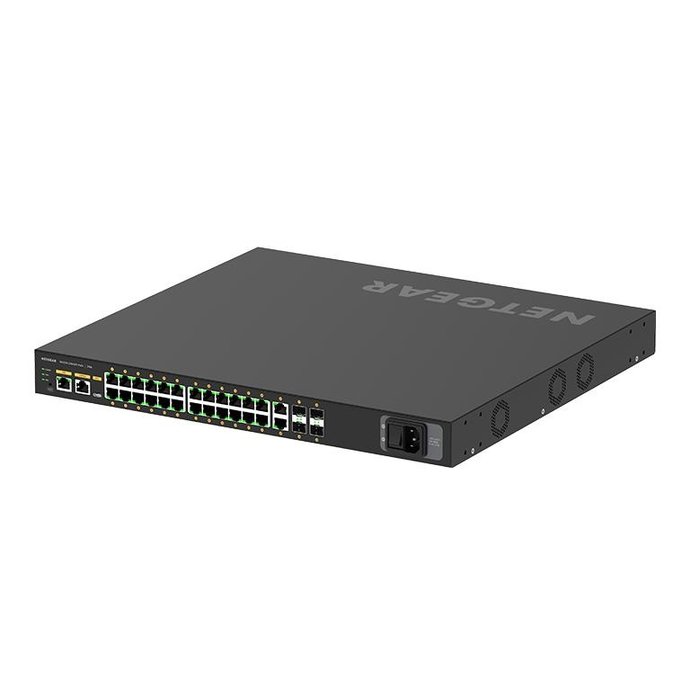

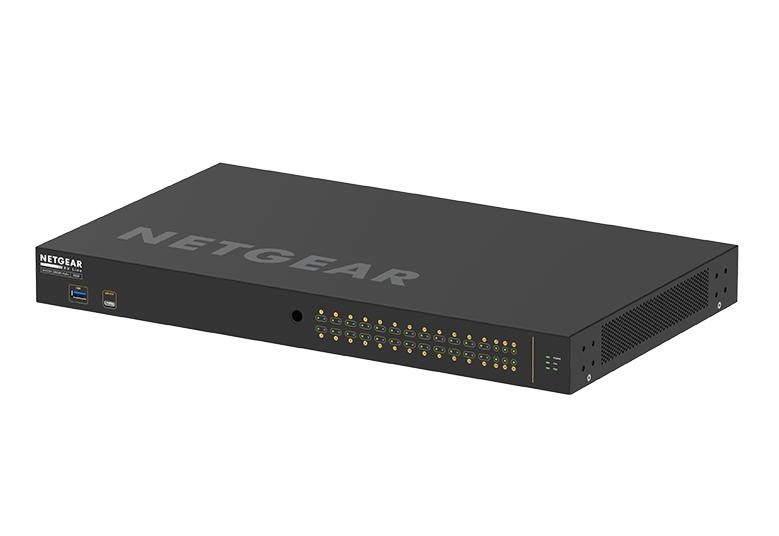

• Ports at the rear, status LEDs at the front: neat in AV racks

How it works

The M4250 is preconfigured for AV over IP: with NETGEAR IGMP Plus, multicast traffic works out of the box without complex configuration. In the AV web interface you assign a ready-made profile to each port (for example Dante, NDI, Q-SYS or video), and multiple M4250 and M4350 switches connect automatically via auto-trunk and auto-LAG. Management is possible locally, via the NETGEAR Engage Controller or with standard tools such as SNMP and CLI.

Applications

AV-over-IP installations with NDI, Dante/AES67, SDVoE or other video and audio streams: meeting rooms, churches, education, live productions, broadcast and events.

Limitations

Uplinks up to 1G; the M4250-26G4XF-PoE+ is better for 10G. Not all ports at 30 W simultaneously.
