Middle Things Fiber Unite 5
Designed for multi-camera on-site workflows, the Middle Things Fiber Unite 5 converts 5 pairs of SDI-in/out 4K video signals and a LAN connection into a single 12-channel optical cable: Neutrik opticalCON MTP 12. The Fiber Unite 5 is designed to be used in conjunction with other optical cables.
11 cables combined in just one

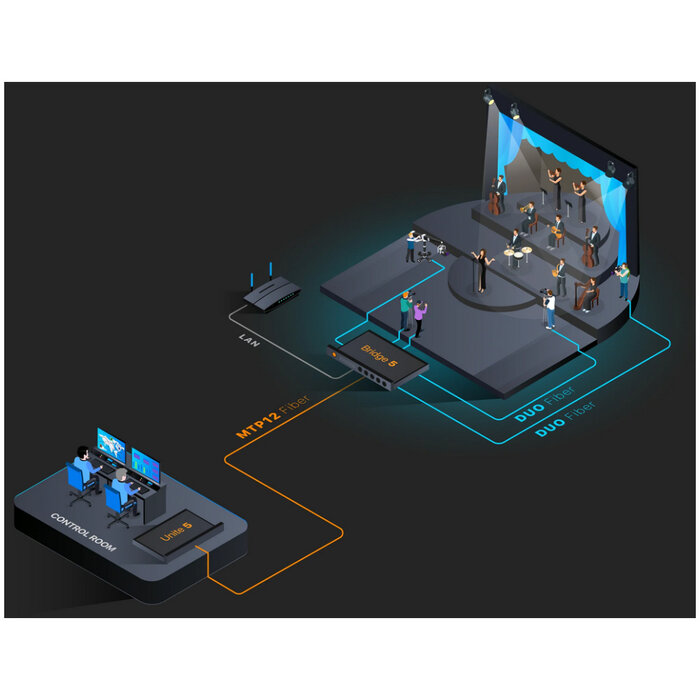

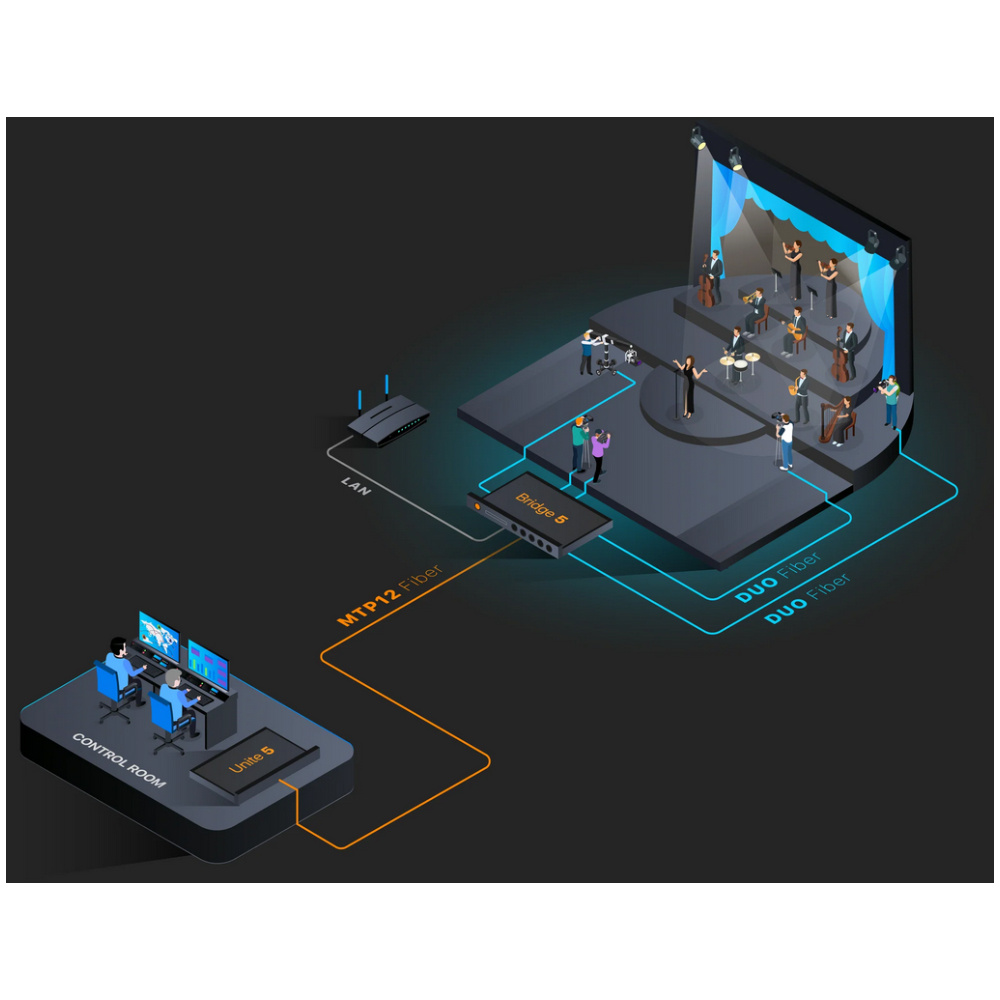

Ever had the time-consuming task of running multiple cables from the control room to the stage? With the Fiber Unite 5 converter you can merge up to 5 pairs of 4K SDI IN / SDI Out signals + a LAN connection into a single 12-channel MTP 12 fiber cable. You can connect the other end of the MTP 12 cable to one of the following modules:
- Another Unite 5 module that will split the signal into 5 SDI In/Out Pairs + LAN.
- A Fiber Bridge 5, which splits the cable into 5 OpticalCON Duo connectors that can be used with Fiber Camera Boxes, as an intermediate stage box.
A multi-channel optical cable is lighter and much more reliable than a traditional copper BNC cable because it is impervious to all electromagnetic disturbances. You can run your fiber optic cable over thousands of miles without outages.
Standard 1U rack design

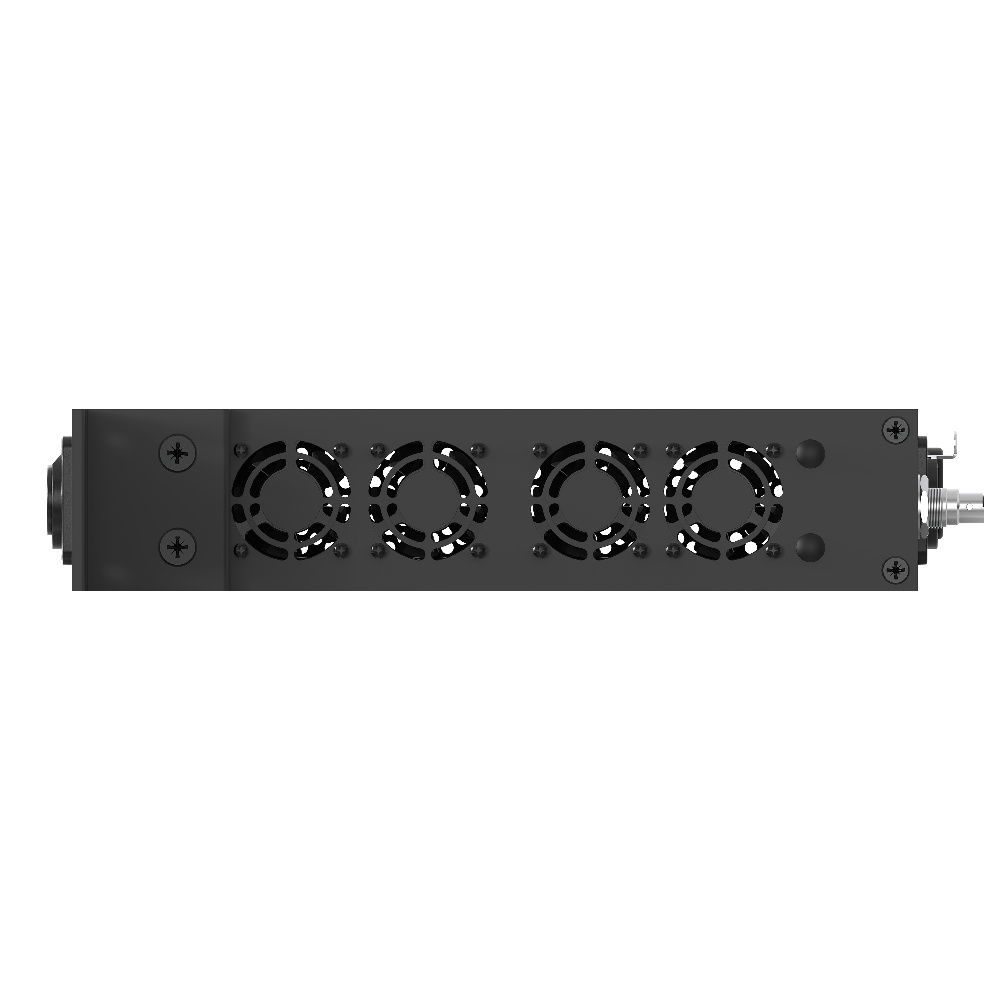

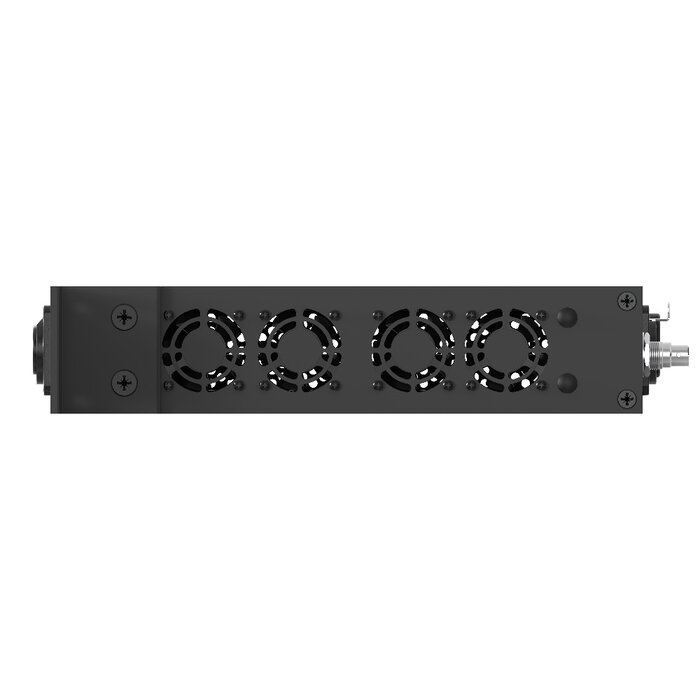

Thanks to the compact 1U rack design, the Fiber Unite converter fits perfectly into your existing video rack, allowing you to connect up to 5 cameras via a single cable to a Fiber Bridge or another Fiber Unite module. Built-in fans ensure proper cooling of all converters for a smooth workflow.
Robust fiber connector

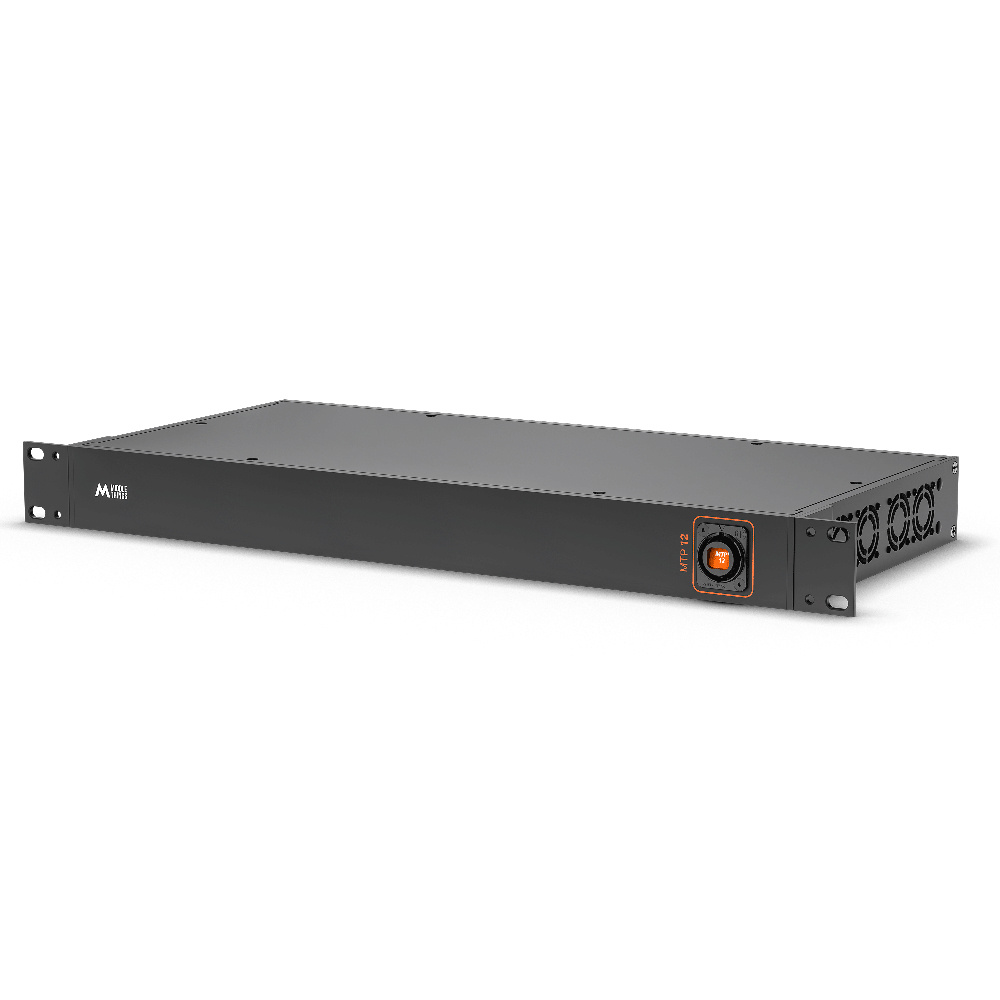

The opticalCON MTP 12 connector makes the Unite compatible with Neutrik's robust opticalCON MTP 12 cables, designed for use on location and harsh environments. The connector has a built-in automatic termination that protects the 12 fiber cores as soon as the cable is disconnected.
Many possibilities with the Middle Fiber products
In combination with a Fiber Dispatch or a Fiber Bridge, many configurations are possible that will greatly improve your daily multi-camera workflow!
The Fiber Unite 5 can be used in combination with the Middle Things Fiber Unite 5 6G and Bridge 5. It supports opticalCON MTP. It supports opticalCON MTP 12 cables. Supported SDI video signals are 3G and 6G (max 2160p30 ).
1x 1U Fiber Unite 5

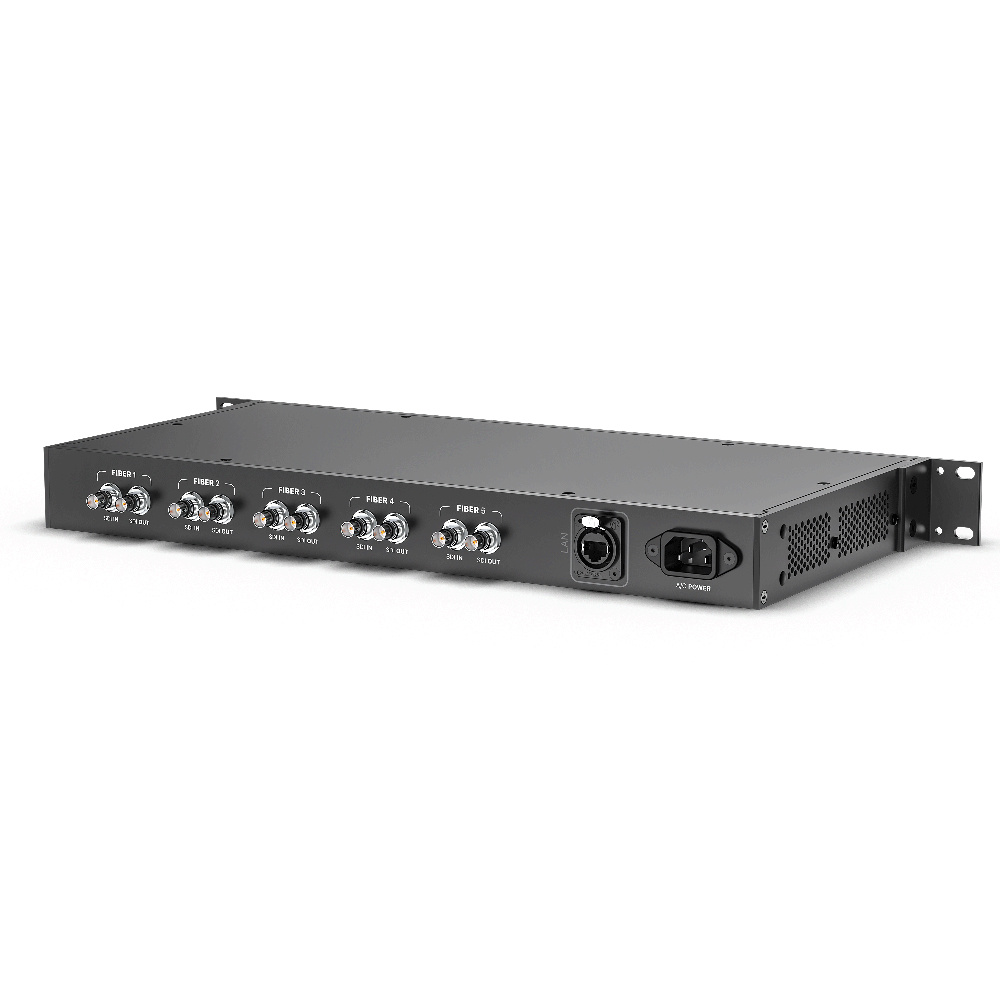

I/O connections: 5x SDI In, 5x SDI Out, 1x Neutrik opticalCON MTP® 12, 1x LAN , AC power supply.
Input voltage : 85V ~ 264V AC
Power consumption :
Fiber type : Single mode
LAN support: 10/100/1000Mbps Full/Half Duplex
Power Consumption:
Height : 4.5cm / 1.8in
Width : 48cm /18.9 inches
Depth : 22.5cm / 8.9in
Weight : 2.5kg / 5.5 lbs
Storage Temperature : 14 to 140°F / -10 to 60°C
Package weight: 3kg / 6.6lb
Box dimensions (LxWxH): 52cm x 25cm x 8cm | 20.5"x9.84"x3.15"
