Middle Things Fiber Bridge 5

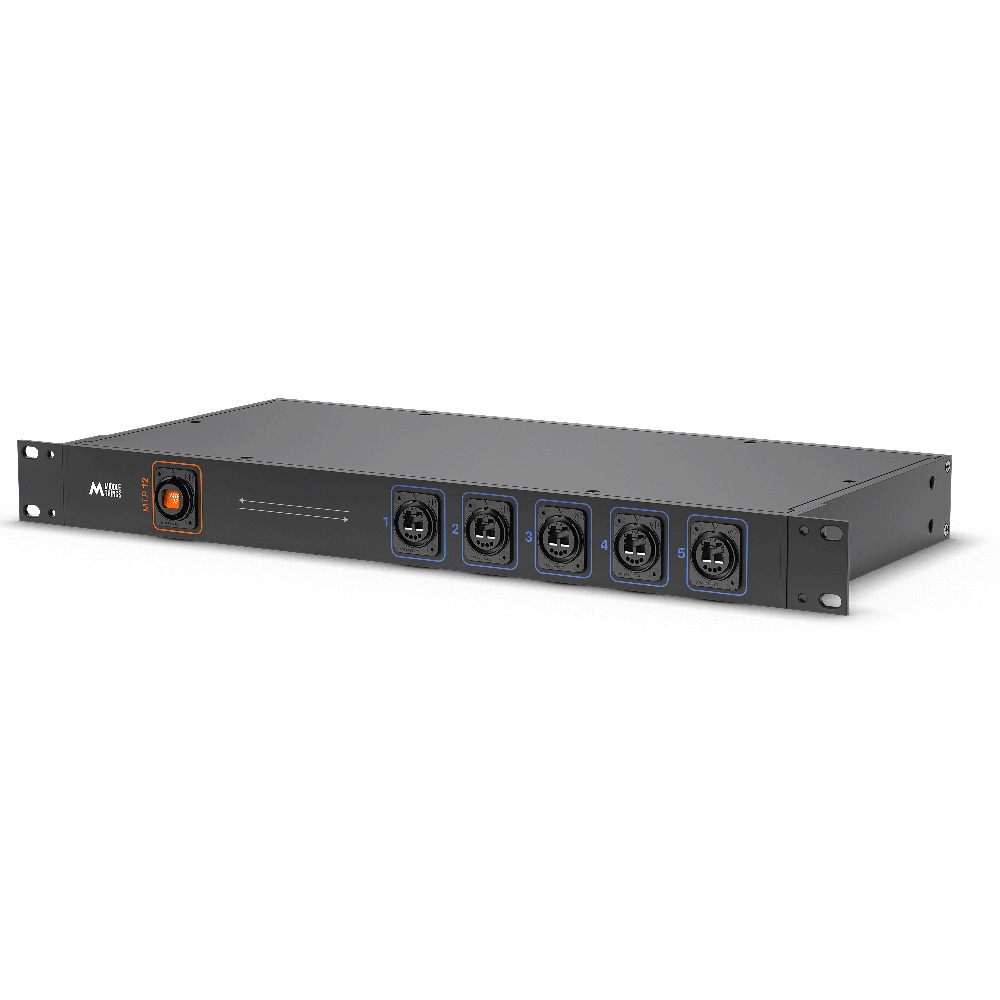

The Middle Things Fiber Bridge 5 splits a Neutrik opticalCON MTP 12 fiber cable into 5 different OpticalCON Duo pairs + LAN, and vice versa (bidirectional).
Stage box with bidirectional design

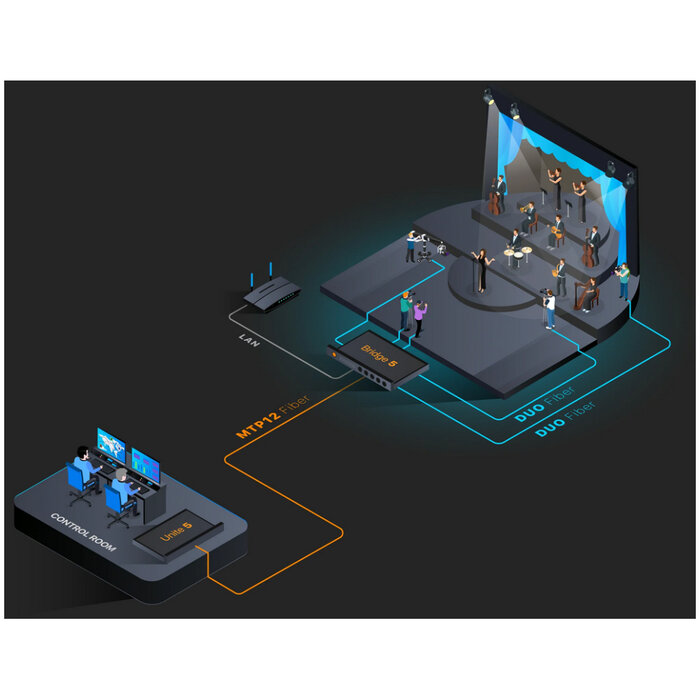

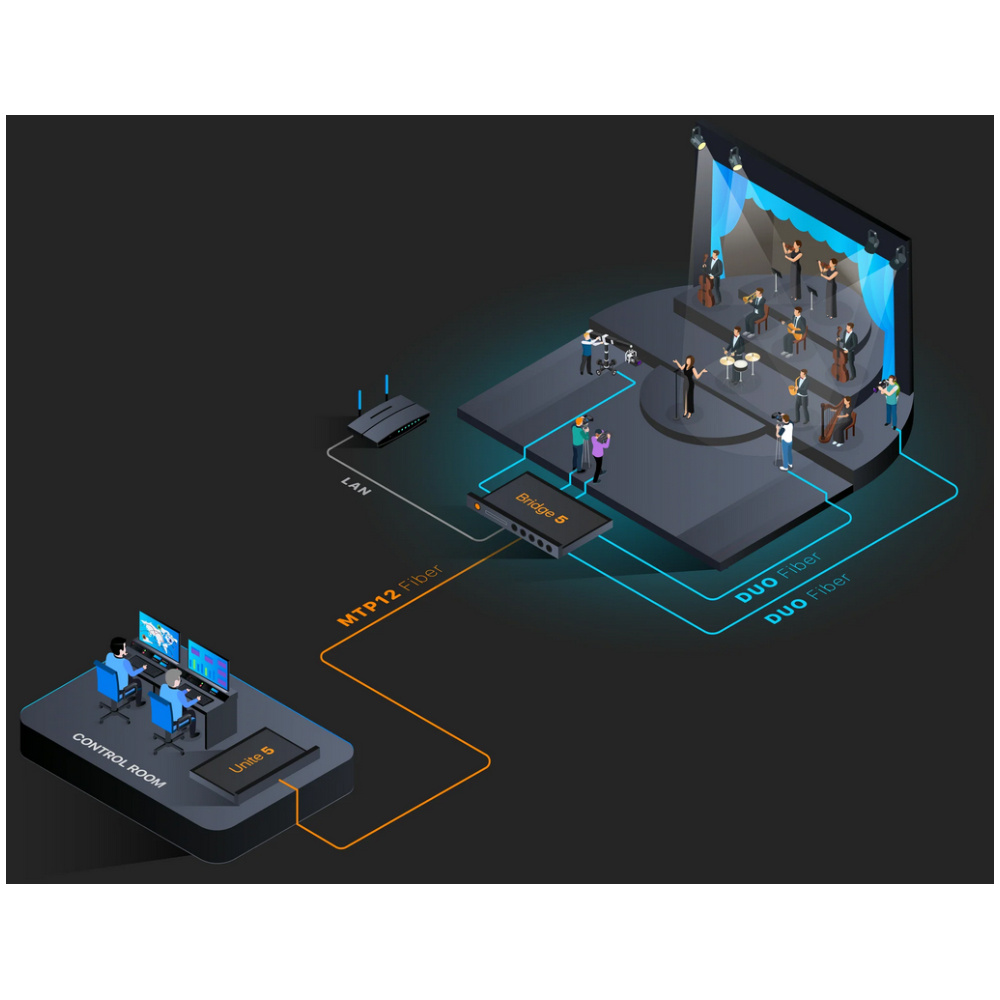

With the Fiber Bridge 5 you only have one cable running from the control room to the stage. On stage, the Fiber Bridge 5 acts as a stage box that splits the Neutrik opticalCON MTP 12 fiber cable into 5 different OpticalCON Duo pairs + LAN. You can also use it in reverse and merge 5 OpticalCON Duo pairs + LAN into a single opticalCON MTP 12 fiber cable.
Can work without power

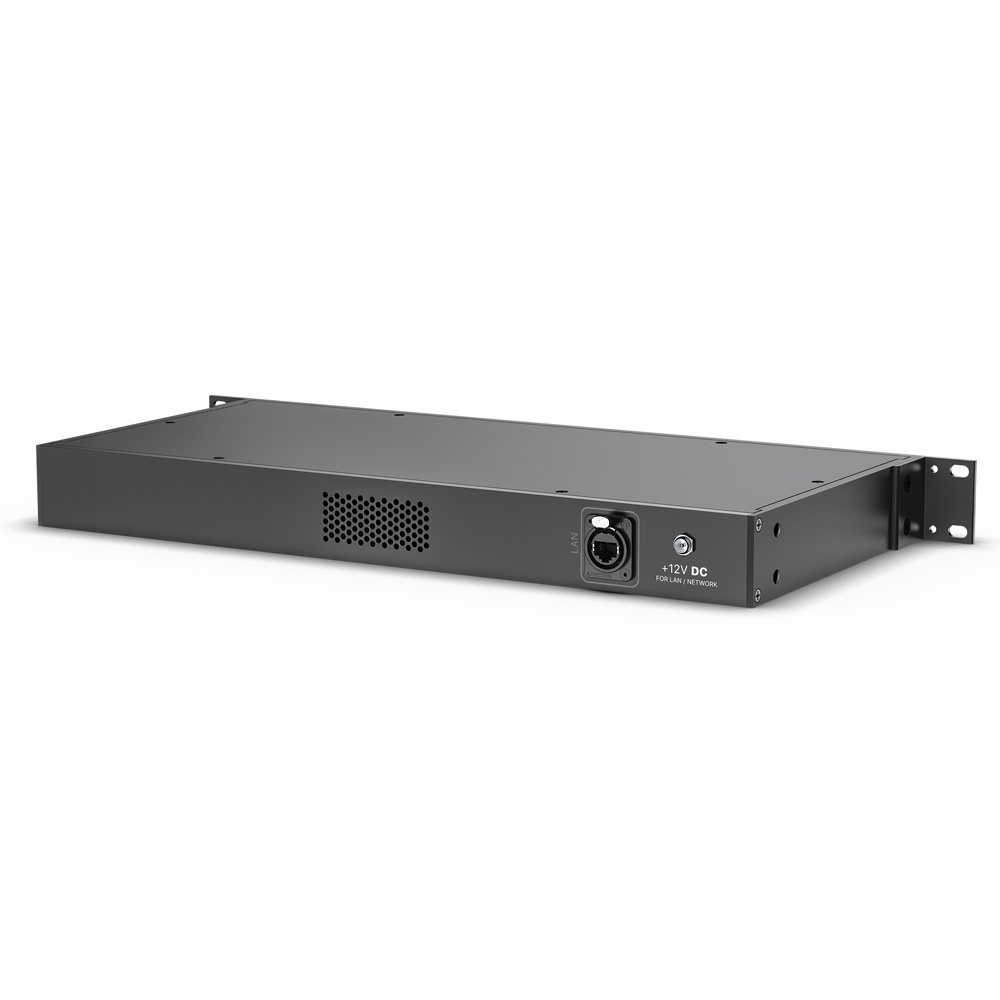

The Fiber Bridge is a passive splitter, meaning no power is required to run it. However, if you plan to use the LAN connection, you must provide +12V DC power through the DC jack.
Robust fiber connector
The opticalCON MTP 12 connector makes the Fiber Bridge compatible with Neutrik's robust opticalCON MTP 12 cables, designed for field use and harsh environments. The connector has a built-in automatic termination that protects the 12 fiber cores as soon as the cable is disconnected.
Many possibilities with the Middle Fiber products

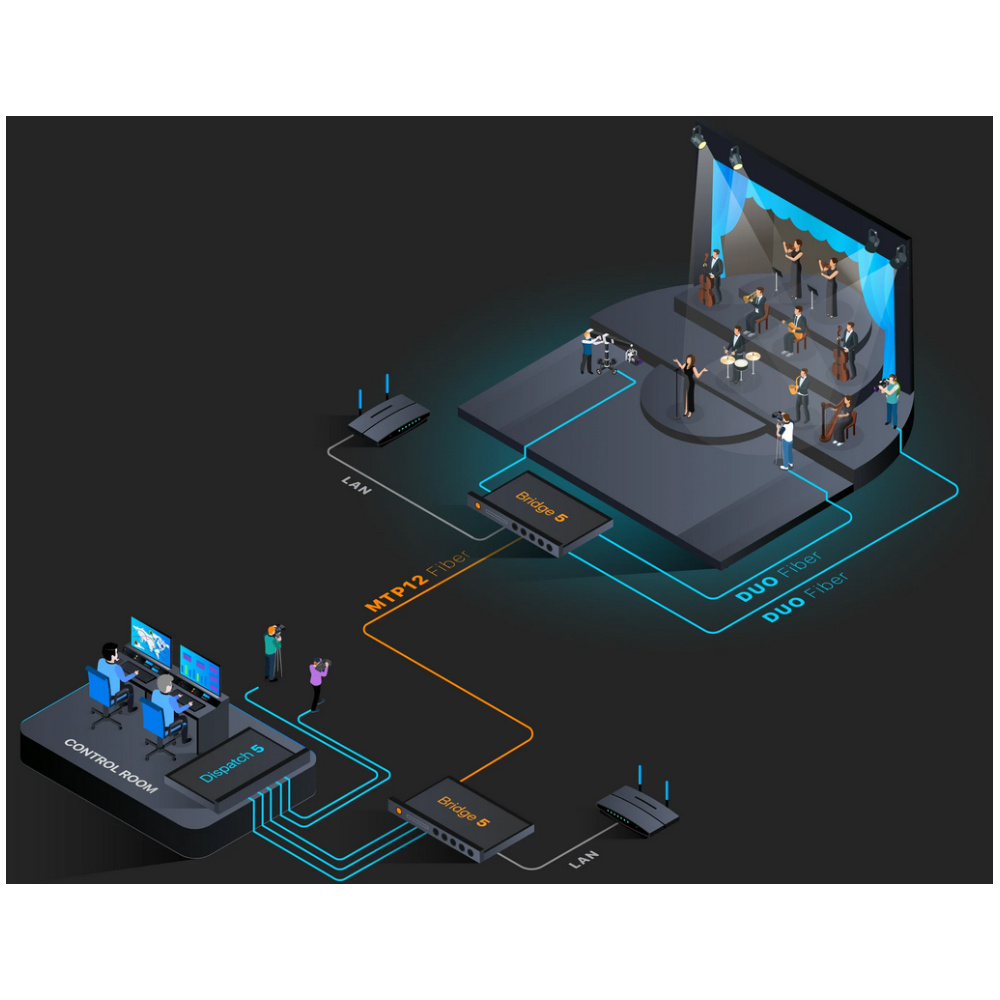

In combination with a Fiber Dispatch, a Fiber Unite or a Fiber Camera Box, many configurations are possible that will greatly improve your daily multi-camera workflow!
The Fiber Bridge 5 can be used with the Middle Things Fiber Unite 5, Bridge 5, Dispatch 5 and Fiber Camera Box. It supports single mode LC fiber optic cables and Neutrik OpticalCon Duo and OpticalCon Duo Lite cables. The MTP 12 connector supports MTP 12 cables from OpticalCon.
1x 1U Fiber Bridge 5
I/O connections: 5x Neutrik OpticalCON Duo, 1x Neutrik opticalCON MTP® 12, 1x LAN, +12V DC power supply.
Input voltage : 12V DC
Power consumption :
Fiber type : Single mode
LAN support: 10/100/1000Mbps Full/Half Duplex
Power Consumption:
Height : 4.5cm / 1.8in
Width : 48cm /18.9 inches
Depth : 22.5cm / 8.9in
Weight : 2.5kg / 5.5 lbs
Storage Temperature : 14 to 140°F / -10 to 60°C
Package weight: 3kg / 6.6lb
Box dimensions (LxWxH): 52cm x 25cm x 8cm | 20.5"x9.84"x3.15"
